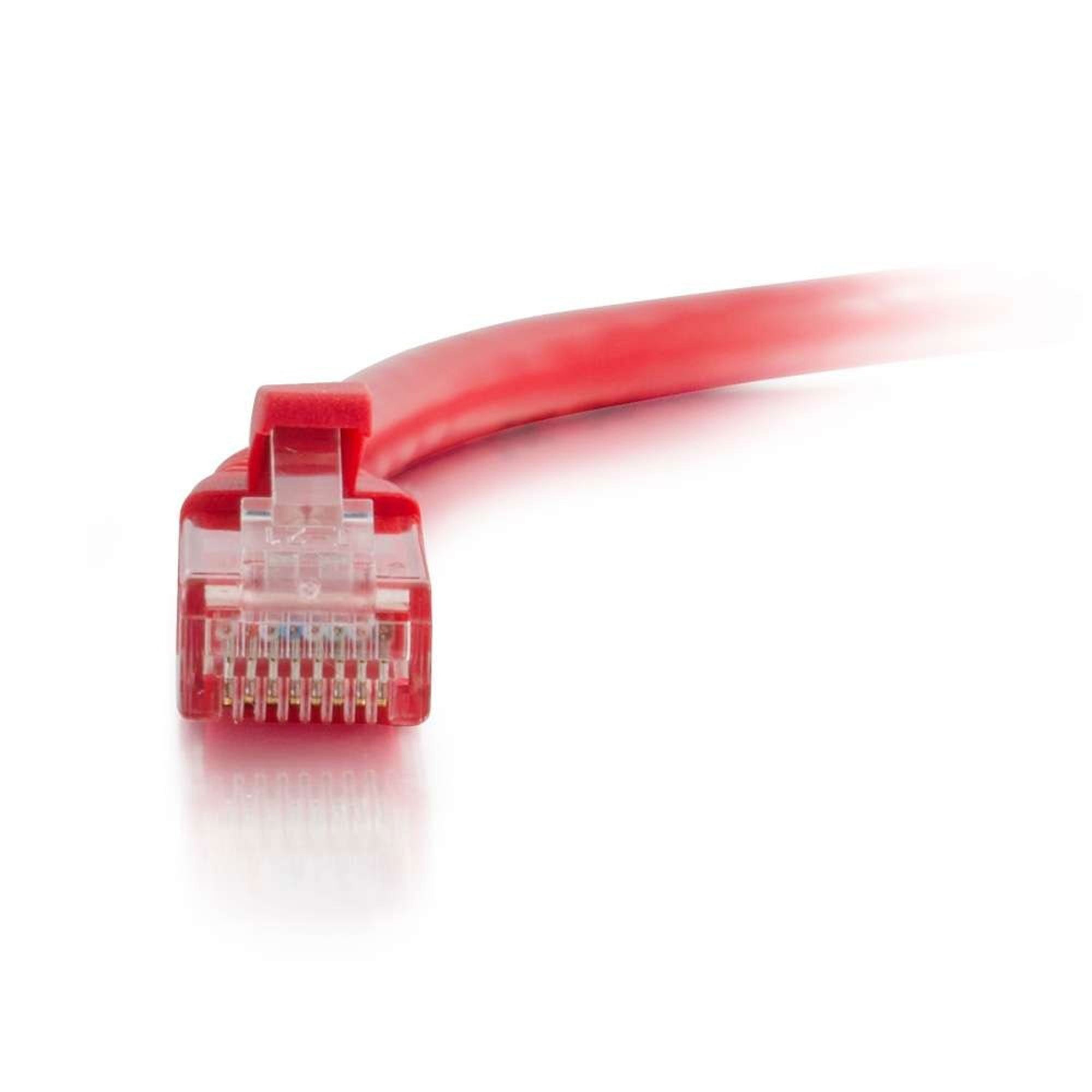

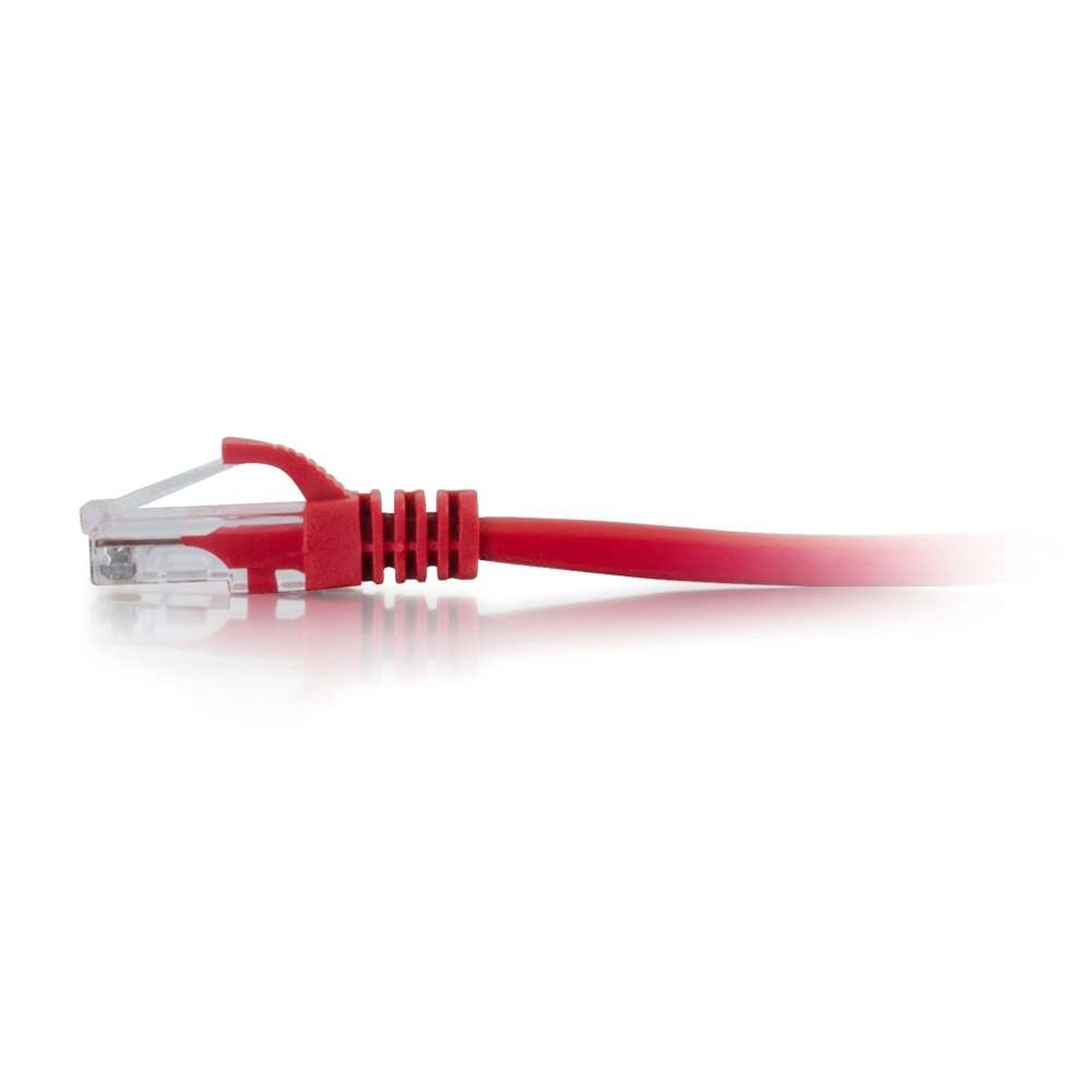

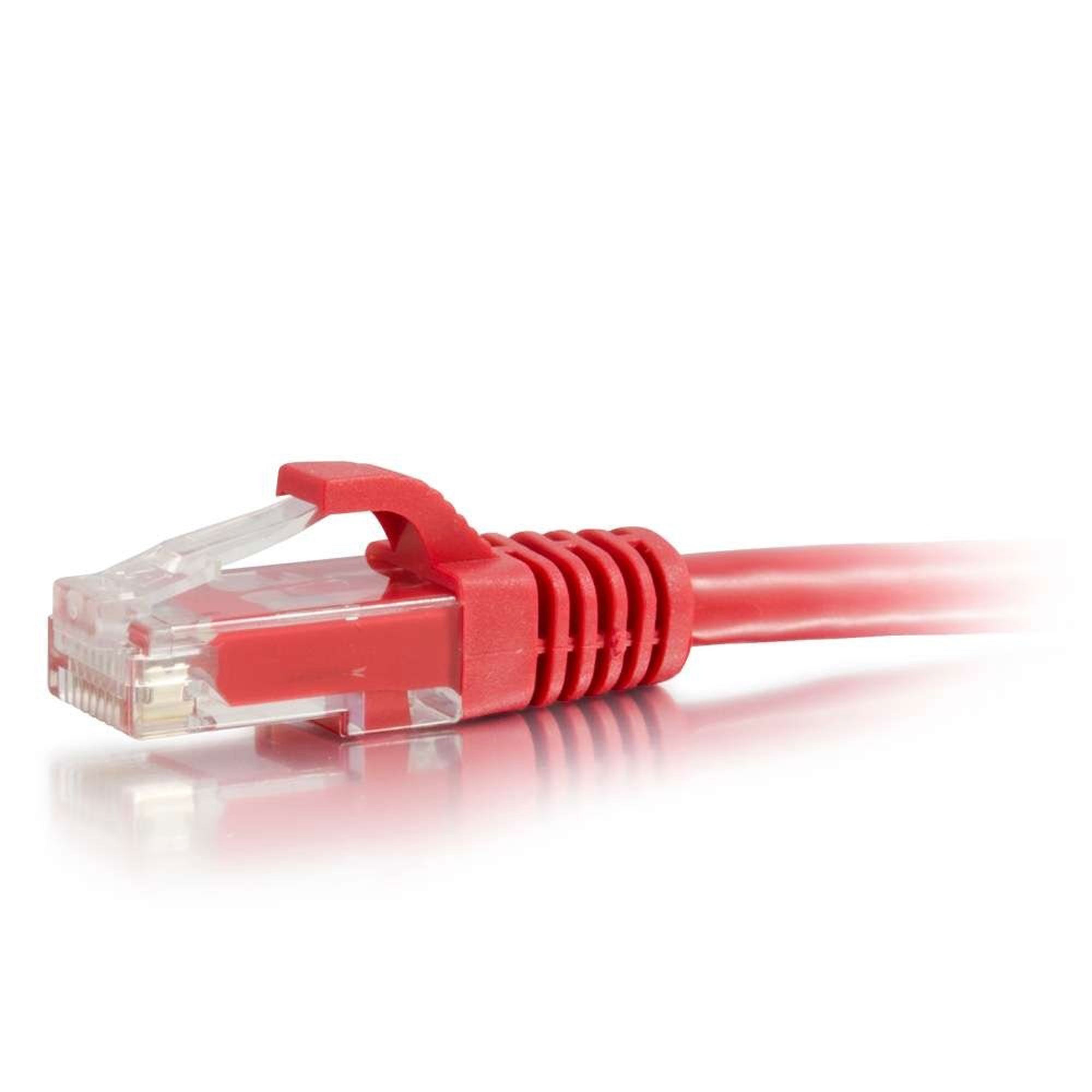

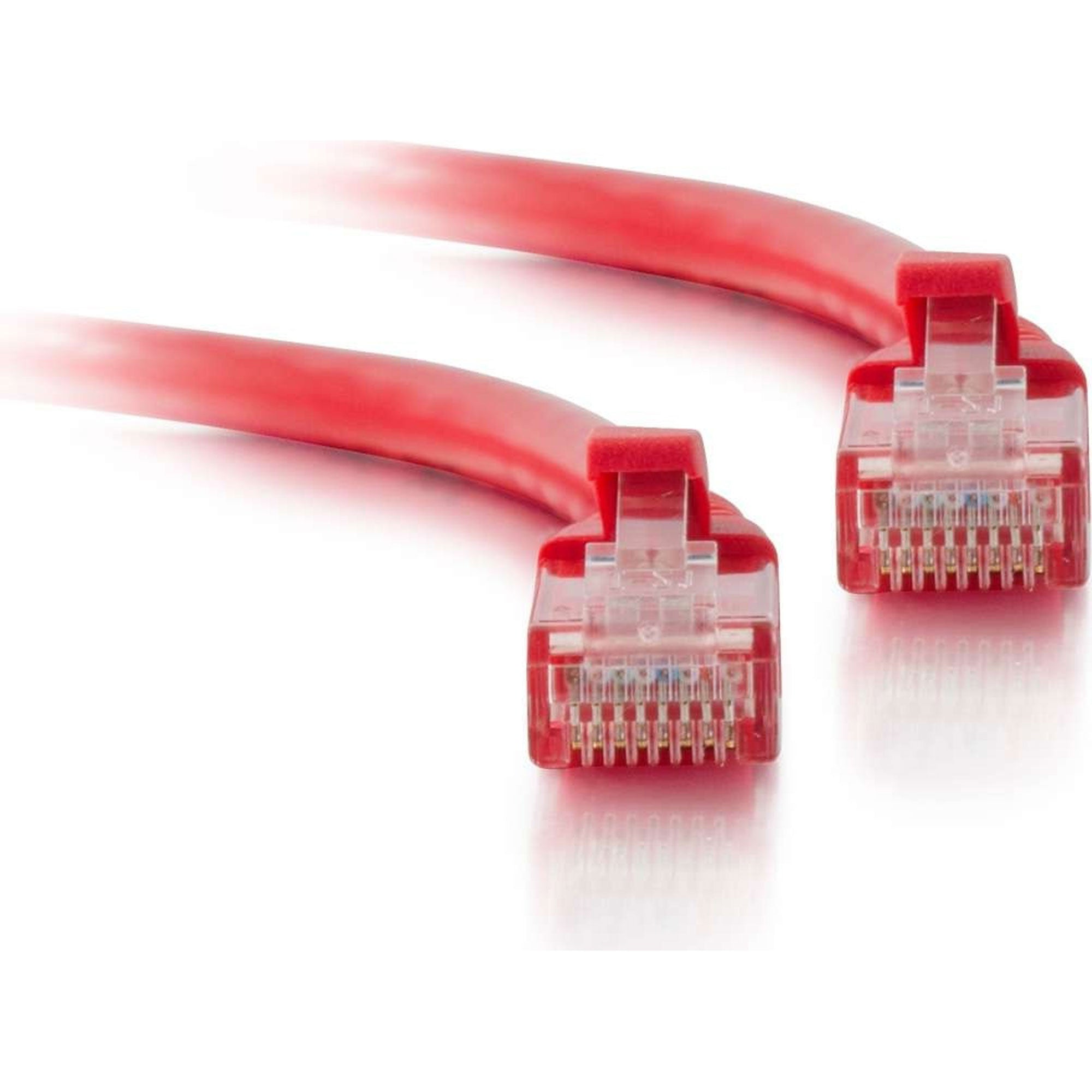

C2G Cat6 Snagless Unshielded (UTP) Ethernet Network Patch Cable - Red (15')

15 Feet Cat6 Snagless UnShielded (UTP) Ethernet Network Patch Cable - Red

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Features:

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 11 colors to color-code a network
• Available in lengths up to 150ft

Specifications:

• Color : Red
• Length : 15.00 Foot
• Jacket Rating : Standard
• UPC : 757120040040
• Warranty : Lifetime
• Vendor : C2G
• Weight : 0.400 LB
• Physical Characteristics
• Conductor Type/Size - Bare Copper, 26 AWG (7/0/0.16)
• Insulation
• Material - FM-PE
• Colors - Black, Blue, Gray, Aqua, Green, Orange, Purple, Red, White, Yellow
• Jacket
• Material - PVC
• Nominal Thickness - 0.55mm
• Outer Diameter - 5.30mm
• Connector
• Connector Type - RJ-45 Male
• Material - Polycarbonate
• Hood Material - Molded Snagless PVC
• Contact Material - Nickel plated for shielding with gold-50µm
• Other Specifications
• Approvals - RoHS Compliant, Verified to ANSI/TIA-568-C-2
• Wired - TSB 568B (AT&T 258A)
• Package Type - Polybag
