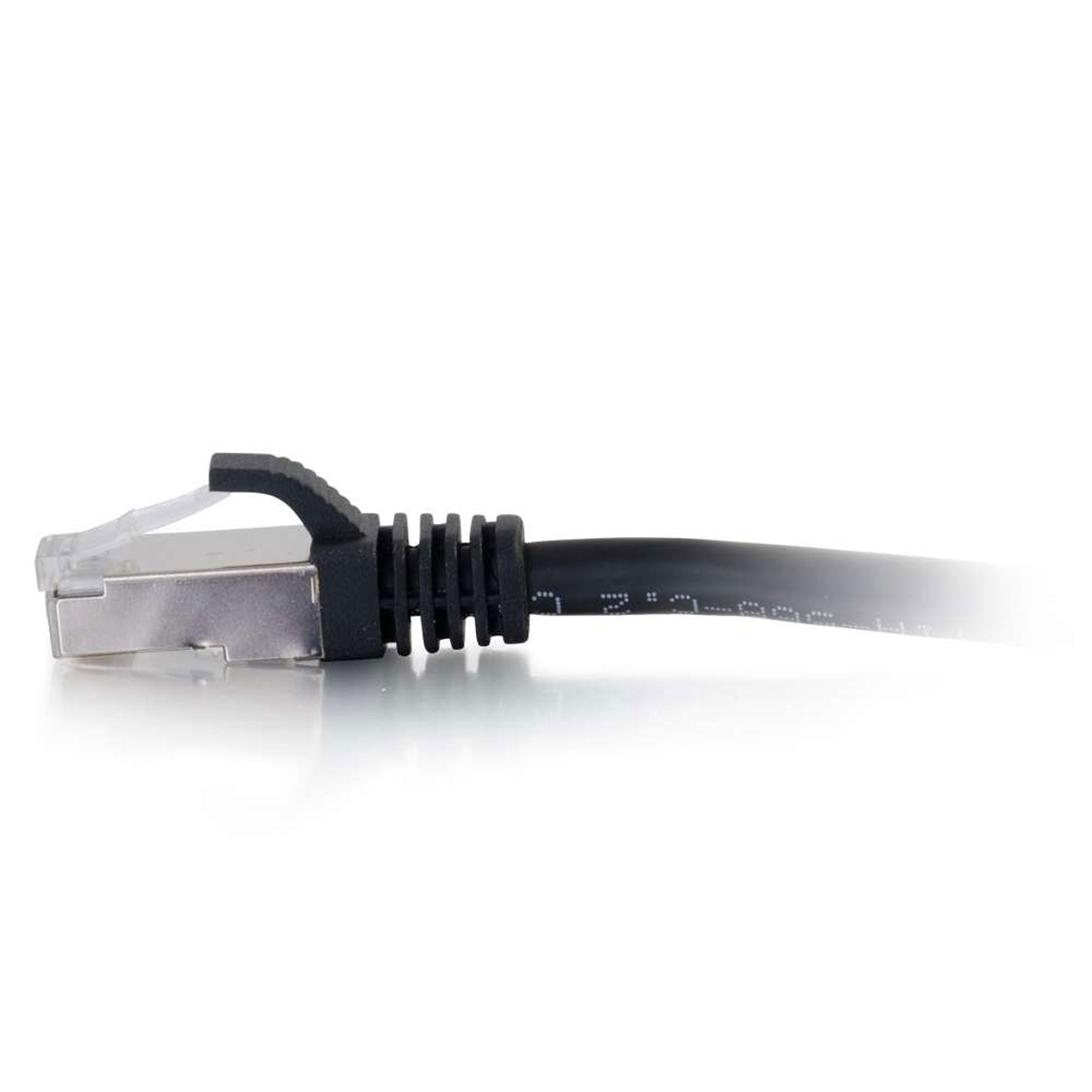

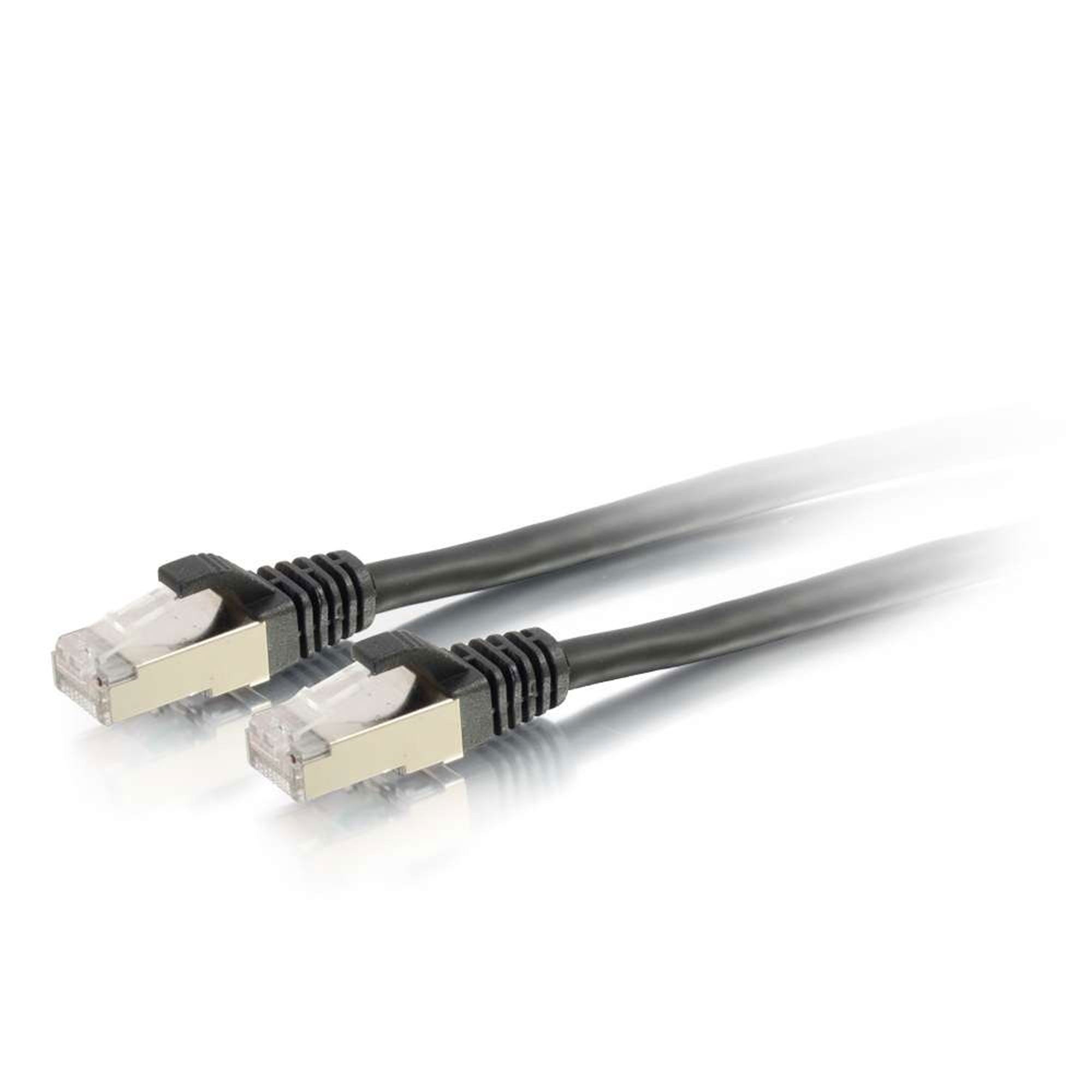

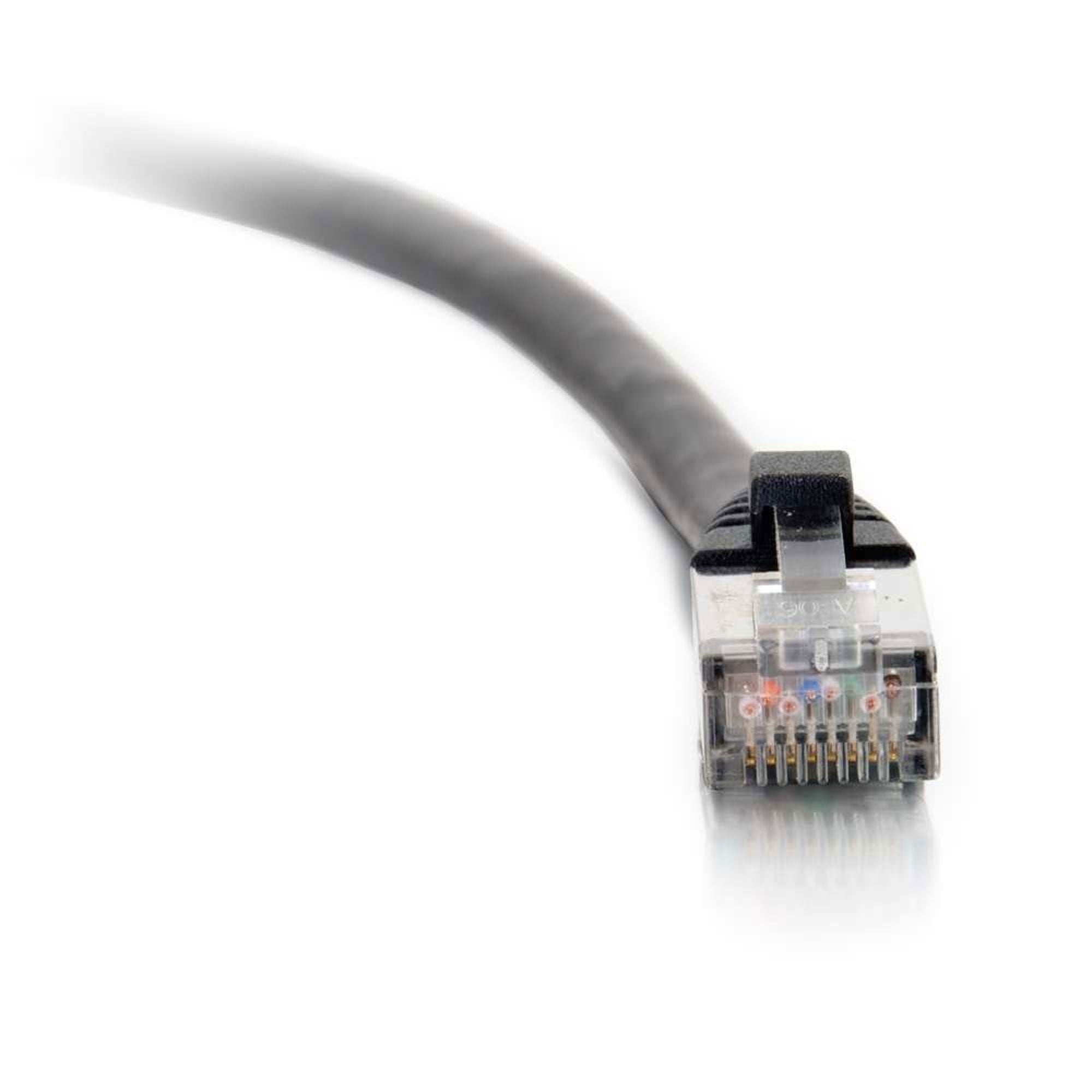

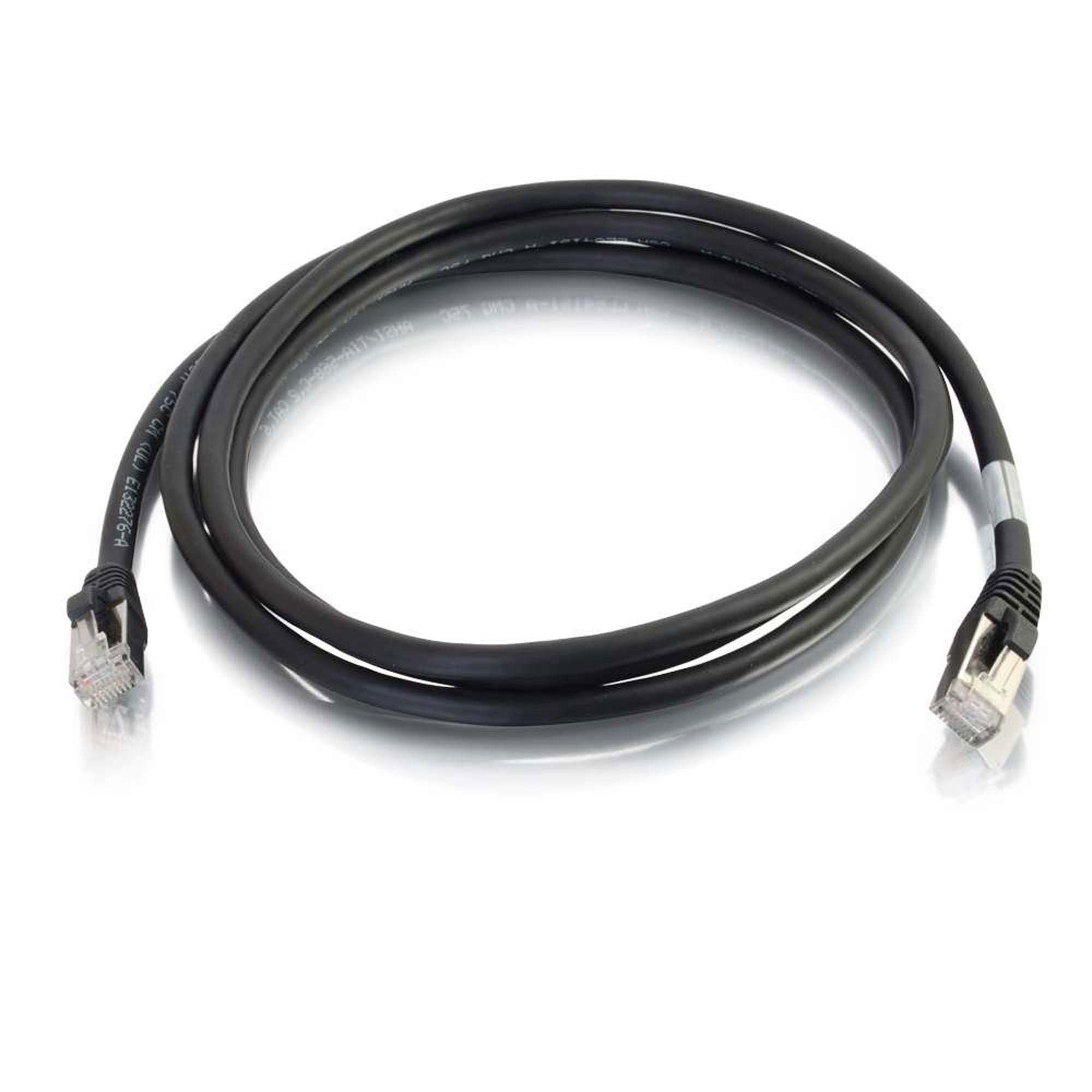

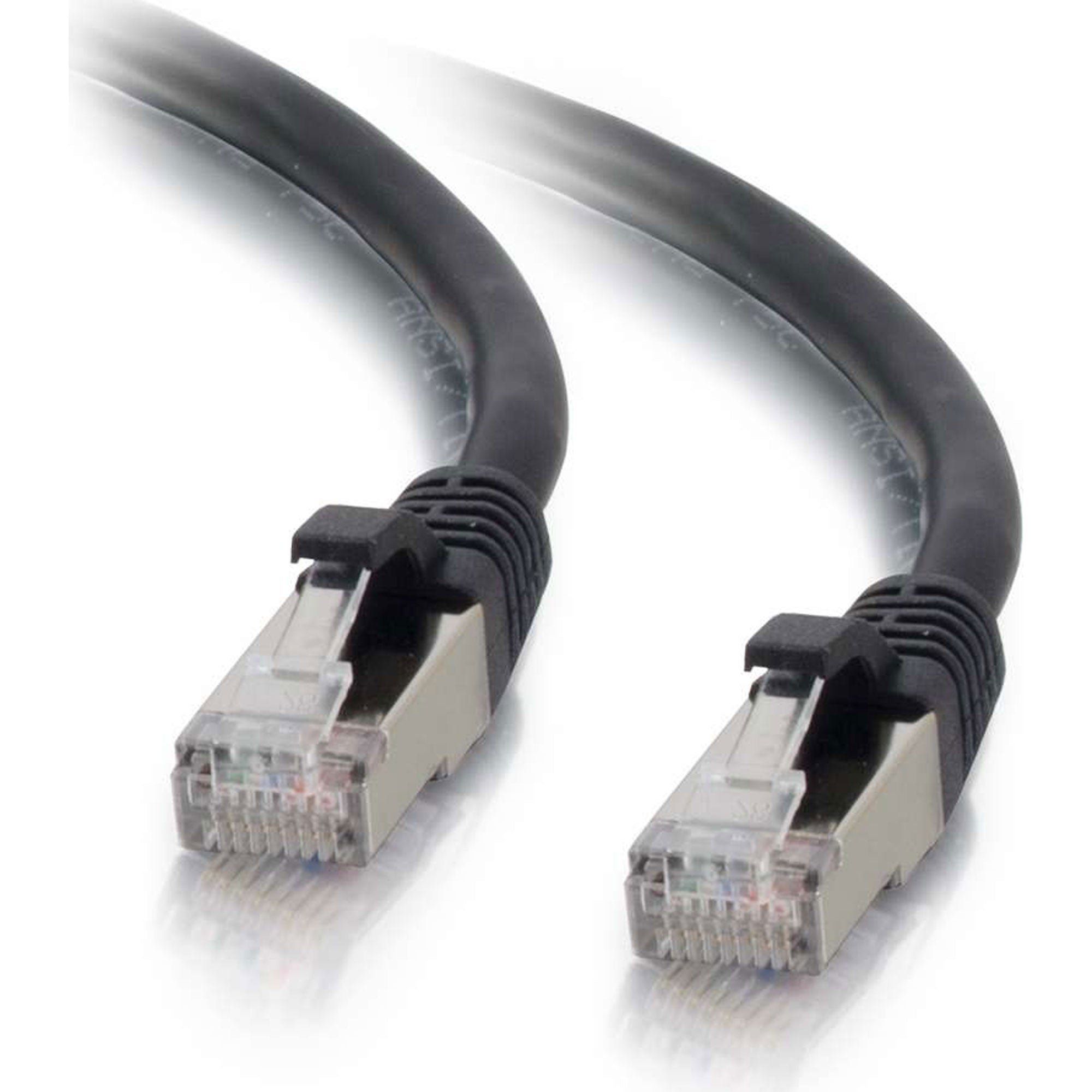

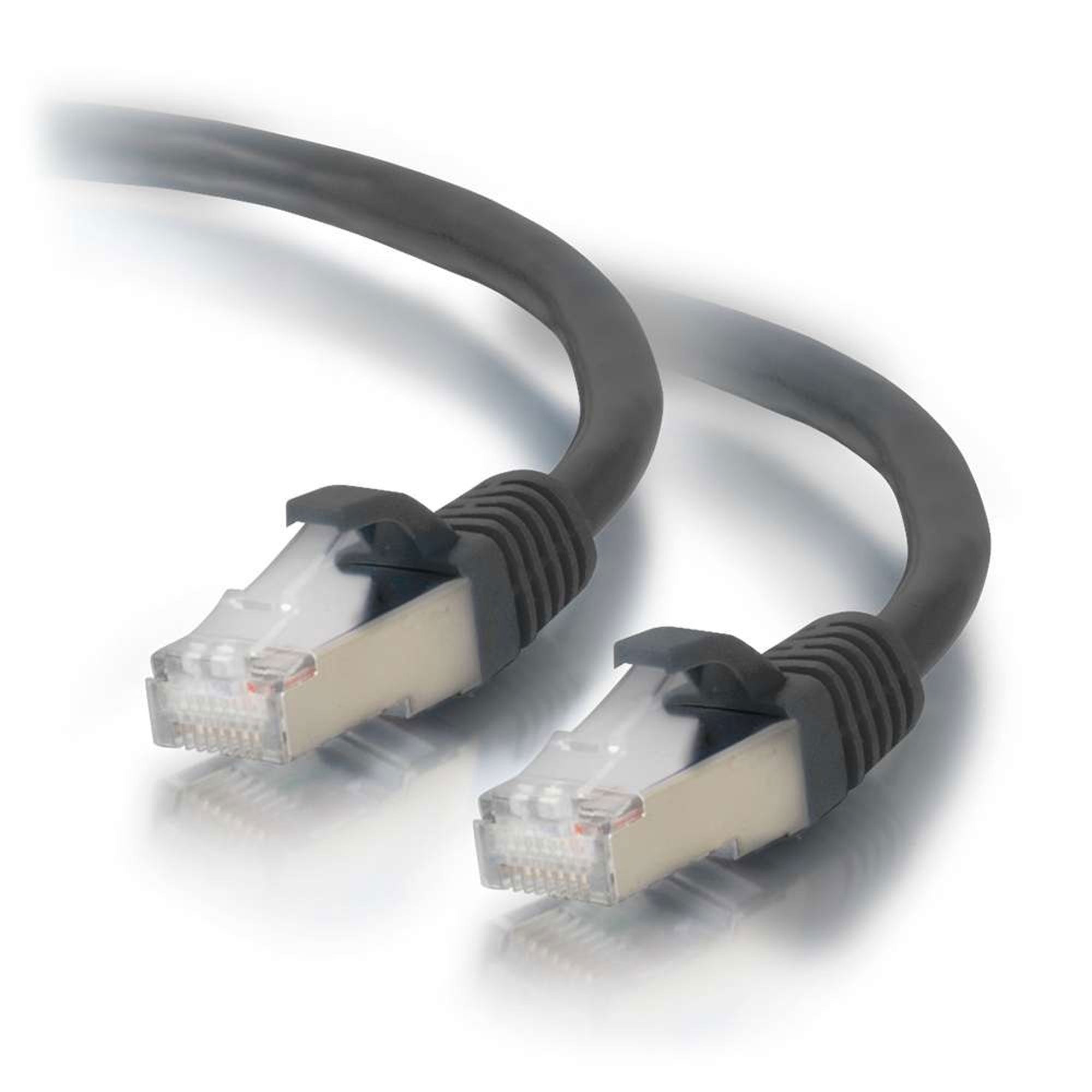

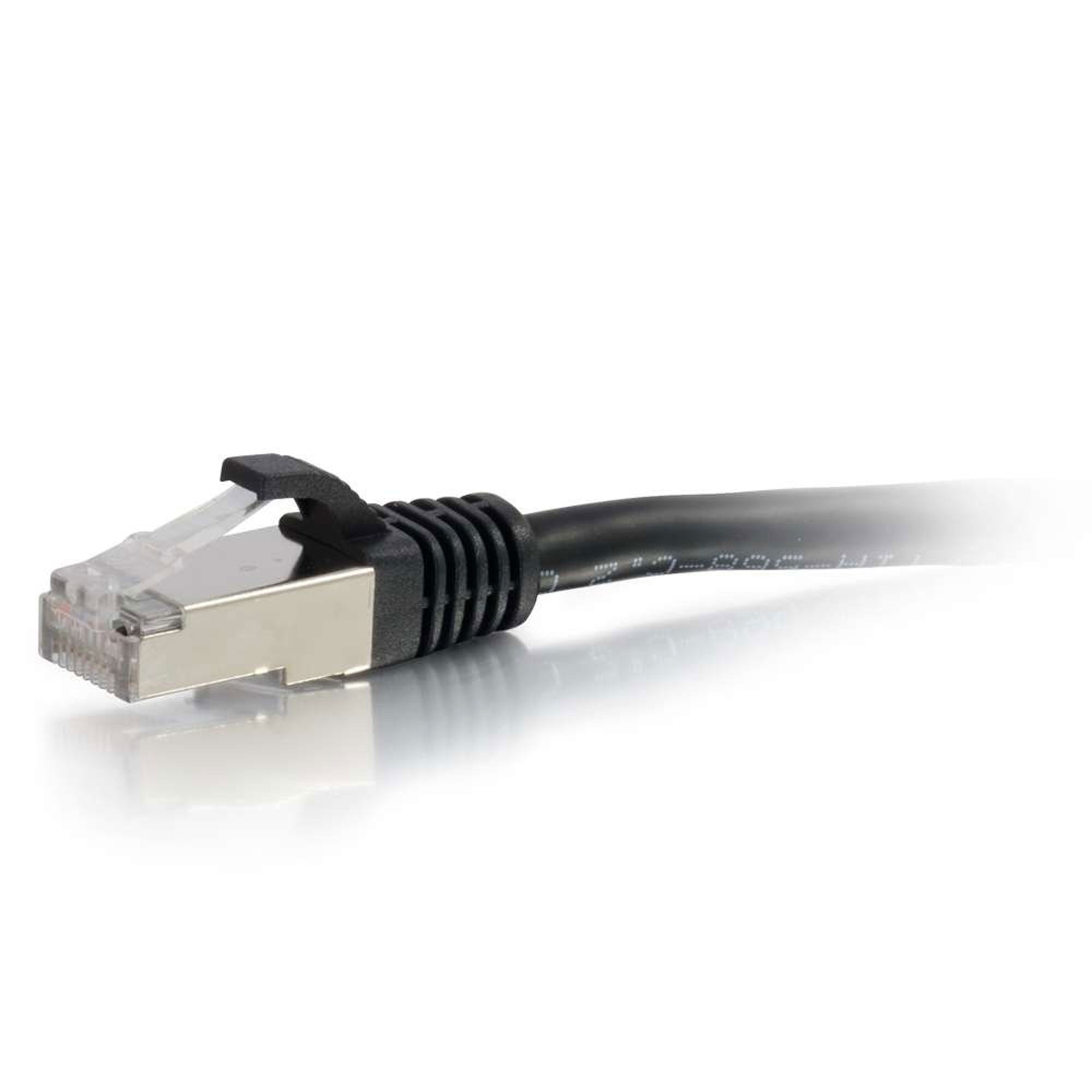

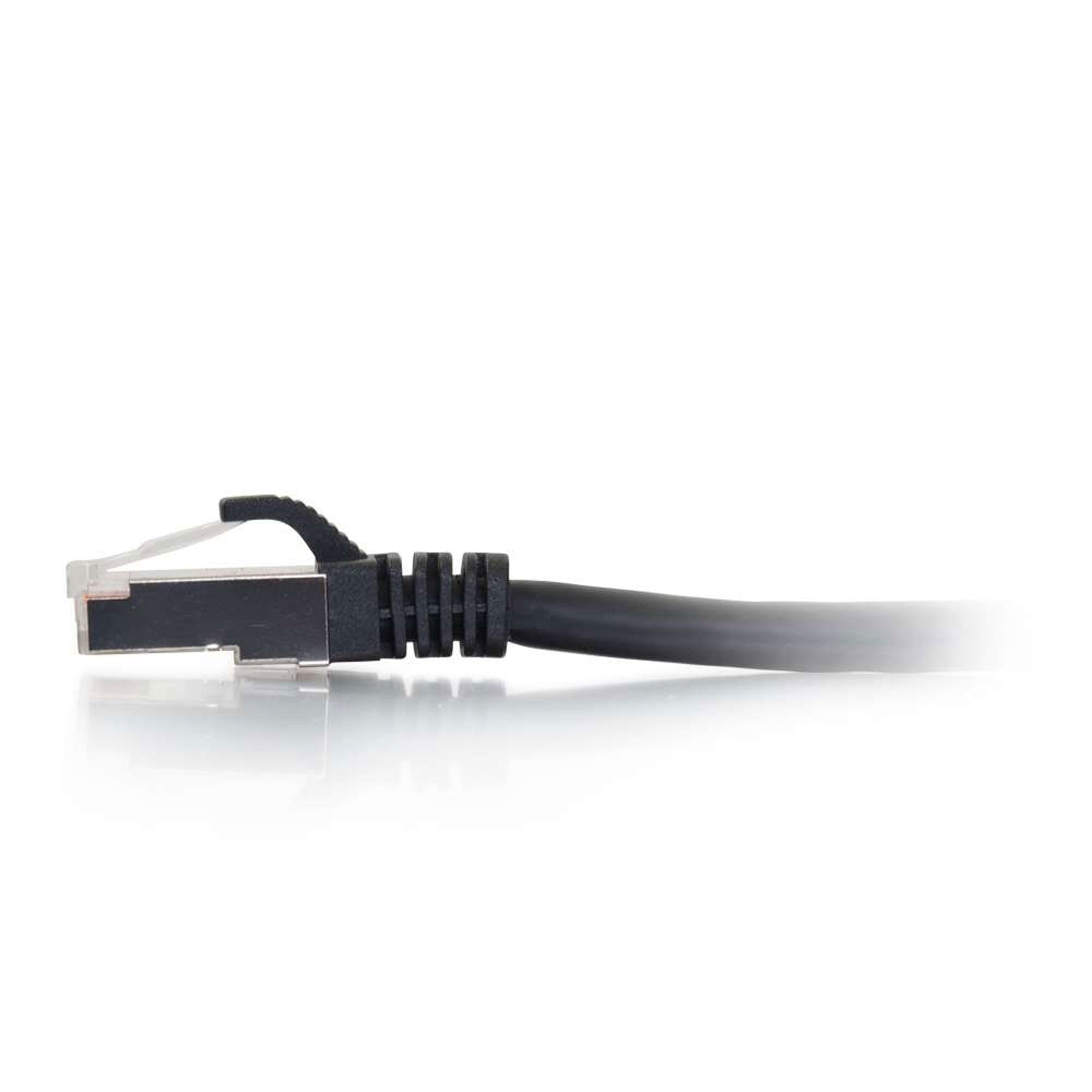

C2G Cat6 Snagless Shielded (STP) Ethernet Network Patch Cable - Black (8')

8 Feet Cat6 Snagless Shielded (STP) Ethernet Network Patch Cable - Black

Protect a high speed network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6 patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6 component requirements.
Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use.

Features:

• Protects from EMI/RFI interference
• Designed for network adapters, hubs, switches, routers and more
• Constructed with copper braided wire
• Available in 10 colors to color-code a network
• Available in lengths up to 35ft

Specifications:

• Color : Black
• Length : 8.00 Foot
• UPC : 757120008156
• Warranty : Lifetime
• Vendor : C2G
• Weight : 0.270 LB
• Physical Characteristics
• Conductor Type/Size - Bare Copper, 26 AWG (7/0/0.16)
• Insulation
• Material - FM-PE
• Colors - Black, Blue, Gray, Aqua, Green, Orange, Purple, Red, White, Yellow
• Jacket
• Material - PVC
• Nominal Thickness - 0.55mm
• Outer Diameter - 5.30mm
• Connector
• Connector Type - RJ-45 Male
• Material - Polycarbonate
• Hood Material - Molded Snagless PVC
• Contact Material - Nickel plated for shielding with gold-50µm
• Other Specifications
• Approvals - RoHS Compliant, Verified to ANSI/TIA-568-C-2
• Wired - TSB 568B (AT&T 258A)
• Package Type - Polybag
