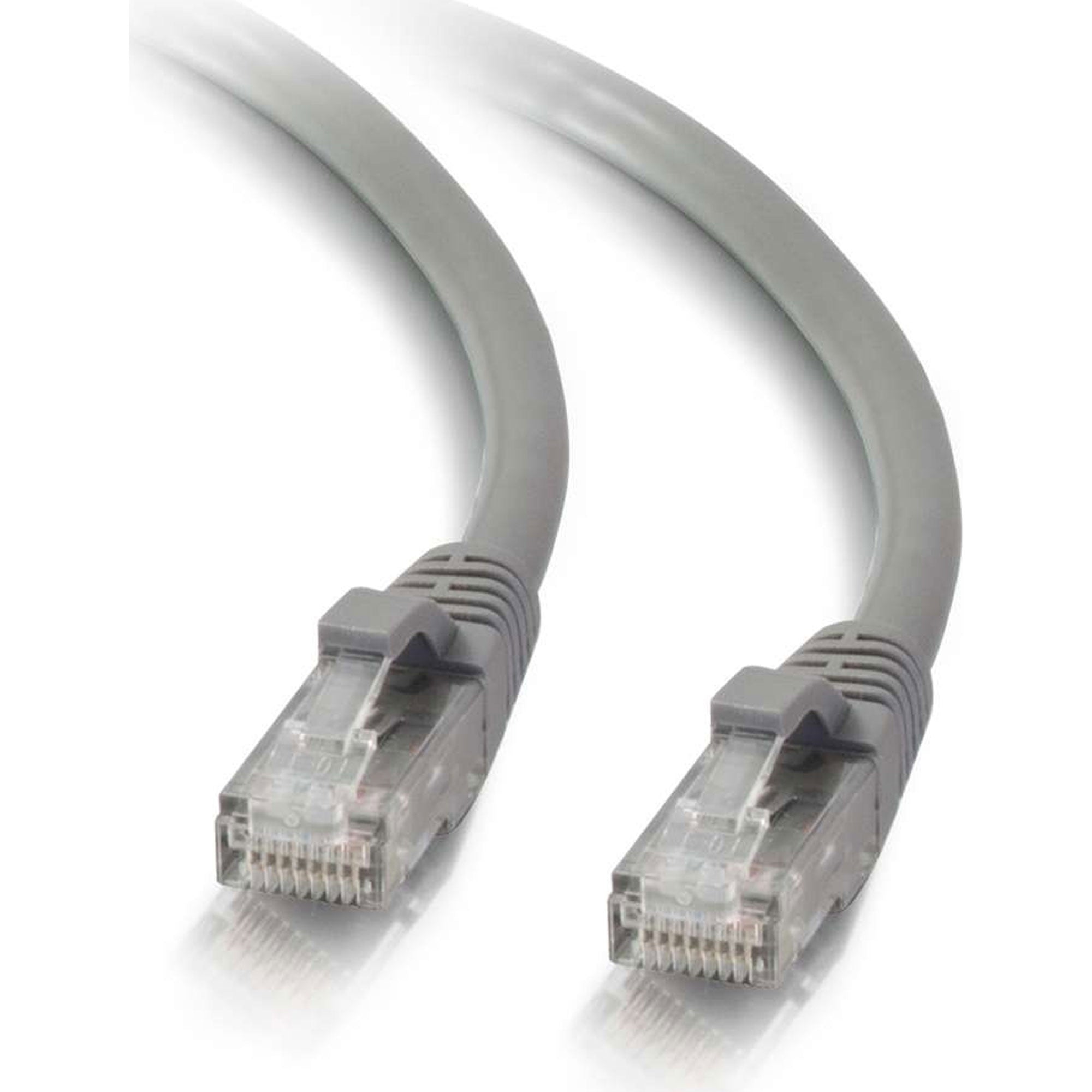

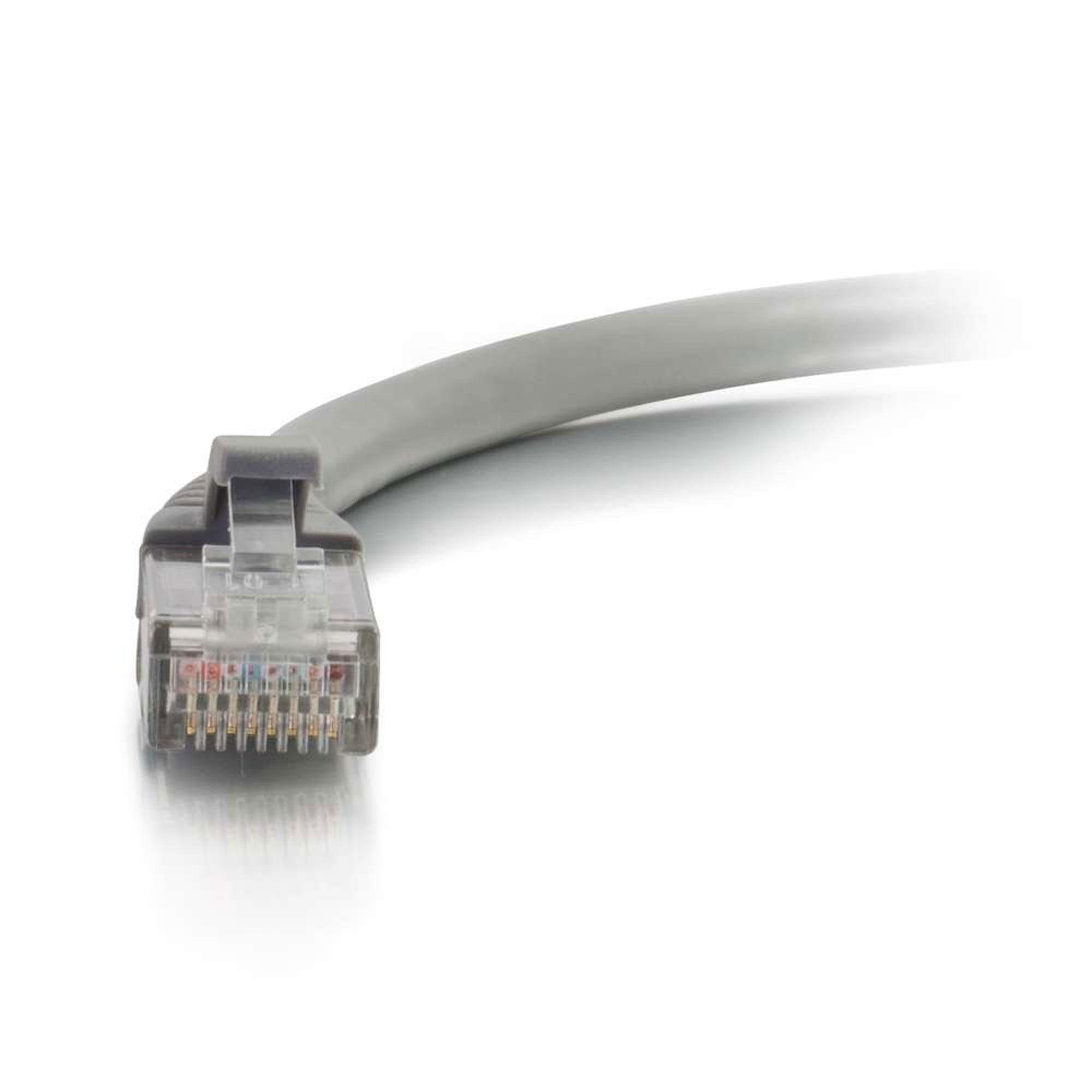

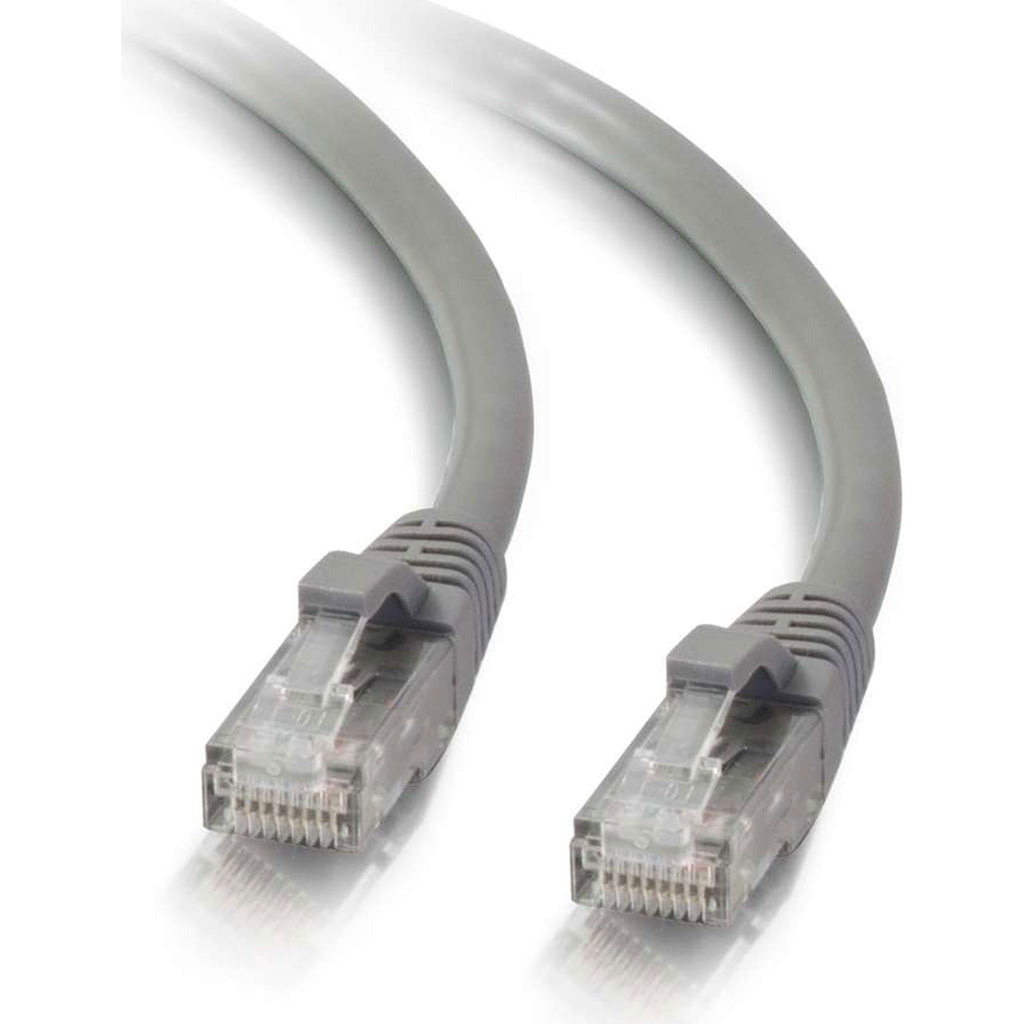

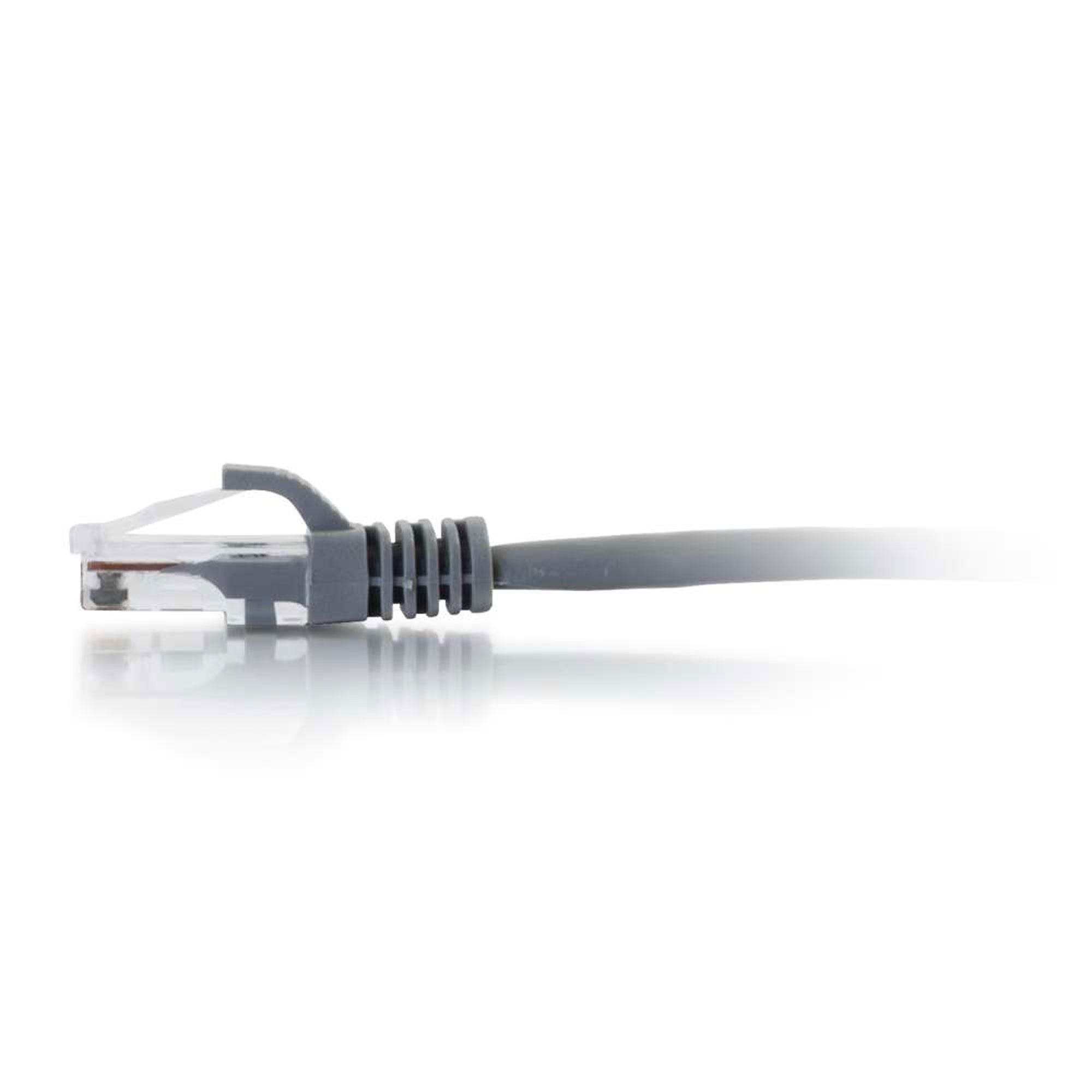

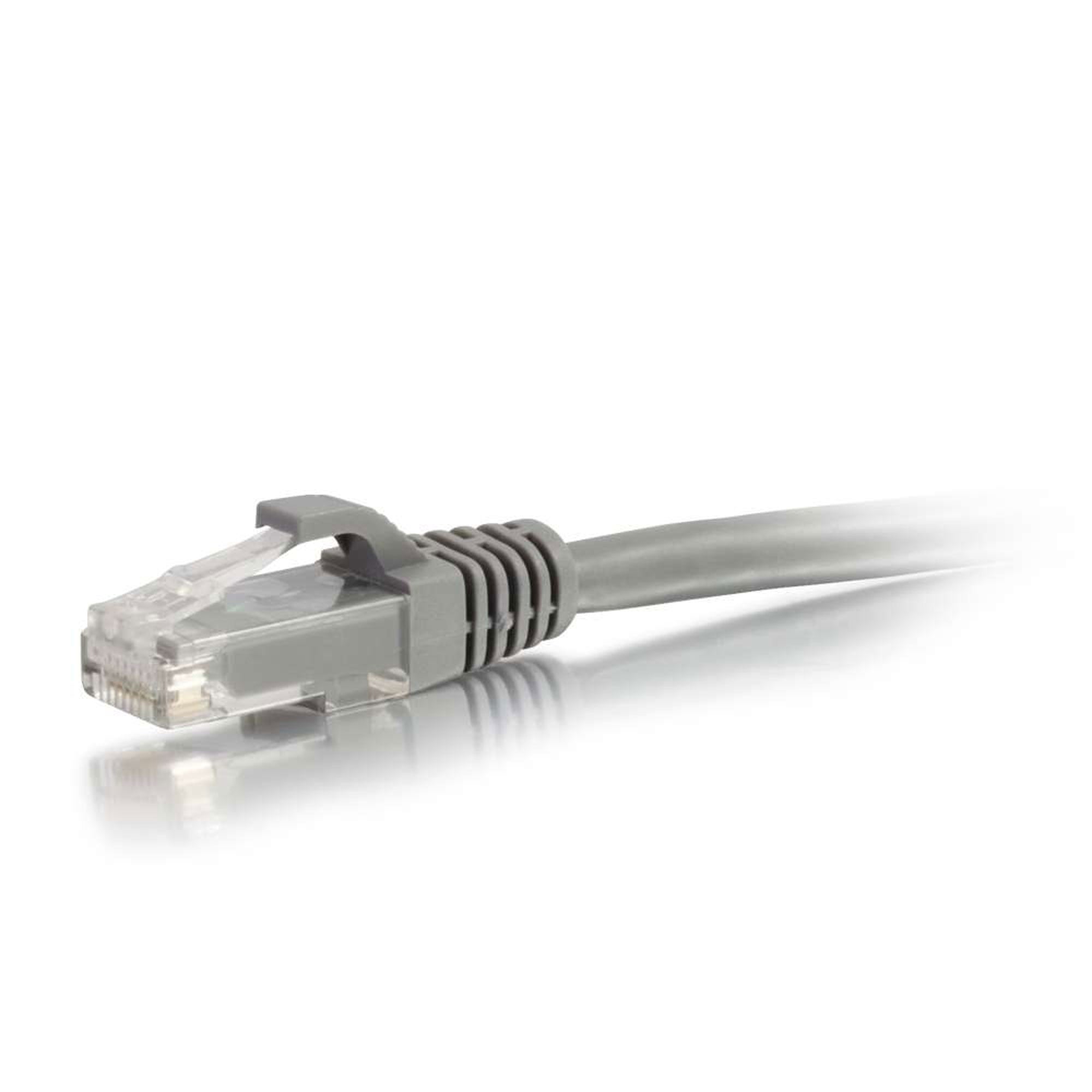

C2G Cat5e Snagless Unshielded (UTP) Ethernet Network Patch Cable - Grey (30')

30 ft. Cat5e Snagless Unshielded (UTP) Ethernet Network Patch Cable - Grey

For fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Features:

• Snagless design protects clips when plugging and unplugging
• Standard RJ45 connectors and unshielded twisted pair wires
• Available in 10 colors to color-code a network
• Available in lengths up to 250ft

Specifications:

• Color : Grey
• Length : 30.00 Foot
• UPC : 757120003908
• Warranty : Lifetime
• Vendor : C2G
• Weight : 0.694 LB
• Electrical Specifications
• Conductor DC Resistance: 89 Ohm/km (maximum)
• Insulation Resistance: 100 Ohm/km (minimum)
• Dielectric Strength: 500 MV/m
• Physical Characteristics
• Conductor Type/Size - Bare Copper Stranded, 24 AWG (7/0/2.0)
• Insulation
• Material - H-D PE
• Diameter - 0.95 ± 0.05mm
• Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-White
• Jacket
• Material - FR-PVC
• Nominal Thickness - 0.55mm
• Outer Diameter - 5.30mm
• Connector
• Material - Polycarbonate
• Hood Material - Molded PVC
• Contact Material - Copper alloy plated with gold-50µ
• Number of contacts - Eight
• Other Specifications
• Approvals - RoHS Compliant, Verified to ANSI/TIA-568-C-2
• Wired - TSB 568B (AT&T 258A)
• Package Type - Polybag
