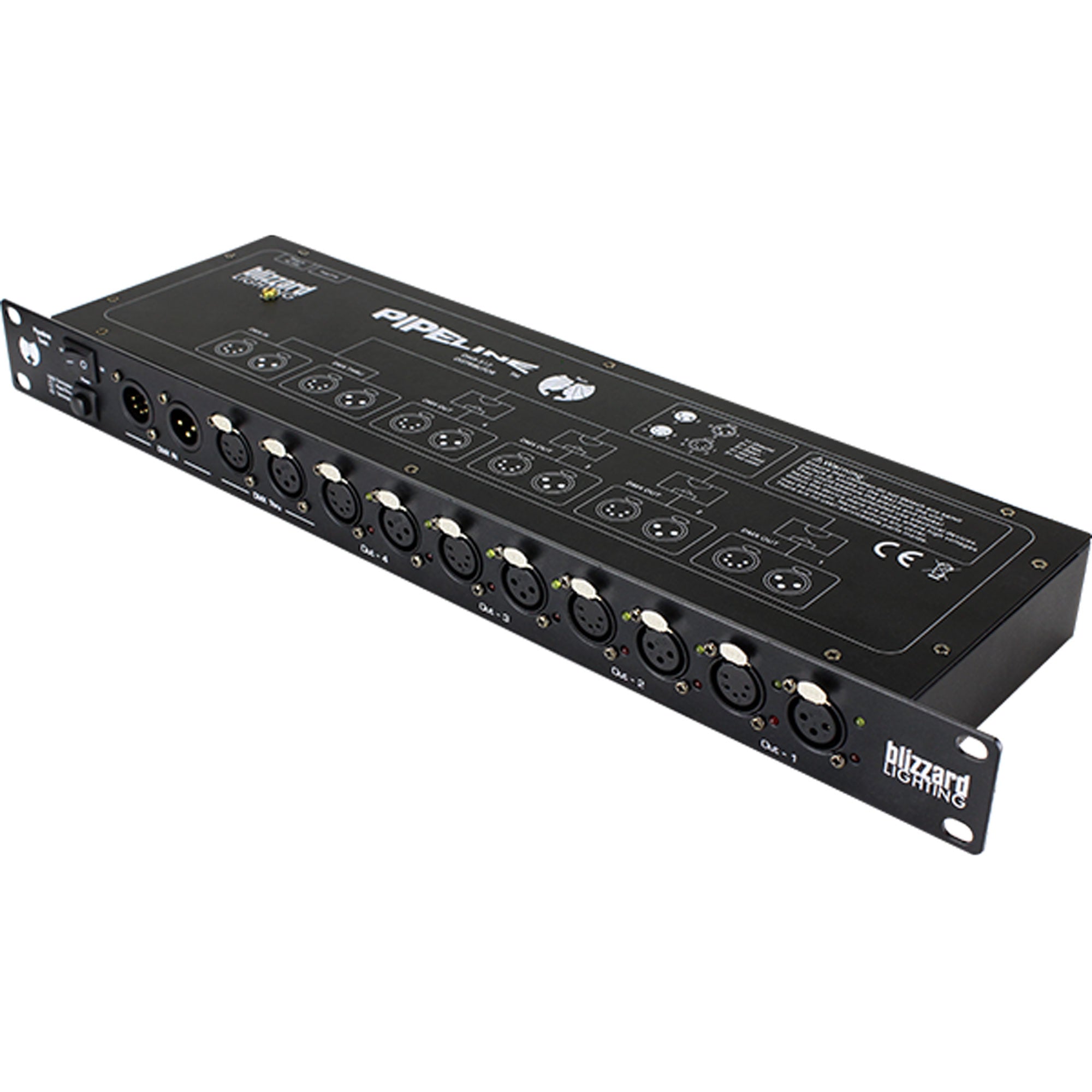

Blizzard Pipeline Twin 19" Rack Mountable 3/5-Pin 4-Way DMX Booster/Splitter

3/5-Pin 4-Way DMX Booster/Splitter

Distribute, Amplify, Isolate

Blizzard's Pipeline Twin is a 19" rack mountable DMX distributor, signal amplifier, and isolator which allows you to split a DMX signal into 4 separate electronically isolated outputs using 3-pin or 5-pin DMX. Additionally, each output has dedicated drivers to boost your signal for any extensive cable runs between DMX lighting fixtures.

Up to 32 Units Per Channel

With each Pipeline Twin unit, you can run up to 32 units per one output channel, plus, its handy 3/5-pin DMX Thru and Terminator/Pass Thru switch assists in making any troubleshooting a breeze. Pipeline Twin rack units are professional high quality pieces of equipment that your rigs will benefit from for years to come!

Features:

• DMX signal amplifier and distributor
• Fully compliant to DMX-512 (1990)
• 1 input to 4 outputs, plus DMX thru
• 100% electronic isolation between inputs and outputs
• Signal & power LED indicator for each output
• Terminator button for the last unit
• Signal input and output: 3/5-pin DMX
• Power and signal indicator

Specifications:

• Weight & Dimensions

• Length: 19 inches (482 mm)
• Height: 2.76 inches (70 mm)
• Depth: 5.7 inches (145 mm)
• Weight: 4 lbs (1.8 kg)
