Key Features

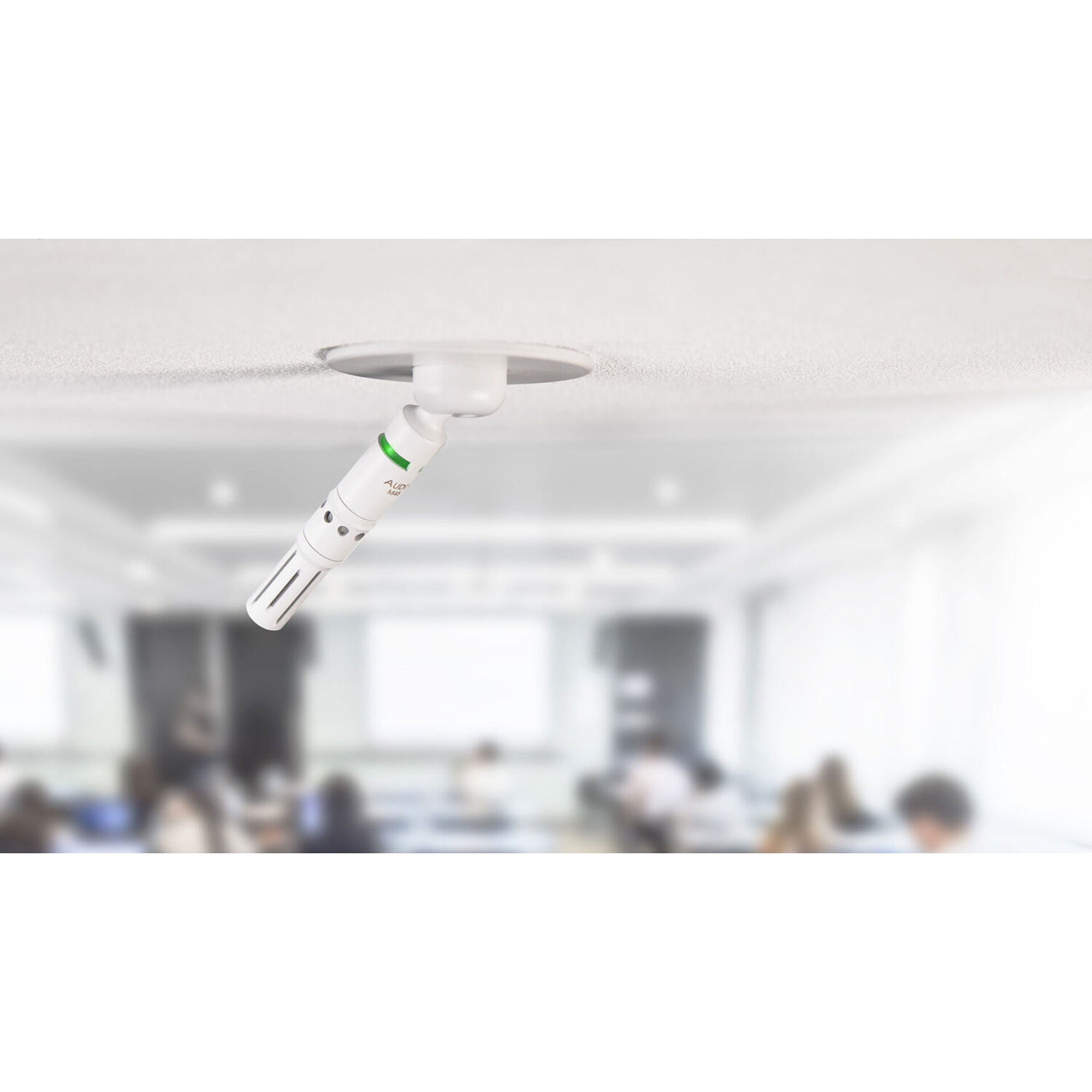

- Conference Room, Lecture Hall, Classroom
- Optimized for Voice Intelligibility
- Swivel-&-Pivot Base for Aiming
- Immunity from RF Interference
- Audio Signal LED Control over RJ45 Port
- Plugs into Mic-Level Input
- Requires Phantom Power
- RJ45 to 8-Conductors Phoenix Adapter
- Machined, Assembled, Tested in the USA
Description

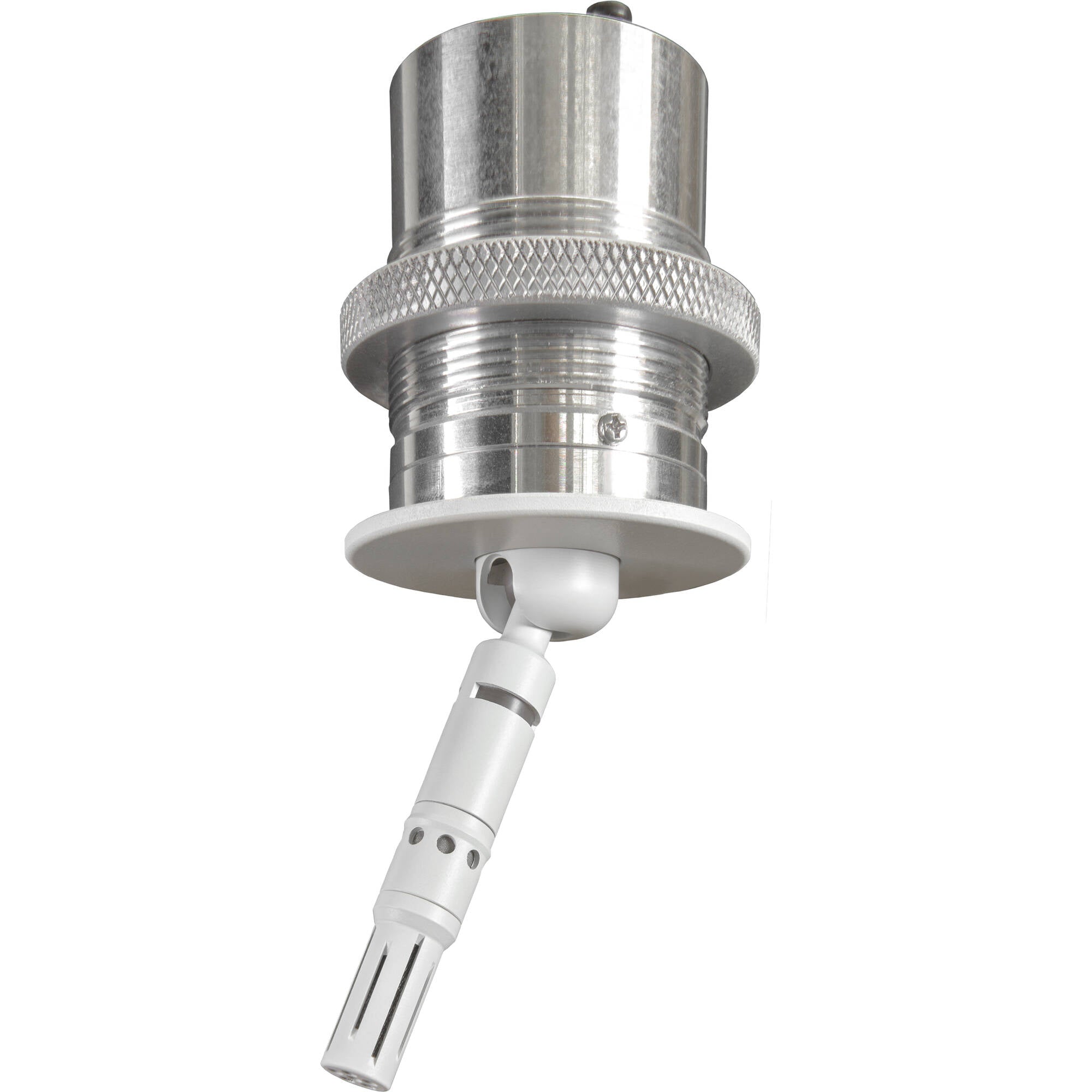

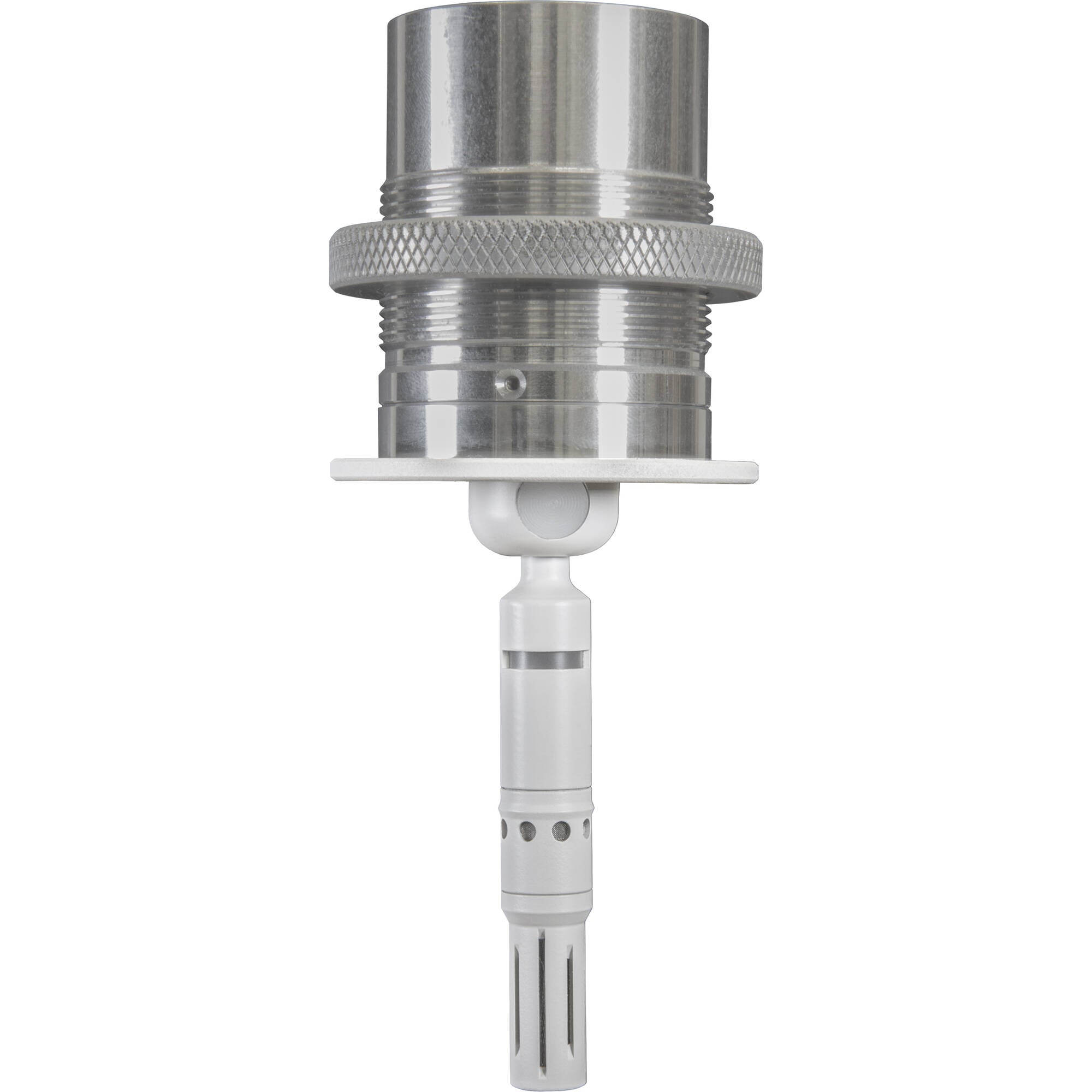

Miniature Shotgun Ceiling Microphone with Tilt and Swivel Base for Aiming - White
The M45 is a miniaturized shotgun condenser microphone with a swivel-and-pivot base for convenient aiming and positioning. The M45 is optimized for vocal intelligibility and offers high sensitivity, an integrated preamp, immunity from RF interference, and is easy to install in a 1-1/2" hole with no additional tools required.

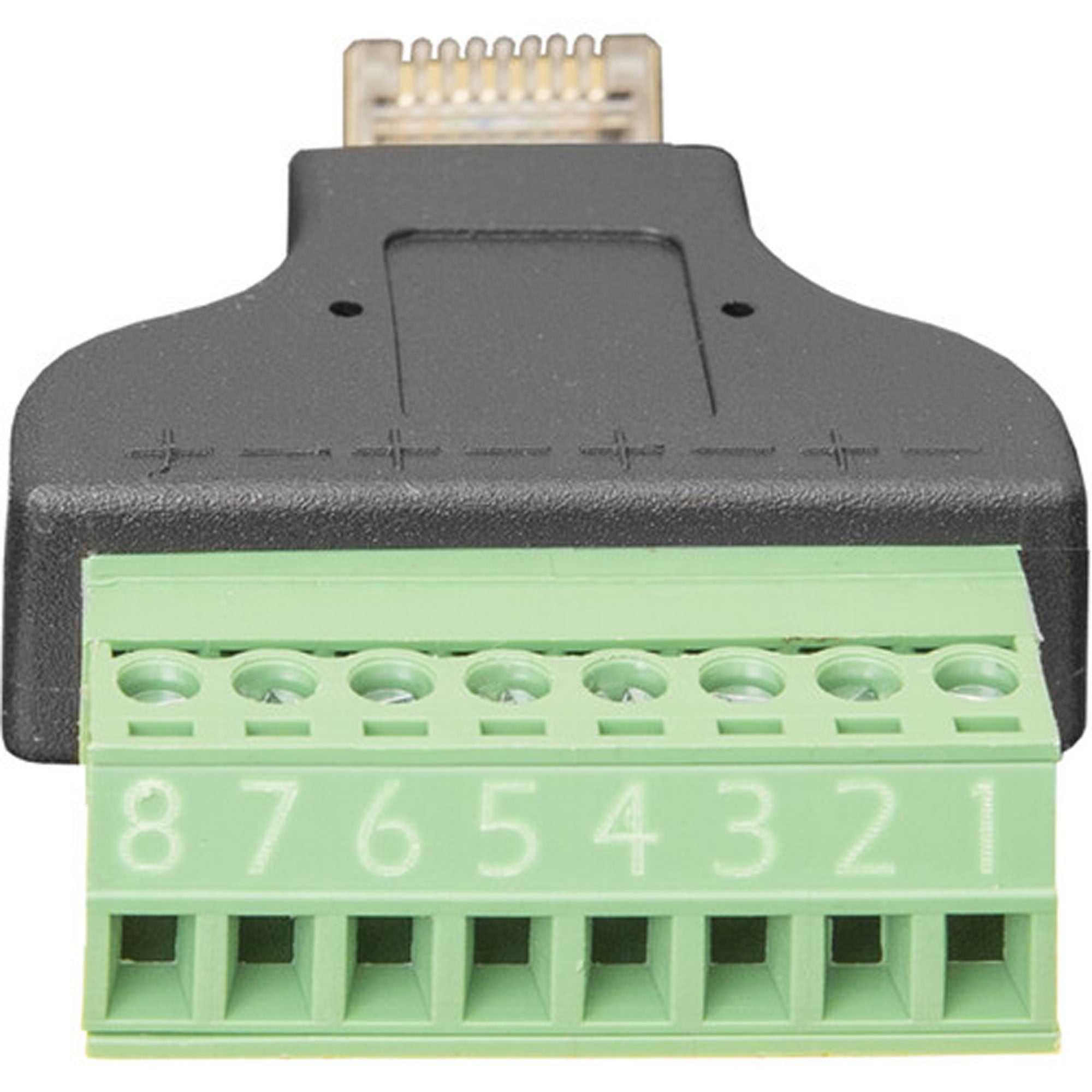

Mic-level signal and LED control is over an RJ45 connection. An adapter is included to convert from RJ45 to an 8-conductor pluggable terminal block.
For use in Dante networks, the optional AUDIX DN4 Enhanced Onramp for Dante | AES67 supports up to four devices and includes LED logic control.
Designed, machined, assembled, and tested by Audix in Wilsonville, Oregon.
Operation
The M45 is a low-impedance microphone and should be plugged into a mic-level input on your conferencing system, mixer, or recording device.
The mic requires phantom power and does not operate without phantom power voltage (18 to 52 VDC), which is available on most professional mic preamps and mixing devices.
If phantom power power is not available on your equipment, use an external phantom power source such as the Audix APS2
Features:
- Easy to install and aim
- For rooms 10 to 15' wide and up to 25' deep
- Miniaturized shotgun design with supercardioid polar pattern
- Optimized for vocal intelligibility
- Integrated preamp for high sensitivity and low noise
- Immunity from RF interference
- Rugged aluminum and brass construction
Specifications:
- Transducer Type: Condenser
- Frequency Response: 85 Hz - 8 kHz
- Polar Pattern: Supercardioid
- Output Impedance: 150 Ohms
- Sensitivety: 98 mV / Pa @ 1 kHz
- Signal to Noise Ratio: 72dB
- Maximum SPL: >124 dB
- Dynamic Range: 100dB
- Operating Voltage: 18 - 52 V
- Connector: RJ45

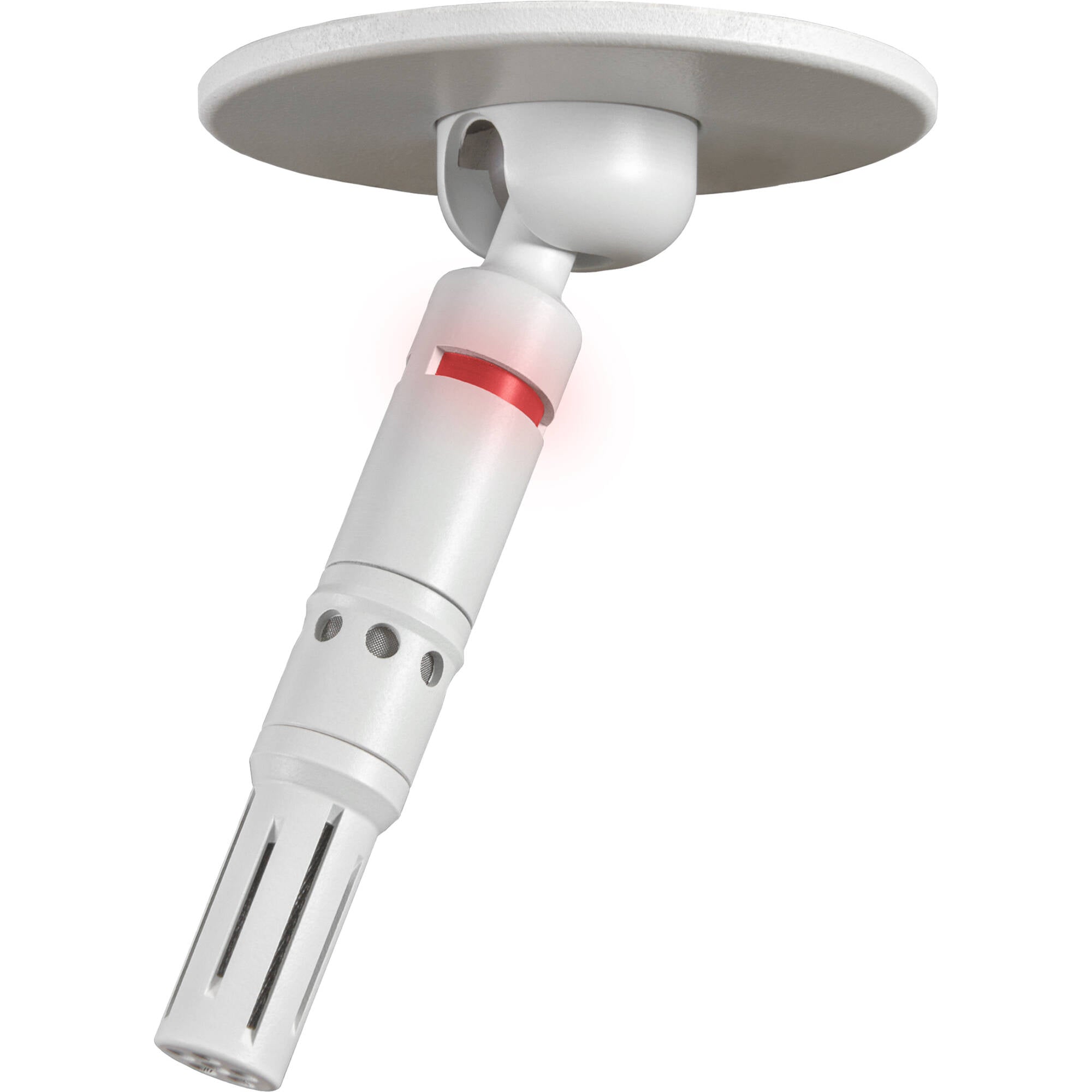

- LEDs: Red & Green
- Materials / Finish: Brass & Aluminum / White
- Weight: 195g
What's in the Box?:
- 1x M45 Ceiling Microphone
- 1x RJ45 > 8-pin adapter
- 1x Seismic / Restrain cable
- 1x Spec Sheet
- 1x Installation Guide
- Manufacturer: Audix
- MPN: M45
- Model Number: M45
- UPC: 687471151129
