Audix M3WDK Tri-Element Hanging Ceiling Microphone and Dante / AES67 Interface Kit (White)

Microphone and Interface Kit for the Dante | AES67 Integrated Microphone System, White

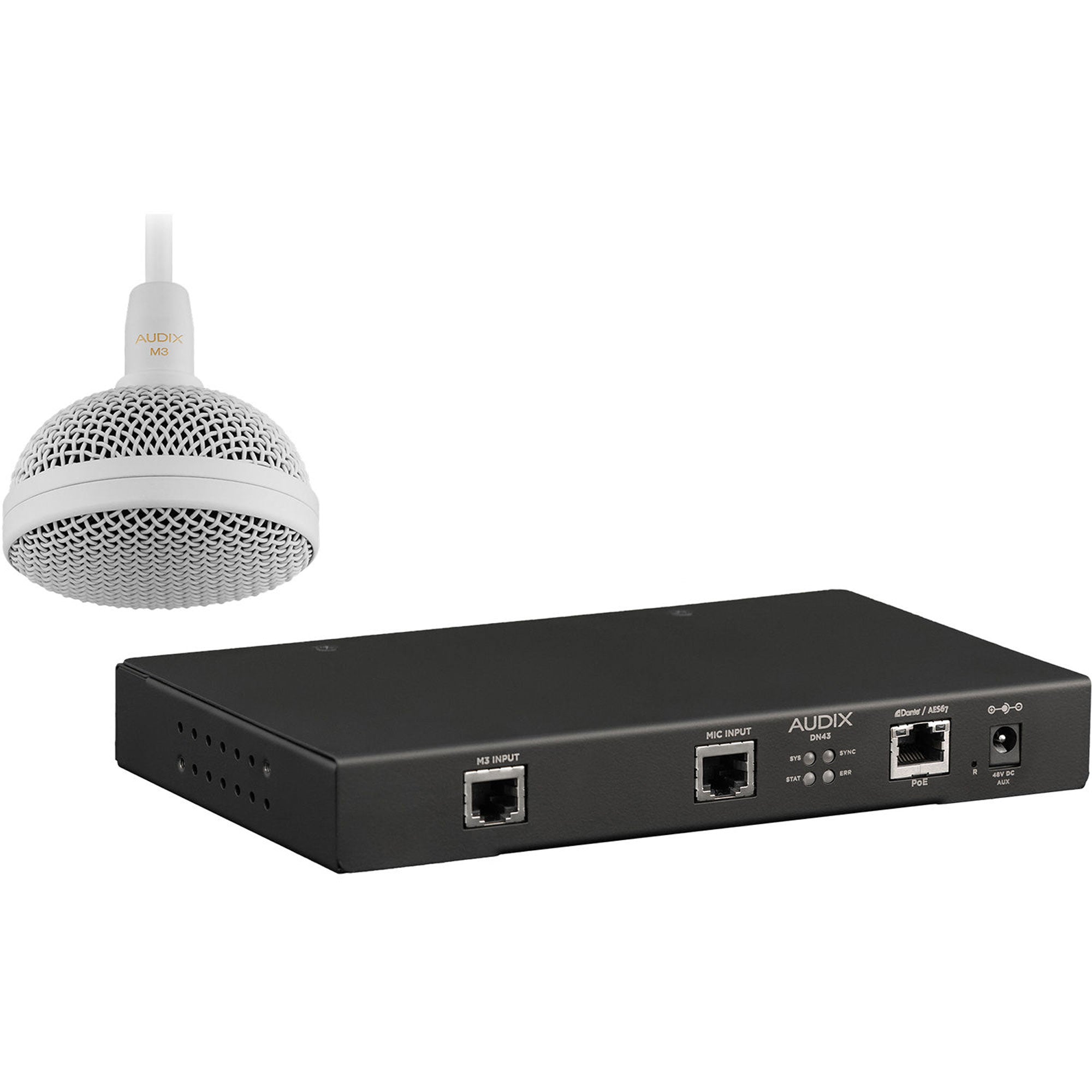

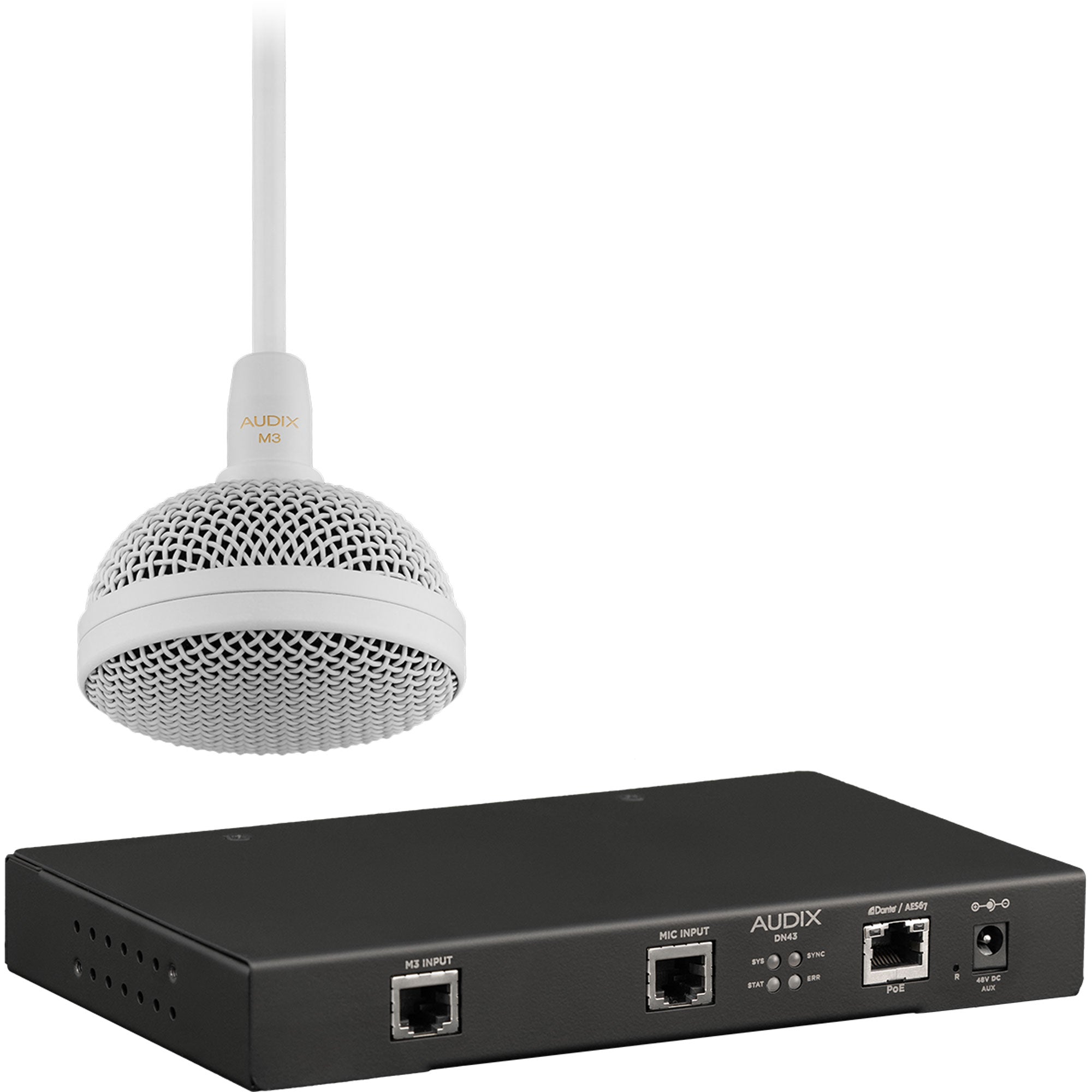

The M3DK is a convenient kit that pairs the Audix M3 hanging ceiling microphone with the Audix DN43 Dante (opens a new window) | AES67 microphone interface, providing a simple to install, network-ready way to stream Audix audio performance through Ethernet networks.

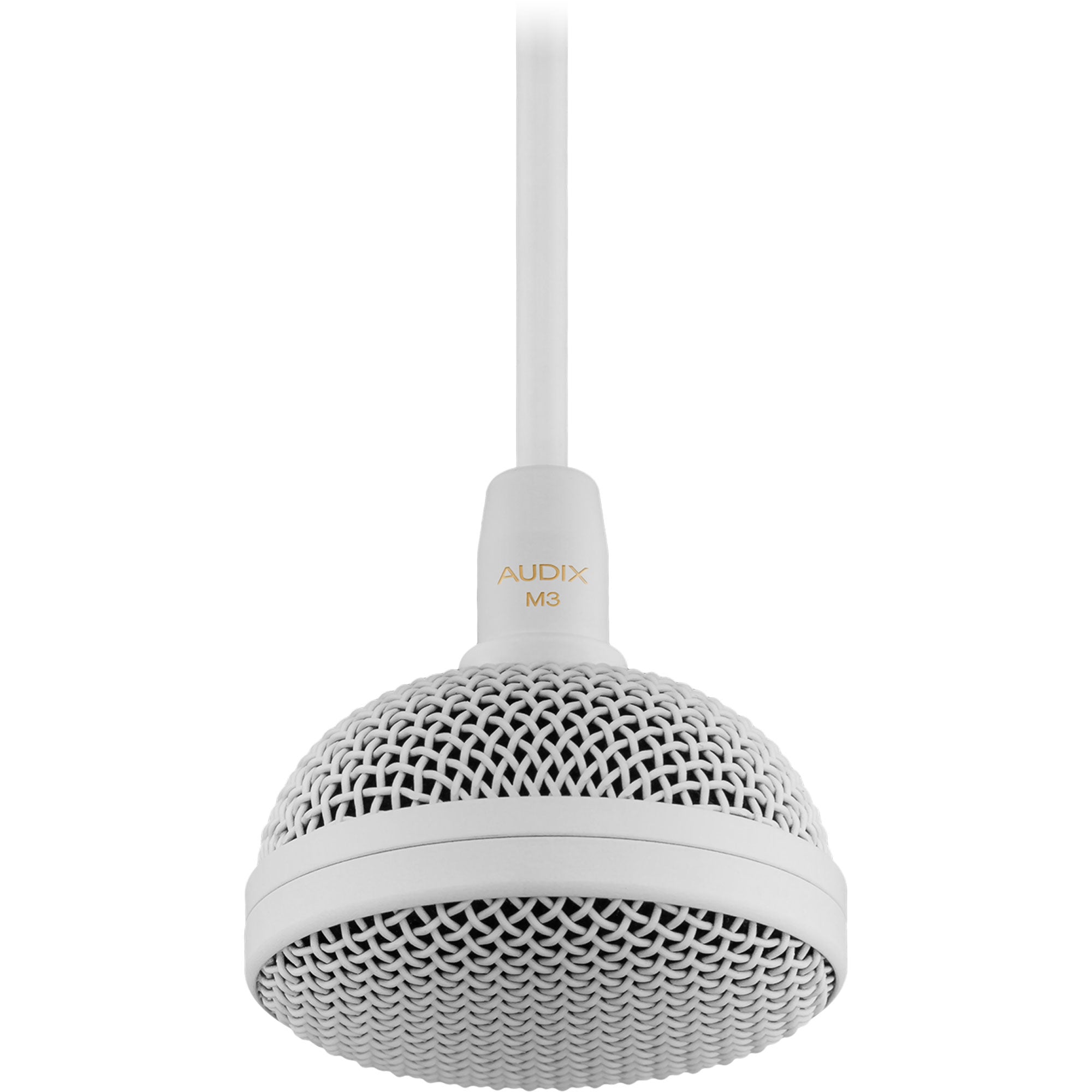

The M3 is an innovative, tri-element hanging microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The frequency response and polar pattern of its three phase-coherent hypercardioid capsules are tailored for voice clarity and rejection of extraneous noise.

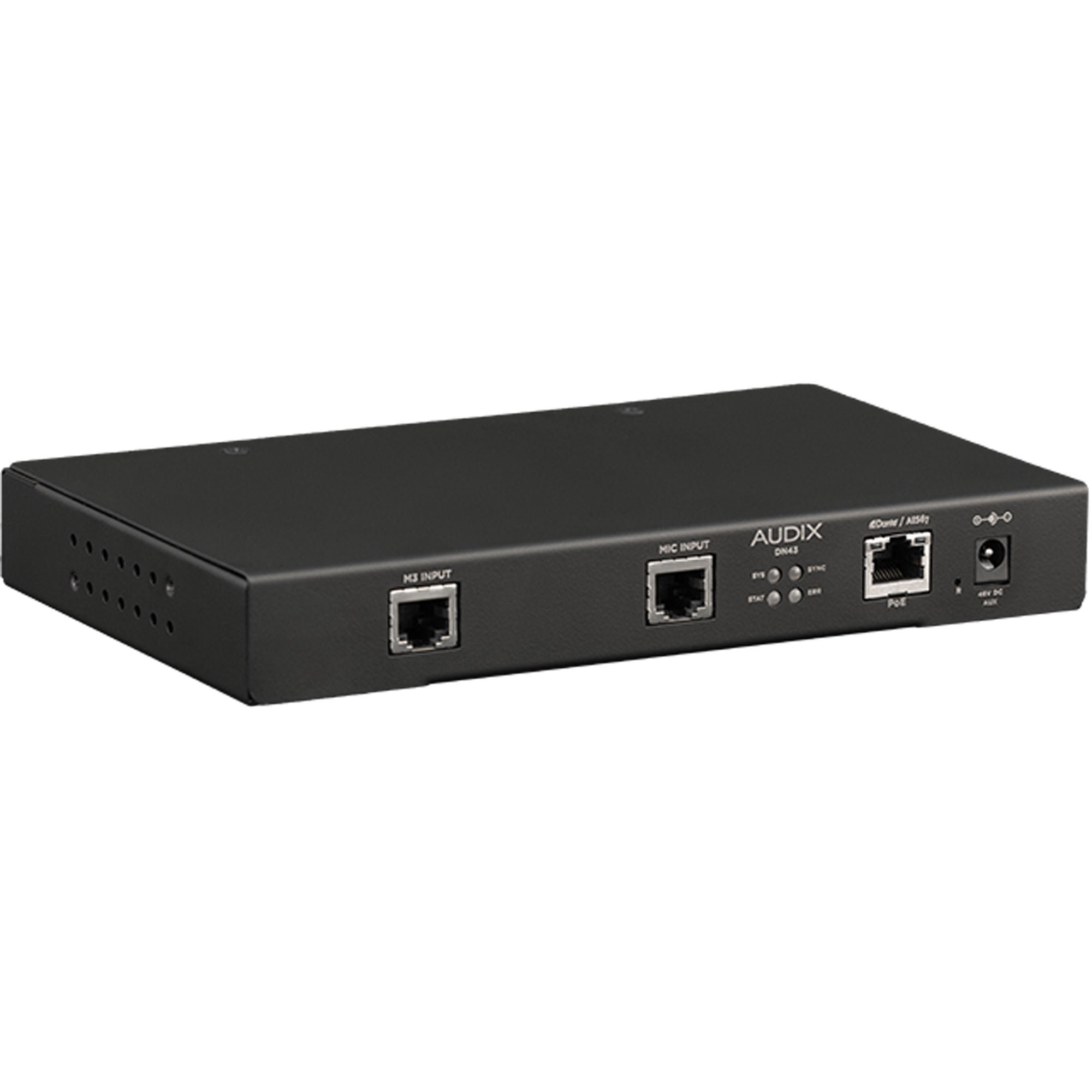

The Audix DN43 interface features one microphone port engineered exclusively for the Audix M3 tri-element microphone and one port for Audix RJ45-equipped single-element microphones. Each channel has selectable, independently controlled pre-amp gain, as well as low- and high-pass filters. It features balanced audio inputs with RFI filtering and delivers high-fidelity 24-bit, 48KHz audio.

M3 Features

• 100% RF shielding and immunity

• Very high output, low self-noise

• Frequency and pattern tailored for voice clarity and rejection of extraneous noise

• Evenly dispersed sound with undetectable phase

• High-quality silicone jacketed microphone cable with adjustable length and position

• Plenum-rated junction box with RJ45 connector

• TAA compliant

• Easy to install

• Available in white and grey


DN43 Features

• Balanced audio inputs with RFI filtering

• High-fidelity 24-bit, 48KHz audio

• Each channel has selectable pre-amp gain, as well as low- and high-pass filters

• Two 5V logic outputs per port, with source/sink capability, for LEDs, if the mic is so equipped

• One logic input per single-element microphone port for buttons

• 48V phantom power output

• Operates on PoE from any IEEE 802.3af compliant equipment

• Dante Domain Manager (DDM) ready


Specifications

• Transducer Type (M3): Condenser

• Frequency Response (M3): 30 Hz - 19kHz (Tailored)

• Polar Pattern (M3): Hypercardioid

• Output Impedance (M3): 150 ohms

• Sensitivity (M3): 34 mV / Pascal @ 1k

• Max Input (0 dB) (DN43): -14 dBu, 155 mV

• Input Impedance (balanced) (DN43): 1.15 kΩ

• Frequency Response (DN43): 15Hz - 22kHz, +0, -3 dB

• Channel Crosstalk (1 kHz): < -80 dB

• Dante / AES67 Channels: 4

• Low-pass Options (DN43): Off, 5 kHz, 7 kHz, 10 kHz

• High-pass Options (DN43): 15 Hz, 238 Hz

• Gain Options (DN43): 0 dB, +8 dB, +12 dB, +15 dB, +18 dB, +24 dB, 30 dB, +36 dB

• Power External DC Jack PoE (IEEE 802.3af): +48VDC, 125 mA CLASS 2 (3.84 - 6.49 W)


In the Box

• 1x M3 tri-element ceiling microphone

• 1x DN43 Dante | AES67 microphone interface

• 1x 3 ft. plenum-rated CAT6A shielded cable

• 2x 1.56 mm / 0.063 inch seismic and fire cable restraints

• 1x JBM3 plenum-rated junction box
