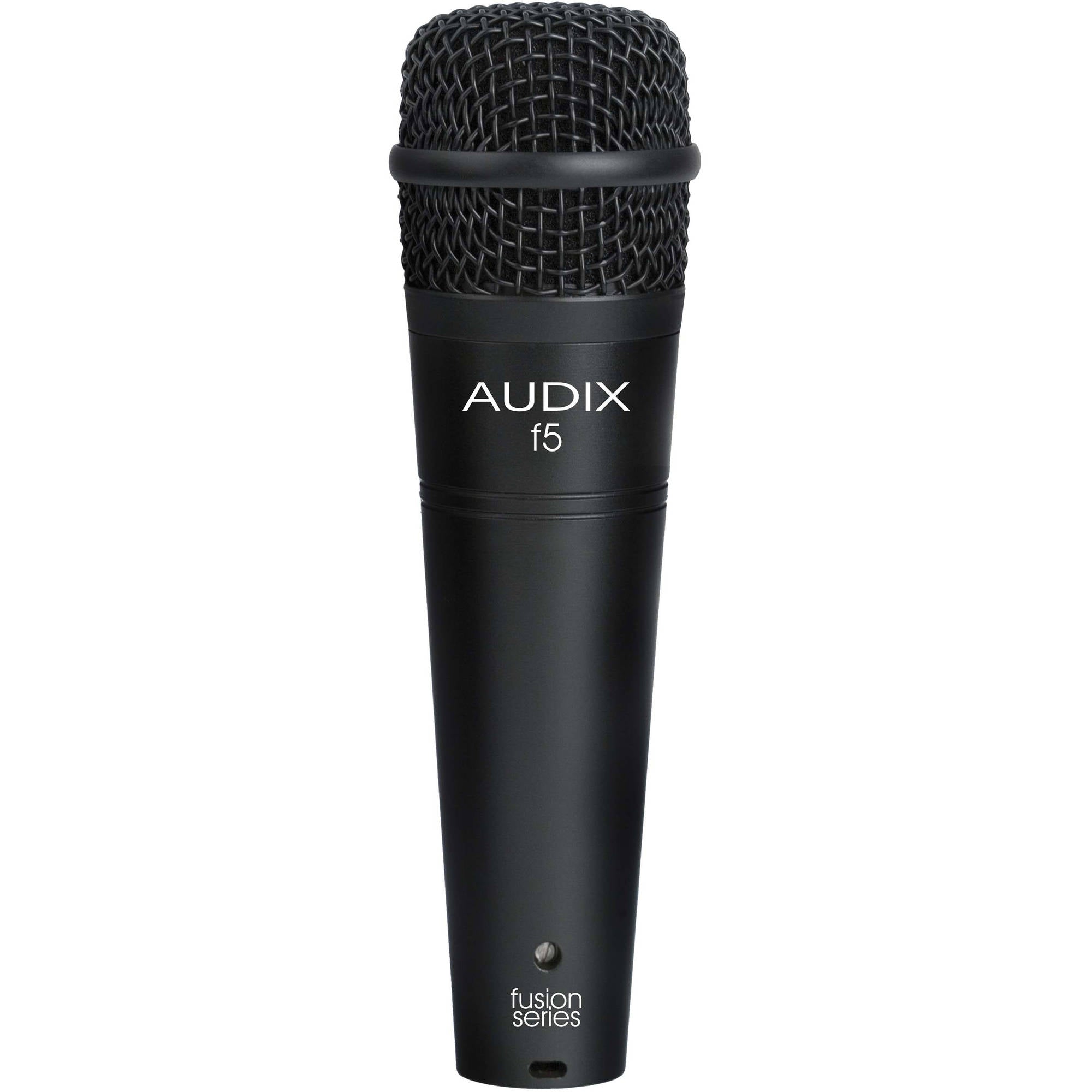

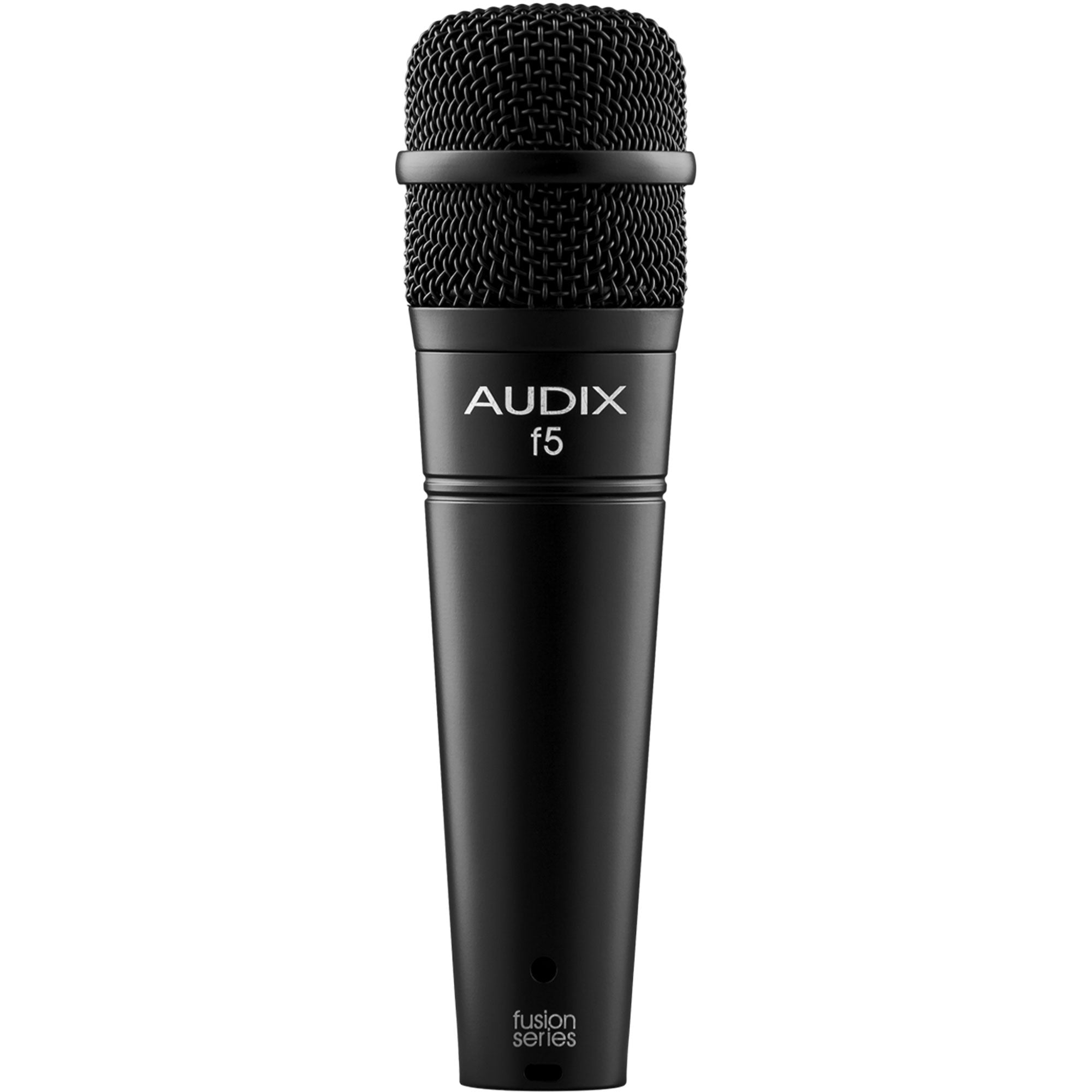

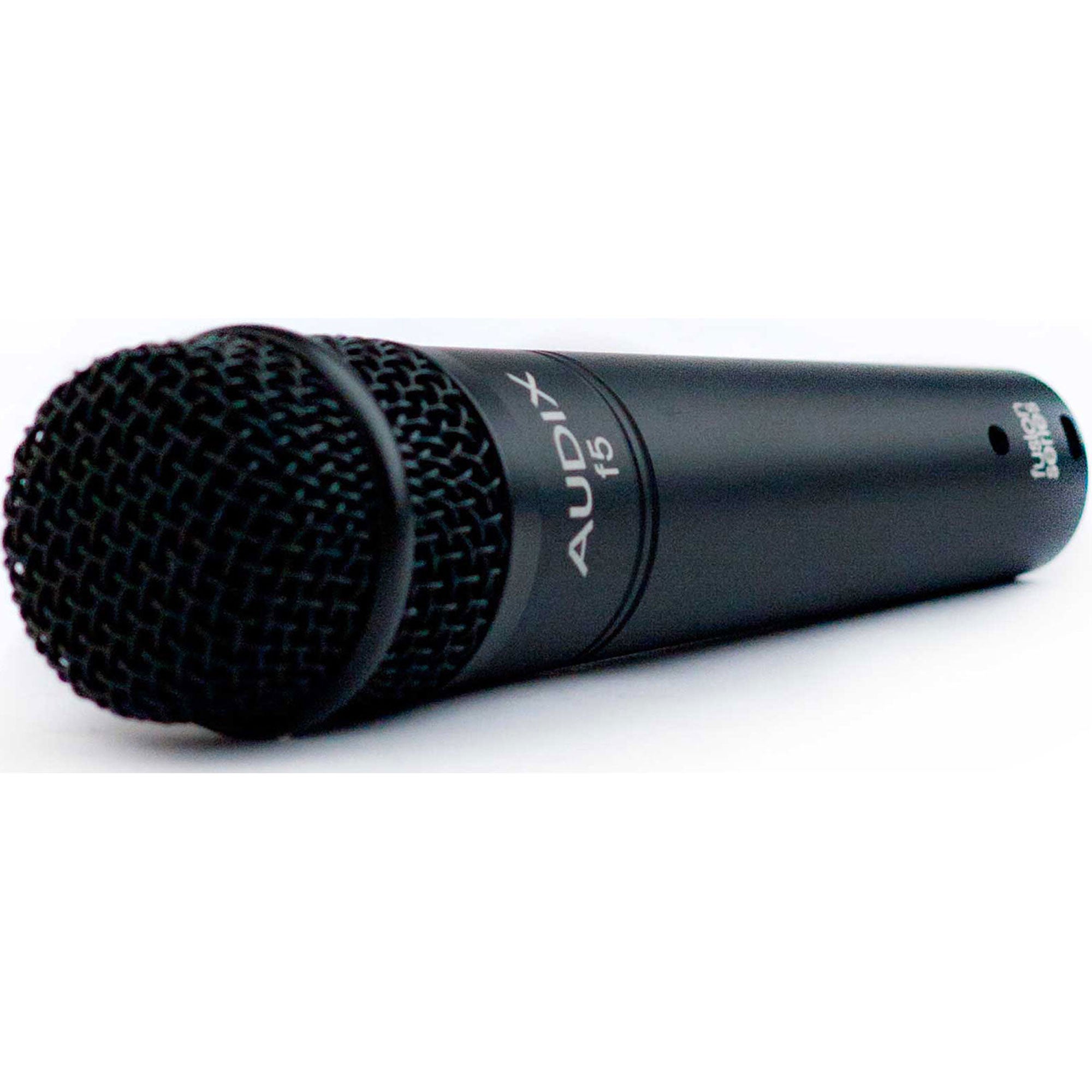

Audix f5 Dynamic Hypercardioid Instrument Microphone

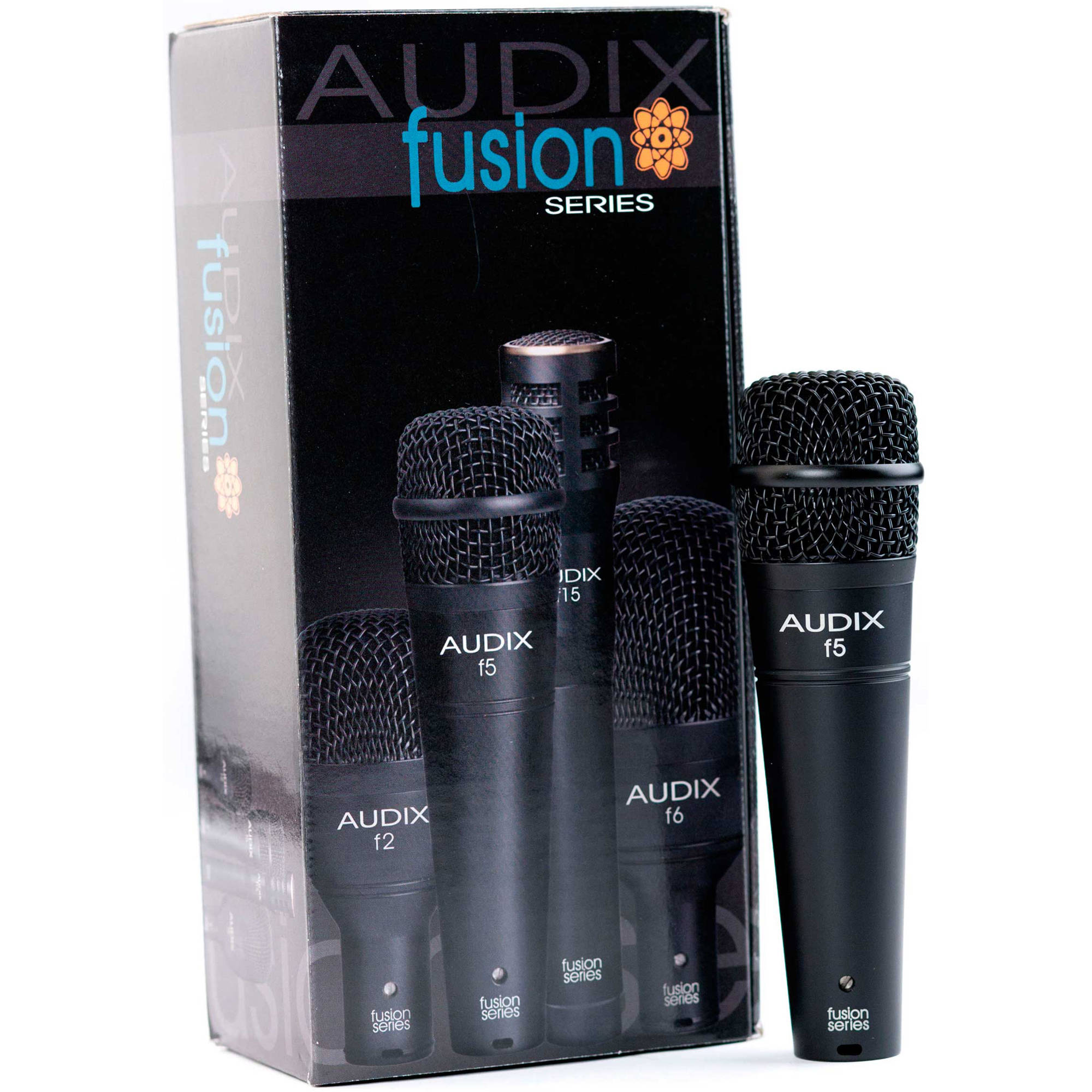

Fusion Series Affordable Hypercardioid Dynamic Instrument Microphone

The Fusion Series microphones represent affordable excellence.

The f5 dynamic instrument microphone is an ideal choice for snare, toms, percussion, and acoustic instruments in live and studio applications. A hypercardioid pick-up pattern helps to minimize feedback and isolate the instrument from ambient sound.

The f5's low impedance and balanced output allow interference-free performance.

Designed, assembled, and tested by Audix in the USA.

Specifications

• Transducer Type: Dynamic

• Frequency Response: 55 Hz - 15 kHz

• Polar Pattern: Hypercardioid

• Output Impedance: 580 ohms

• Sensitivity: 2.2 mV / Pa @ 1k

• Capsule Technology: LM Type A

• Off-Axis Rejection: >20 dB

• Maximum SPL: ≥137 dB

• Power Requirements: None

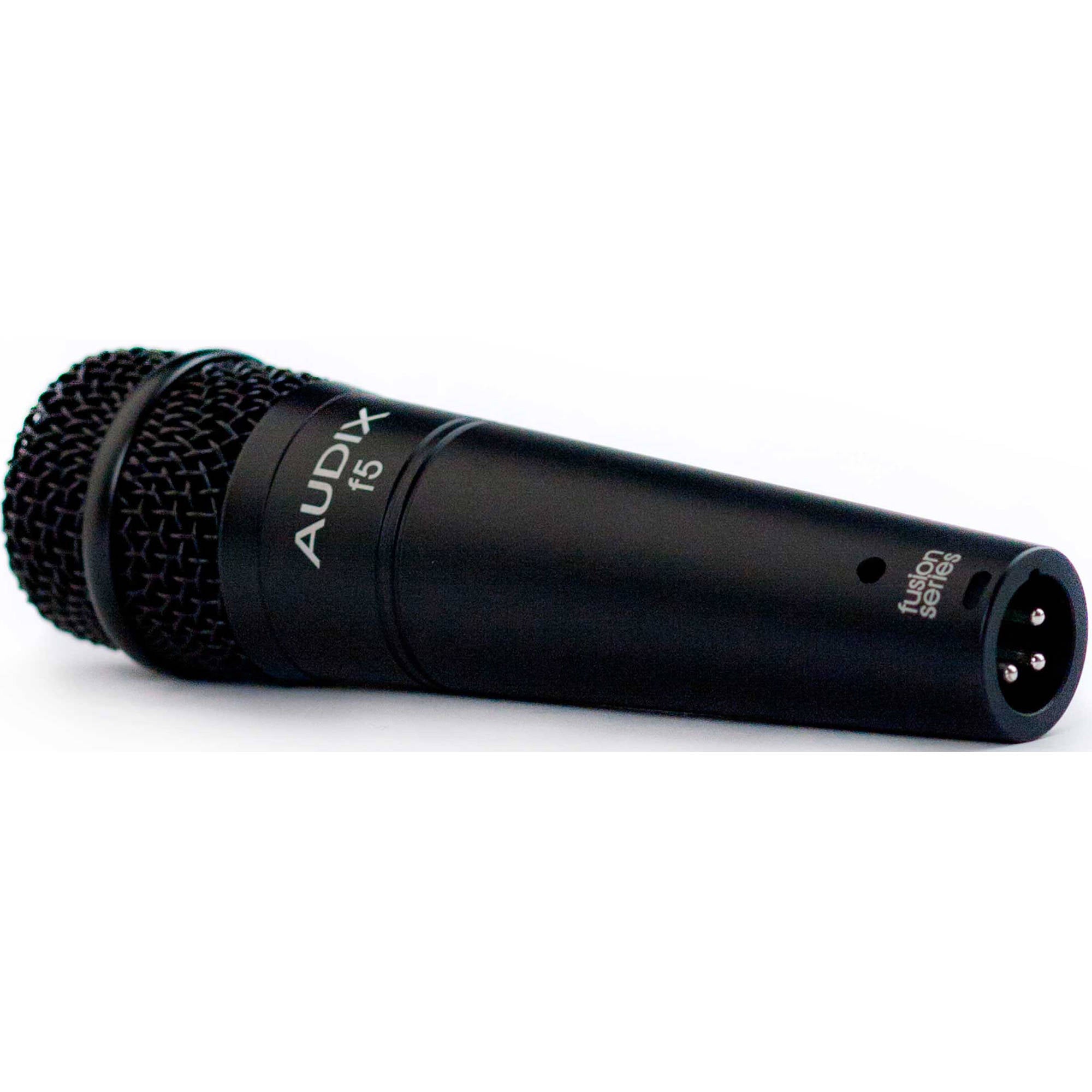

• Connector: 3-pin XLRm

• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector

• Materials / Finish: Zinc Alloy / Black Finish

• Weight: 283 g / 10 oz

• Length: 145 mm / 5.7 in


In the Box

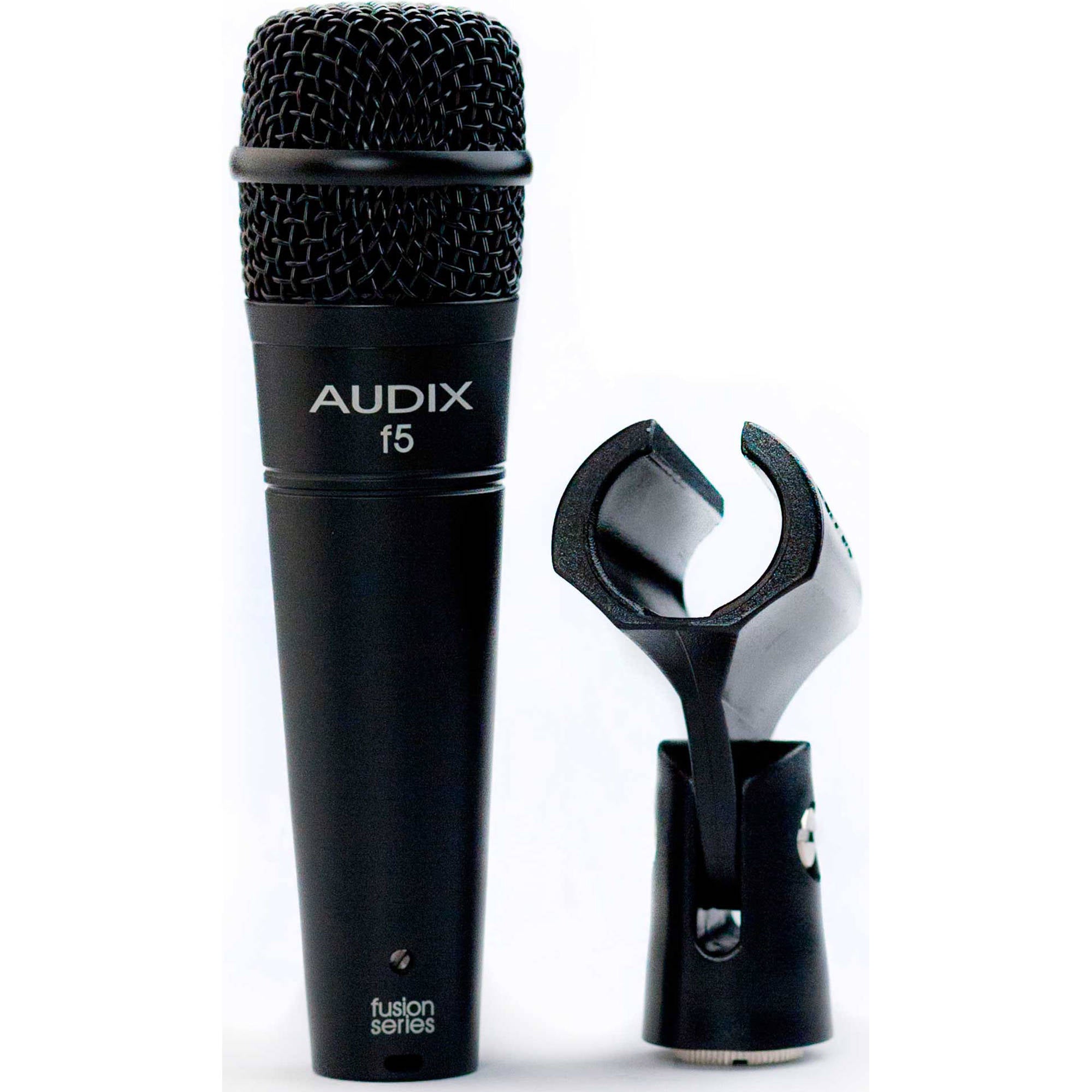

• 1x f5 Instrument Microphone

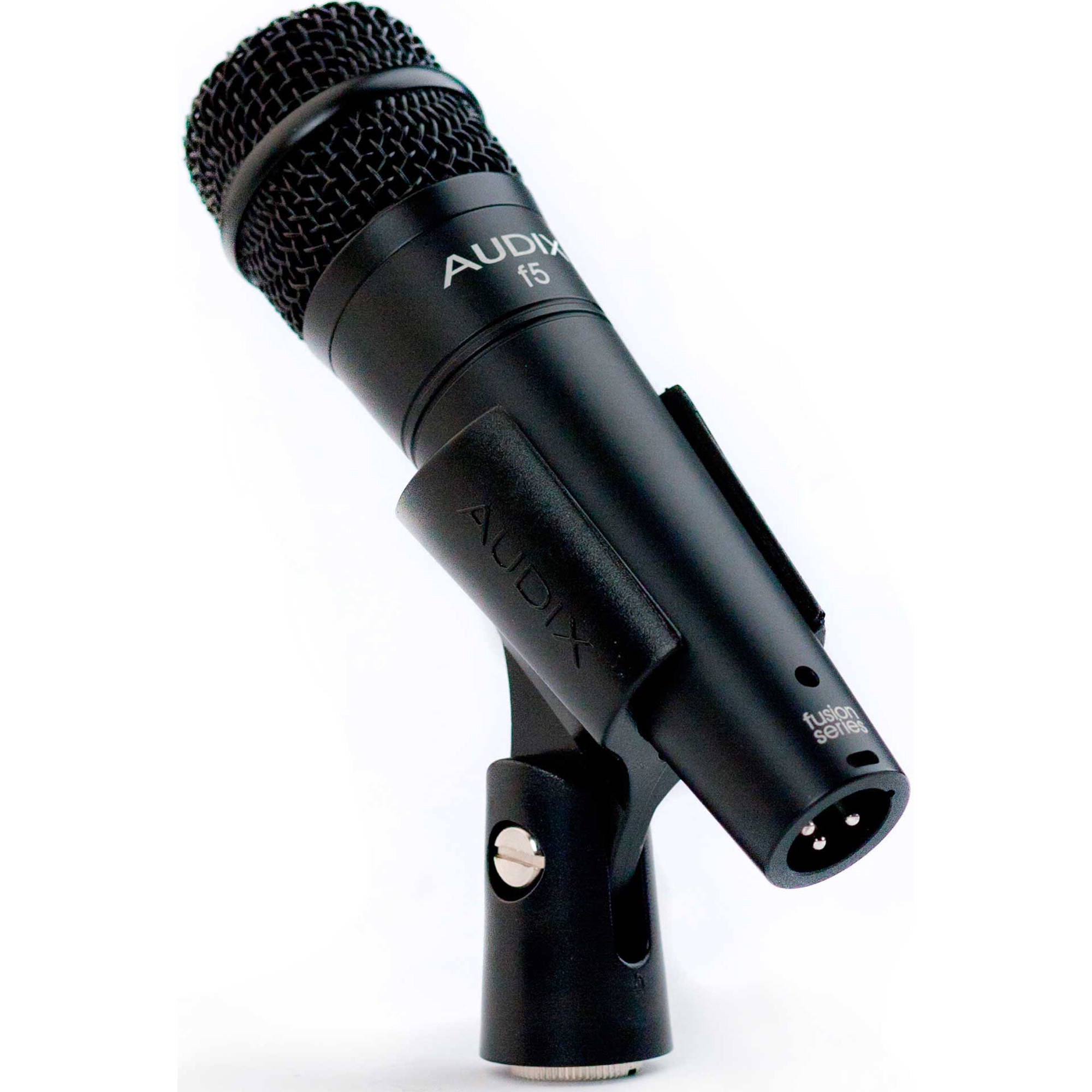

• 1x MC1 Microphone Clip

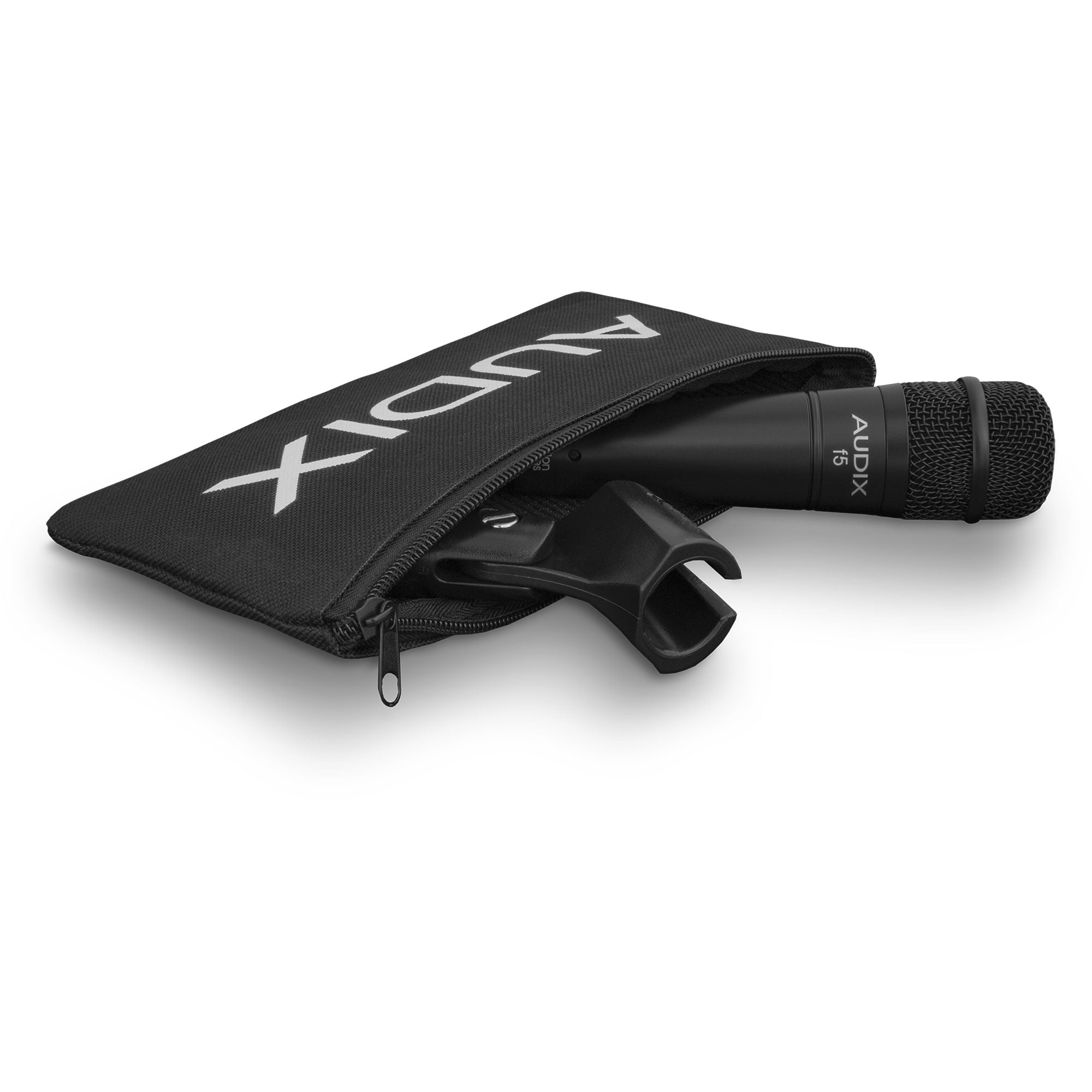

• 1x P1 Carrying Pouch
