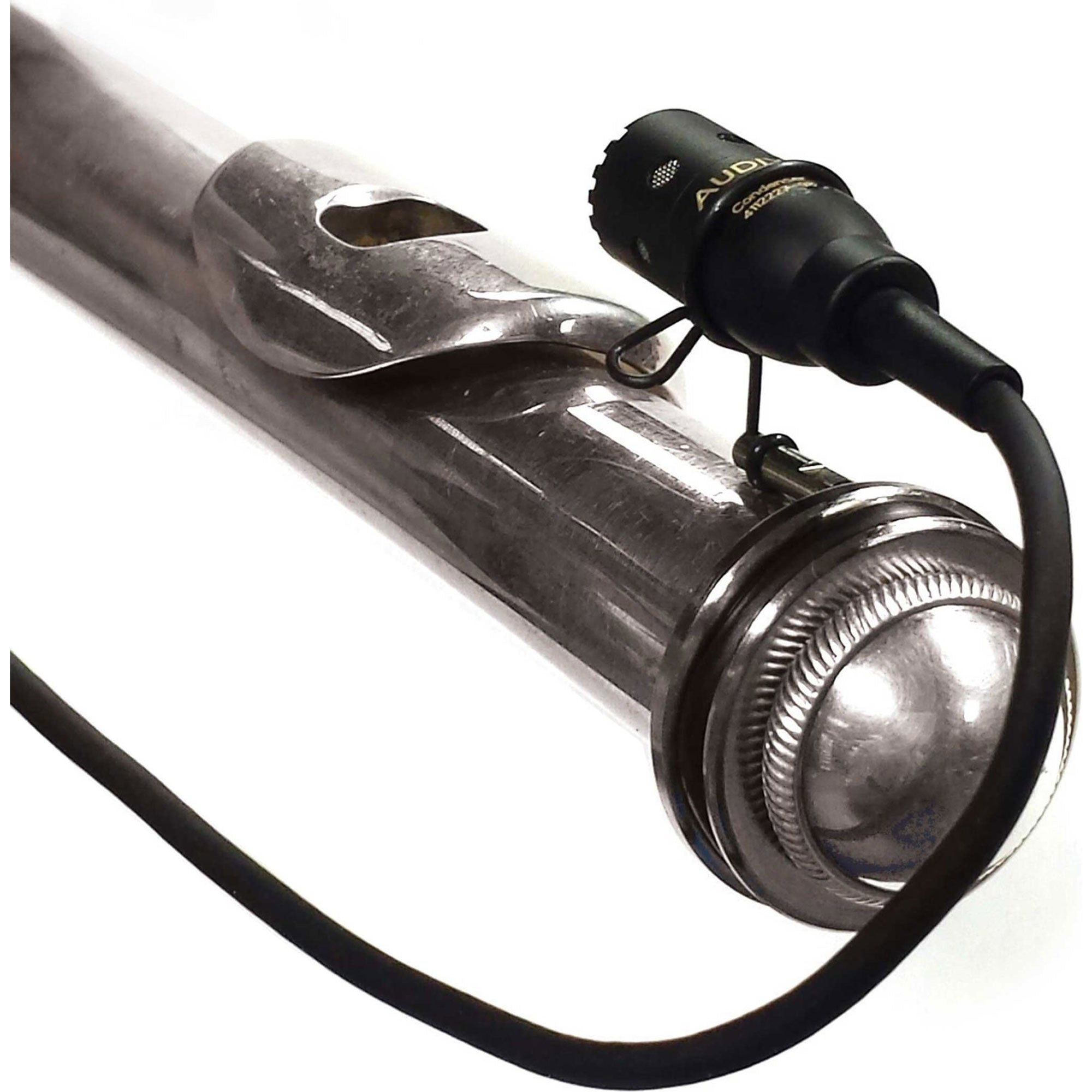

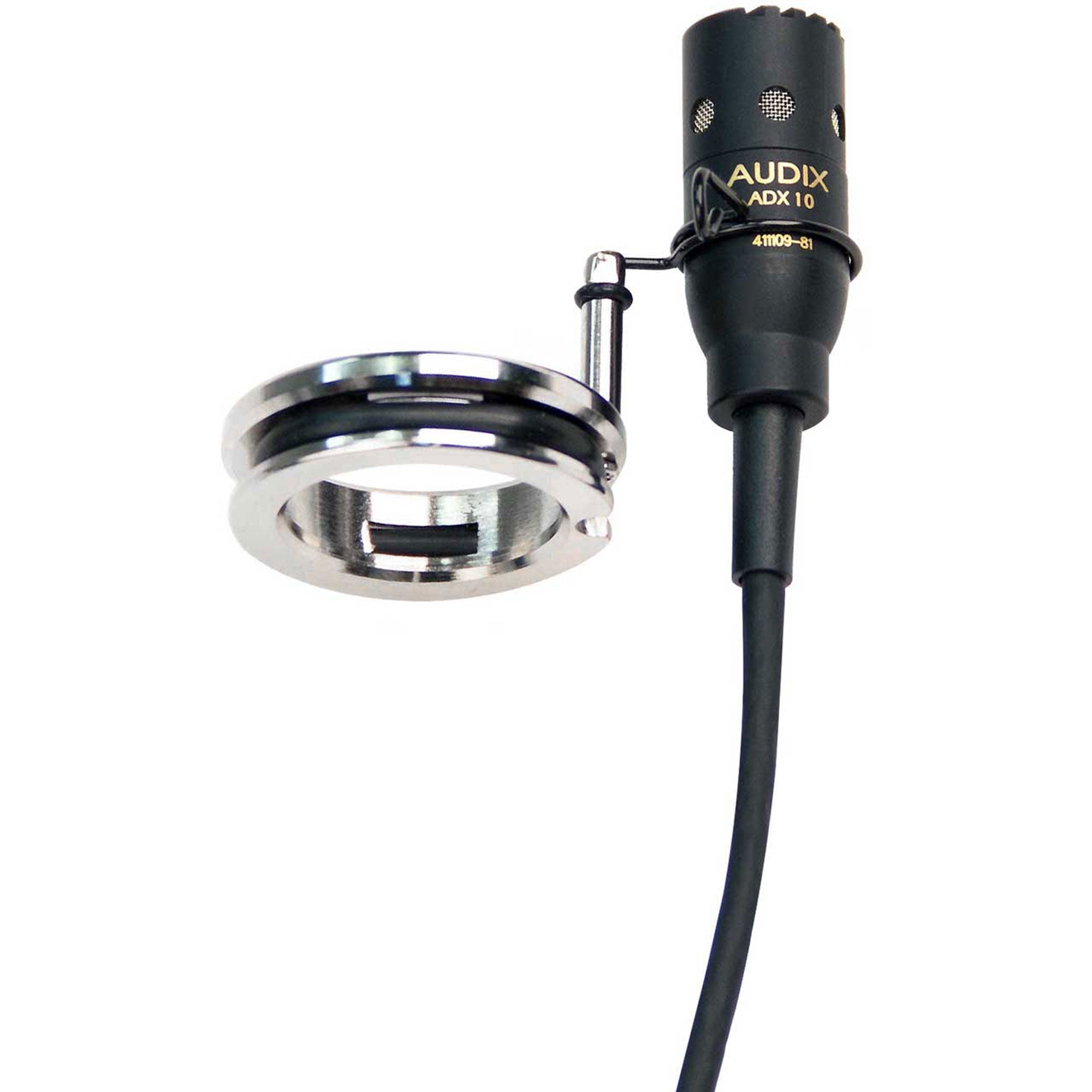

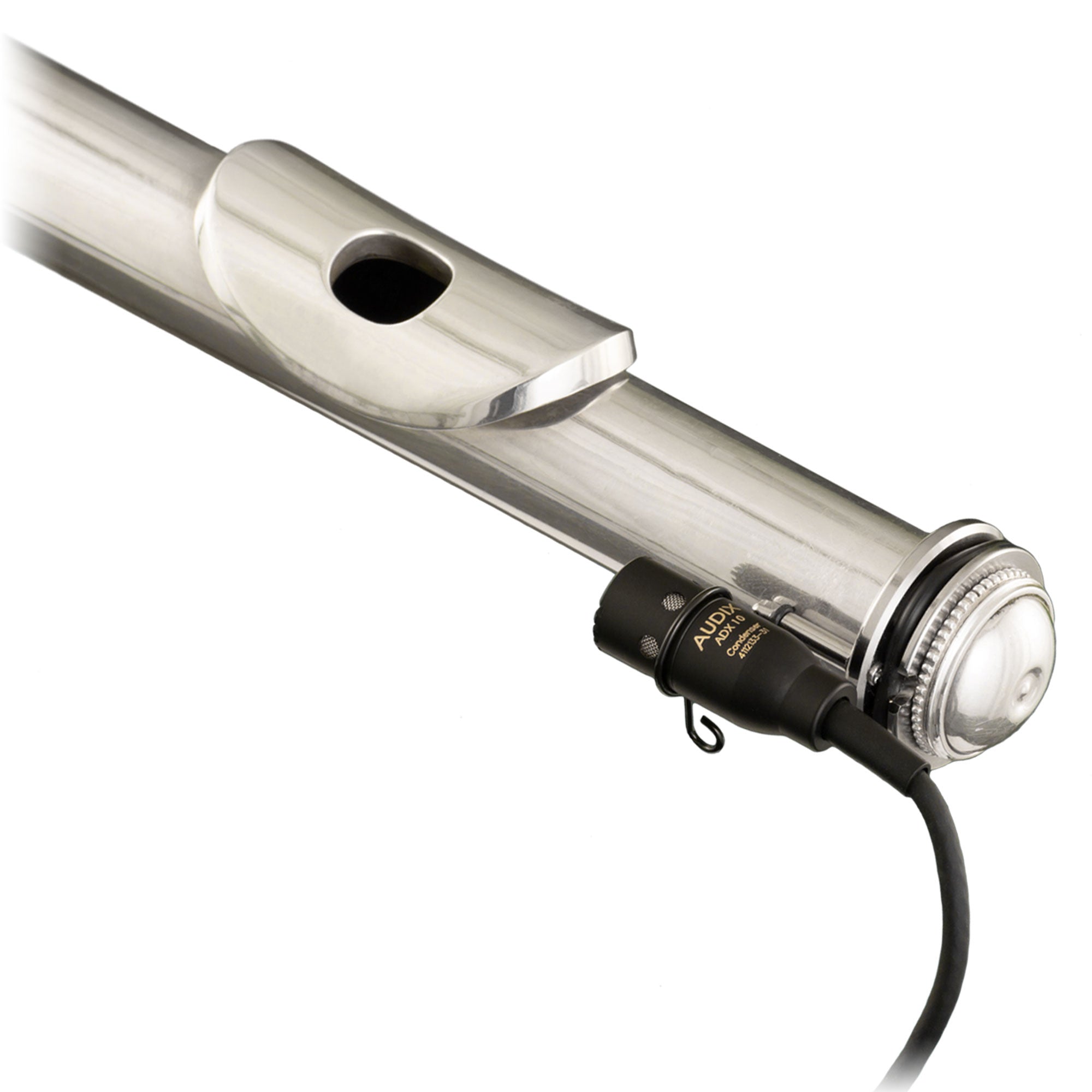

Audix ADX10FLP Flute Microphone with APS911 Power Supply

Miniature Cardioid Condenser Flute Microphone with APS911 Phantom Power Adapter

The ADX10FLP is a cardioid condenser flute microphone that utilizes a uniformly controlled cardioid polar pattern. This feature assists in isolating the miked sound at the embouchure hole from other instruments or vocals on stage. With a smooth and accurate frequency range of 50 Hz-18 kHz, the ADX10FLP is lightweight, low profile, and furnishes the flutist's natural sound with an exceptional transient response.

The ADX10FLP, specifically for use with a standard flute, includes a clip (attaches to the head joint), an 8' cable terminating to a mini XLR-f connector, and a phantom power adapter (APS911). Other model versions include the ADX10FL for use with Audix wireless systems.

Manufactured to high standards and tight tolerances, the ADX10FLP miniaturized condenser flute mic features a modular threaded capsule, machined brass body with a matte black finish, high-quality shielded microphone cable, and a variety of optional accessories.

Designed, machined, assembled, and tested by Audix in the USA.

Specifications

• Transducer Type: Pre-polarized Condenser

• Frequency Response: 50 Hz - 18 kHz

• Polar Pattern: Cardioid

• Output Impedance: 250 ohms

• Sensitivity: 4.5 mV / Pa @ 1k

• Signal to Noise Ratio: >65 dB

• Equivalent Noise Ratio: <29 dB (A-weighted)

• Maximum SPL: ≥120 dB

• Power Requirements: 5-52V phantom

• Connector: Shielded 3' terminating to a minature 3 pin XLRf

• Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

• Materials / Finish: Machined brass capsule / Black finish

• Weight: 110 g / 4 oz

• Length: 25 mm / 0.98 in


In the Box

• 1x ADX10FLP Instrument Microphone

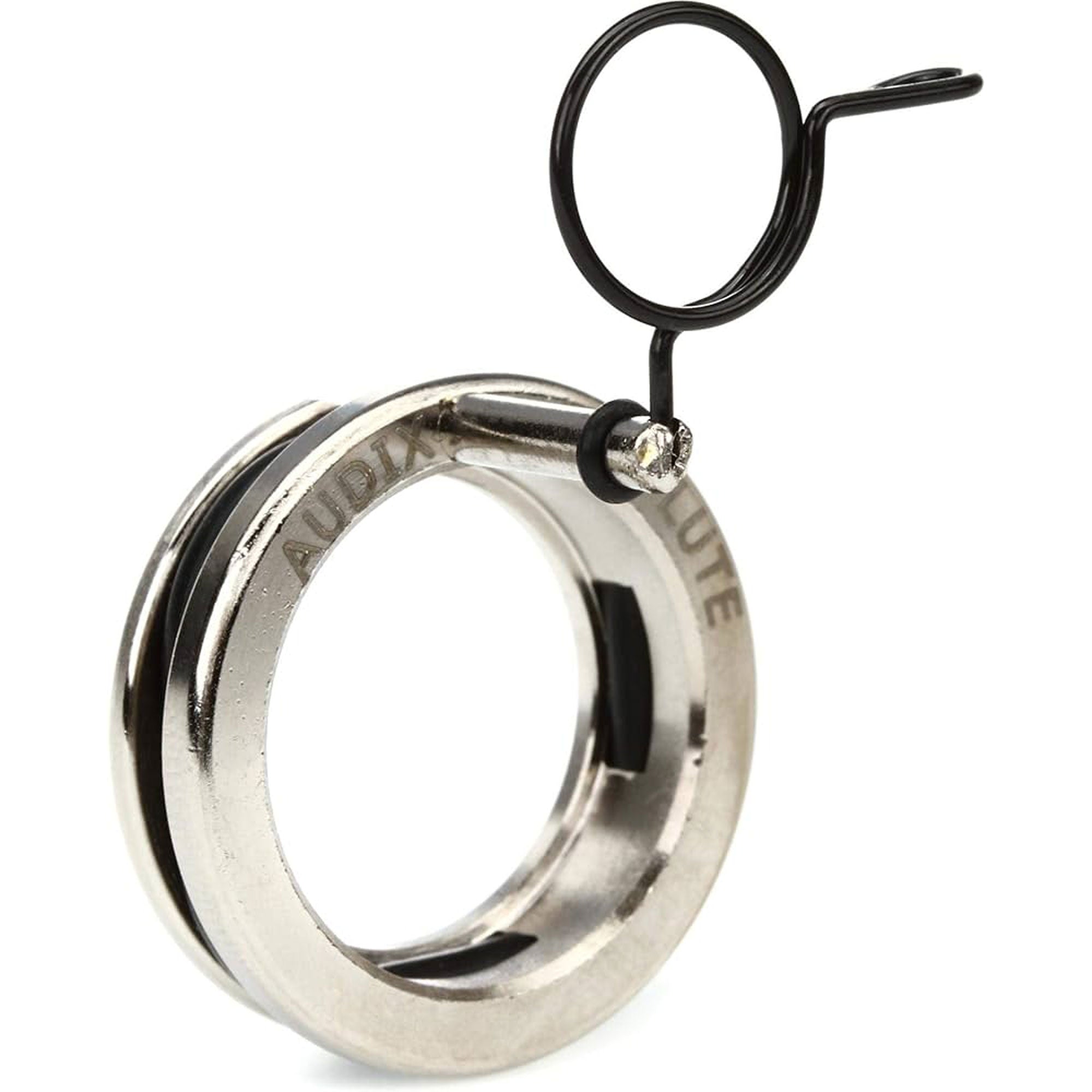

• 1x MCFLUTE Microphone Clip

• 1x WS10 External Windscreen

• 1x P1 Carrying Pouch

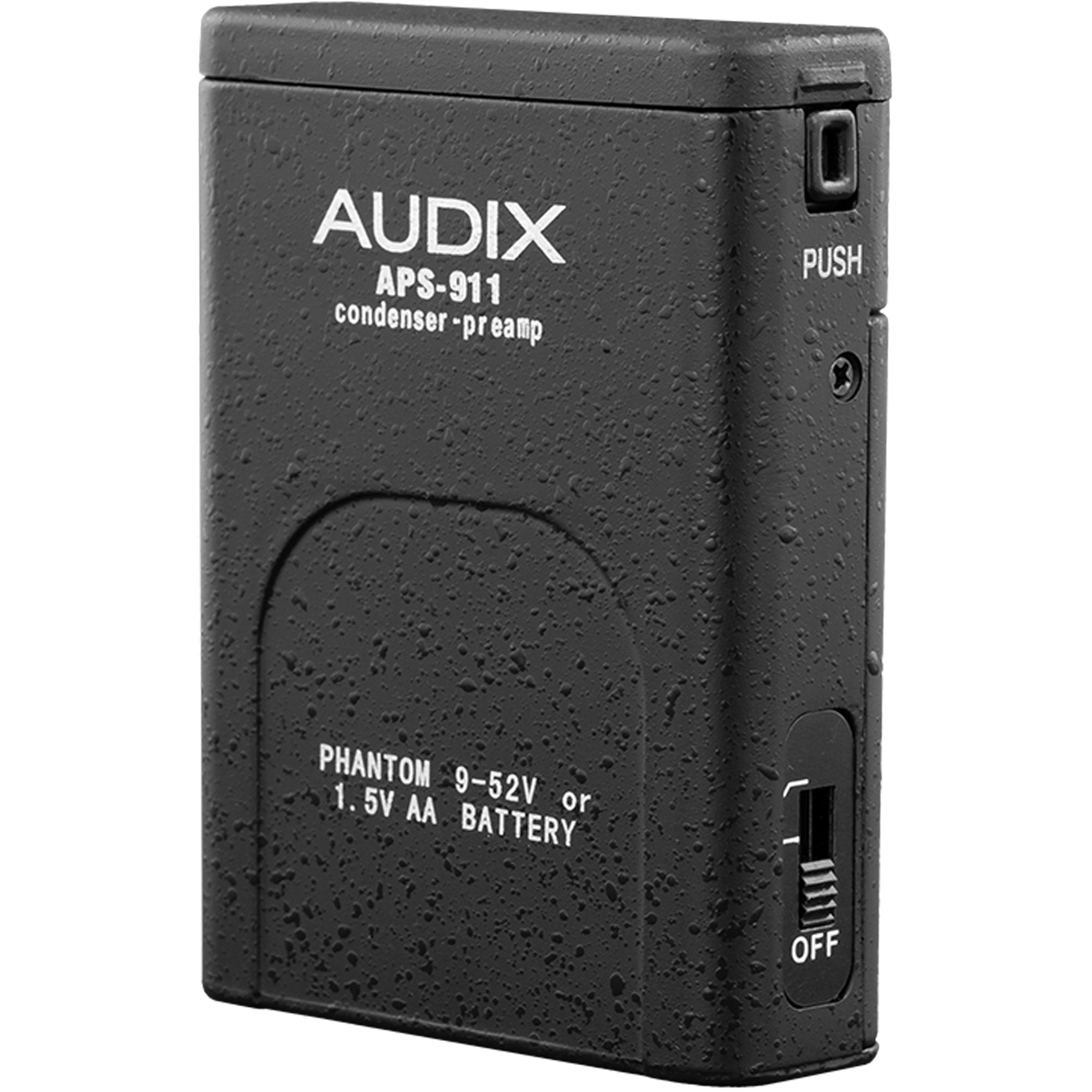

• 1x APS911 Phantom Power Adapter
