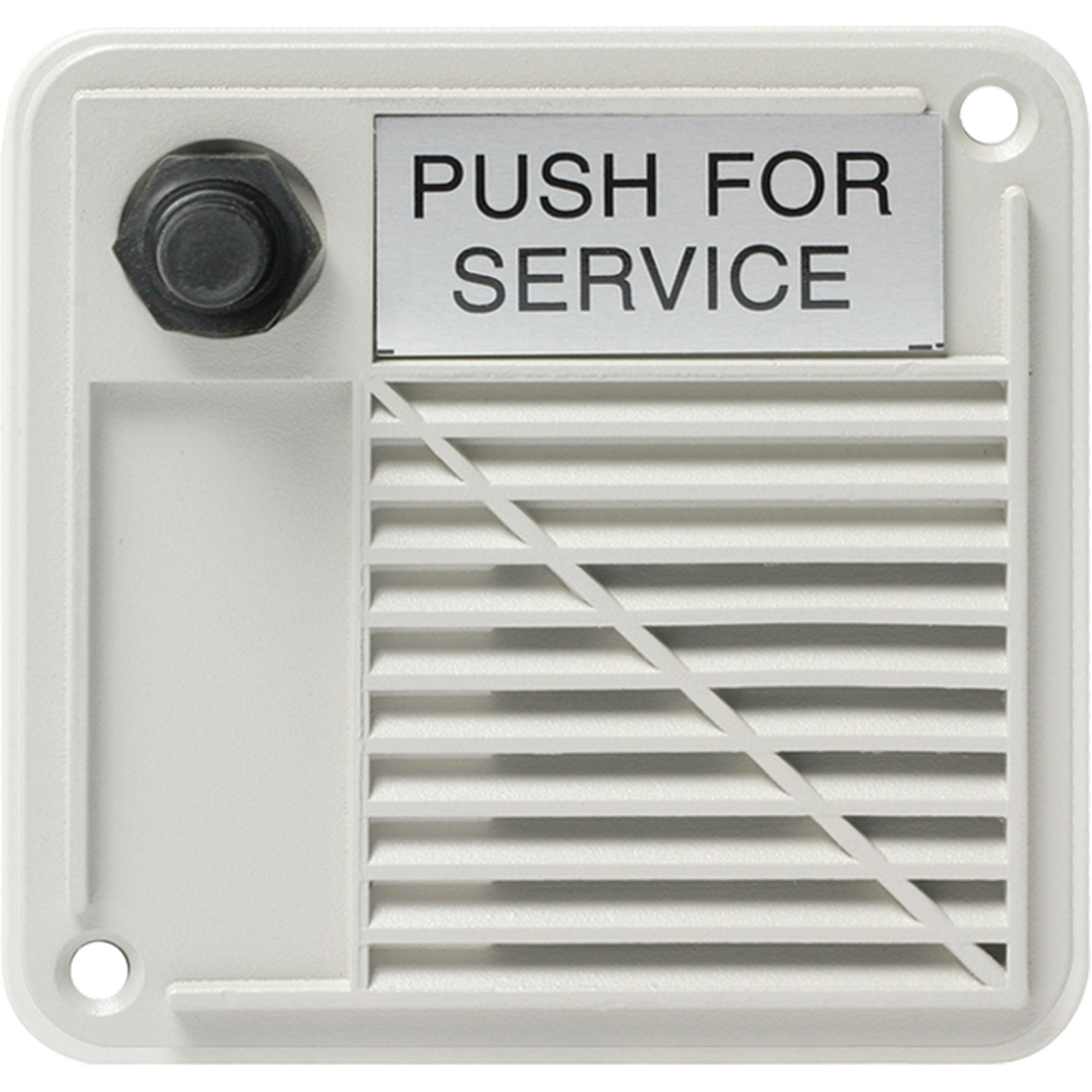

AtlasIED WPVT-4SN Outdoor Intercom Station with Compression Driver & Call Switch 15W 25V

Outdoor Surface Mount Intercom Station with Compression Driver and Call Switch 15W 25V

WPVT-FN/WPVT-SN Series are flush- and surface-mounting, weather-resistant, electroacoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30 to 150 F. Stations include high-intelligibility, environment-resistant compression driver, choice of semirecessed enclosure or flush face plate, a variety of mounting accessories, and a weatherresistant call button for protected call-in signalling capability. Stations are available in 15 or 2 watt versions with optional 25 volt transformer. The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility. Call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.

WPVT-SN Series are compact assemblies size 41/4" SQ x 31/8" D (108 x 79mm) which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 33/16" D (152 x 81mm) for flush installations. Both styles will accept a variety of mounting accessories to meet varying installation requirements (see back page). Enclosures and face plate are die-cast construction finished in neutral grey epoxy.

Features:

• Available in flush, semi-recessed, and surface-mounting configurations
• Environment-resistant paging and intercom stations for outdoor installation include weatherproof call/signal origination switch
• Loudspeaker provides clear and consistent voice and signal transmission
• Power handling selection of 15 and 2 watt models includes optional 25 volt transformer to meet various functional and transmission requirements
• Proven performance reliability of the patented VT Series environment-resistant compression driver
• Semi-recessed

• Height: 4-1/4" (10.795 cm)
• Width: 4-1/4" (10.795 cm)
• Depth: 3-1/8" (7.9375 cm)
• Shipping Weight: 3.50 lbs (1.59 kgs)
• Frequency Response: 600-5500Hz
• Power Taps: 15, 8, 4, 2
• Dispersion: > 190 (- 6dB pt., 1 and 2 kHz octave bands)
• Sensitivity: 102dBA
• Transformer: 25V
