AtlasIED WPD-MIX42RT Wall Plate Input Select Switch, Volume Control 10k Pot and System Indicator

Wall Plate Input Select Switch, Volume Control 10k Pot with System Indicator

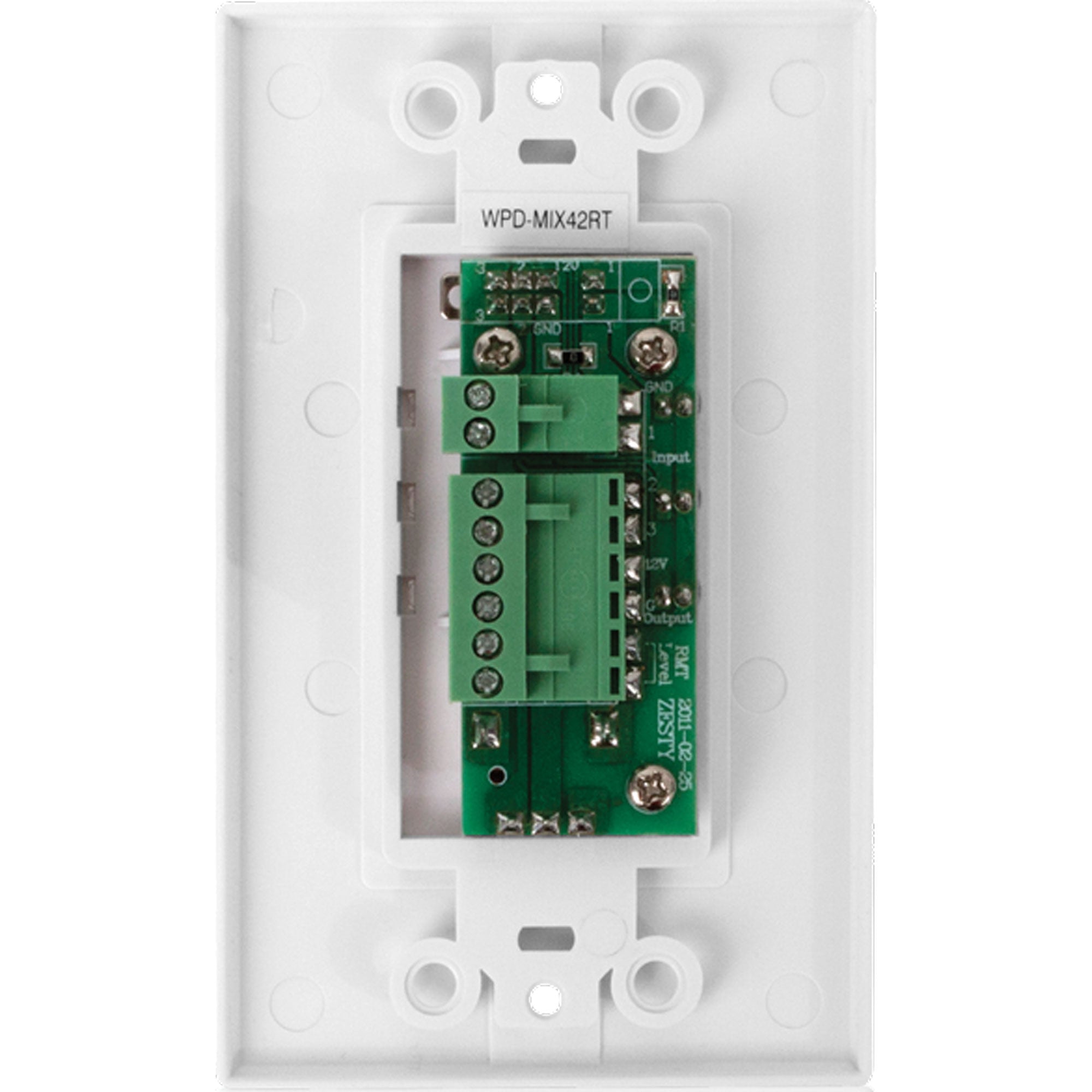

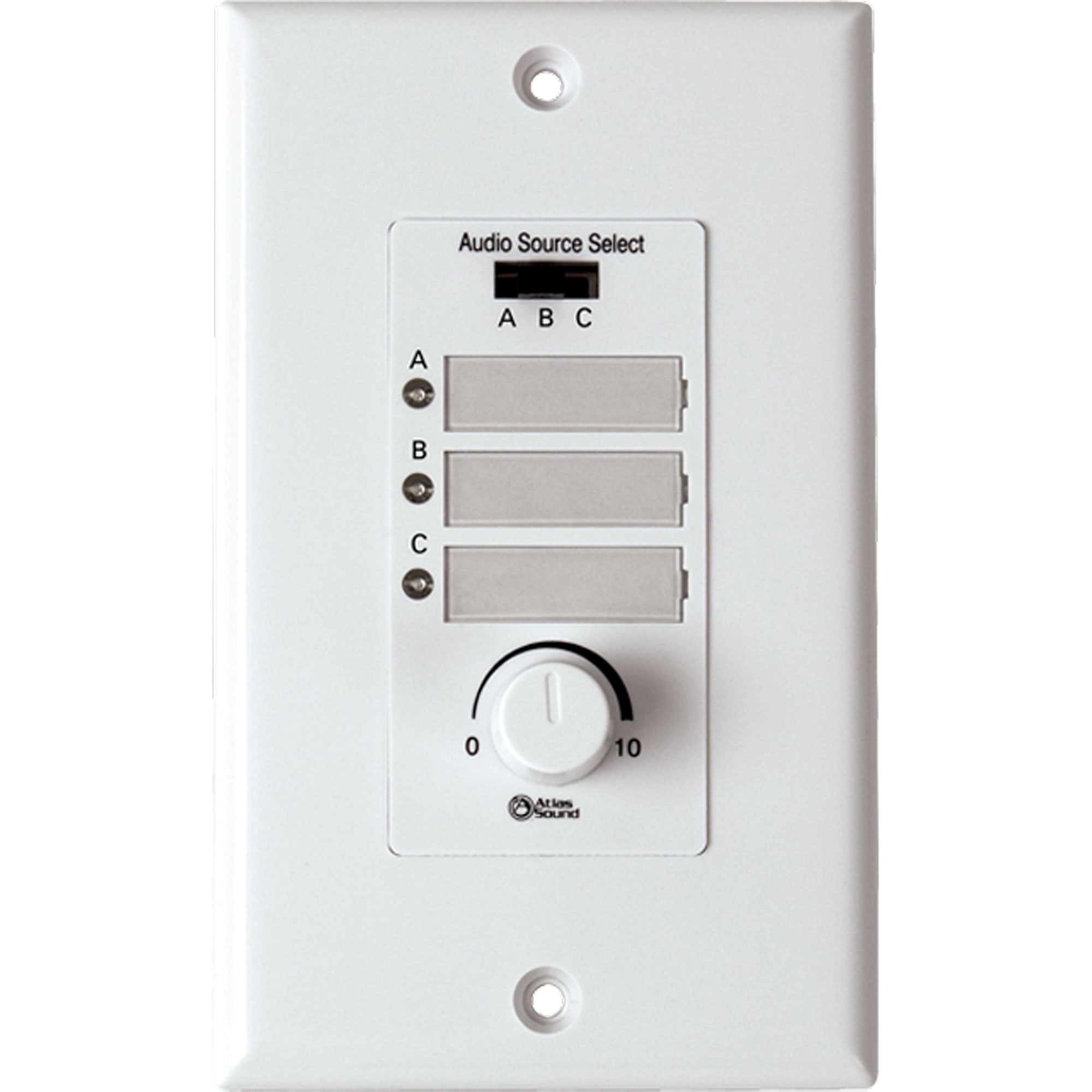

The WPD-MIX42RT is a decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. The WPD-MIX42RT features an audio source slide selector as well as a source volume control. The unit includes an LED indicator to indicate which source is selected and if it is active. The unit fits in a single gang electrical outlet and uses an 8-conductor interface connection that includes a single 4 position removable Phoenix connector and dual 2 position Phoenix style connectors. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.

Features:

• Designed for Remote Activation of Atlas TSD-MIX42RT
• Input Select Slide Switch
• Level Control Via On Board 10kΩ Potentiometer
• System Status Indicator (Red)
• 8-Conductor Interface Connection
• Label Guard

Specifications:

• Height: 4.5" (114mm)
• Width: 2.5" (63mm)
• Depth: 0.24" (6.4mm)
