AtlasIED UKT25-2C-U51-8 8" 5W 25V In-Ceiling Fire Signaling Speaker with U51-8 Baffle

8" Dual Voice Coil Loudspeaker for Fire Protective Signaling with 25V-5W Transformer and U51-8 Baffle

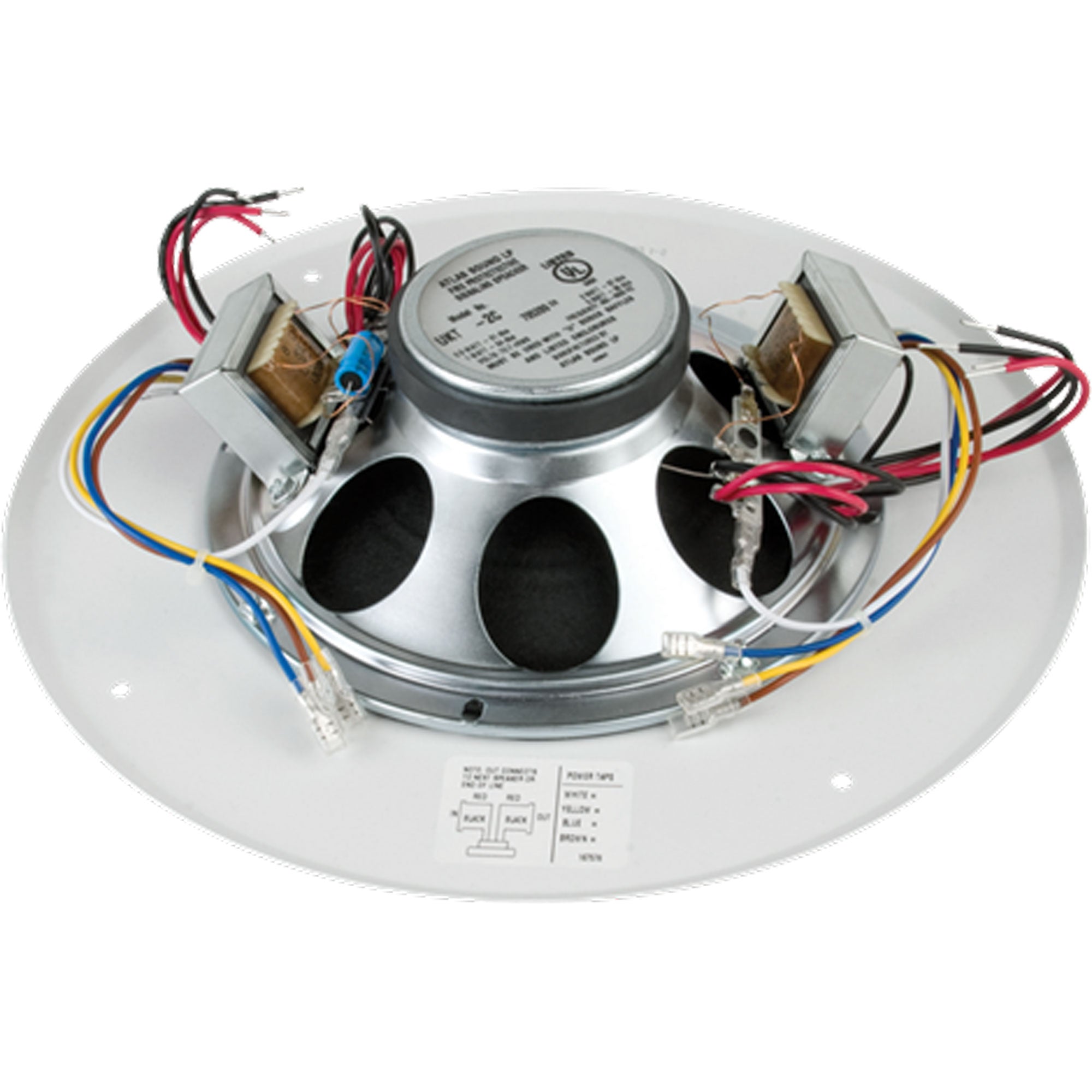

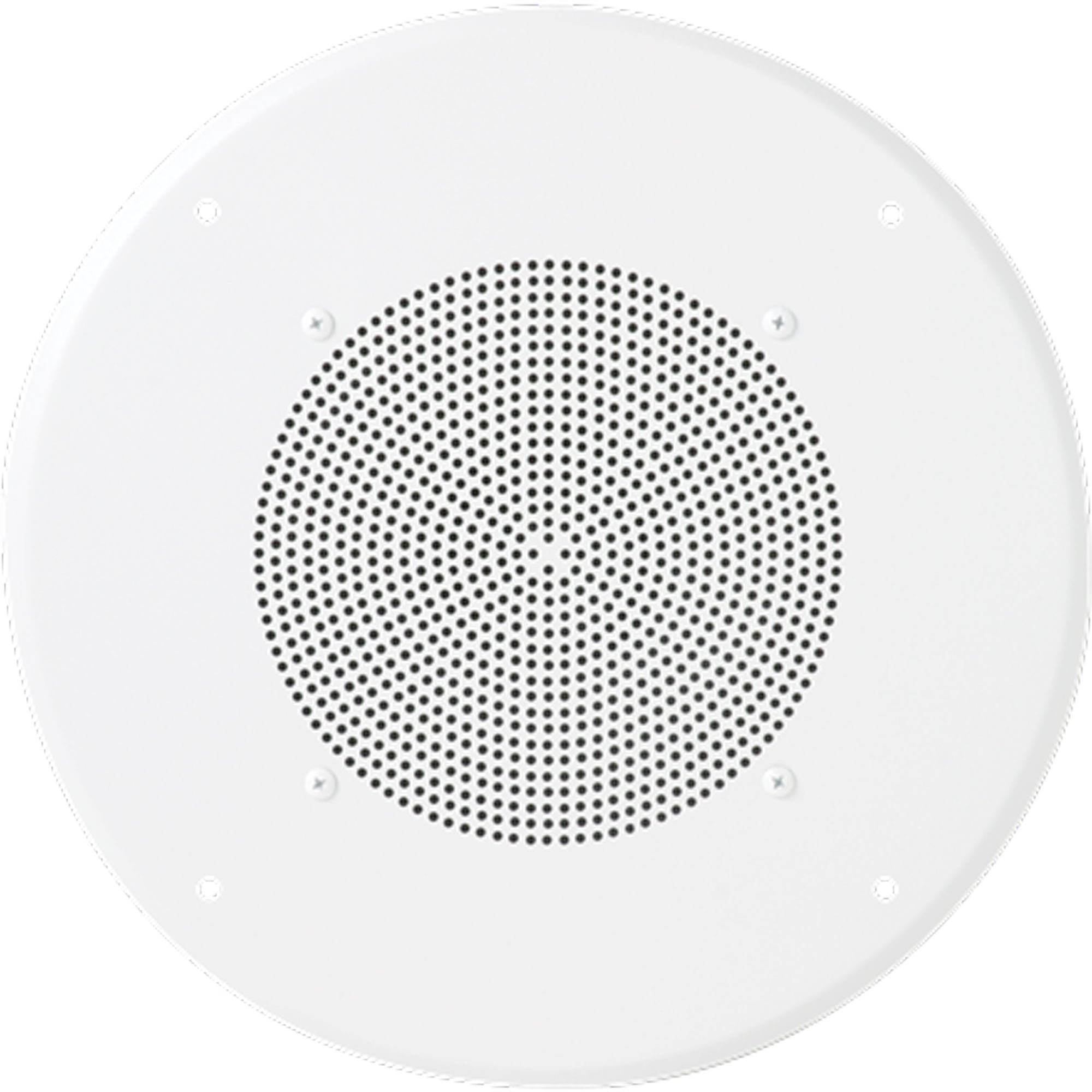

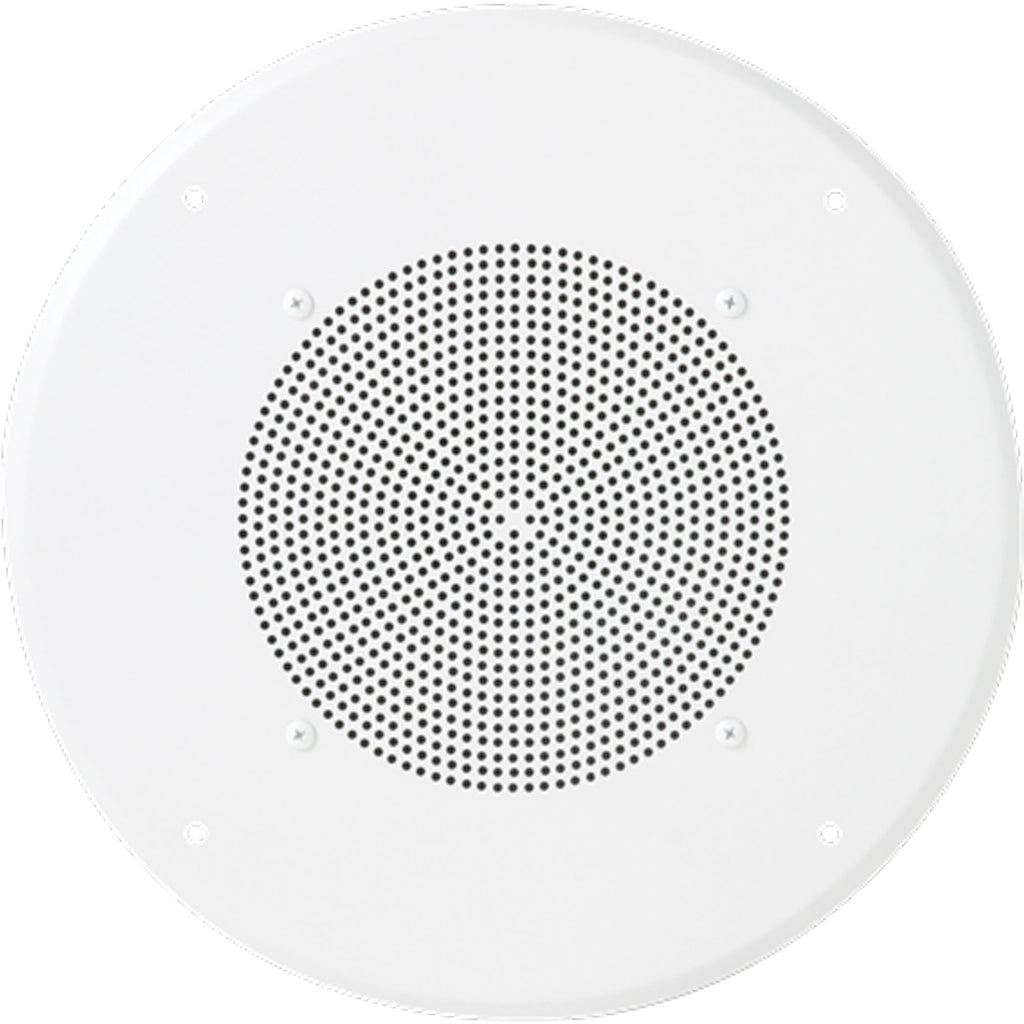

Atlas Sound's UKT25-2C-U51-8 are 8" diameter dual voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, dual factory-mounted 25V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.

To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures

Features:

• Dual 1" Voice Coils
• Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
• Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
• Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
• Selection of UL Approved, Companion Enclosures is Offered
• UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response

Specifications:

• Frequency Response: 60Hz - 8kHz
• Power Taps: .5, 1, 2, & 5 Watts
• Sensitivity: 94dB Peak, 91dB Avg.
• Depth: 2 7/8" (7.3025 cm)
• Diameter: 8" (20.32 cm)
• UL Listed/Standard: 1480
