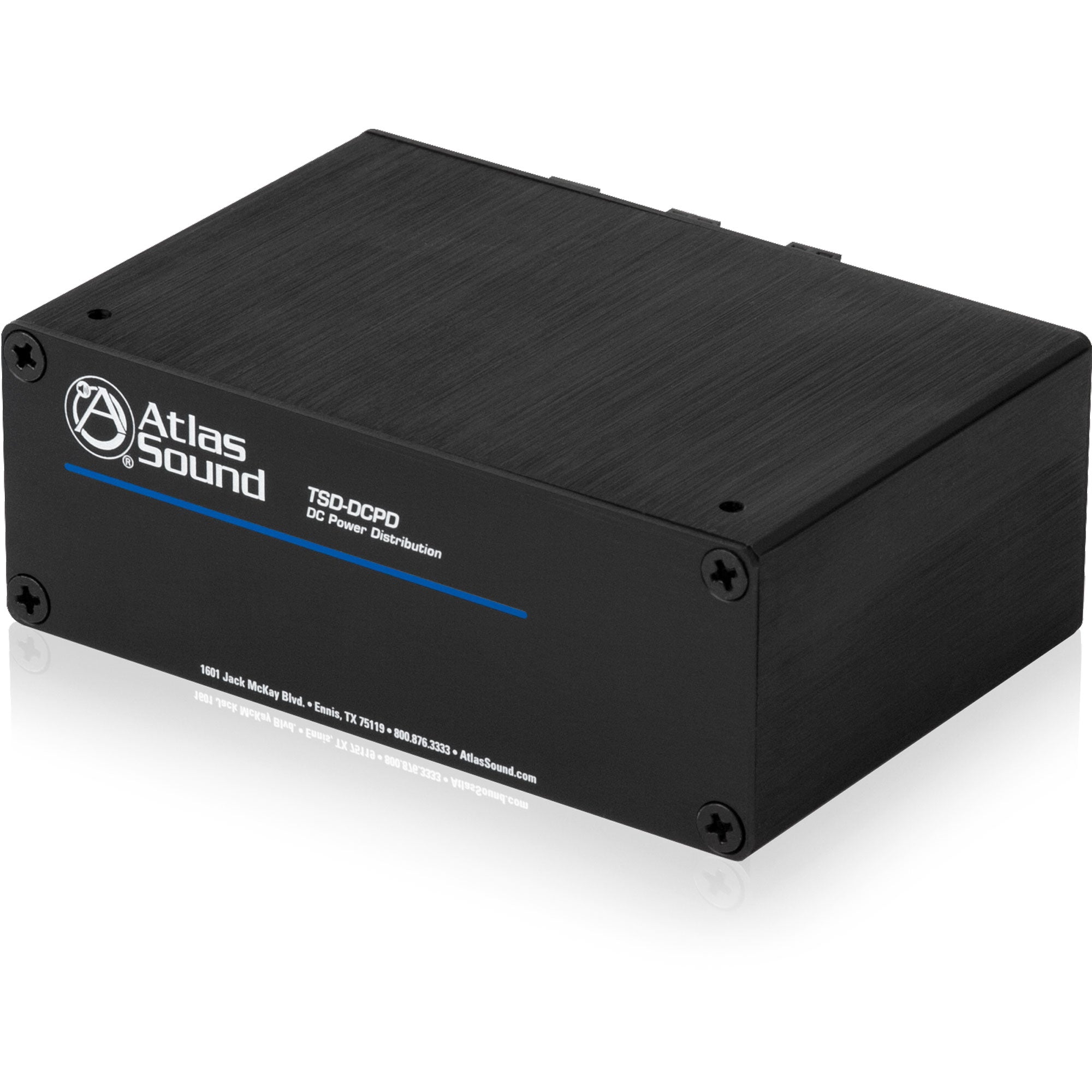

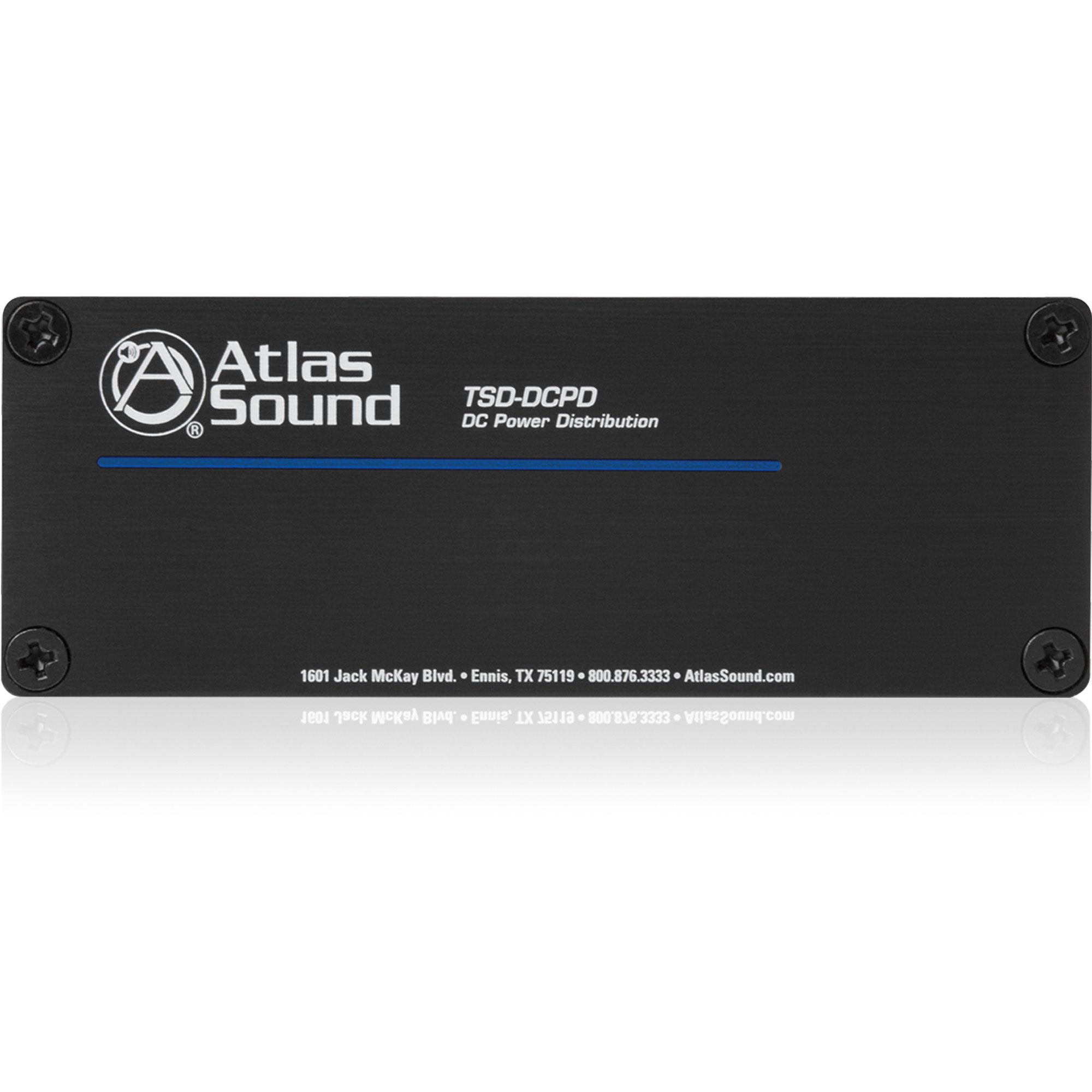

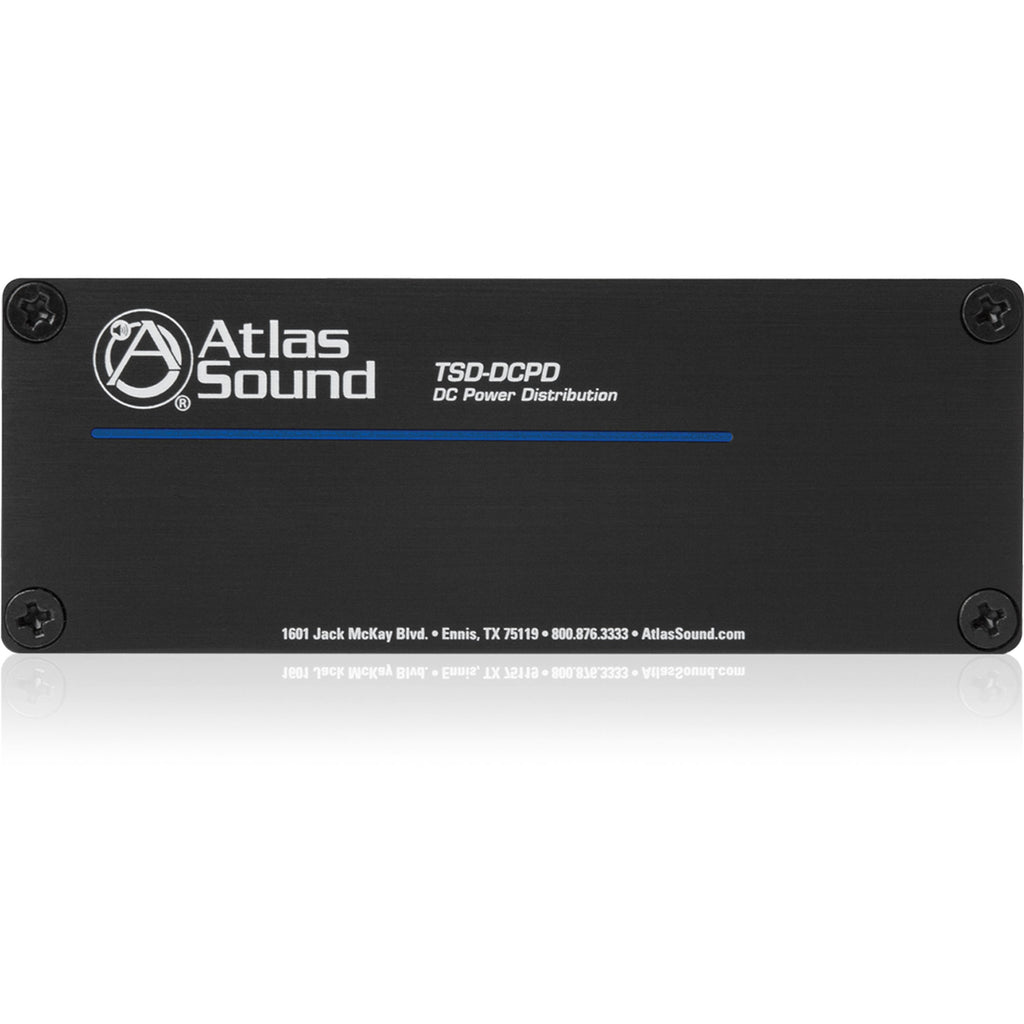

AtlasIED TSD-DCPD DC Power Distribution

DC Power Distribution

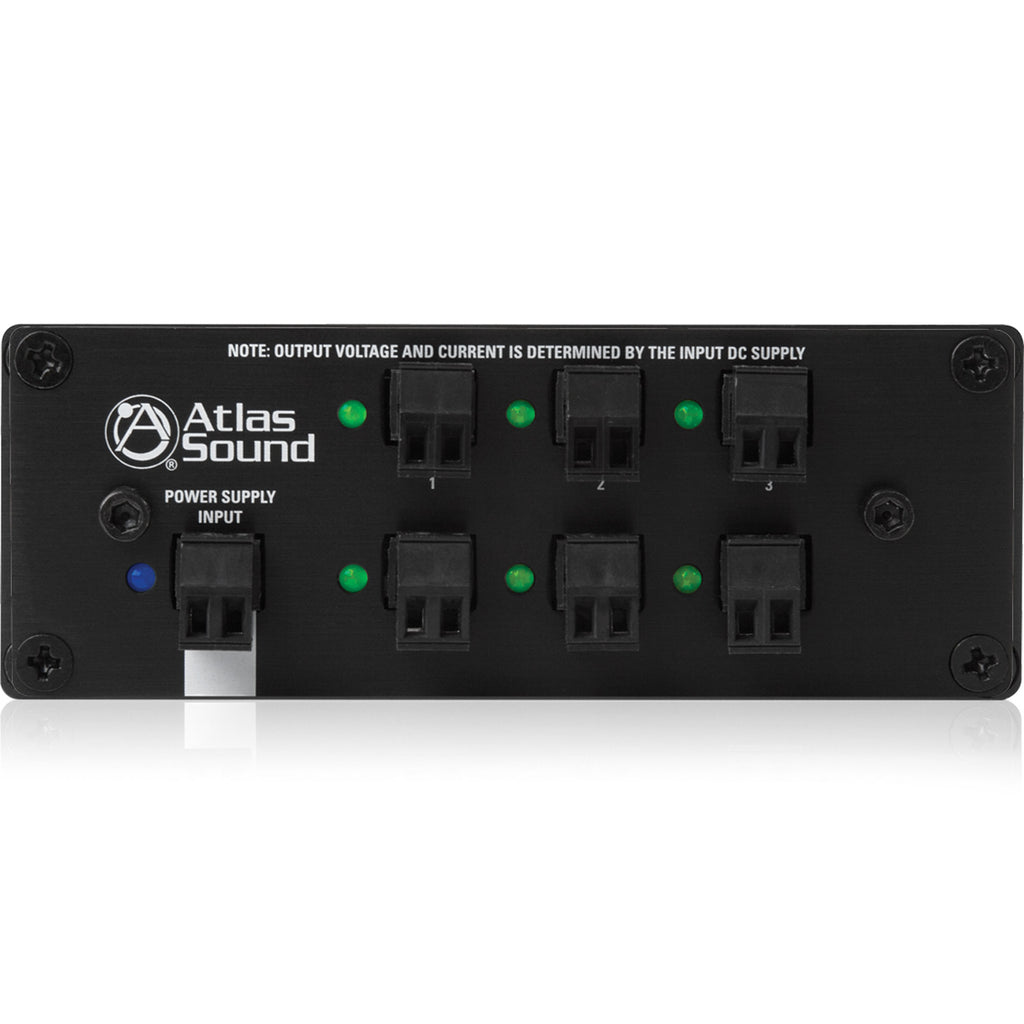

The TSD-DCPD is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. One 9-24V PSU input is distributed to 6 independent, isolated outputs.

The compact TSD-DCPD will help remove rack clutter and free up power strip space.

Features:

• Power Distribution for Up to 6 TSD's From a Single PSU
• 1 in 6 Out Configuration
• Six (6) Independent 9-24V Outputs
• DC Filtering and Isolation Per Channel
• Meets Energy Star Standards

Specifications:

• DC Voltage input: 9V - 24V DC, 5A Max
• DC Voltage Output: 9V - 24V DC, Voltage and Current Related to Input Power Supply
• Dimensions
• Height: 1.5" (3.81 cm)
• Width: 4" (10.16 cm)
• Depth: 2.5" (6.35 cm)
• Weight: 6oz., .165kg
