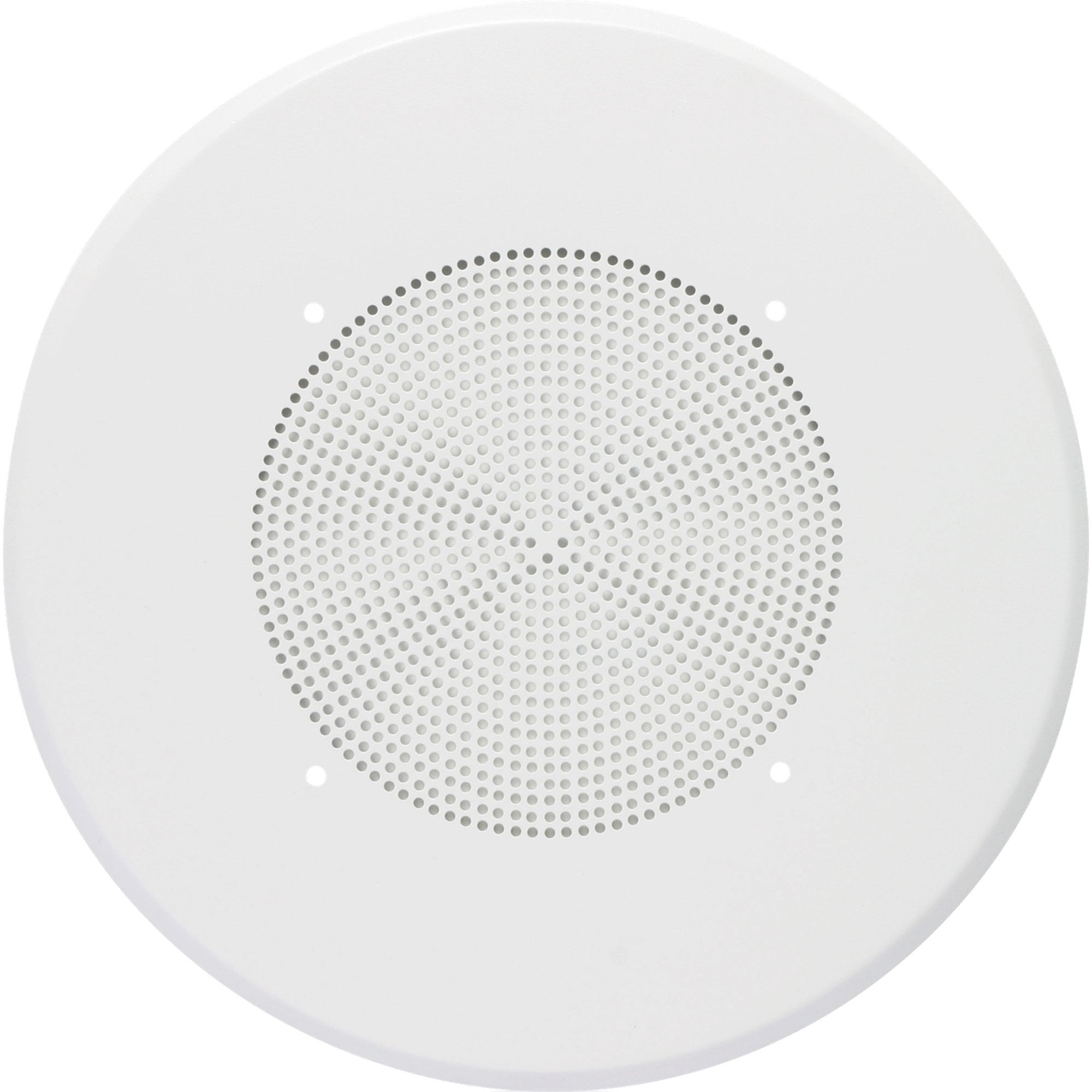

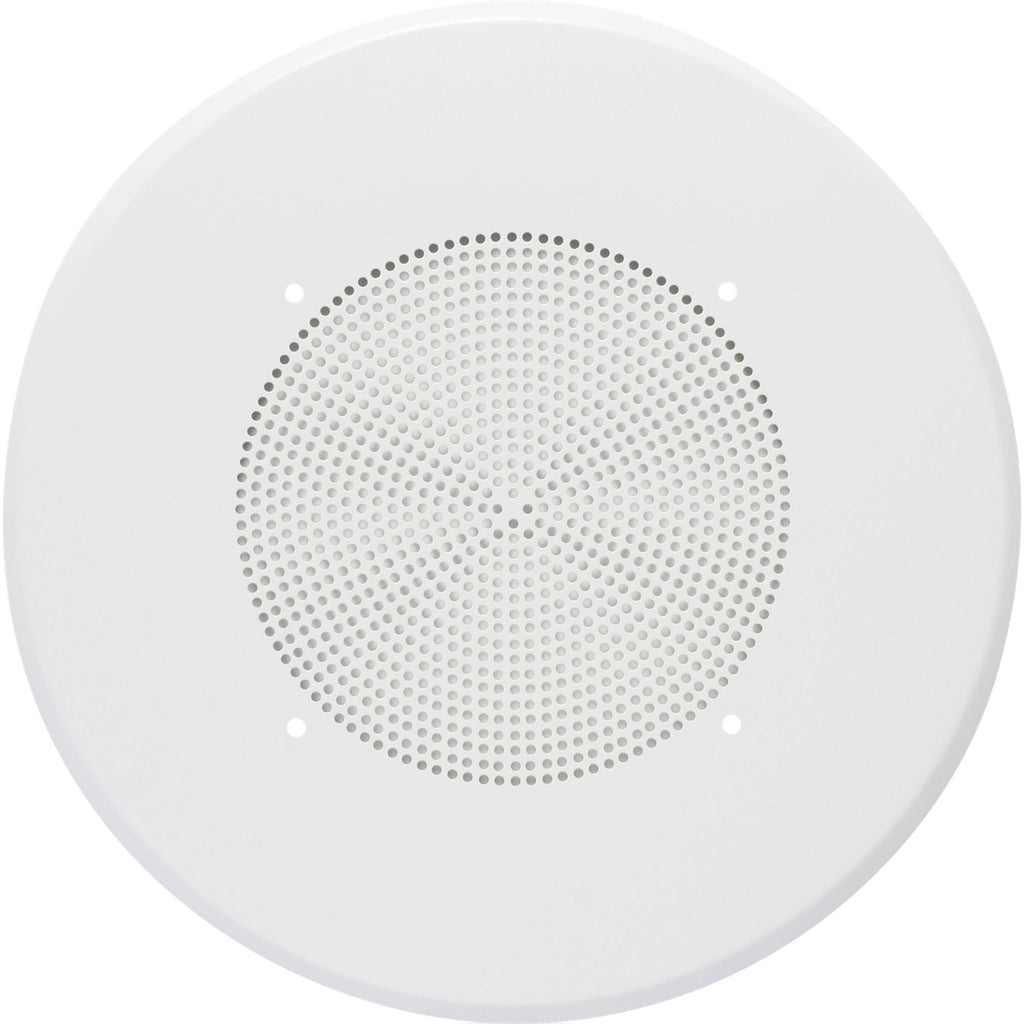

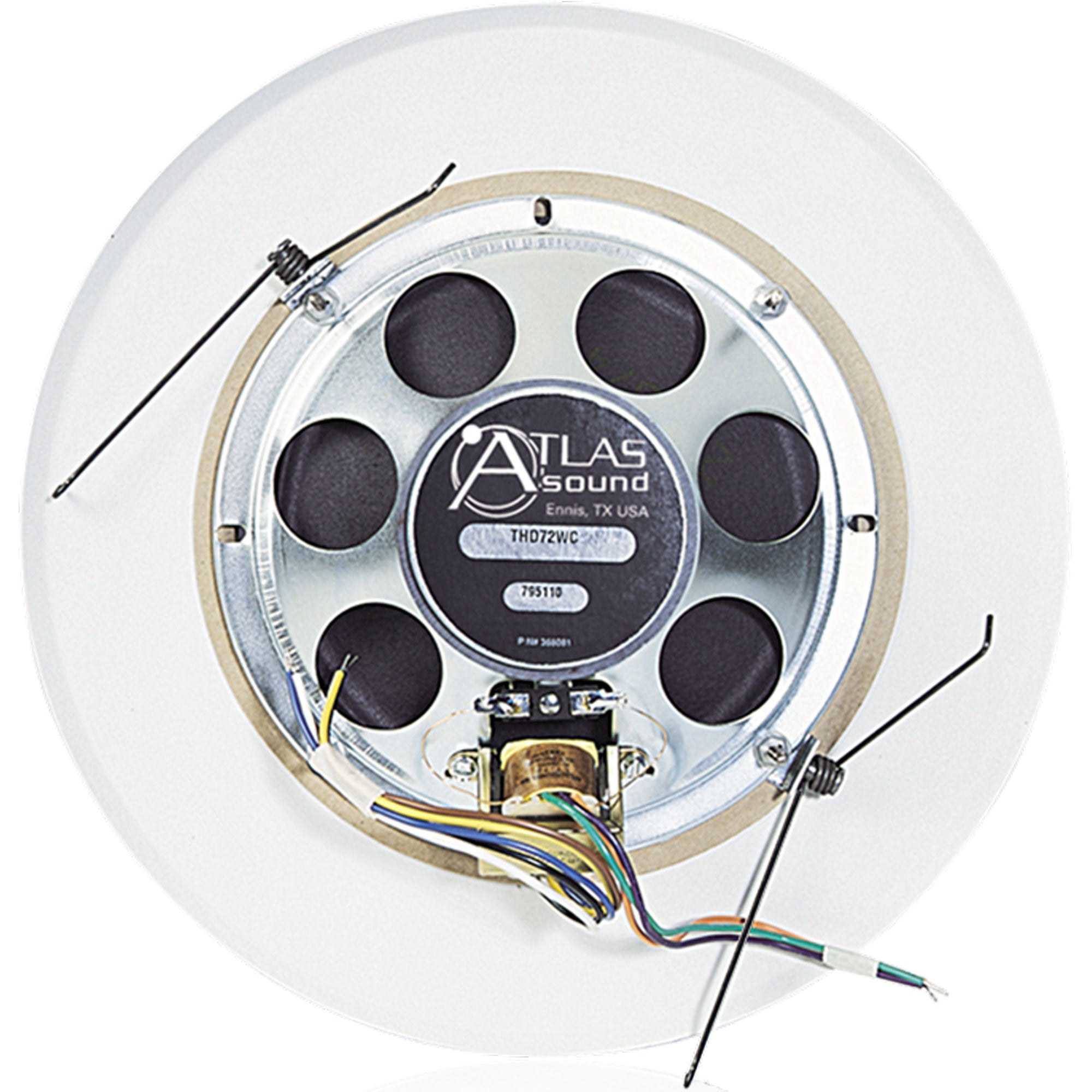

AtlasIED THD72WC 8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and T62-8 Torsion Baffle

Pre-Assembled Baffle, 10 oz. Loudspeaker, 25/70.7V-4W xfmr/T62-8

THD72WC are cost-effective 8" dual-cone loudspeaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements.

Features:

• Equipped with 25, 70.7, 25/70.7V Transformer
• EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
• Installation Time and Expense with Pre-Assembled Loudspeaker, 15 or 25W Transformer & Baffle Combinations

Specifications:

• Depth: 2-7/8" (7.3025 cm)
• Diameter: 8" (20.32 cm)
• Shipping Weight: 4.50 lbs (2.04 kgs)
• Frequency Response: 100 Hz - 10 kHz, +/- 1.5dB
• Power Taps: 25/70.7V
• Speaker Type: Treated Paper
• Dispersion: 105
• Sensitivity: 97dB Peak, 94dB Average
