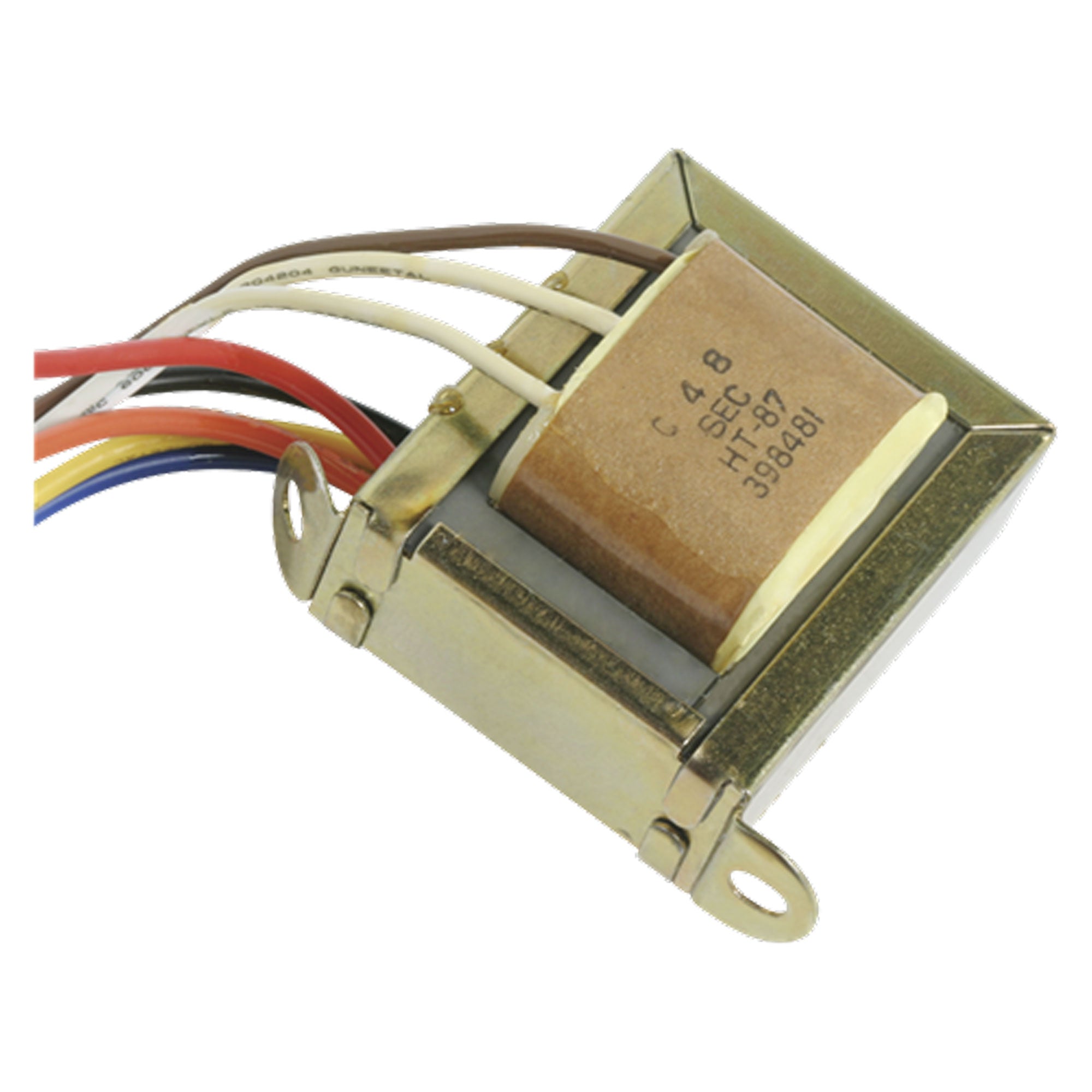

AtlasIED HT87 High-Quality 8-Watt Audio Transformer 70.7V

High-Quality Transformer 8 Watt, 70.7V

The HT87 is a Industry standard, high quality transformer with audio grade laminations.

The unit offers low insertion loss (not to exceed 1.0dB) and full-range frequency response

(+1dB from 50Hz - 15kHz).

Primary taps are 1, 2, 4, and 8 watts.

Secondary impedance is 4Ω and 8Ω.

Model HT-87 is designed for use with 70.7-volt lines.

Features:

• Constructed with Audio Grade Laminations
• Frequency Response is 50Hz - 15KHz
• High Quality Matching Transformer with Only 0.6dB Insertion Loss
• Primary Taps of 1, 2, 4, & 8 Watts

Specifications:

• Frequency Response: 50Hz - 15KHz
• Power Rating: 8 Watts
• Secondary Impedance: 4Ω and 8Ω
• Power Taps: 1, 2, 4 & 8 Watts
• Primary Voltage: 70.7V
• Height: 2 3/8" (6.0325 cm)
• Width: 1.969" (5.00126 cm)
• Depth: 1 1/16" (2.61874 cm)
