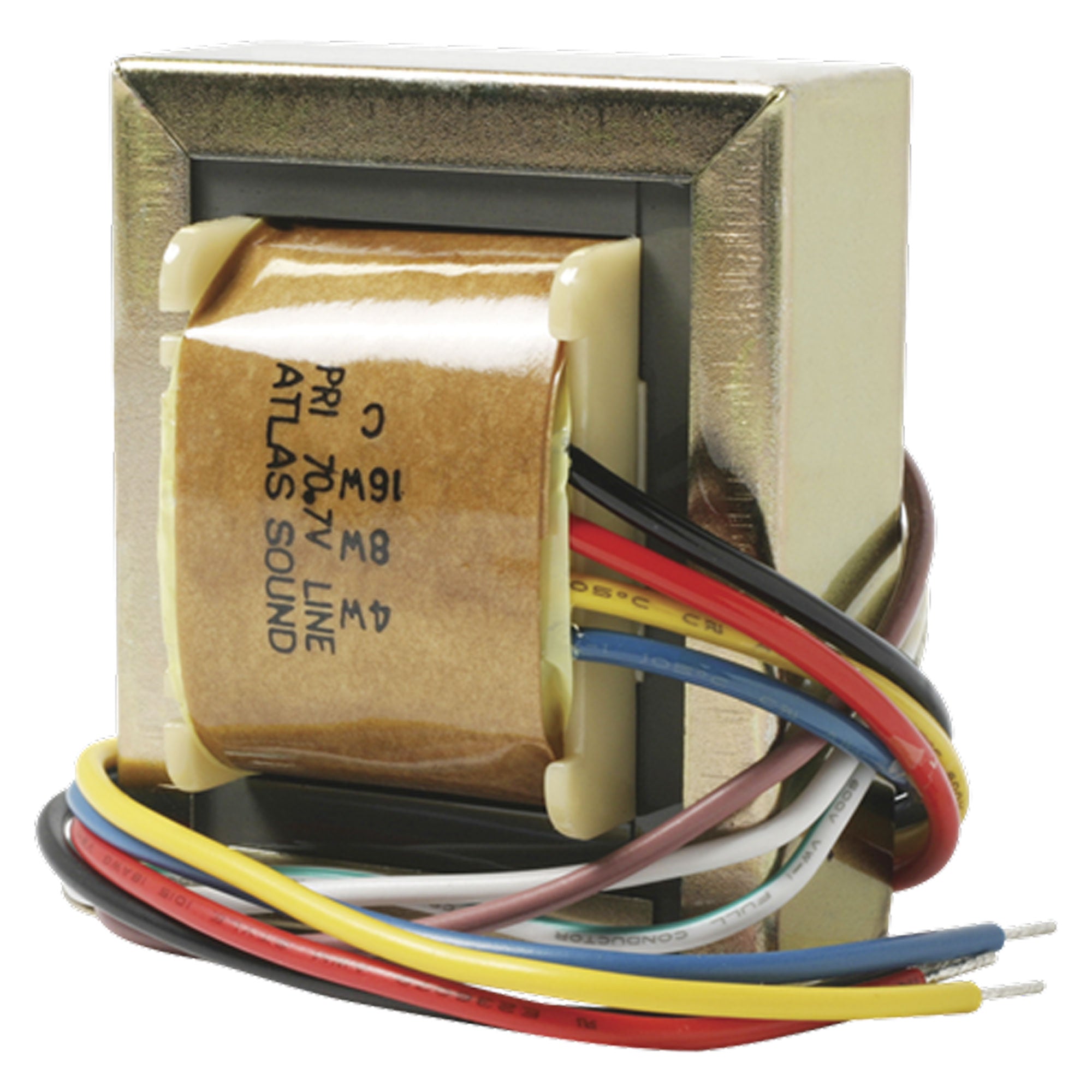

AtlasIED HT167 High-Quality 16-Watt Audio Transformer 70.7V

High-Quality Transformer 16 Watt, 70.7V

Model HT167 high quality line matching transformer features 0.6dB insertion loss to assure efficient speaker matching in distributed 70.7-volt systems.

Unit is constructed of audio grade laminations and has primary taps at 4, 8 and 16 watts. The secondary impedance is 4 and 8 ohms.

Frequency response is +1dB from 40Hz - 15kHz.

Features:

• Constructed with Audio Grade Laminations
• Frequency Response is 40Hz - 15KHz
• High Quality Matching Transformer with Only 0.6dB Insertion Loss
• Primary Taps of 4, 8, & 16 Watts
• Secondary Outputs Offer Both 4 & 8 ohm Impedance

Specifications:

• Frequency Response: 40Hz - 15KHz
• Power Taps: 4, 8 & 16 Watts
• Power Rating: 16W
• Primary Voltage: 70.7
• Height: 3 1/8" (7.9 cm)
• Width: 2 9/16" (6.5 cm)
• Depth: 1 3/32" (2.8 cm)
• Shipping Weight: 2.50 lbs (1.13 kgs)
