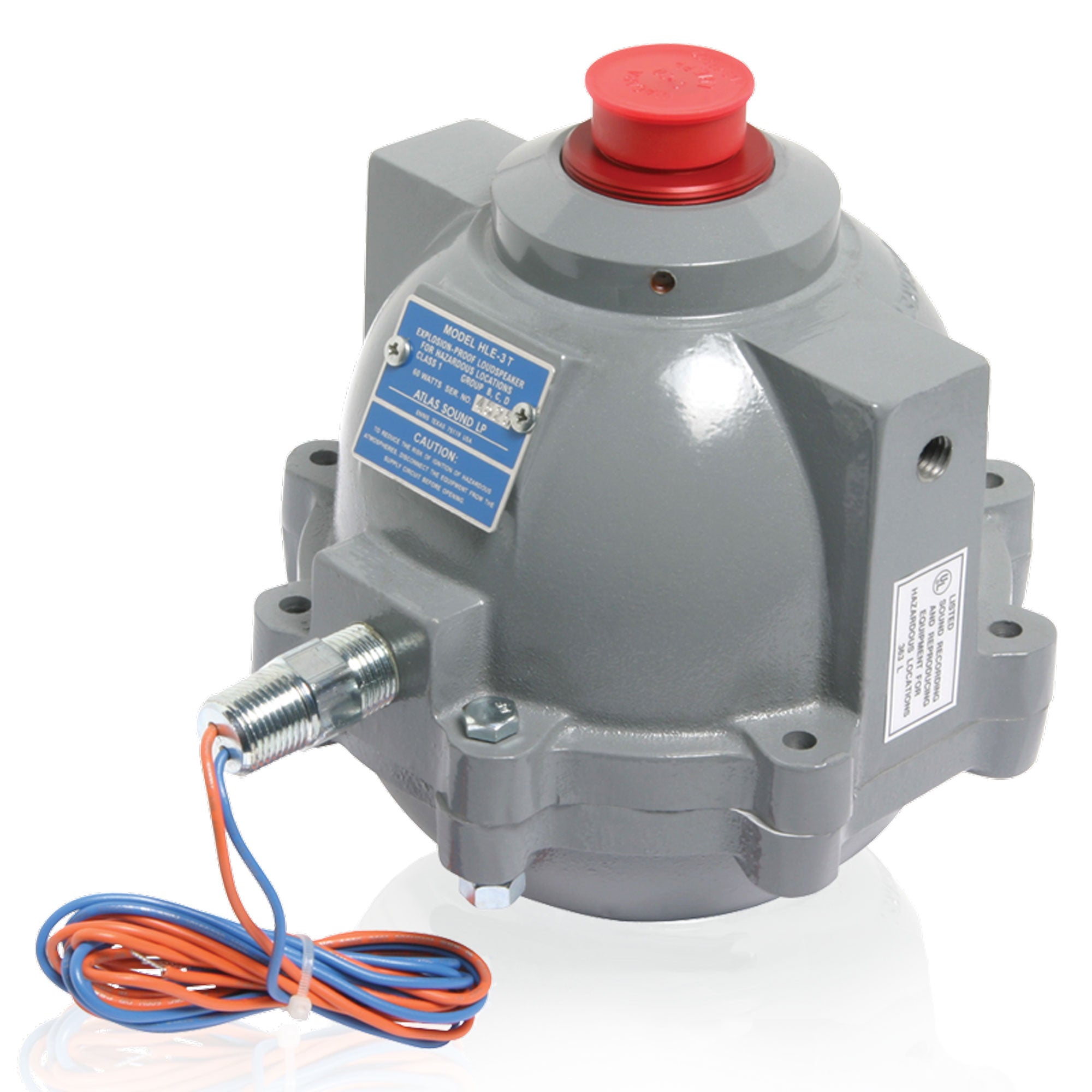

AtlasIED HLE-3 UL Listed 16 Ohm Explosion-Proof Driver for Use in Hydrogen Environments

UL Listed Explosion-Proof Driver 60 W, 16 Ohms Hydrogen Environment

UL Listed Explosion-Proof Driver 60 W, 16 Ohms Hydrogen Environment
Series HLE and MLE loudspeakers are explosion-proof compression driver/horn assemblies engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, are available in 60-watt (HLE Series) and 30-watt (MLE Series) power handling versions. Models with T suffix include a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). All models are equipped with 1/2" conduit access and an adjustable mounting bracket. Projector horns are available in two styles to meet dispersion requirements. Model HLE/MLE-30 is a high-quality, polycarbonate projector that creates a 120 x 60 pattern for wide area coverage. Model HLE/MLE-32 is a spun aluminum bell providing a 95 circular distribution emphasis.

Features:

• 60 Watt, 16 Ohm driver
• Approved for Class 1/Groups B, C & D Environments
• Can be used with either HLE/MLE-30 OR HLE/MLE-32 horn projectors
• Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
• Listed by UL and CSA for Use in Hazardous/Combustible Environments (noted models)

• Height: 6" (15.24 cm)
• Width: 14" (35.56 cm)
• Depth: 17-1/2" (44.45 cm)
• Shipping Weight: 15.00 lbs (6.80 kgs)
• Frequency Response: 250 Hz- 12 kHz
• Power Rating: 60 Watts Cont.
• Sensitivity: 108dB
• UL Listed/Standard: 1203, 1604, 2279, 913, NFPA 503
