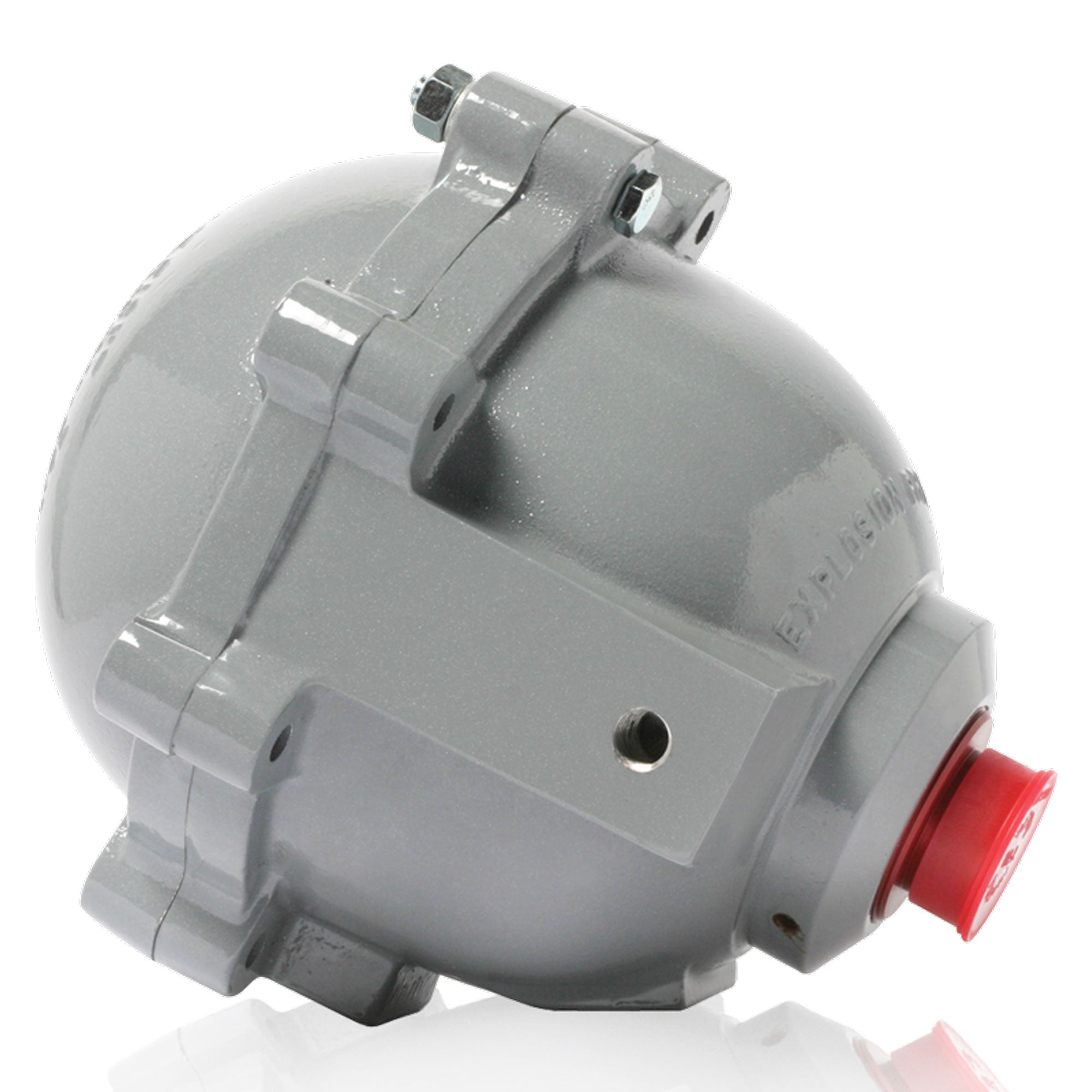

AtlasIED HLE-1T UL Listed Explosion-Proof Driver with 60-Watt 70V Transformer

UL Listed Explosion-Proof Horn Driver 60 W, 70.7V Transformer

UL Listed Explosion-Proof Driver 60 W, 70.7V Xfmr.
HLE-1T loudspeaker is an explosion-proof compression driver/horn assembly engineered for high-efficiency voice and electronic signal communication in hazardous areas. Drivers, which are protected within a rugged die-cast aluminum housing, have 60-watt power handling. Includes a factory-installed, internally mounted transformer (Note: To meet UL requirements transformer must be factory installed). Model is equipped with 1/2" conduit access and an adjustable mounting bracket.

Features:

• 60 Watt, 70 Volt driver (T-18 xfmr)
• Approved for Class 1/Groups C & D Environments
• Can be used with either HLE/MLE-30 OR HLE/MLE-32 horn projectors
• Explosion-Proof Loudspeaker Driver for Signal and Communications Systems
• Listed by UL and CSA for Use in Hazardous/Combustible Environments (noted models)

Specifications:

• Height: 6" (15.24 cm)
• Width: 14" (35.56 cm)
• Depth: 17-1/2" (44.45 cm)
• Shipping Weight: 16.25 lbs (7.37 kgs)
• Frequency Response: 250 Hz- 12 kHz
• Power Rating: 60 Watts Cont.
• Sensitivity: 109dB
• UL Listed/Standard: 1203, 1604, 2279, 913, NFPA 503
