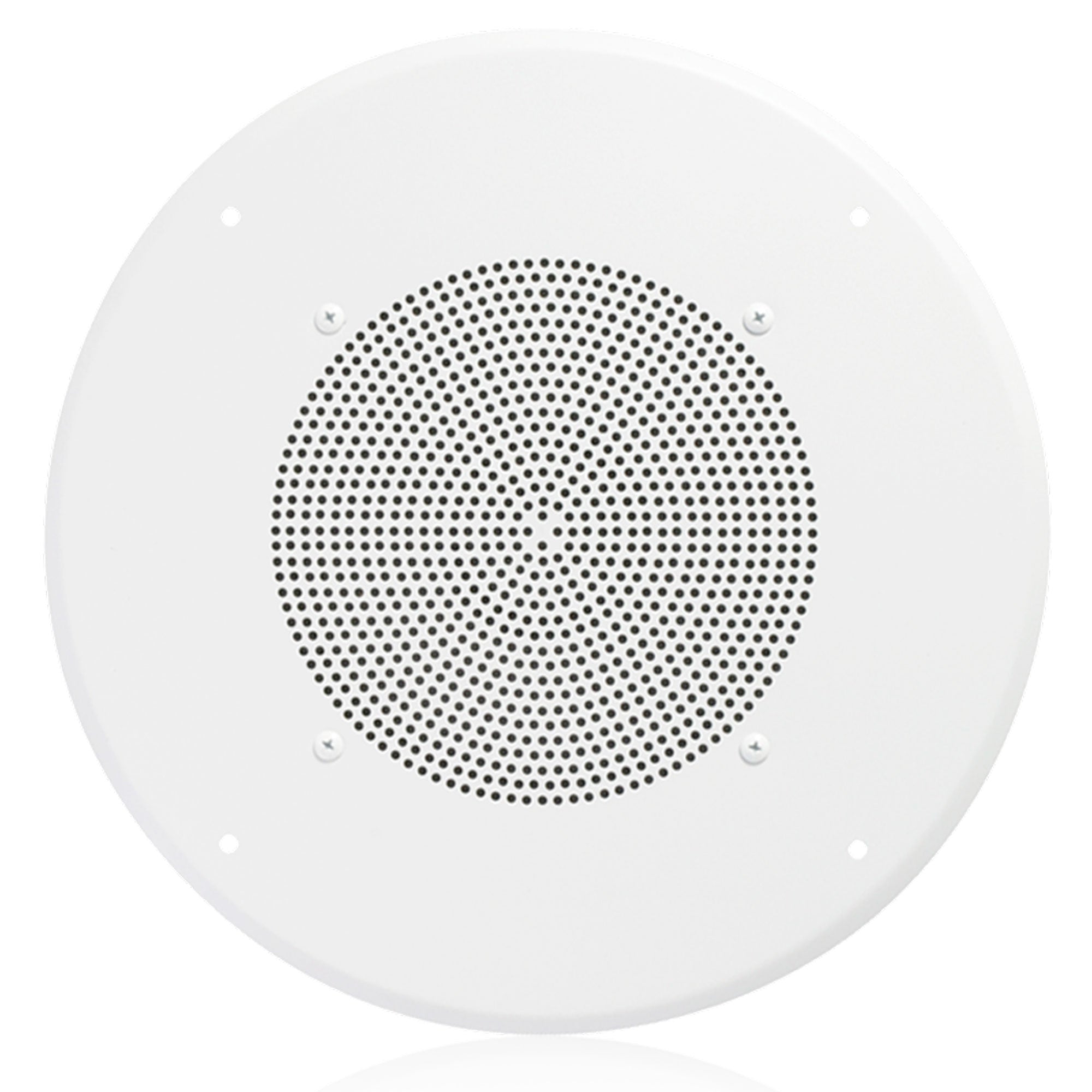

AtlasIED HD72W-USA 8" In-Ceiling Speaker Package Meets Buy America Requirements

8" Loudspeaker Assembly with 25V/70.7V-4W Transformer and 62-8 Baffle - Assembled in the USA

Model HD72W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V/25V transformer and screw type grill. Unit is shipped assembled, ready for installation.

The HD72W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance.

The HD72W includes a factory mounted dual voltage transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100Hz - 10kHz. Speaker / transformer is factory installed on a 62-8 style baffle.

Features:

• Attractive White Finish
• Easy to Order Speaker/Transformer/Grill Assembly
• Suited for Any Commercial Paging or BGM Application

Specifications:

• Speaker Type: Treated Paper
• Frequency Response: 100Hz - 10kHz
• Power Taps: .25, .5, 1, 2, & 4 Watts
• Dispersion: 105°
• Sensitivity: 97dB Peak, 94dB Average
• Depth: 2 7/8" (7.3025 cm)
• Diameter: 8" (20.32 cm)
• Shipping Weight: 4.50 lbs (2.04 kgs)
