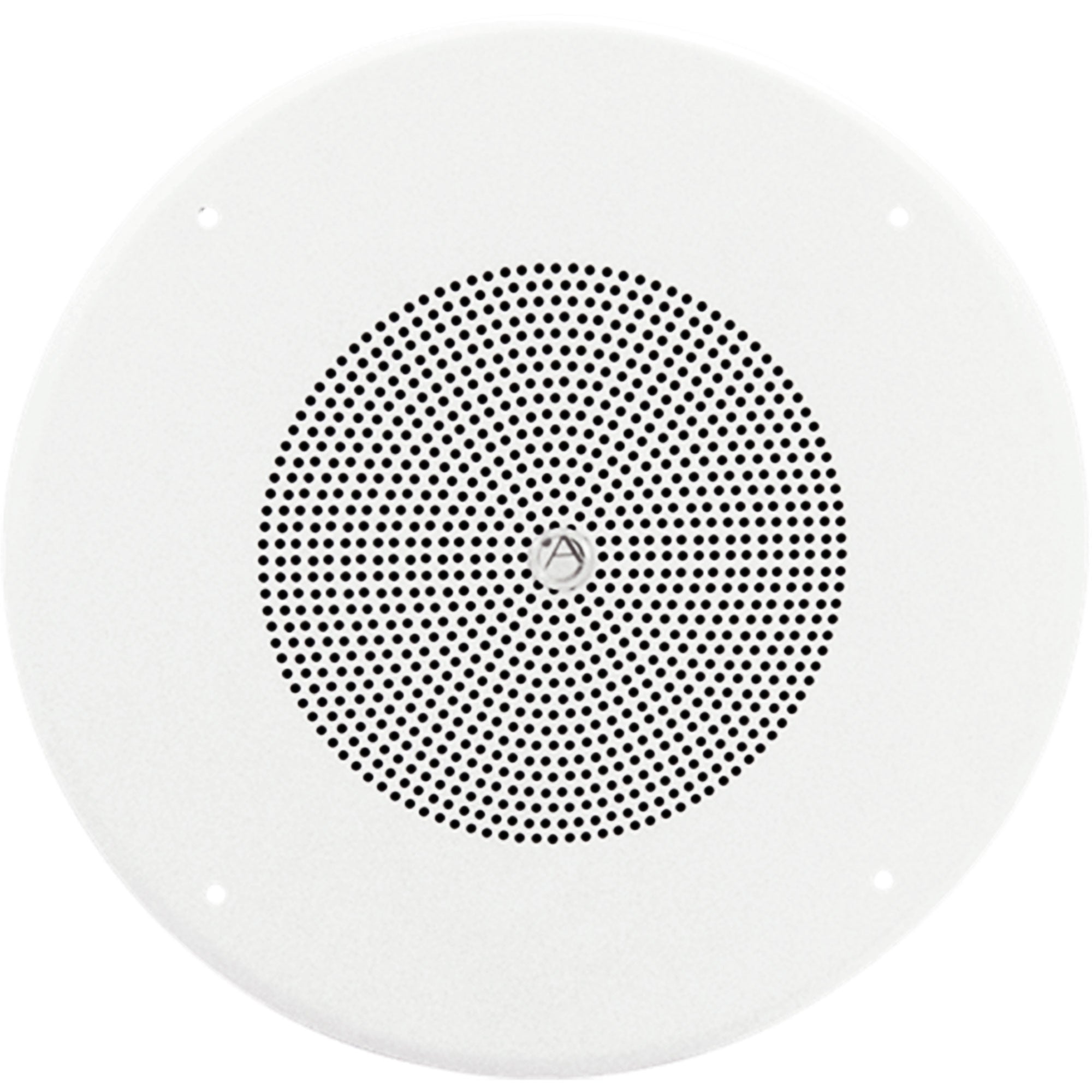

AtlasIED HD70W 8" In-Ceiling Speaker with 5-Watt 70V Transformer and 62-8 Baffle

Pre-Assembled Baffle, 10 oz Loudspeaker 70.7V-5W xfmr/51-8

Pre-assembled baffle, 10 oz Loudspeaker 70.7V-5W xfmr/51-8
Model HD70W is a cost effective assembly that include high-quality 8" loudspeaker, 70.7V transformer and screw type grill. Unit is shipped assembled, ready for installation.

The HD70W features a conventional cone design loudspeaker with a 1" diameter voice coil to reproduce voice and music with excellent response and superb overall performance. The HD70W includes a factory mounted 70V transformer that exhibits less than 1.5dB of insertion loss and a frequency response of +1.5dB from 100 Hz to 10 kHz. Speaker / transformer is factory installed on a 62-8 style baffle.

These industry favorites are aesthetically pleasing constructed of 24-gauge CRS and finished in textured white epoxy.

Features:

• Attractive white finish
• Easy to order speaker/transformer/grill assembly
• Suited for any commercial paging or BGM application

Specifications:

• Depth: 2-7/8" (7.3025 cm)
• Diameter: 8" (20.32 cm)
• Shipping Weight: 4.50 lbs (2.04 kgs)
• Frequency Response: 100 Hz - 10 kHz, +/- 1.5dB
• Power Taps: .5, 1, 2, 5
• Speaker Type: Treated Paper
• Dispersion: 105
• Sensitivity: 97dB Peak, 94dB Average
