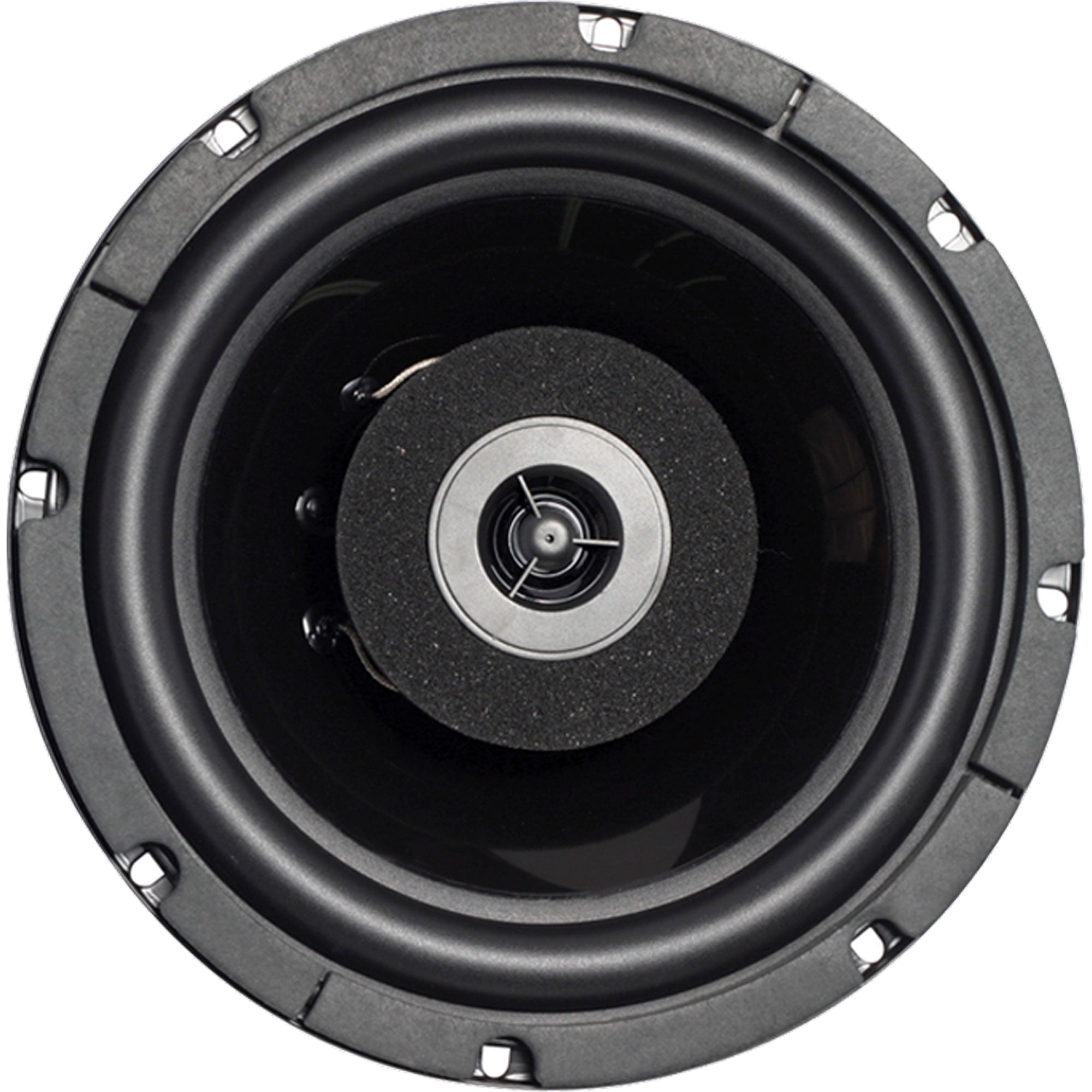

AtlasIED FA138T327 8" Coaxial Speaker with 32-Watt 70.7V Transformer

8" Strategy Series Coaxial Loudspeaker, UL Listed, 70.7V-32W xfmr

8" Strategy Series Coaxial Loudspeakers (UL Listed) 70.7V-32W xfmr
Model FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 85 Hz - 20 kHz. Model FA138 contains a Kevlar fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 11.2" vented Kapton voice coil, a 21 oz. magnet and a 1.2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

Features:

• 25-Watt, 8" Loudspeaker System Delivers Efficient Frequency Response
• Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
• Patented System Design Provides Easy Installation
• Performance Sensitivity Offers Enhanced Audio Clarity
• System Components Include: Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles

Specifications:

• Depth: 5-1/2" (13.97 cm)
• Diameter: 8-1/4" (20.955 cm)
• Shipping Weight: 8.00 lbs (3.63 kgs)
• Frequency Response: 75 Hz- 20 kHz (+5dB)
• Power Taps: 70.7V
• Speaker Type: Coaxial
• Dispersion: 110
• Sensitivity: 89.5dB Average, 93dB Peak
• UL Listed/Standard: 1480
