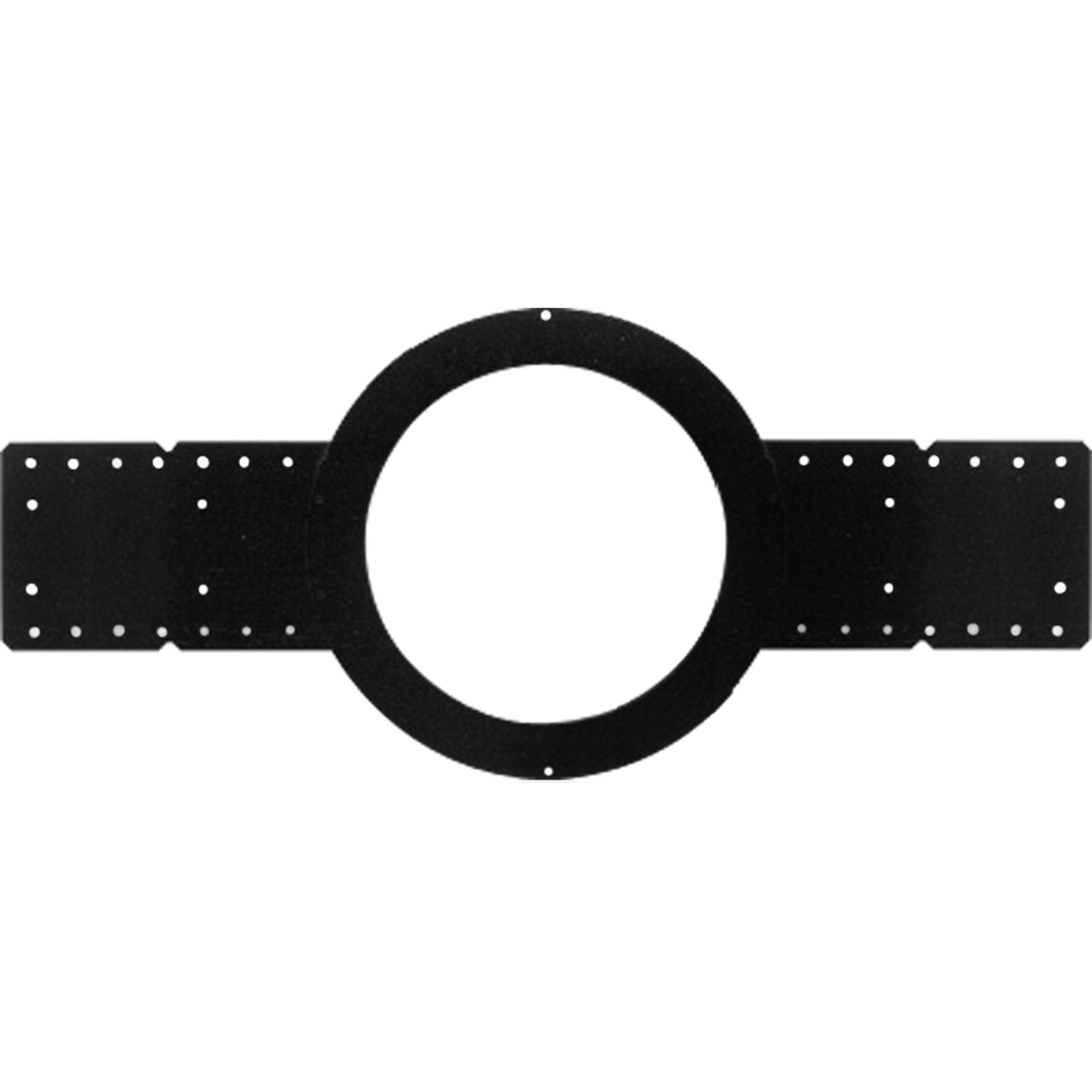

AtlasIED FA-TR8 New Construction Ring 8" Strategy Series

New Construction Ring for use with 8" Strategy Series

New Construction Ring 8" Strategy Series
The Strategy Series FA-TR8 trim ring/rough-in bracket, for wall or ceiling-mount applications, installs prior to the drywall and serves as a pattern cut-out for the drywall contractor to finishout the wall leaving the proper opening for a FA97-8 or FA95-8 enclosure or FAPR-8 plaster ring.

This step identifies pre-wire location and expedites sound system installation.

Trim ring measures 25 5/8" L and will accommodate 3/8" to 1 1/4" drywall. Mounting holes are provided to match both 16" and 24" center studs.

FA-TR8 is constructed of #18 gauge galvanized steel.

NOTE: Trim ring alone will not allow installation of Strategy Series Grilles. Enclosure or FAPR Plaster Ring is required for grille installation.

Features:

• Accommodates from 3/8" to 1-1/4" drywall thickness
• Constructed of 20-gauge steel
• Installs prior to drywall and serves as a pattern cutout for the drywall installer
• Mounts on either 16" centered or 24" centered joists or studs

• Height: 25-5/8" (65.0875 cm)
• Diameter: 9-3/4" (24.765 cm)
• Shipping Weight: 1.40 lbs (0.64 kgs)
