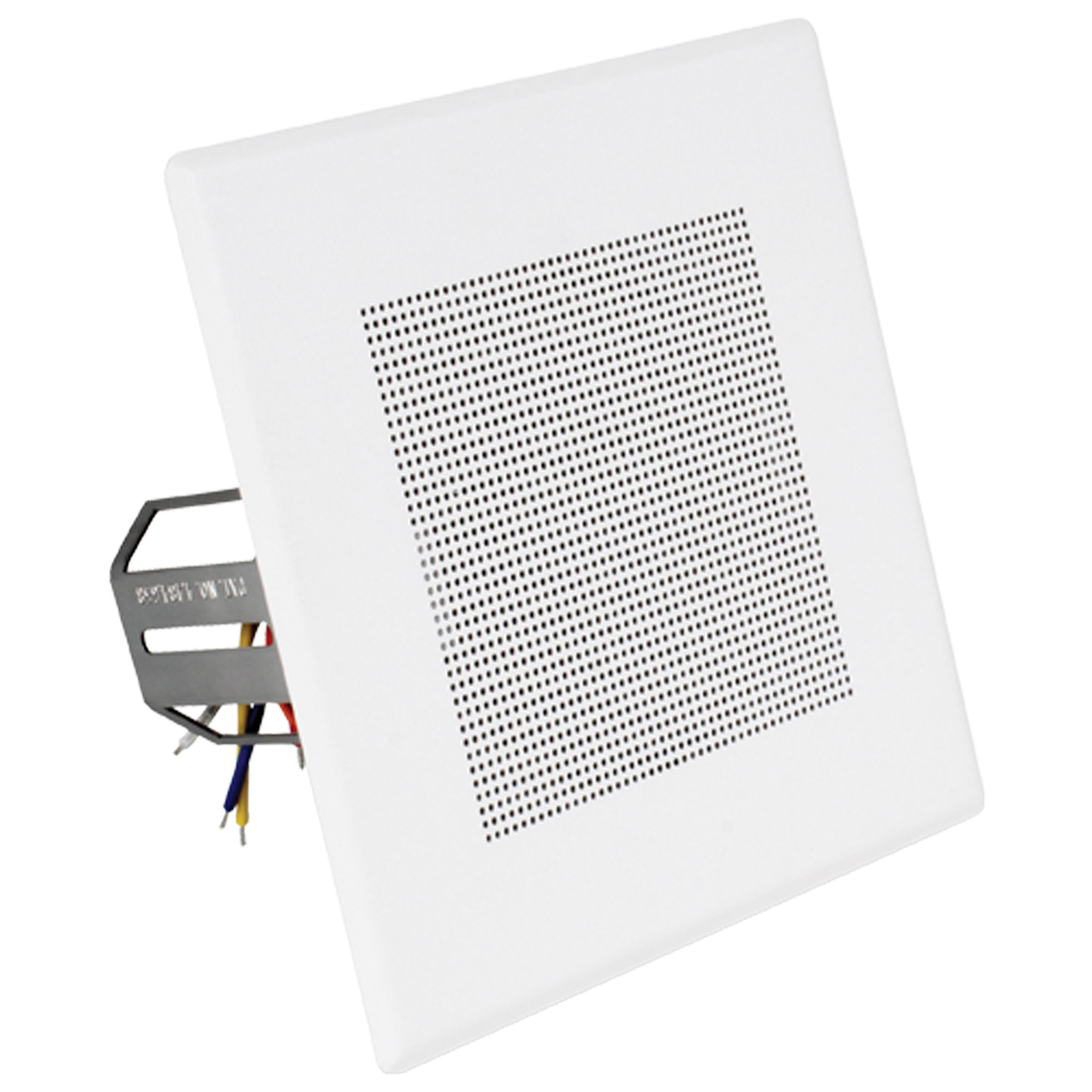

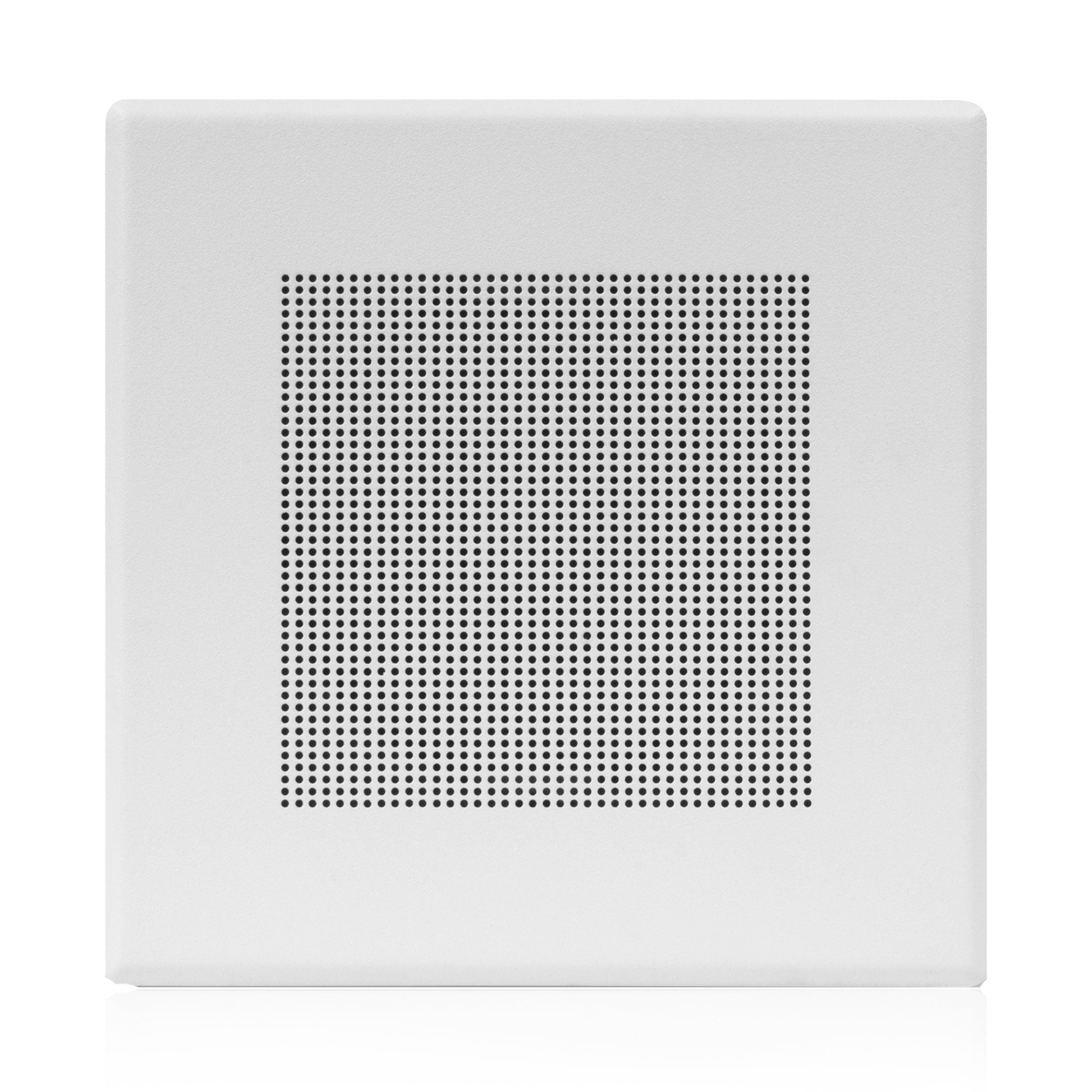

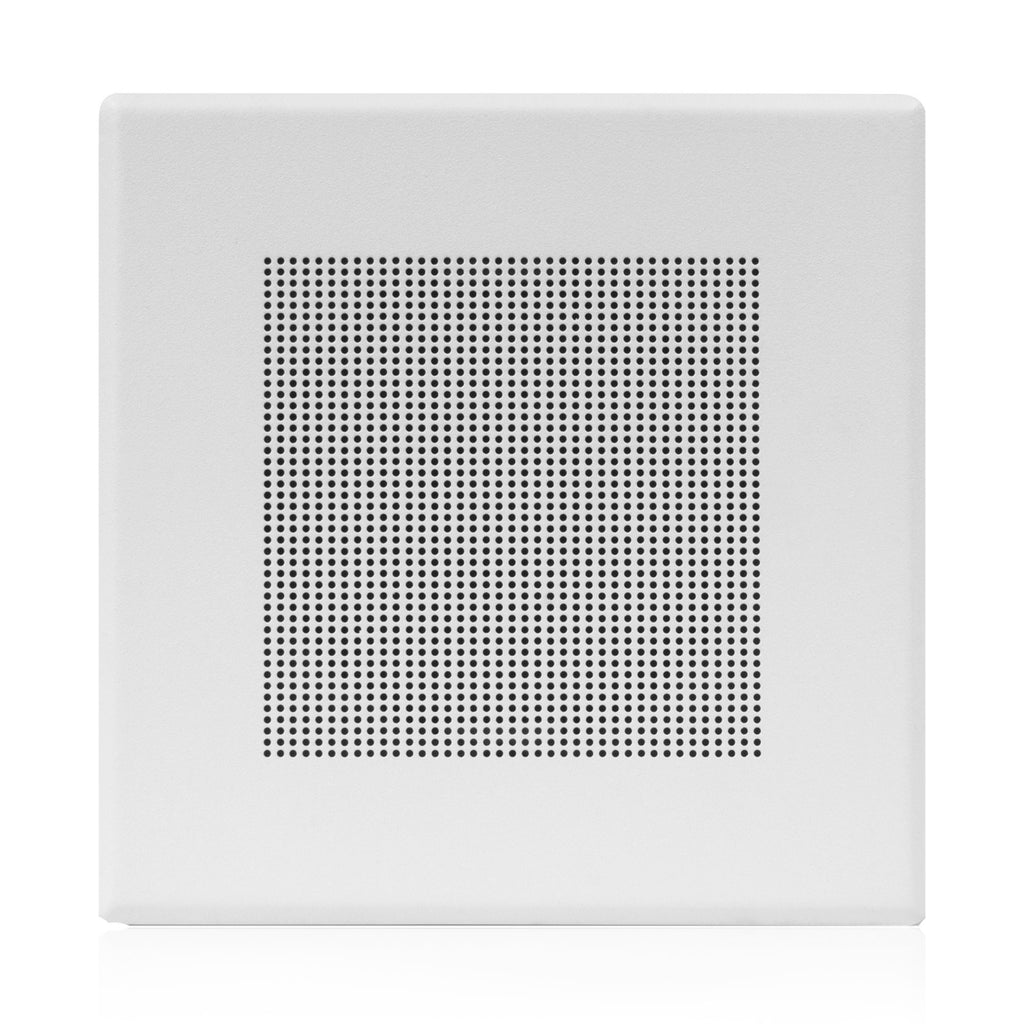

AtlasIED EZB161-4 4" In-Ceiling Speaker with 4-Watt 25V/70V Transformer and 161-4 Baffle

4" In-Ceiling Loudspeaker with 4-Watt 25V/70V Transformer and 161-4 Baffle

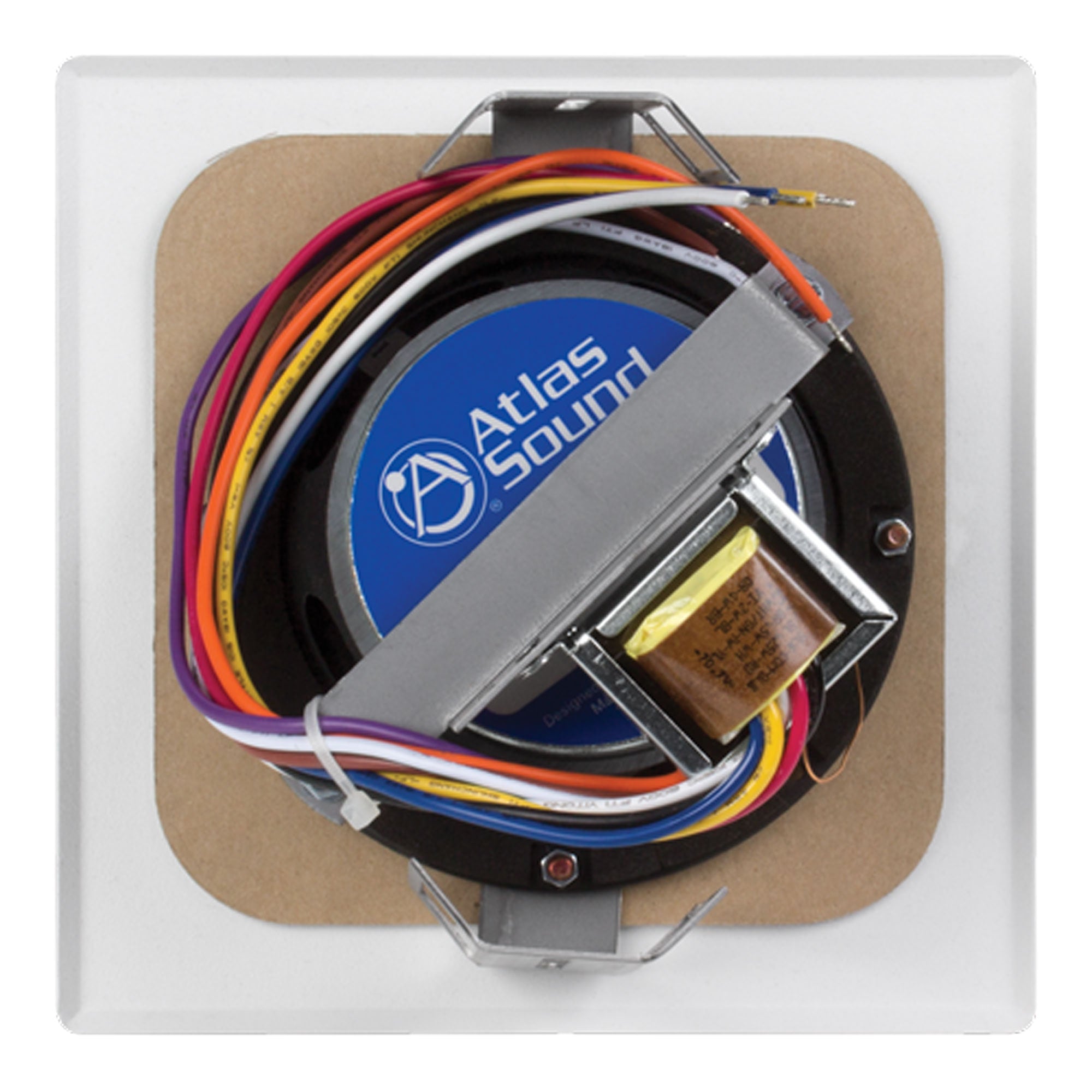

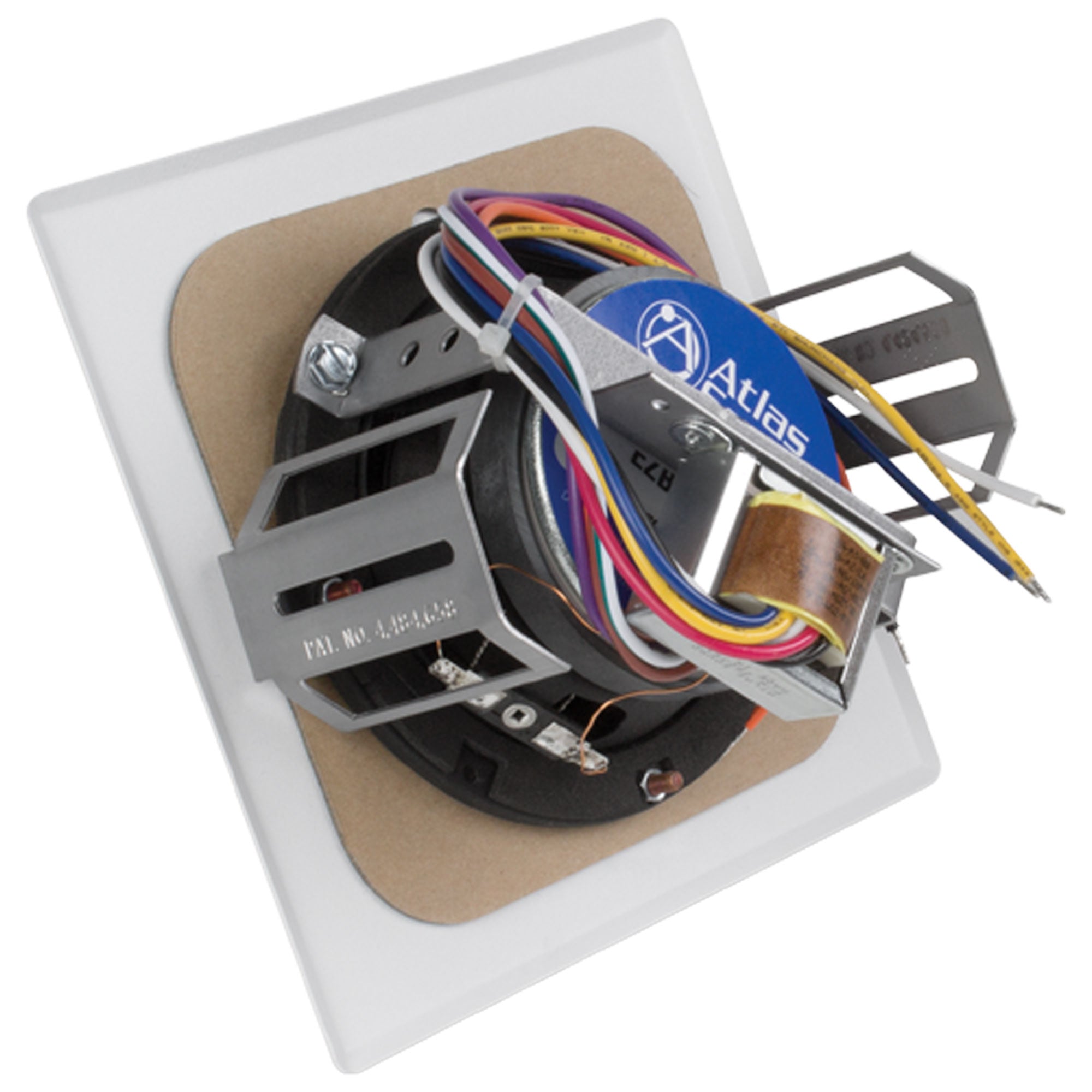

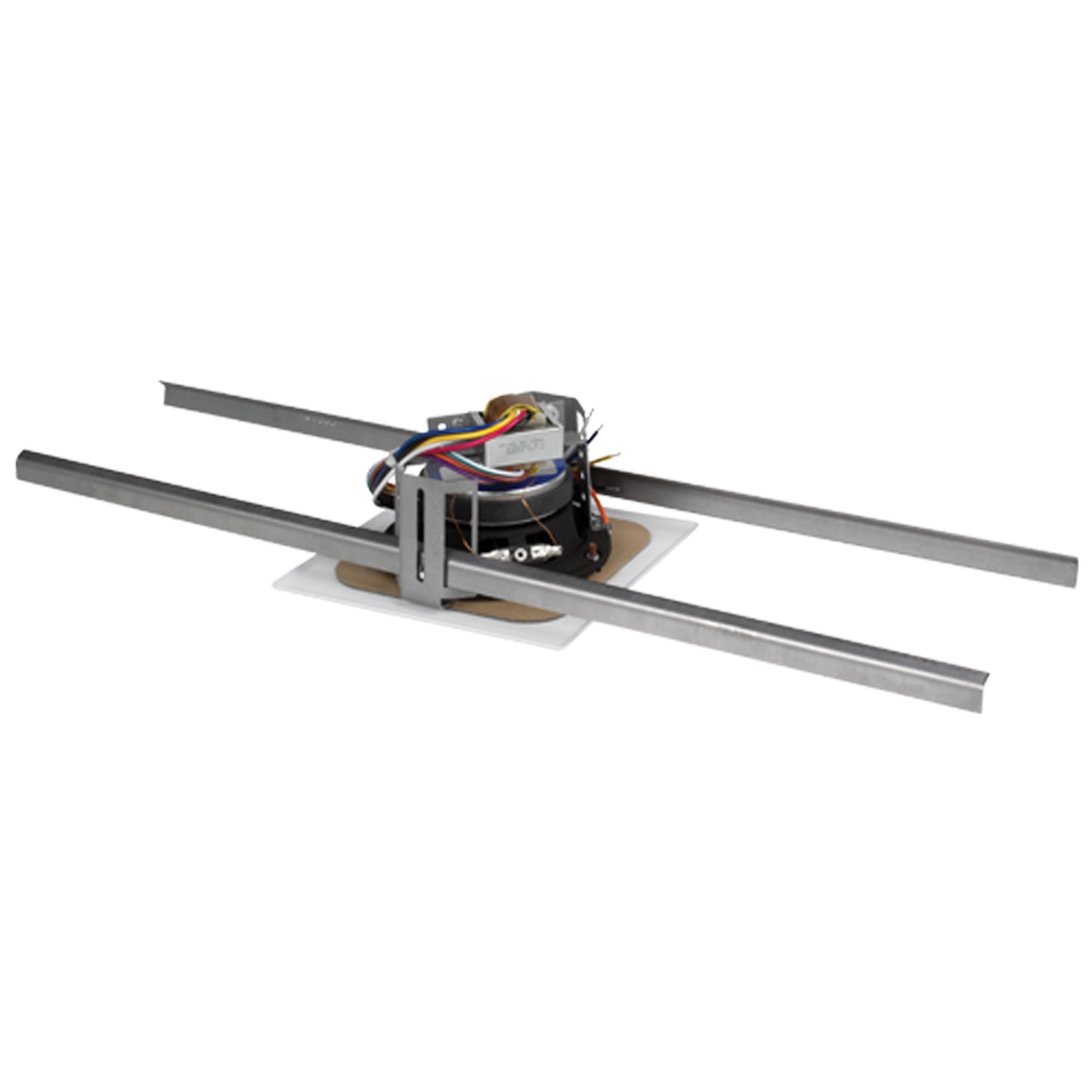

Attractive B Series speaker assemblies combine the sound performance of a full range 4" high compliance speaker with the job site convenience and economy of a factory-assembled speaker, transformer and baffle. Models incorporate the popular AtlasIED FC104 high performance speaker, recognized for full-range voice and music reproduction. Unit provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems. Each speaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 25V/70.7 transformer and square grille with screw mount or torsion spring (T) installation where noted. Model is equipped with the patented EZ-Mount support system. EZB Models are designed for application in suspended ceiling tile installations which do not require a protective enclosure. Assemblies include pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.

Features:

• Choice of Eight Loudspeaker/Transformer/Baffle Configurations
• Factory-Assembled Loudspeaker Packages Save Time and Money
• High Compliance 4" Loudspeaker for Full-Range Audio Reproduction in Background Music and Paging Systems
• Selection Includes Models with Easy-to-Install Torsion Spring Grilles and Models with the Cost-Efficient, EZ-Mount Installation System and Paging Systems

Specifications:

• Speaker Type: High Compliance
• Sensitivity: 94dB (at 1W/1m)
• Frequency Response: 100Hz - 10kHz
• Power Taps: .25, .5, 1, 2, & 4 Watts
• Dispersion: 135°/ -6dB, 2kHz
• Depth: 2 1/4" (5.715 cm)
• Diameter: 4" (10.16 cm)
• Shipping Weight: 4.00 lbs (1.81 kgs)
