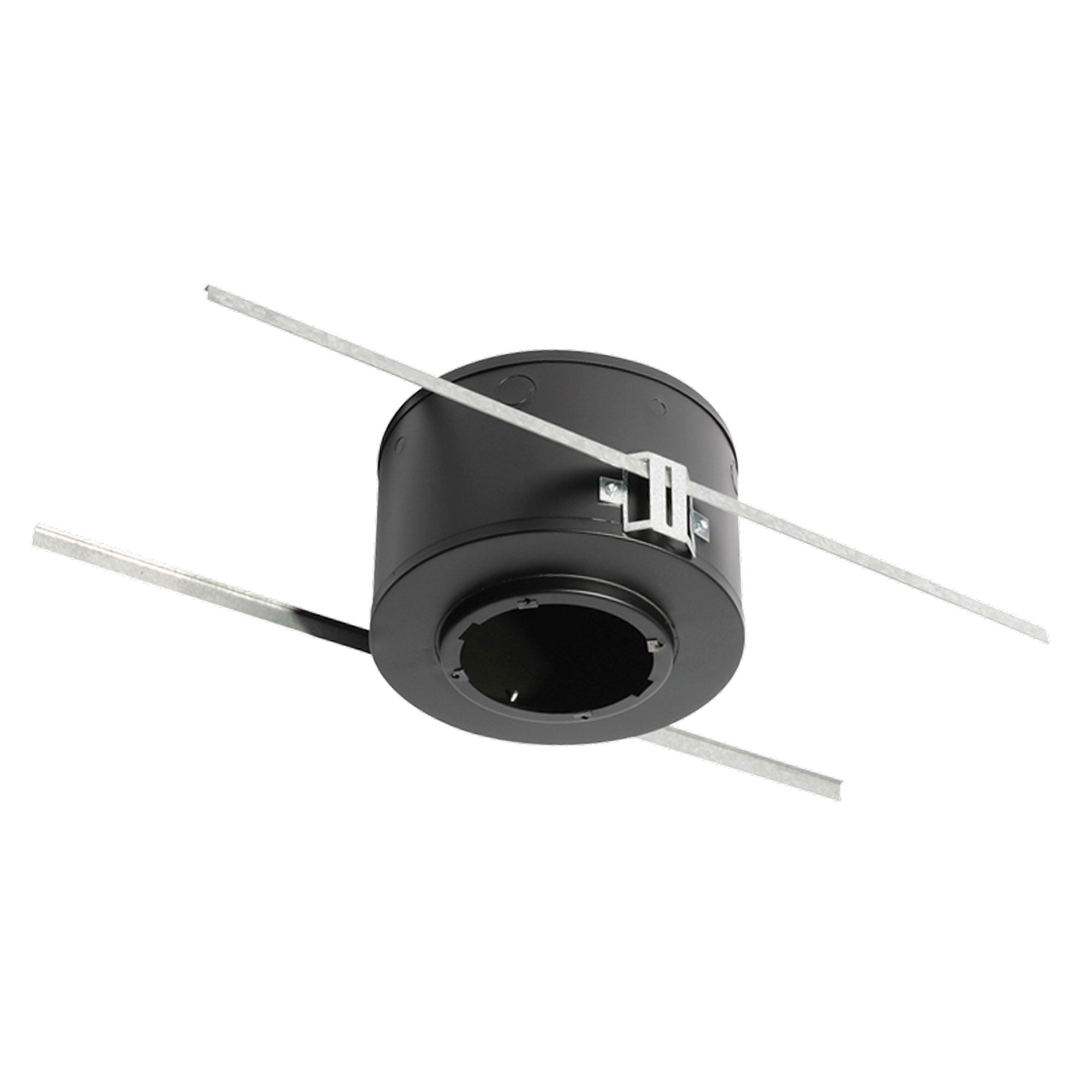

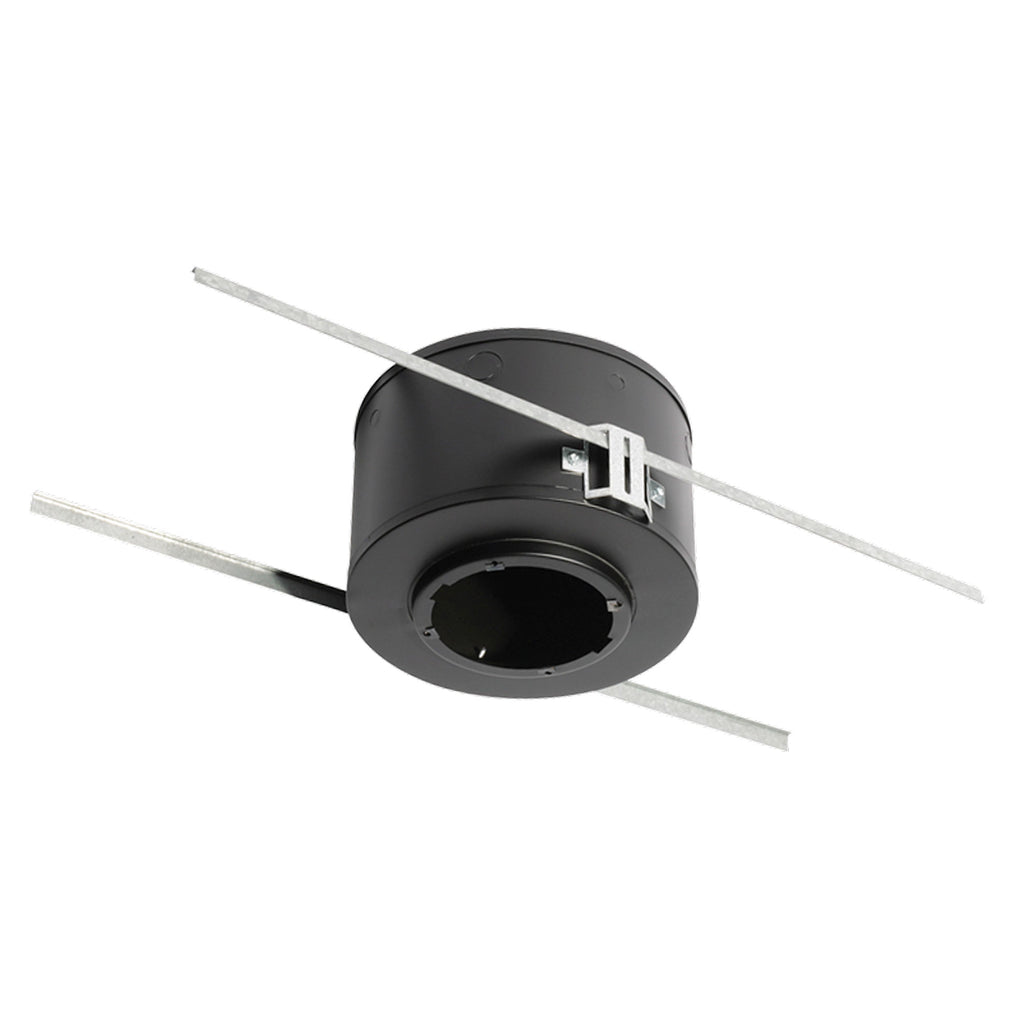

AtlasIED EZ96-4X EZ Mount Flanged Enclosure for 4" Speaker Extra Deep

EZ Mount Flanged Enclosure for 4" Loudspeaker Extra Deep

The EZ Mount Support System (Patent # 4,484,658) is available on AtlasIED's most popular 4" round enclosures. It also accommodates the same wide selection of baffles to meet your specifications and to provide inventory flexibility. The EZ Mount Enclosure/Rail System transfers the composite weight of the speaker, baffle, and enclosure to the ceiling's support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished). No tile bridge or time-consuming screw mounting is necessary.

Features:

• Accommodates a Wide Selection of Atlas Sound Baffles
• Available-Factory Mounted-on Popular Atlas Sound 4" Round Enclosures
• Eliminates the Need for Tile Bridges and Time-Consuming Screw Mounting
• Offered for Suspended Ceiling Applications
• Patented Enclosure/Rail System Installs Easily to Provide Time and Labor Savings

Specifications:

• Depth: 6" (15.24 cm)
• Diameter: 5 1/8" (13.02 cm)
• Shipping Weight: 4.00 lbs (1.81 kgs)
• Mounts Baffle: 51-4, 60-4
