Key Features
- For 700-Series Racks
- Heat Dissipation for your Rackmount Gear
- Tubeaxial Fan Provides 550 CFM
- Cold-Rolled Steel Panel
- Fan Housed in Die-Cast Aluminum
- Chrome-Plated Finger Guards
- 6' Power Cord with Molded Plug
Description

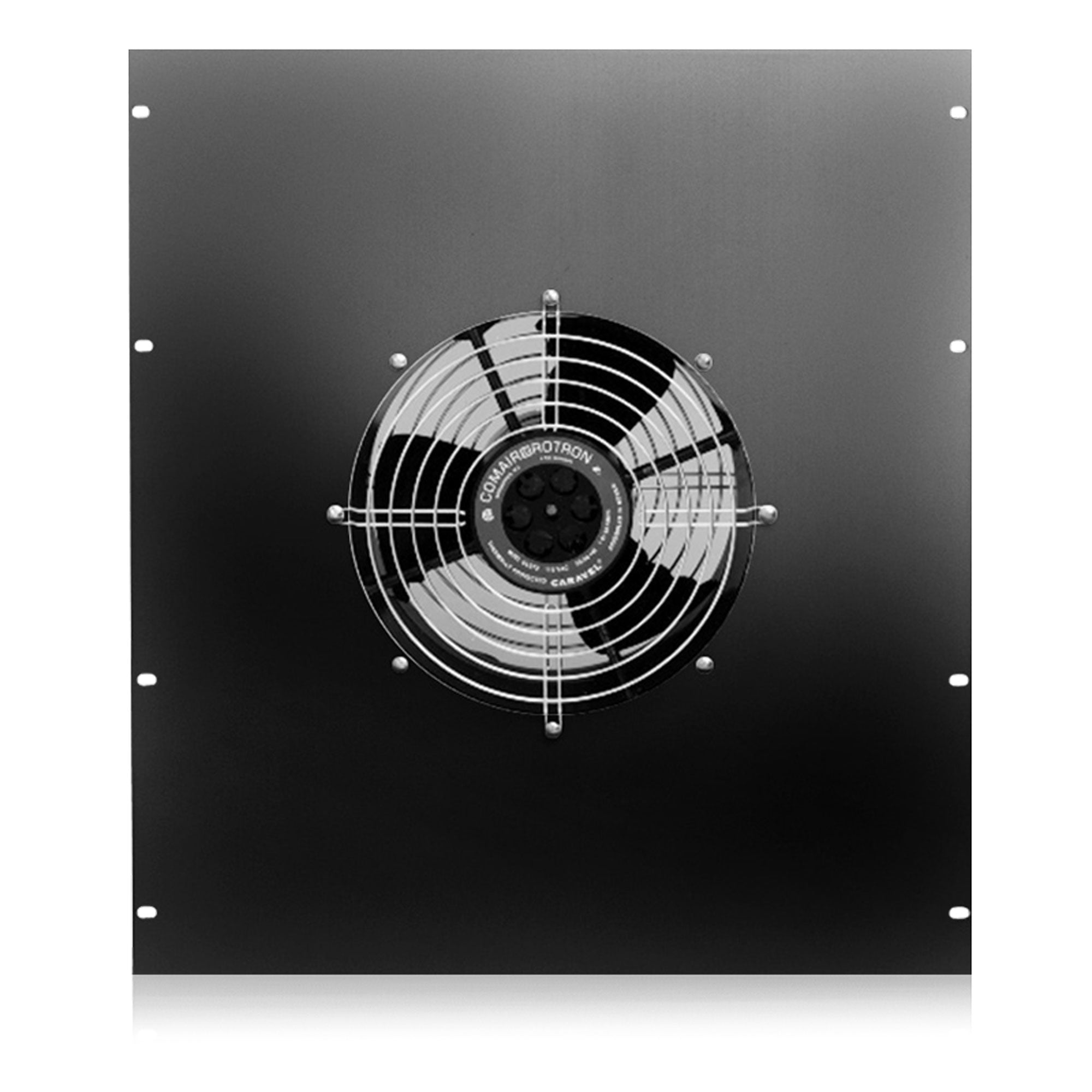

High Power (550 CFM) Top-Mounting Fan Panel for 30" Deep Rack
Powerful cooling assemblies are top-mounting fan panels which provide quiet and effective dissipation of heat, for equipment mounted in 30" deep FMA / 700 Series cabinets.
Space-efficient units require no vertical panel space and deliver 550 cfm with a 10" diameter tubeaxial propeller fan. Operates at 115VAC, 60 Hz and includes a continuous-duty, shadedpole type motor, sealed ball bearings, and chrome plated finger guards.
Include an automatic reset thermal protector and six-foot line cord with molded plug mounted to a 16-gauge CRS panel finished in standard black.
Features:
- For 30" Deep Cabinets
- High Power Tubeaxial Fan Delivers 550 CFM
- Quality Components Assure Dependable and Effective Dissipation of Heat
- Top Mounting Fan Assembly Provides Quiet and Space Efficient Cooling for 19" Wide Cabinets
Specifications:
- CFM: 550
- Number Of Fans: 1
- SPL @ 3': 55dB
- Height: 3 1/2" (8.89 cm)
- Width: 19" (48.26 cm)
- Depth: 24 1/2" (62.23 cm)
- Shipping Weight: 13.00 lbs (5.90 kgs)
Details
- Manufacturer: AtlasIED
- MPN: EFT-30
- Model Number: EFT-30
- UPC: 612079185641
