Key Features
- Electrical Cover Plate for ECS-6RM
- 6 Bi-Colored LEDs
- LEDs Represent Channels on ECS-6RM
- Keyed On/Off Switch for Security
- Wired with RJ45 Connector & Cat 5 Cable
Description

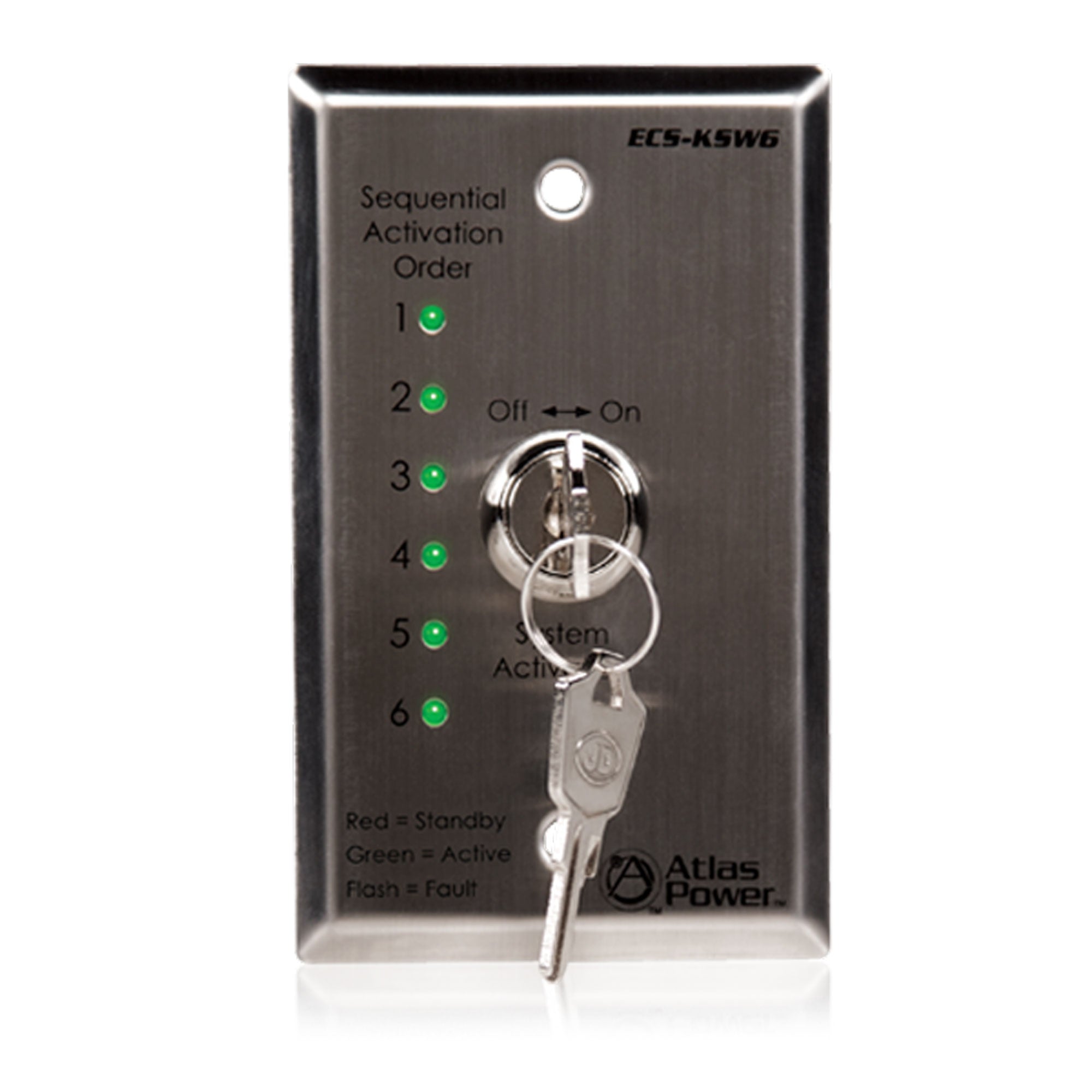

Key Switch Wall Plate for use with ECS-6RM
The ECS-KSW6 is a single gang electrical cover plate that works in conjunction with the ECS-6RM system controller. The ECS-6RM system controller can be remotely activated and each channel can be monitored using the ECS-KSW6 control panel. This panel can be placed several hundred feet away from the ECS-6RM controller. A Keyed On / Off switch is provided for security. There are six Bi-Color LEDs on the ECS-KSW6 panel. One LED for each of the six sequenced channels of the ECS-6RM. These LEDs mimic the Channel Activation LEDs that are on the front of the ECS-6RM panel. Wiring the ECS-KSW6 panel requires a RJ45 connector and 8 conductors. It is recommended to use CAT5 cable.
Features:
- 6 Bi-Color LEDs Represent Channels on ECS-6RM
- Access Via Keyed On/Off for Security
- Contemporary Silver, Brushed Stainless Steel Finish
Specifications:
- Connector Type: RJ45
- Height: 4.5" (114.3mm)
- Width: 2.75" (69.85mm)
- Weight: .25 lbs. (.5 kg)
Details
- Manufacturer: AtlasIED
- MPN: ECS-KSW6
- Model Number: ECS-KSW6
- UPC: 612079186341
