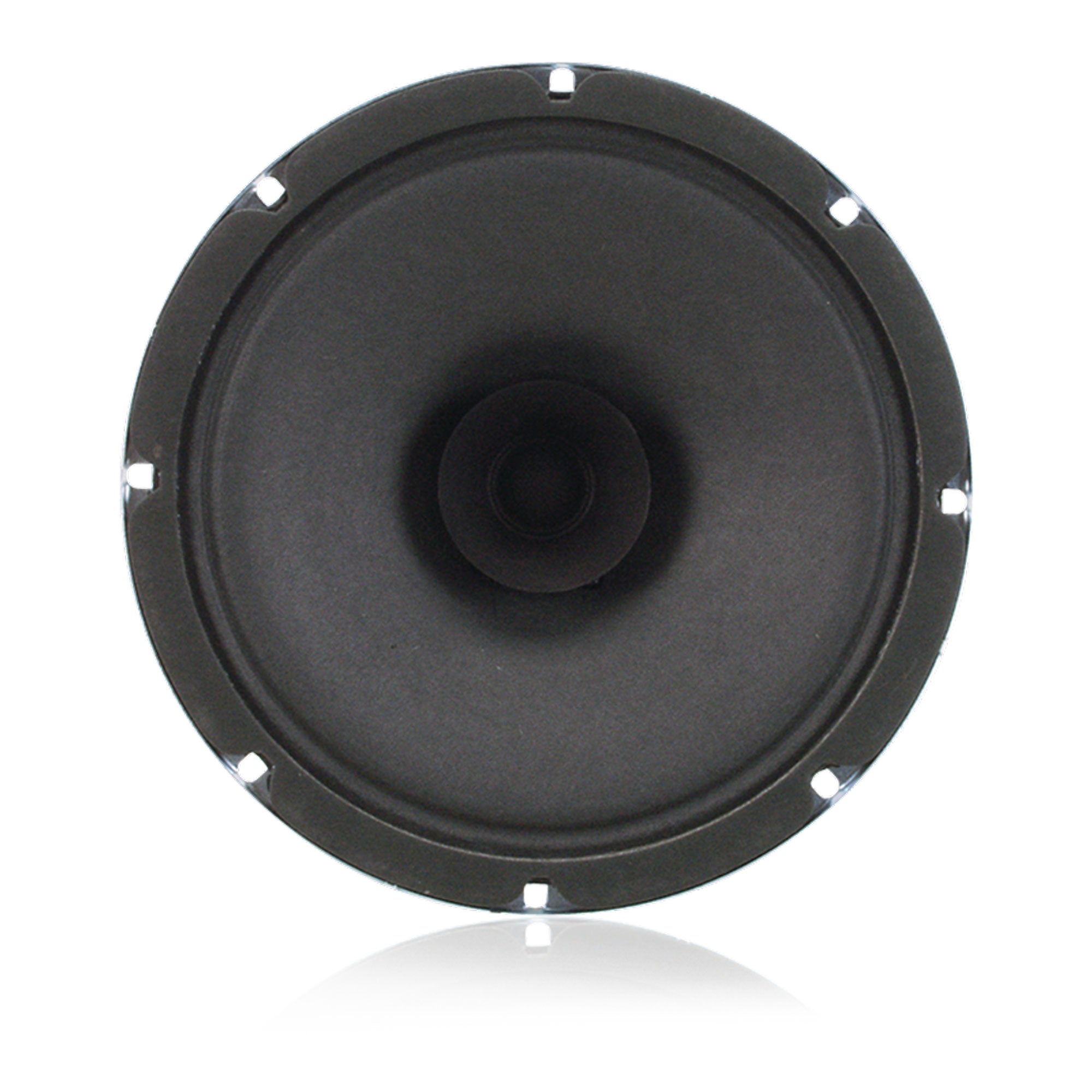

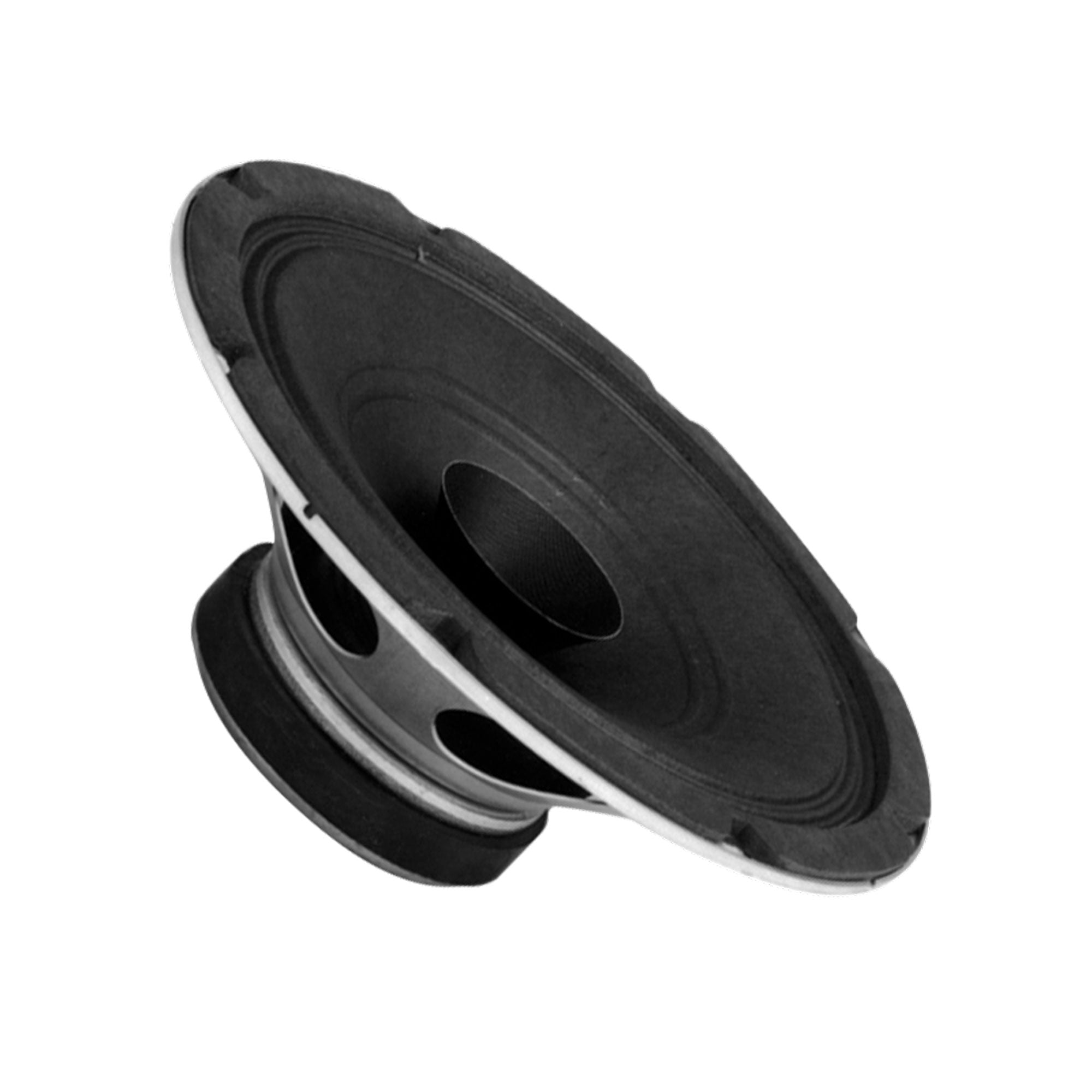

AtlasIED C5AT70 8" Dual Cone In-Ceiling Speaker with 5-Watt 70V Transformer and 5oz Magnet

8" 5oz Dual Cone Loudspeaker with 70.7V-5 Watt Transformer

Model C5AT70 is a reliable, economically priced 15-watt speaker with a pre-mounted 70.7V 5W transformer that offers many features found in speakers costing considerably more.

It includes a curvelinear, treated-paper cone for lower harmonic distortion. It is also equipped with a full 1" diameter copper voice coil with a black-anodized aluminum former for better power dissipation.

Model C5A operates within a frequency response range of 50Hz - 18kHz with a sensitivity of 96dB and a dispersion angle of 105°.

It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.

Features:

• Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
• Industry Standard Value Loudspeaker with Proven Performance
• Mounts a Wide Selection of Atlas Sound Baffles
• With Factory-Installed LT-70 Line-Matching Transformer

Specifications:

• Speaker Type: Treated Paper
• Sensitivity: 96dB Peak, 93dB Average
• Frequency Response: 100Hz - 10kHz
• Power Taps: .5, 1, 2, & 5 Watts
• Dispersion: 105°
• Depth: 2 5/8" (6.6675 cm)
• Diameter: 8" (20.32 cm)
• Shipping Weight: 2.17 lbs (0.98 kgs)
