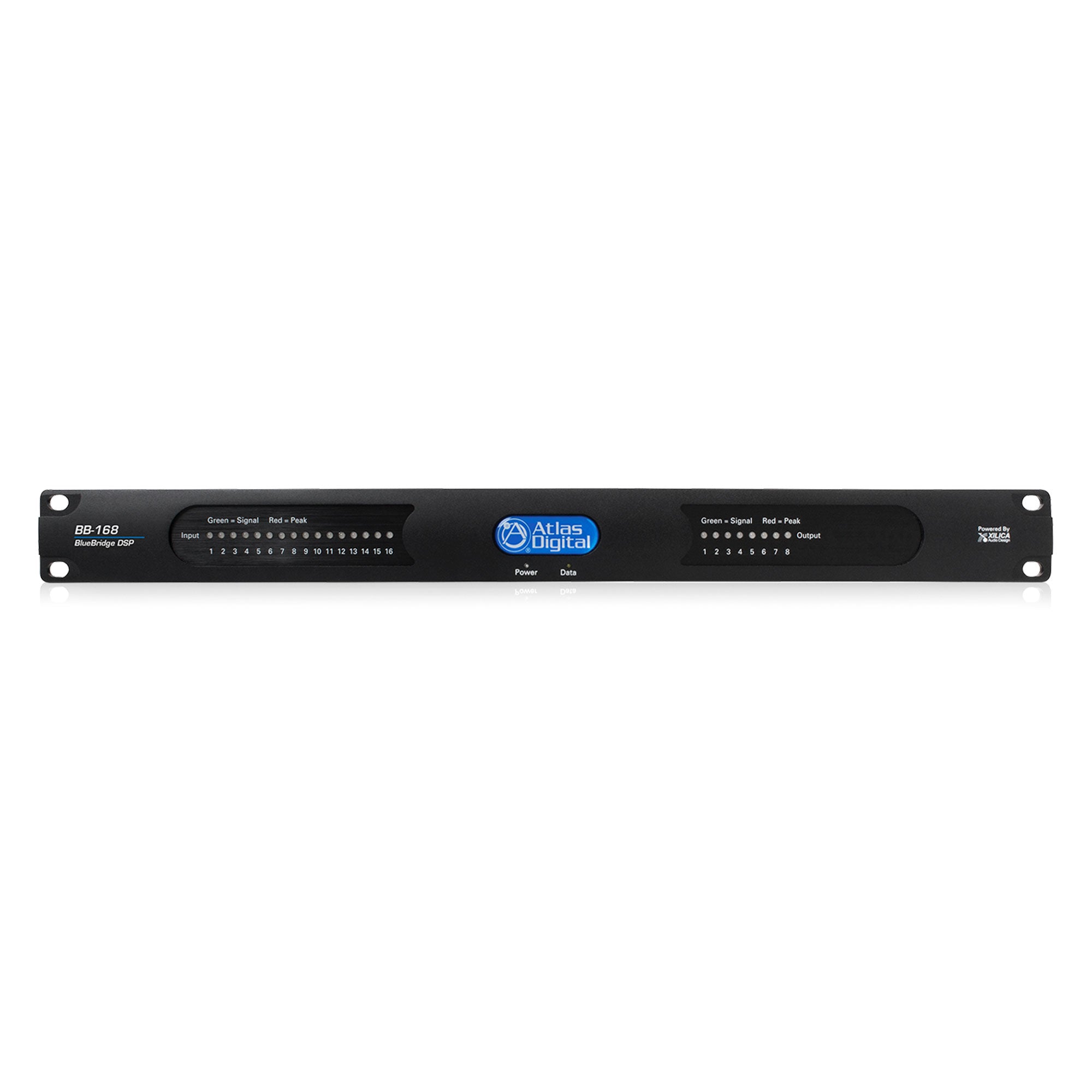

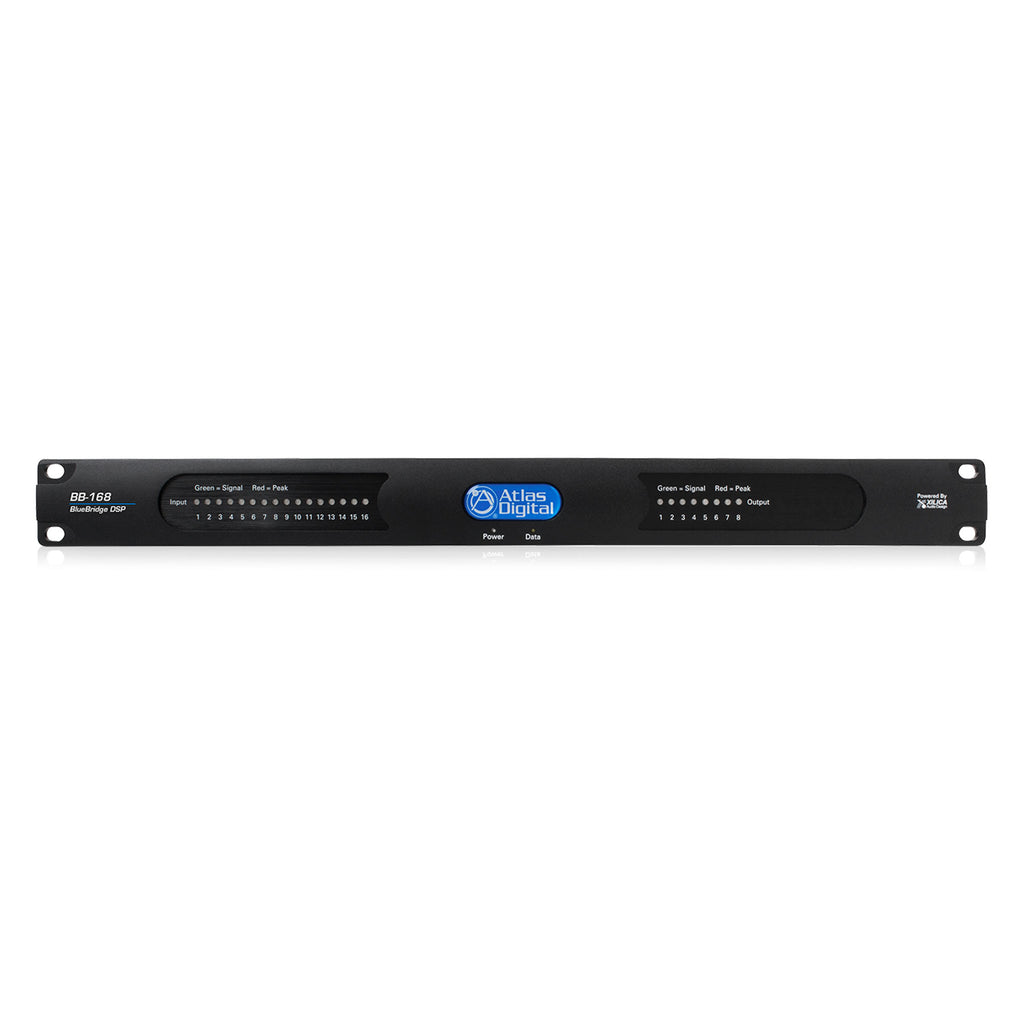

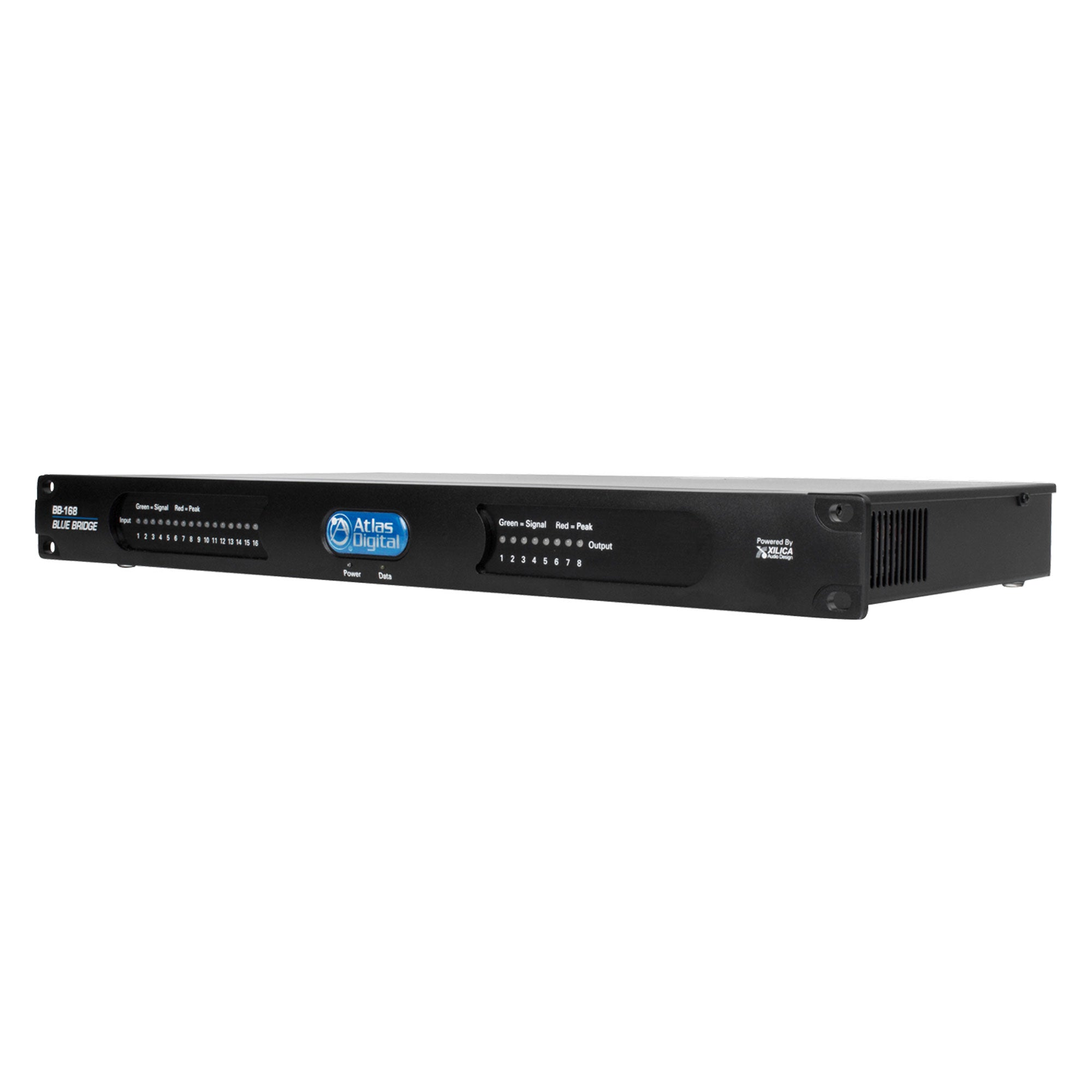

AtlasIED BB-168 16 Input x 8 Output Networkable DSP Device

BlueBridge 16 Input x 8 Output Networkable DSP Audio Processor

AtlasIED BlueBridge networkable DSP devices are powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge DSP units can operate on any network while the optional control accessories require a PoE switch. BlueBridge devices need to be connected to the network during set-up and if control is required but can be applied in many instances where network control is unnecessary or unavailable like live speech applications. When connected to a network, each BlueBridge processor on the network will be auto recognized and controllable. BlueBridge models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

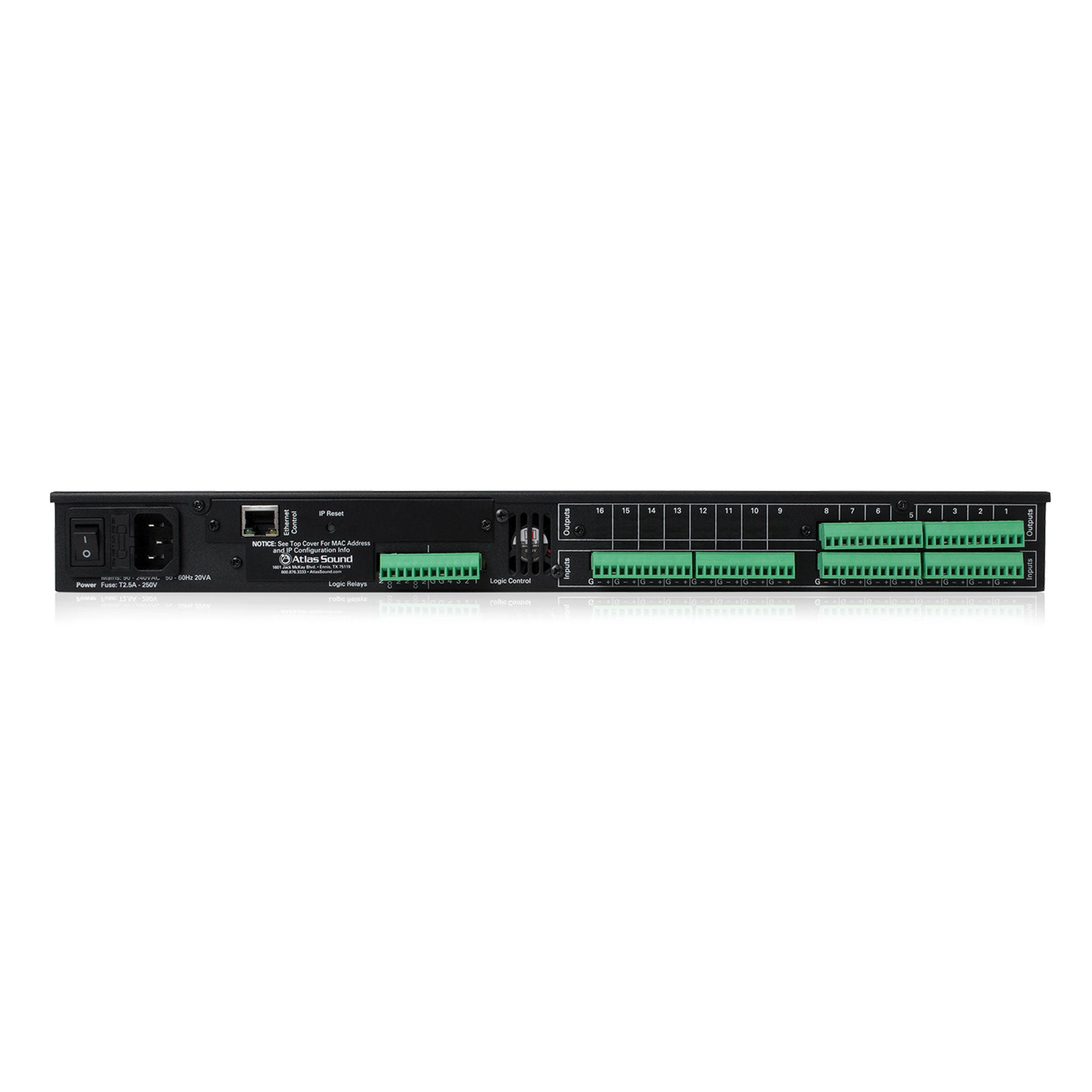

This model includes 16 inputs and 8 outputs using Phoenix style connectors. BlueBridge additionally works with the Atlas BluePanel software which enables the designer to create custom interfaces that can be accessed via a computer connected to the network. BluePanel can also be used to program wall controllers including the BB-TOUCH7 touch panel giving the user access to the system's functionality for volume control, source selection, room combining, or any other function the designer programs. This enables the end user to have some control over the system without having to access the BlueBridge device directly preventing any unauthorized changes from happening within the device.

AtlasIED offers pre-configured design templates that can be used as starting points for a variety of DSP applications. These design templates are available as part of Atlas' BlueBridge training program which is available to active AtlasIED customers.

Features:

• 16 Input / 8 Output Configuration
• Open Architecture Programmability
• High Quality THAT Corp Microphone Preamps
• Ethernet Network Connectivity
• TCP/IP Third Party Control Capability
• Ultra Low Noise Floor
• Four Logic Inputs/Outputs
• 48kHz, 40 Bit Floating DSP Engine
• Safety Listed to UL60065
• EQ Modules: Parametric, Graphic, and Anti-Feedback
• Crossover Modules: Butterworth, Linkwitz Riley, Bessel, Slopes: 6 to 48dB per Octave
• Filter Modules: High Shelf, Low Shelf, All Pass
• Mixer Modules: Gain Sharing Auto-Mixer, Gating Auto-Mixer, Matrix Mixer, Standard Mixer, LR Mixer, LCR Mixer
• Generator Modules: Sine Tone, Sign Sweep, White, Pink
• Dynamics Modules: Compressor, Expander, Limiter, Ducker

Specifications:

• Inputs: 16
• Safety Listed: Listed to UL60005
• Outputs: 8
• Input Type: Microphone or Line, Software Selectable
• Output Type: Line
• RAID: 40-Bit Floating Point
• Analog Converters: High Performance 24-Bit
• Phantom Power: 48V, Software Enabled
• Input Impedance: >10kΩ
• Dynamic Range: 110dB Type (Unweighted)
• Latency: 5ms
• CMRR: >100dB (50Hz-10khz)
• Distortion: 0.002% (1kHz @ +4dBu)
• Configuration Electronically Balanced Gain: -100 to +15dB in 0.25dB Steps
• Power Consumption: 18.5W
• Polarity: +/-, GUI Selectable
• Frequency Response: 20Hz - 20kHz
• Height: 1.75" (44mm)
• Width: 19"
• Depth: 9" (229mm)
• Weight: 7.2 lbs / 3.25 kg
