Key Features
- Ten 20A Outlets
- Slimline Design
- Lighted Main Power Switch
- Circuit Breaker Protection
- 3-Way Surge Suppression
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
Description

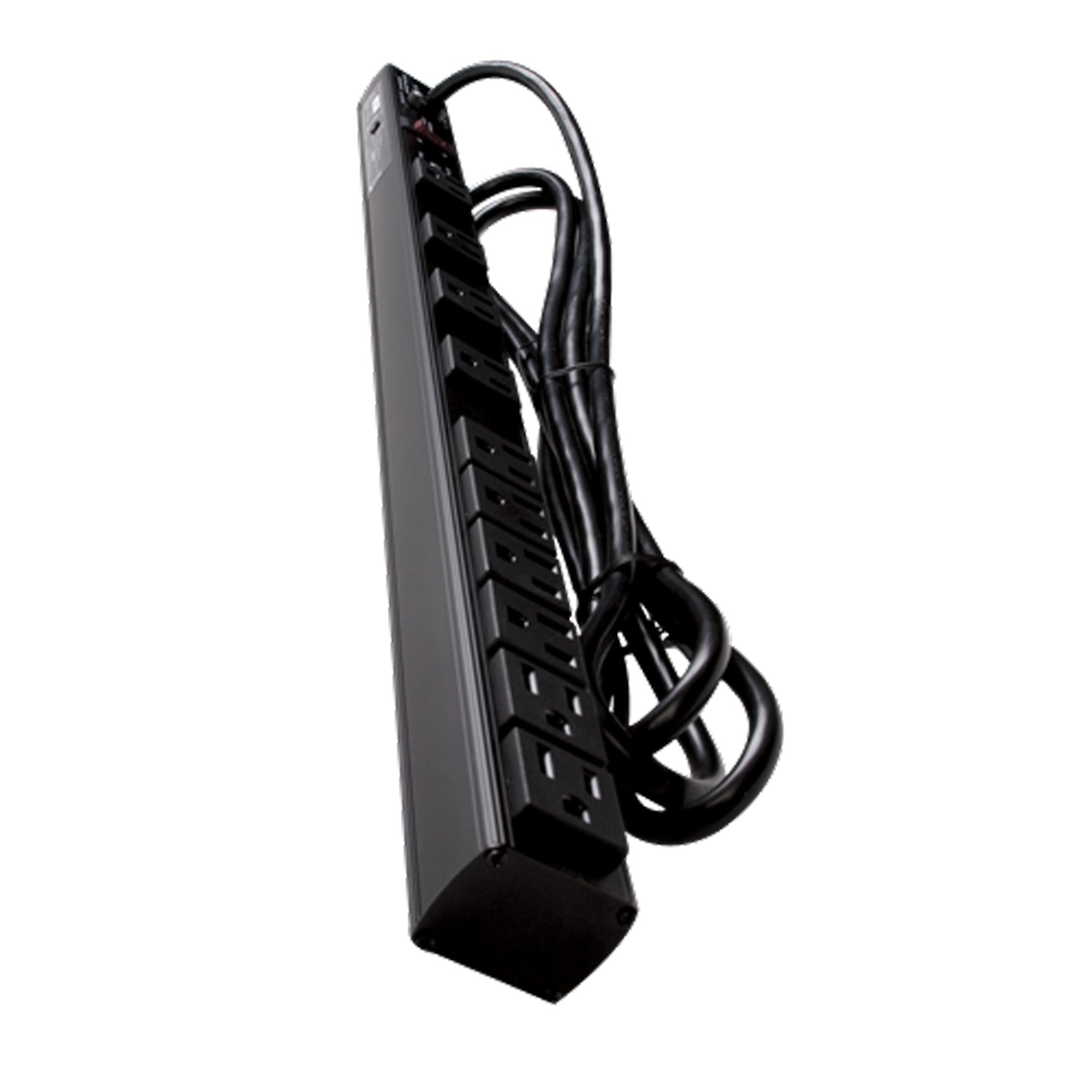

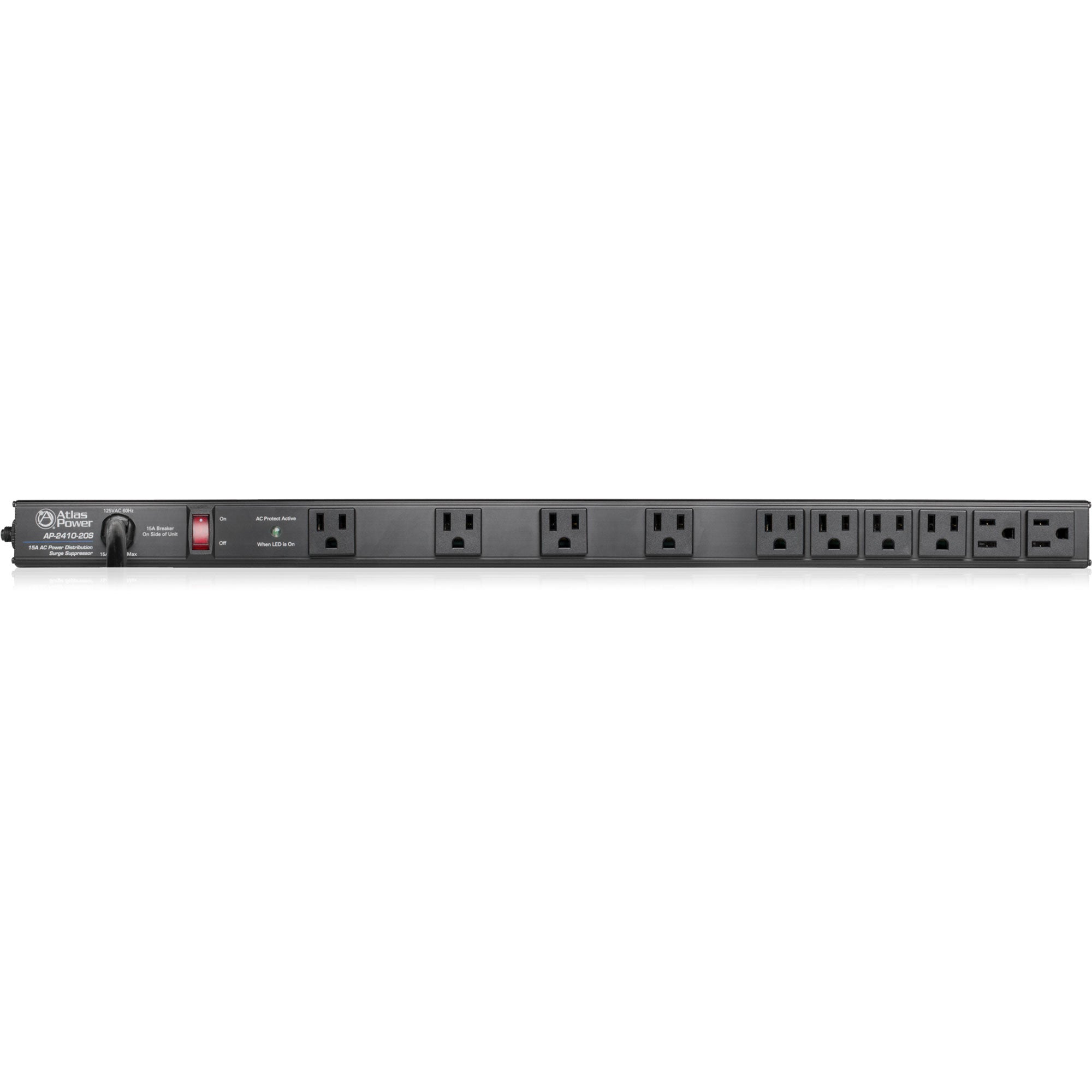

20A - 24", 10 Outlet Vertical Power Strip
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-2410-20S is 24" rack mountable and features 20A, 2500W power capability.
Features:
- 10 Available 20A Outlets
- Slimline Designs, 1.62"W x 1.25"D
- Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
- Lighted Main Power Switch
- Circuit Breaker Protection
- Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
- Also Available in 72", 30 Outlet (AP-7230-20S) and 48", 20 Outlet (AP-4820-20S) Models
Specifications:
- OUTLETS: NEMA 5-20R, Qty. 10
- POWER CORD: 9' (2.74m), 12-gauge, AC Plug NEMA 5-20P
- LOAD RATING: 2500W
- MAX CURRENT PROTECTION: 20A AC Mains Breaker
- VOLTAGE PROTECTION RATING: L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20°s
- ENERGY RATING: 450 Joules, 8/20°s
- POWER CONSUMPTION: .5W
- HEIGHT: 1.25" (31.75mm)
- LENGTH: 24" (609mm)
- WIDTH: 1.62" (41.10mm)
- WEIGHT: 2.6 lbs (1.2kg)
Details
- Manufacturer: AtlasIED
- MPN: AP-2410-20S
- Model Number: AP-2410-20S
- UPC: 612079188246
