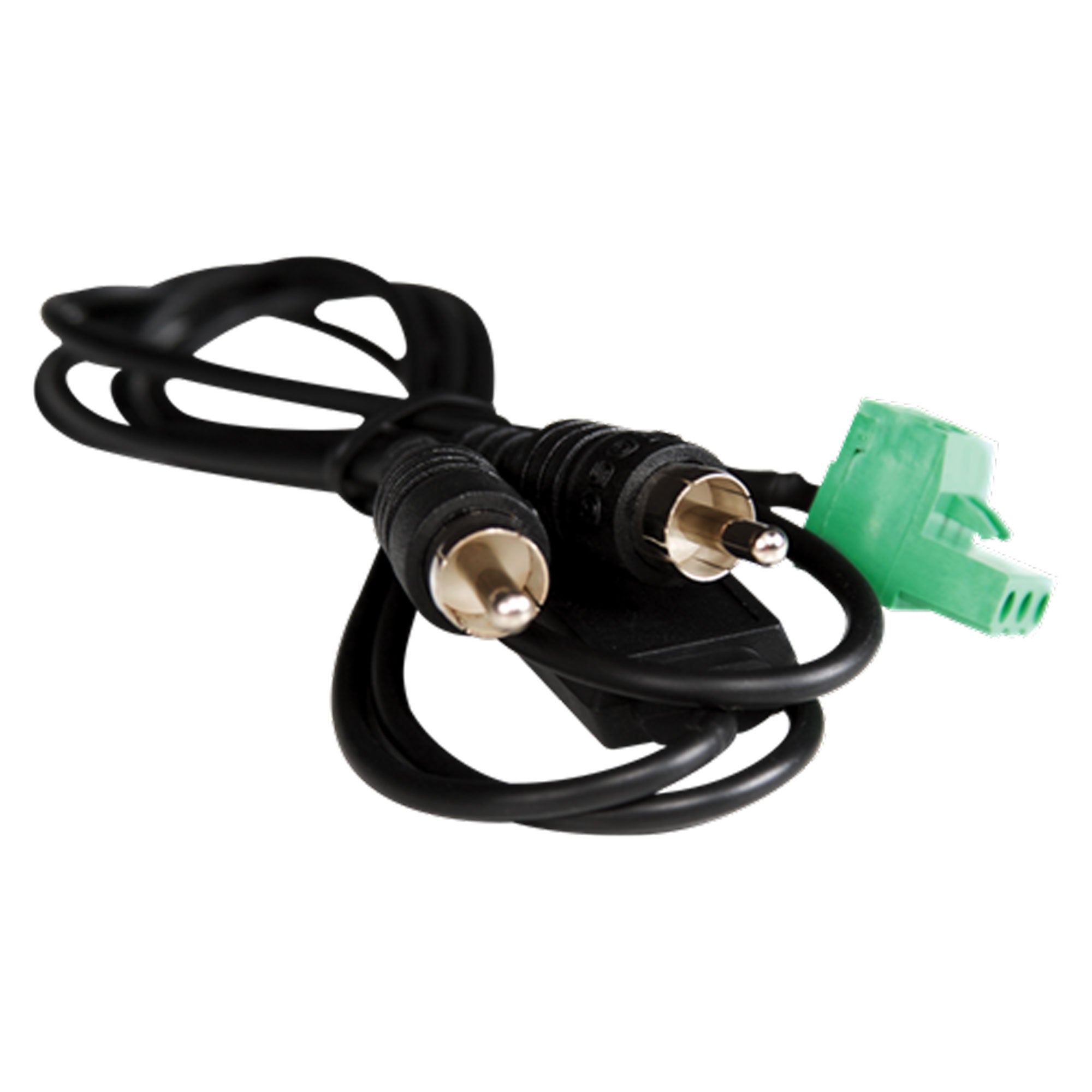

AtlasIED AA-YSUM Passive Summing Cable

Passive Summing Cable for AA Series Amplifiers (5.5mm Phoenix Connector)

The summing cable can be used to combine a stereo unbalanced signal into a mono unbalanced signal. The AA-YSUM features a 3' (1 m) cable with two Male RCA connectors, summed together via internal resistor network into a single three position Phoenix/Euro Style connector that will match input and output impedance of most audio equipment.

The AA-YSUM cable is a basic solution to a common problem faced in the commercial install world every day. Often, there are not enough stereo summed inputs on a mixer amplifier for playback devices such as CD, DVD, tape players, or DSS receivers. However, in many cases there are additional mono mic/line inputs available on the mixer section. With the use of an active summing box or the Atlas Sound AA-YSUM passive unbalanced summing cable, you can utilize the open inputs of the mixer to meet your installation requirements.

Features:

• Uses 3 resistor network to sum stereo audio signals to mono
• Includes 2 male RCA connectors and 1 3 pole male "phoenix" style connector

Specifications:

• Lenght: 3' (1m)
• Connector Type: 2 RCA and 1 Three Pole Euro
