Key Features
- For 8" Loudspeakers
- 22-Gauge CRS Construction
- Conduit Knockouts
- Easy & Cost-Effective
Description

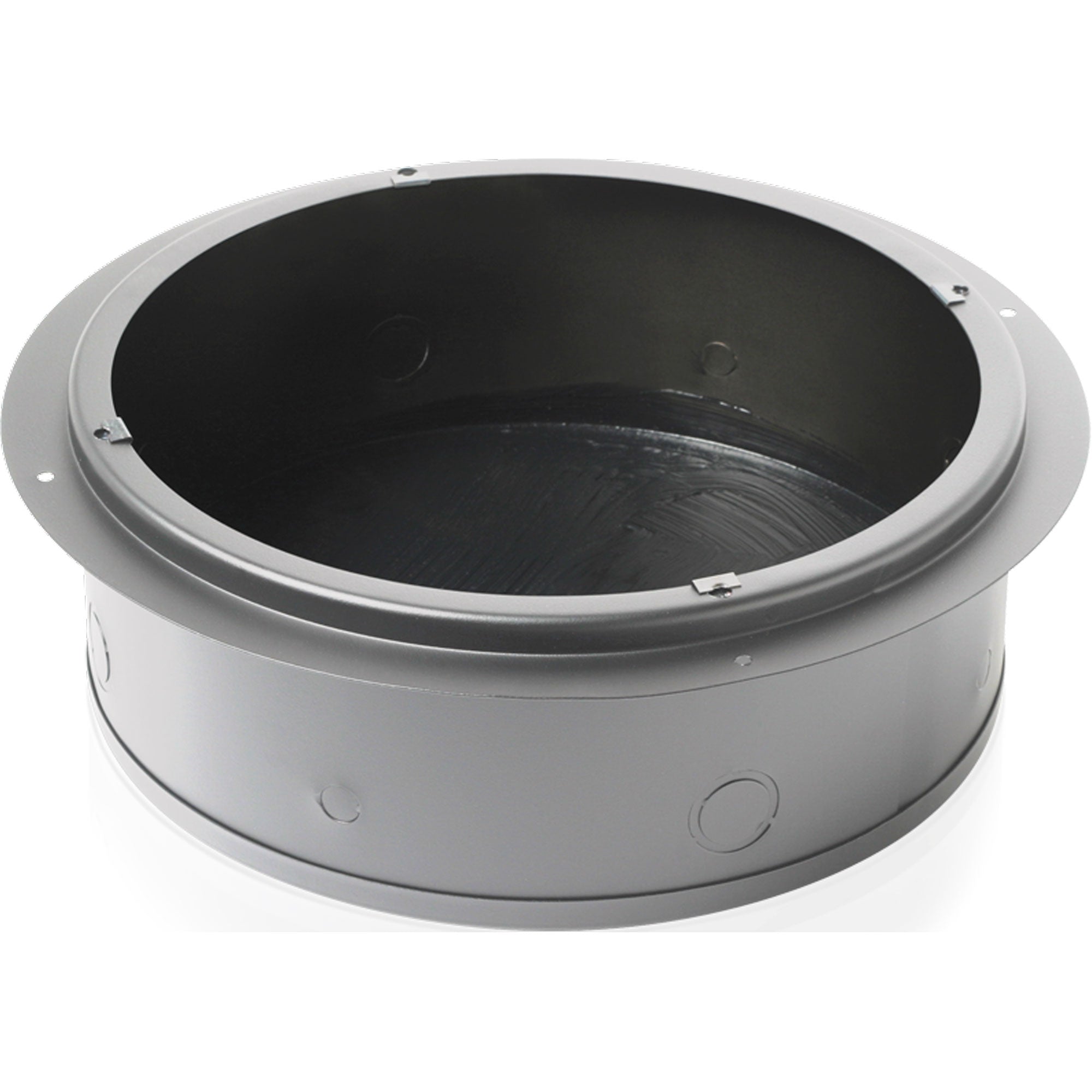

8" Flanged Round Enclosure
AtlasIED 96-8 is a cost-efficient cylindrical protective enclosures that mounts a variety of AtlasIED grilles.
Welded CRS construction with painted finish. Units are undercoated and patch-jute lined to eliminate mechanical and acoustical resonances.
Features:
- Cost-Efficient Cylindrical Protective Enclosures that Mount a Variety of Atlas Sound Grilles
- Mounting Holes Located on the Internal Plaster Flange to Allow Easy and Convenient Installation
- UL Listed
Specifications:
- DEPTH: 4 1/4" (10.80 cm)
- DIAMETER: 11 7/8" (30.16 cm)
- SHIPPING WEIGHT: 3.50 lbs (1.59 kgs)
- MOUNTS BAFFLE: 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, UM222W
- SAFETY LISTED: 1480 / 2043
Details
- Manufacturer: AtlasIED
- MPN: 96-8
- Model Number: 96-8
- UPC: 612079127283
