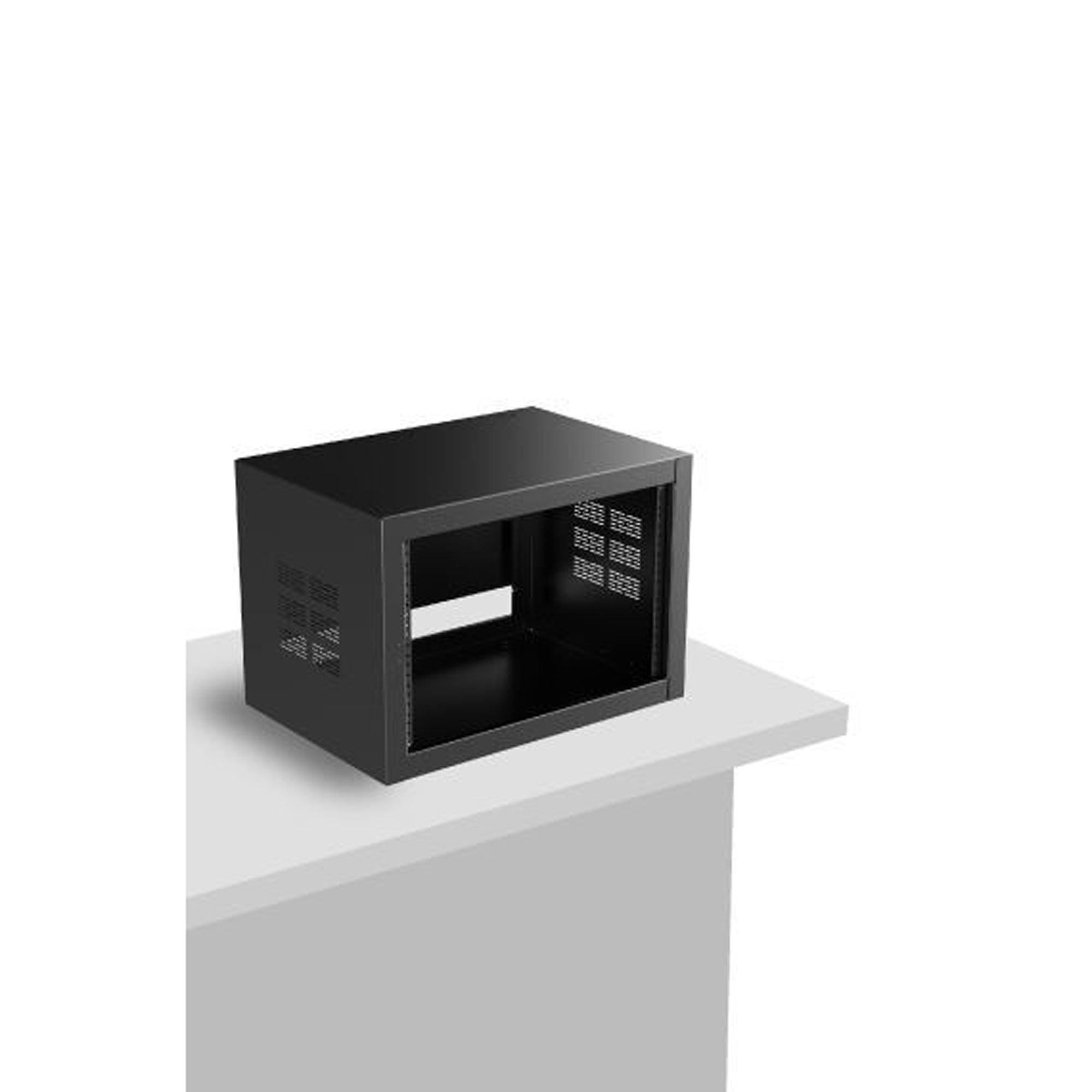

AtlasIED 407-15 Desktop Rack (7U)

Welded & Assembled Desk Top Rack - 7 Space

This assembly provides desk-top access to (19") control and monitor equipment.

This model is 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.

The 407-15 includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD407) with self-tapping screws.

Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.

Features:

• 11-Gauge CRS Tapped Mounting Rails
• 16-Gauge CRS Cabinet
• 5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
• 5/8" Offset Rails for Panel Mount
• Completely Assembled and All-Welded Construction
• Internal Louvers on Each Side

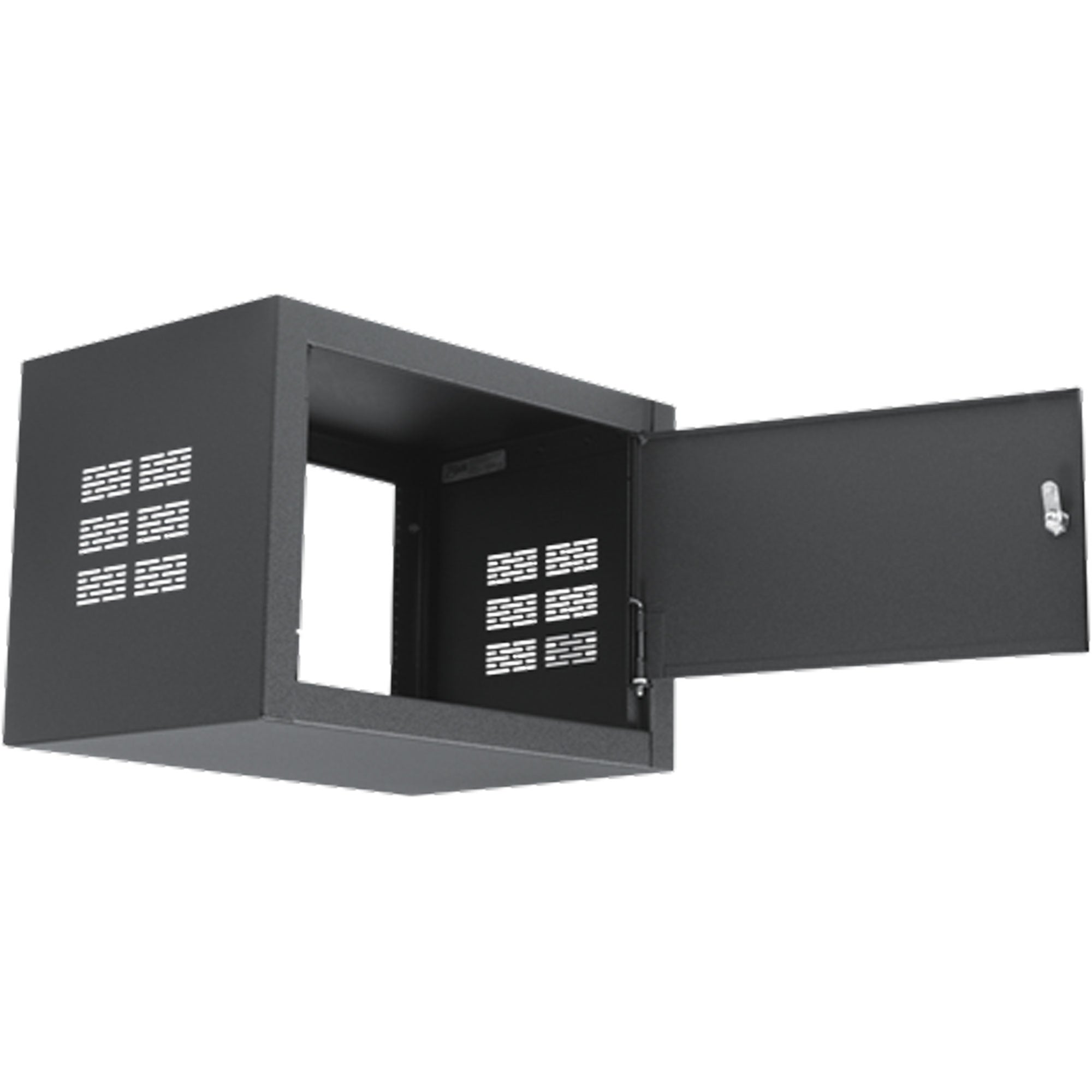

• Keyed Cylinder Lock on Rear Door

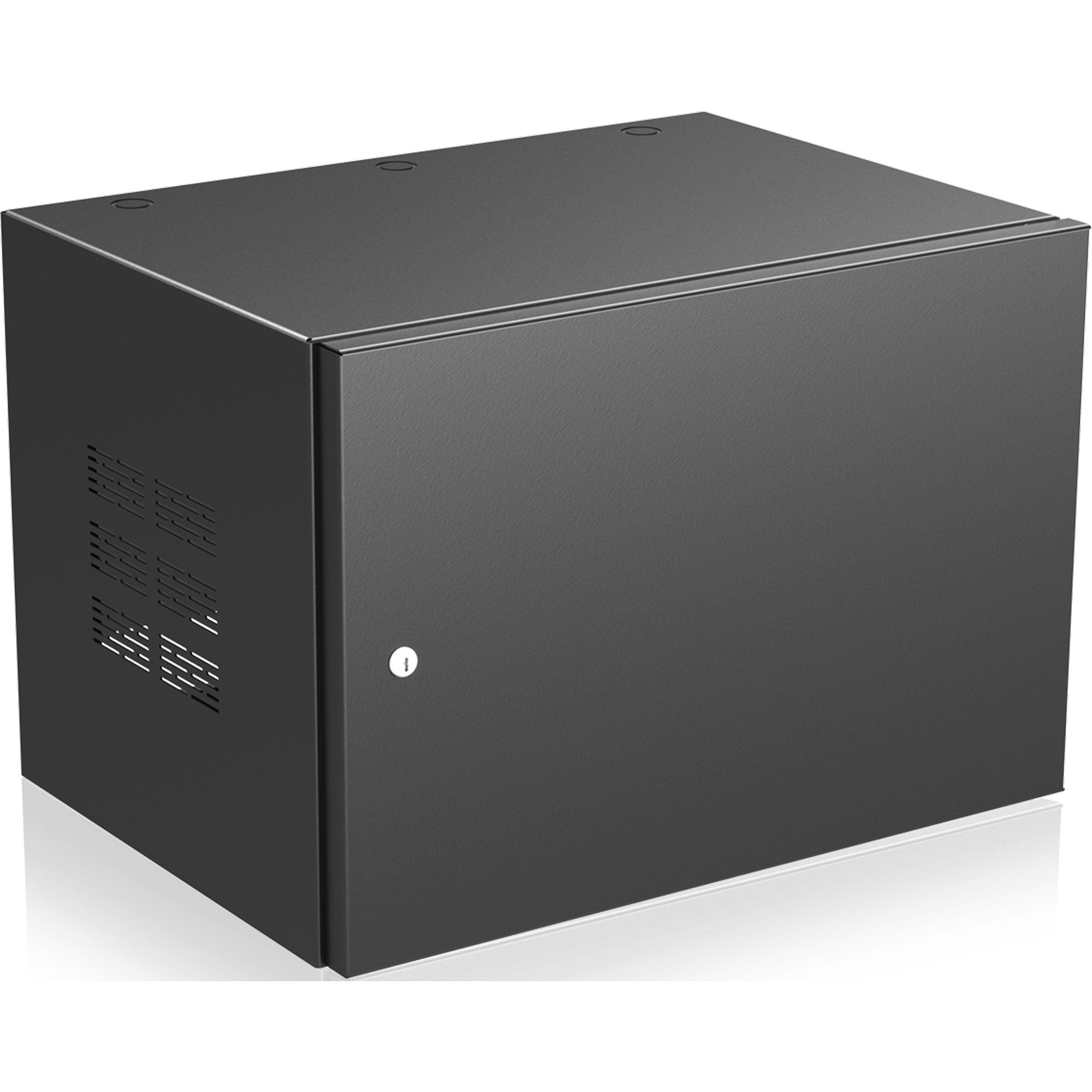

• Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
• Spring-Loaded Hinge for Easy Removal of Rear Door

Specifications:

• RACK UNITS: 7
• HEIGHT: 15 1/2" (39.37 cm)
• WIDTH: 22 5/16" (56.68 cm)
• DEPTH: 15 3/8" (39.05 cm)
• SHIPPING WEIGHT: 36.00 lbs (16.33 kgs)
