Key Features
- Fits 840-89A Clock/Loudspeaker Baffle
- Provisions for Standard 8" Loudspeakers
- Divider Separates High & Low Voltage
- 12 Conduit Knockouts
- Black Epoxy Finish
Description

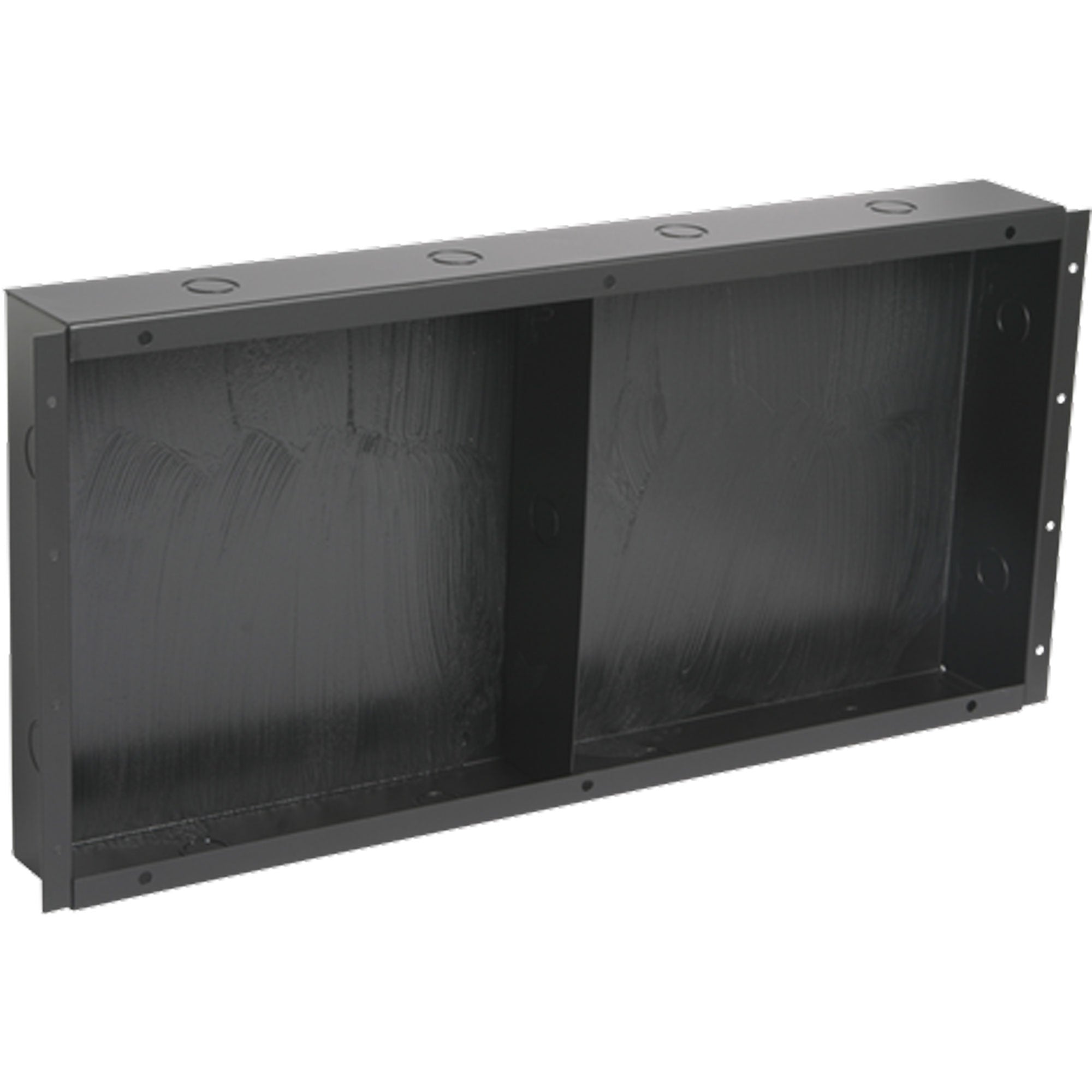

Recessed Clock/Loudspeaker Enclosure for 840-89A
Use AtlasIED 195-89 protective enclosure for recessed mounting of 840-89A clock/loudspeaker baffle. The 195-89 has 12 knockouts (four on both top and bottom, two at each end). Constructed of 20-gauge CRS and are heavily undercoated to prevent mechanical resonances. Unit contains a compartment divider to separate high and low voltage wiring. Finished with an epoxy coating.
Features:
- All Models Include Provisions for Easy Installation of Standard 8" Loudspeakers.
- Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
- Recessed Mounting Style Meets Installation Requirements
- Reliable Design Installs Quickly in New or Retrofit Construction
Specifications:
- HEIGHT: 11 7/8" (30.1625 cm)
- WIDTH: 23 7/8" (60.6425 cm)
- DEPTH: 3" (7.62 cm)
- SHIPPING WEIGHT: 7.00 lbs (3.18 kgs)
- MOUNTS BAFFLE: 840-89A
Details
- Manufacturer: AtlasIED
- MPN: 195-89
- Model Number: 195-89
- UPC: 612079124893
