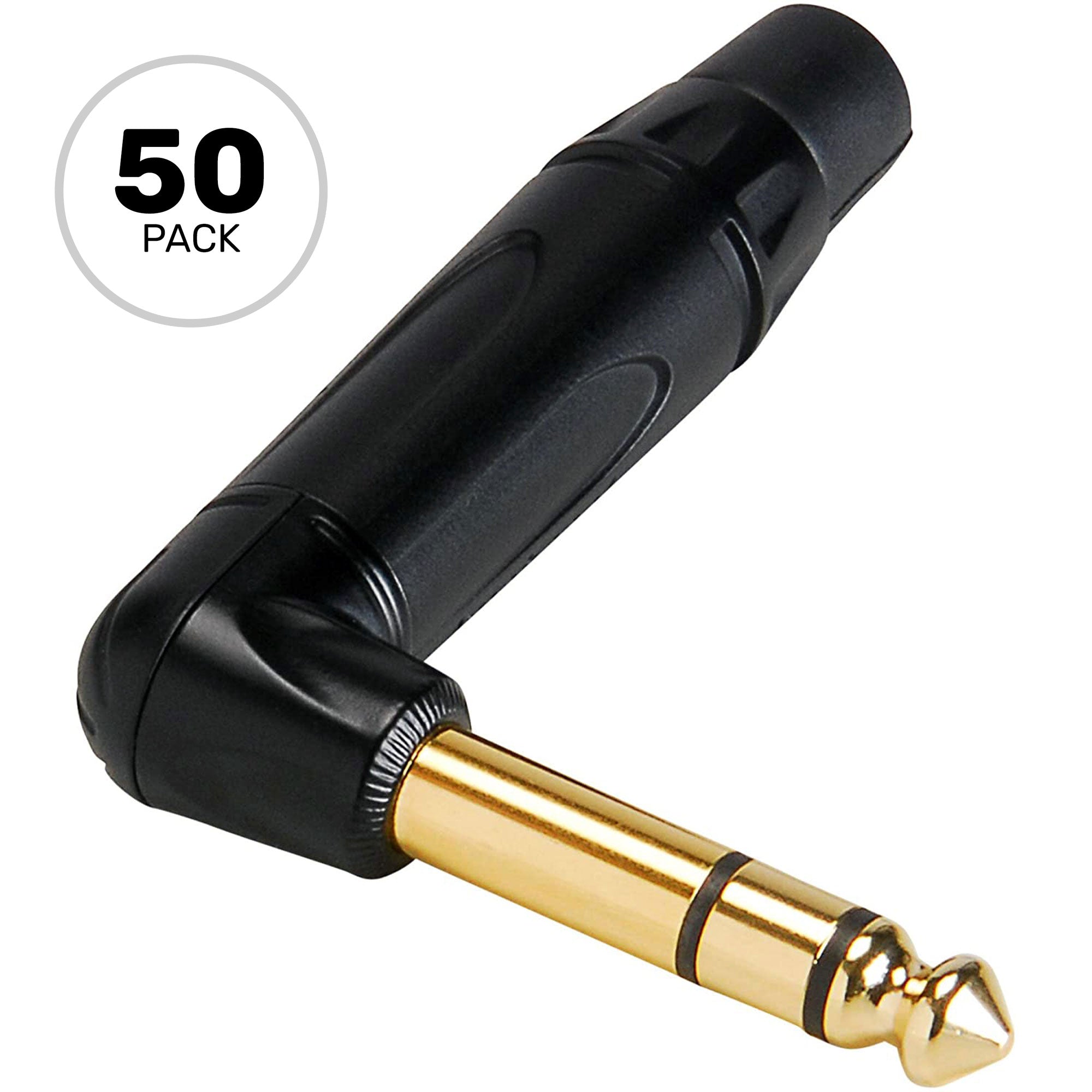

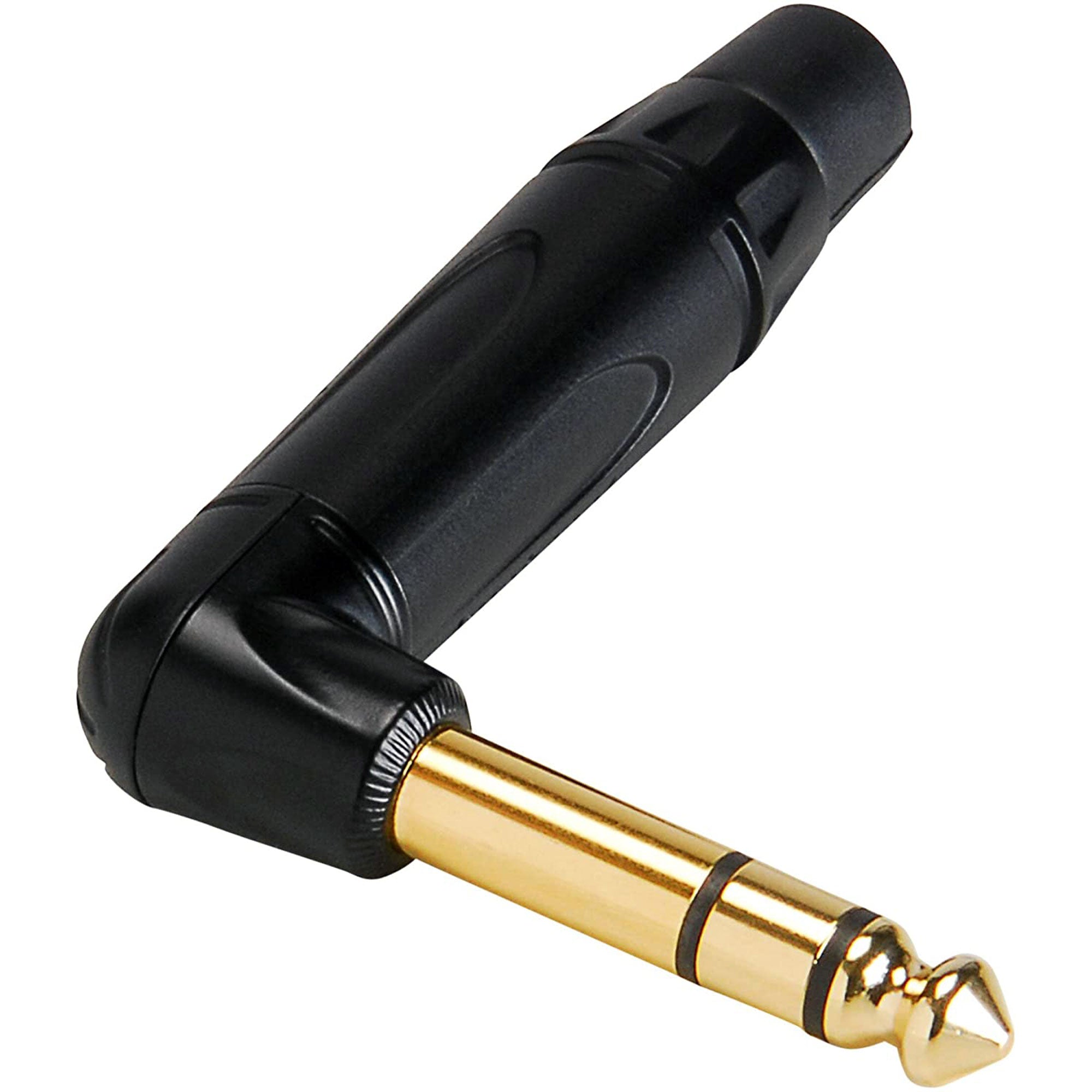

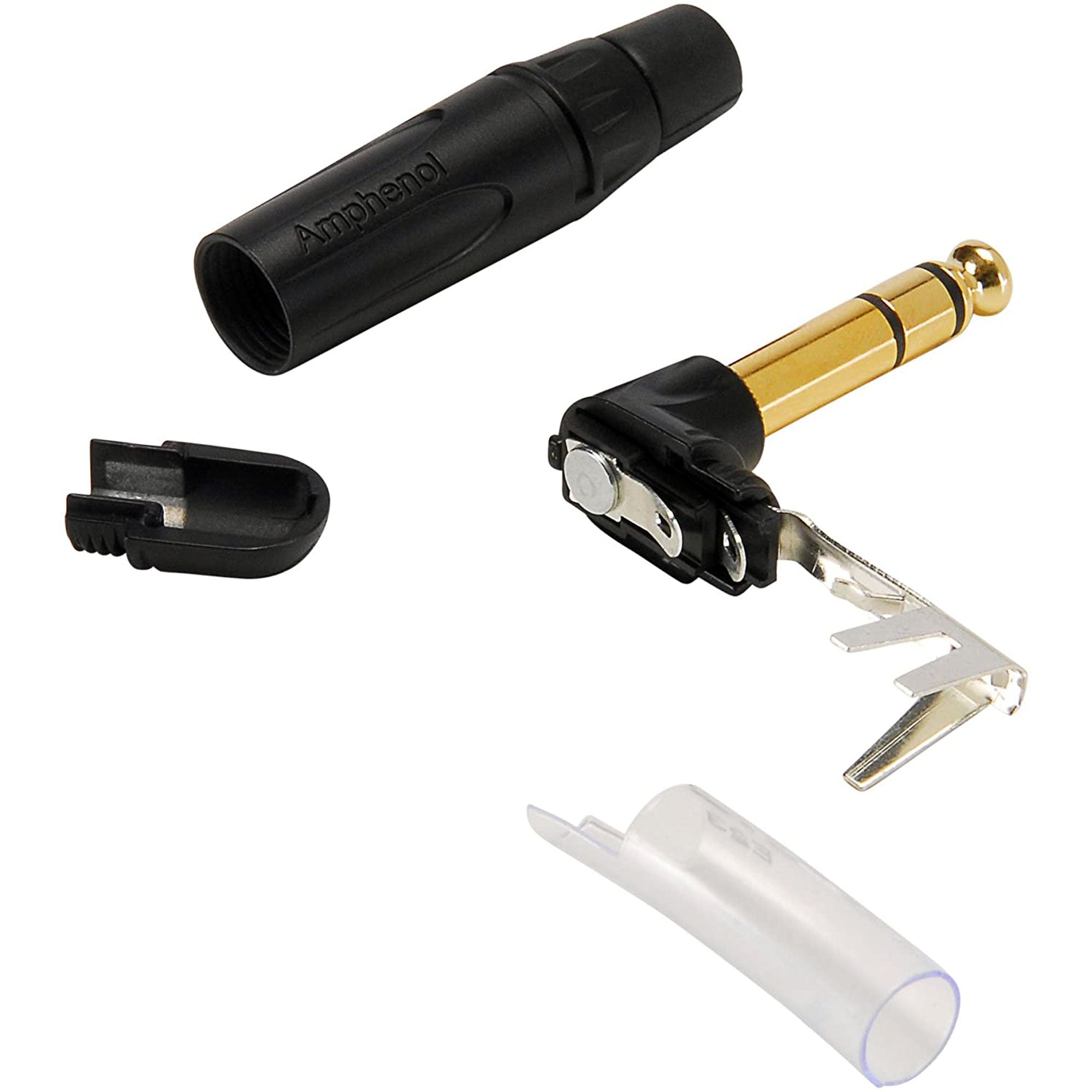

Amphenol ACPS-TB-AU Professional Right-Angle 1/4" TRS Stereo Phone Plug (Black/Gold, 50 Pack)

M Series II Musician Range Professional Right-Angle 1/4" TRS Stereo Phone Cable Mount Plug with Diecast Shell - Black/Gold - Pack of 50 Connectors

Amphenol offers two ranges of 1/4" Phone plug connectors to satisfy the needs of the manufacturer and the end user. The MUSICIAN series - a solid performing general use plug, offers different features and benefits and the most suitable type will be determined by application, budget and personal choice.

Features:

• Mono or Stereo (TRS)
• AX Series inspired shell design
• Large cable O.D. Entry to 8mm (0.315")
• Robust diecast shell in Satin nickel or Black finish
• Nickel or Gold contact plating
• Flexible grommet cable protection
• Improved solderability
• Precision machined contacts
• Standard or Bulk packaging

Specifications:

• GENERAL CHARACTERISTICS
• Number of Contacts:
  2 Pole (Mono)
  3 Pole Tip Ring Sleeve (Stereo)
• Termination: Solder
• Max. Wire Gauge - Stranded Wire:
  2 Pole (Mono): AWG 16 ̃1.5mm2
  3 Pole (Stereo): AWG 18 ̃1mm2
• Flammability rating of insulating plastics: UL94V-0
• Solderability, complies with: IEC 68-2-20
• Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
• ELECTRICAL CHARACTERISTICS
• Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
• Typical Contact Resistance: Depends on Mating Connector
• Insulation resistance (initial): >2GΩ
• After Damp Heat Test: ≥1GΩ
• Dielectric Withstand Voltage:
  2 Pole : 1.5 kV dc
  3 Pole : 1 kV dc
• CLIMATIC CHARACTERISTICS
• Protection Class: IP40
• Operating Temperature: -25ºC to +70ºC (-13ºF to 158ºF)
• MECHANICAL CHARACTERISTICS
• Insertion and Withdrawal Force: ≥10N - ≤30N
• Mating Cycles: Min. of 1000 cycles without any physical damage
• Cable O.D.:
  - M Series: 3mm to 6.5mm (0.118" to 0.256")
  - M Series II: 6.5mm to 8mm (0.256" to 0.315")
• MATERIALS
• Connector Shell Material: Diecast Zinc Alloy EZDA No.3
• Connector Shell Finish: Satin Nickel or Black Polyester
• Insulators: UL94 V-0 PBT Resin or Modified PPE Resin and fibreglass laminate
• Cable Bushing: Santoprene
• Contact Plating: Brass / Ni over Cu (Copper)
