Key Features
- Stylish Diecast Shell
- Gold Plated Contacts
- Flexible Grommet Cable Protection
- RoHS Compliant
- Full Box of 100 Connectors
Description

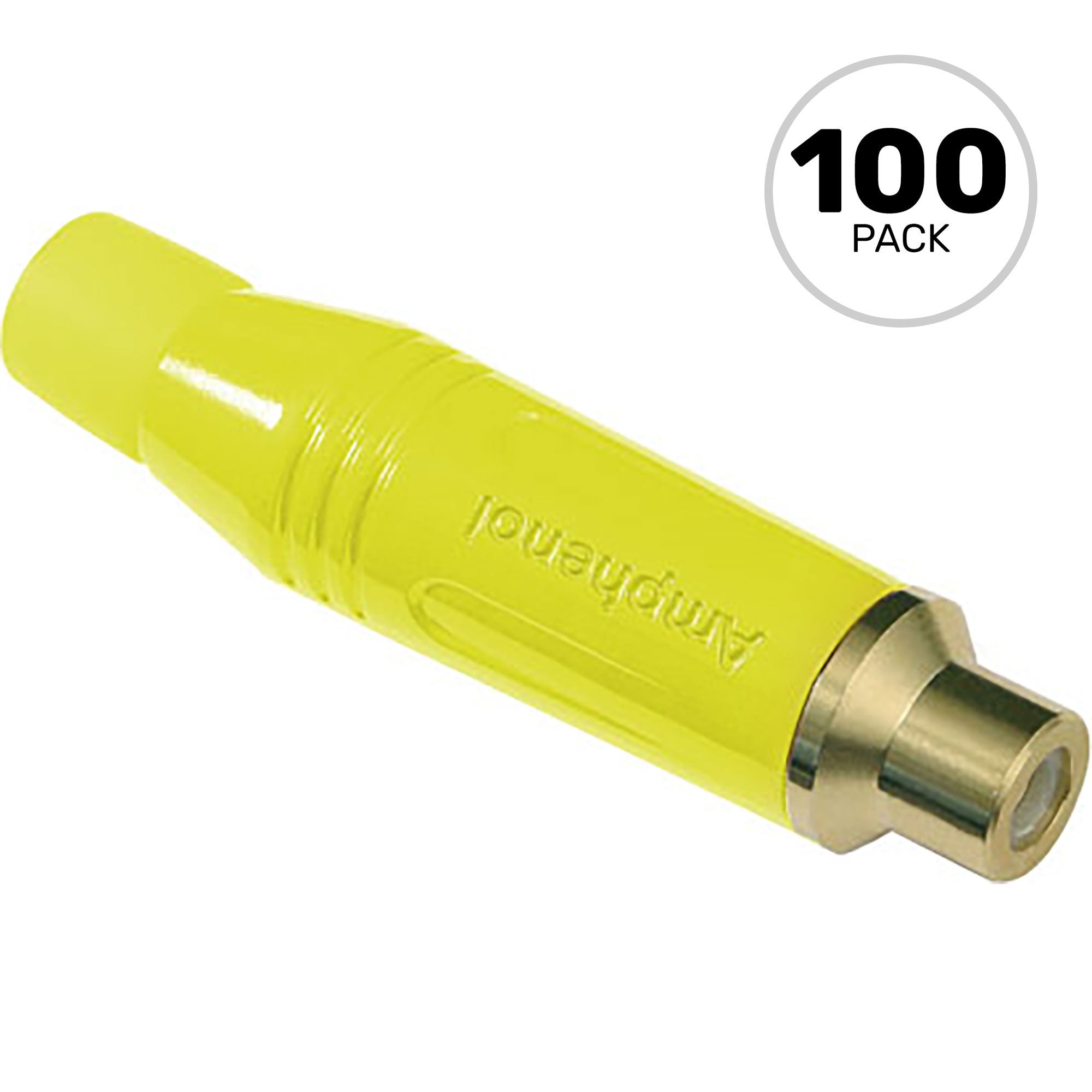

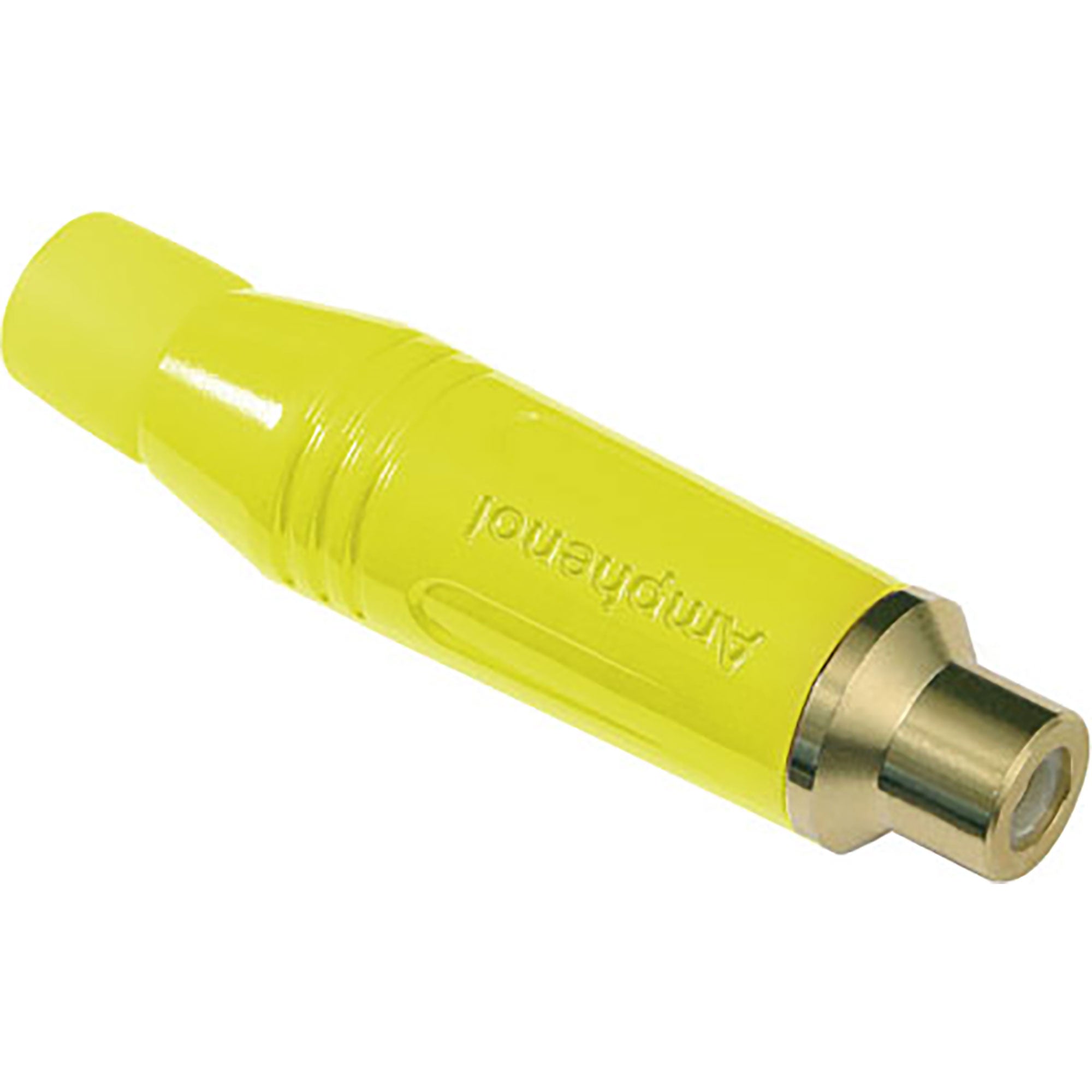

Diecast Female RCA Cable Connector with Yellow Finish / Yellow Grommet with Gold Contacts - Full Box of 100 Connectors
The RCA Cable Connector with Diecast Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a diecast shell with gold plated contacts. This connector is offered with a flexible colored grommet to help protect the cable. This connector is RoHS compliant.
Amphenol Australia has manufactured and designed innovative audio connectors since 1955. The company's plugs are a simple and economical way to terminate RCA cables and have a number of features that add value compared to similar connectors. You won't need to squint to see which cable end you're plugging in, because the entire housing is color coded. A flexible grommet will help keep the wire from pulling out and precision-machined gold plated contacts assure good signal transfer. These RCA plugs are perfect for making new interconnects or upgrading worn or damaged plugs!
Specifications:
- GENERAL CHARACTERISTICS
- Number of Contacts: 2
- Termination: Solder
- Max. Wire Gauge - Stranded Wire: AWG 14 - 2.5mm²
- Flammability rating of insulating plastics: UL94V-0
- Solderability, complies with: IEC 68-2-20
- Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
- ELECTRICAL CHARACTERISTICS
- Current Carrying Capacity: 10A (Depends on Mating Connector)
- Typical Contact Resistance: ≤10mΩ (Depends on Mating Connector)
- Insulation resistance (initial): >2GΩ
- After Damp Heat Test: ≥ 103 Meg Ω
- Dielectric Strength: 1500 V dc
- CLIMATIC CHARACTERISTICS
- Protection Class: IP40
- Operating Temperature: -25°C to +75°C (-13°F to +167°F)
- MECHANICAL CHARACTERISTICS
- Insertion and Withdrawal Force: ≥10N - ≤30N (depends on mating connector)
- Cable O.D.: 3mm to 7mm (0.118" to 0.275")
- Mechanical Operations: 500 mating cycles
- Weight: 18g (0.039lb)
- MATERIALS
- Connector Shell Material (Plugs): Diecast Zinc Alloy EZDA No.3
- Connector Shell Finish: Satin Nickel or Coloured Polyester
- Insulators: PA66
- Cable Bushing: Thermoplastic Polyurethane
- Contacts: Brass Alloy
- Plating: Gold Flash
- Manufacturer: Amphenol
- MPN: ACJR-YEL
- Model Number: ACJR-YEL
