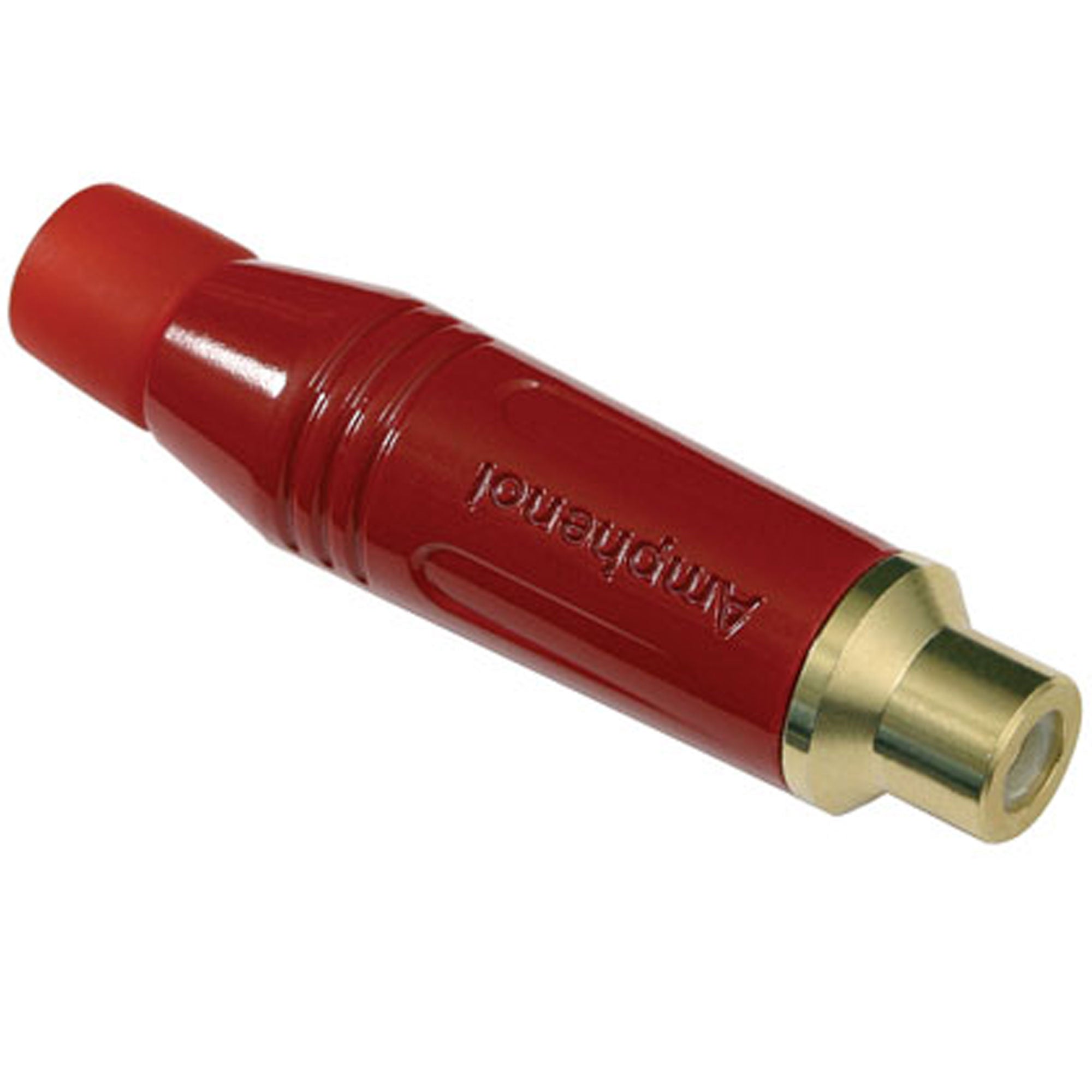

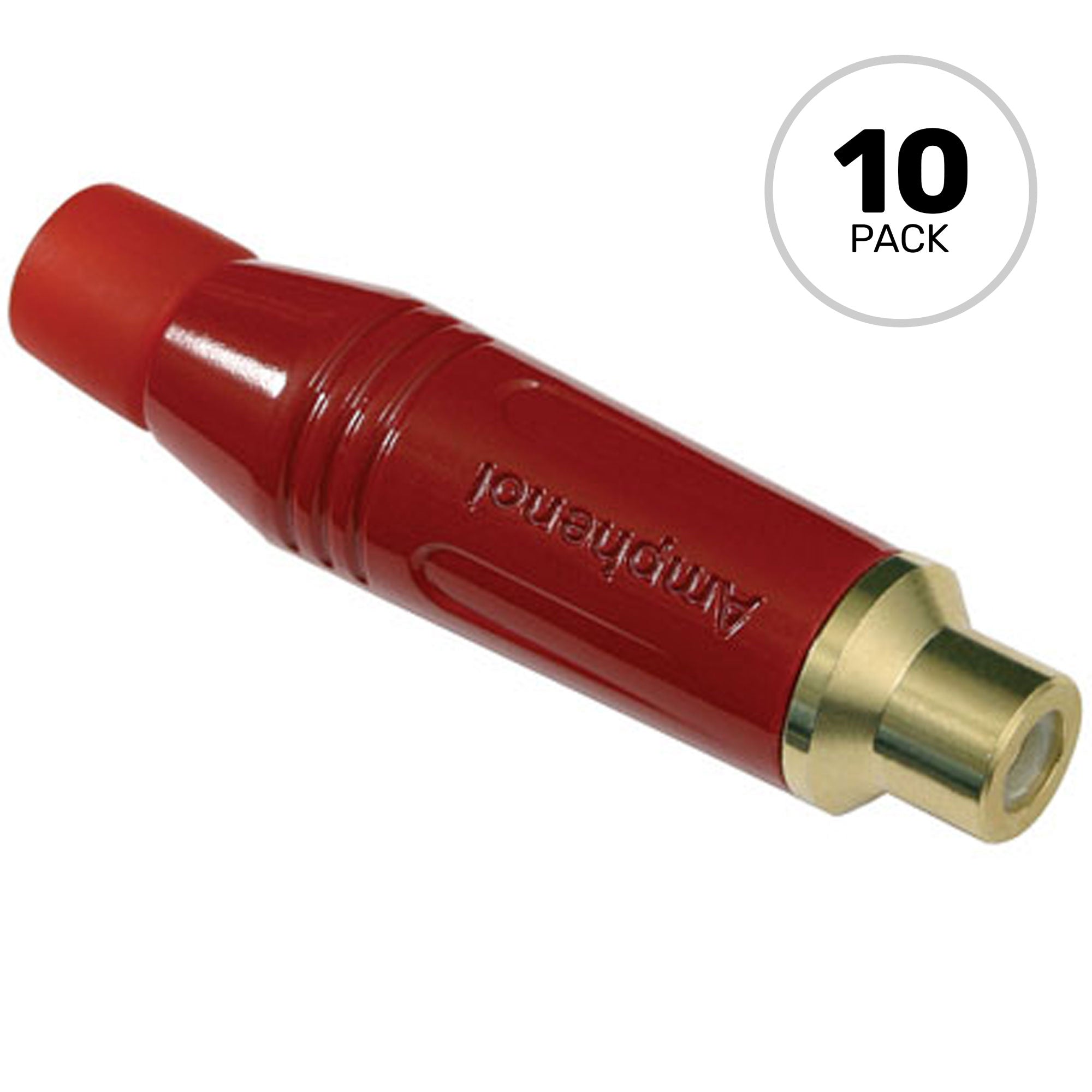

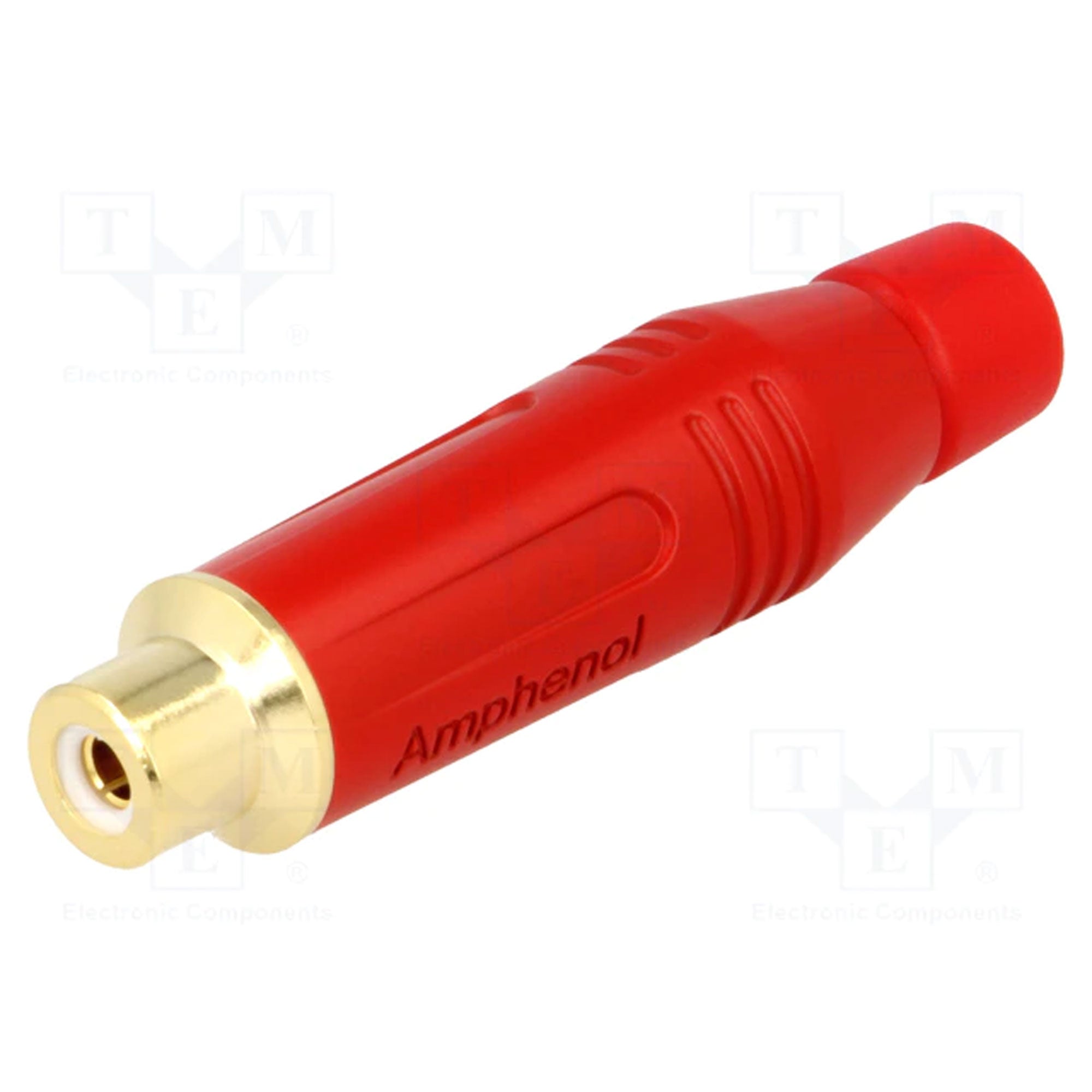

Amphenol ACJR-RED Gold Plated Female RCA Phono Cable Mount Connector (Red, 10 Pack)

Diecast Female RCA Cable Connector with Red Finish / Red Grommet with Gold Contacts - Pack of 10 Connectors

The RCA Cable Connector with Diecast Shell by Amphenol Audio Products is for soldering to studio-quality cables and is engineered for critical recording and broadcast applications. It features a diecast shell with gold plated contacts. This connector is offered with a flexible colored grommet to help protect the cable. This connector is RoHS compliant.

Amphenol Australia has manufactured and designed innovative audio connectors since 1955. The company's plugs are a simple and economical way to terminate RCA cables and have a number of features that add value compared to similar connectors. You won't need to squint to see which cable end you're plugging in, because the entire housing is color coded. A flexible grommet will help keep the wire from pulling out and precision-machined gold plated contacts assure good signal transfer. These RCA plugs are perfect for making new interconnects or upgrading worn or damaged plugs!

Specifications:

• GENERAL CHARACTERISTICS
• Number of Contacts: 2
• Termination: Solder
• Max. Wire Gauge - Stranded Wire: AWG 14 - 2.5mm²
• Flammability rating of insulating plastics: UL94V-0
• Solderability, complies with: IEC 68-2-20
• Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
• ELECTRICAL CHARACTERISTICS
• Current Carrying Capacity: 10A (Depends on Mating Connector)
• Typical Contact Resistance: ≤10mΩ (Depends on Mating Connector)
• Insulation resistance (initial): >2GΩ
• After Damp Heat Test: ≥ 103 Meg Ω
• Dielectric Strength: 1500 V dc
• CLIMATIC CHARACTERISTICS
• Protection Class: IP40
• Operating Temperature: -25°C to +75°C (-13°F to +167°F)
• MECHANICAL CHARACTERISTICS
• Insertion and Withdrawal Force: ≥10N - ≤30N (depends on mating connector)
• Cable O.D.: 3mm to 7mm (0.118" to 0.275")
• Mechanical Operations: 500 mating cycles
• Weight: 18g (0.039lb)
• MATERIALS
• Connector Shell Material (Plugs): Diecast Zinc Alloy EZDA No.3
• Connector Shell Finish: Satin Nickel or Coloured Polyester
• Insulators: PA66
• Cable Bushing: Thermoplastic Polyurethane
• Contacts: Brass Alloy
• Plating: Gold Flash
