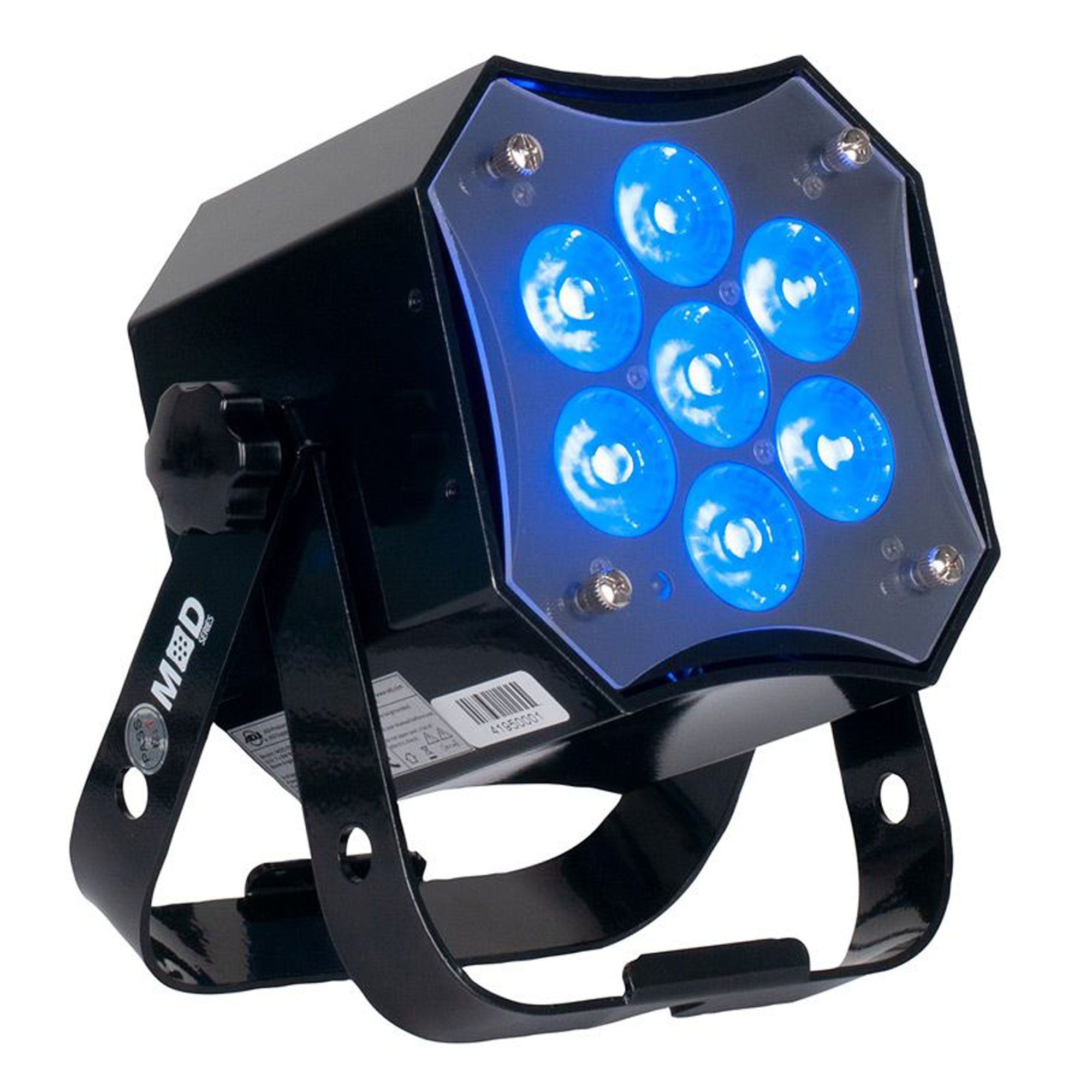

American DJ MOD STQ Compact High-Output Low-Power Draw LED Par Wash Fixture

Compact, High Out, Low Power Draw LED Par Wash Fixture With Seven 8-Watt RGBW (4-in-1) LEDs, a Scissor Yoke and 4 Beam Angle Options

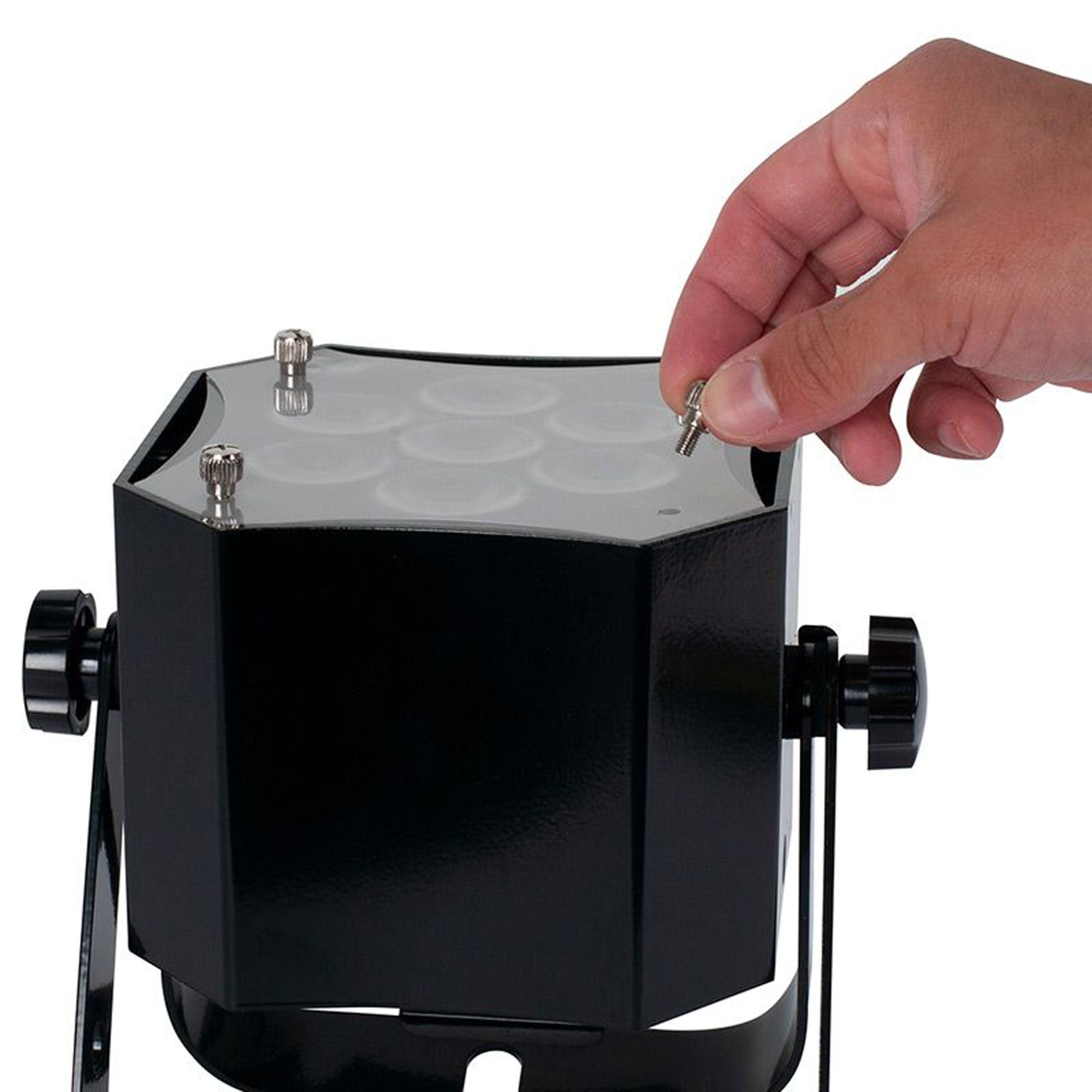

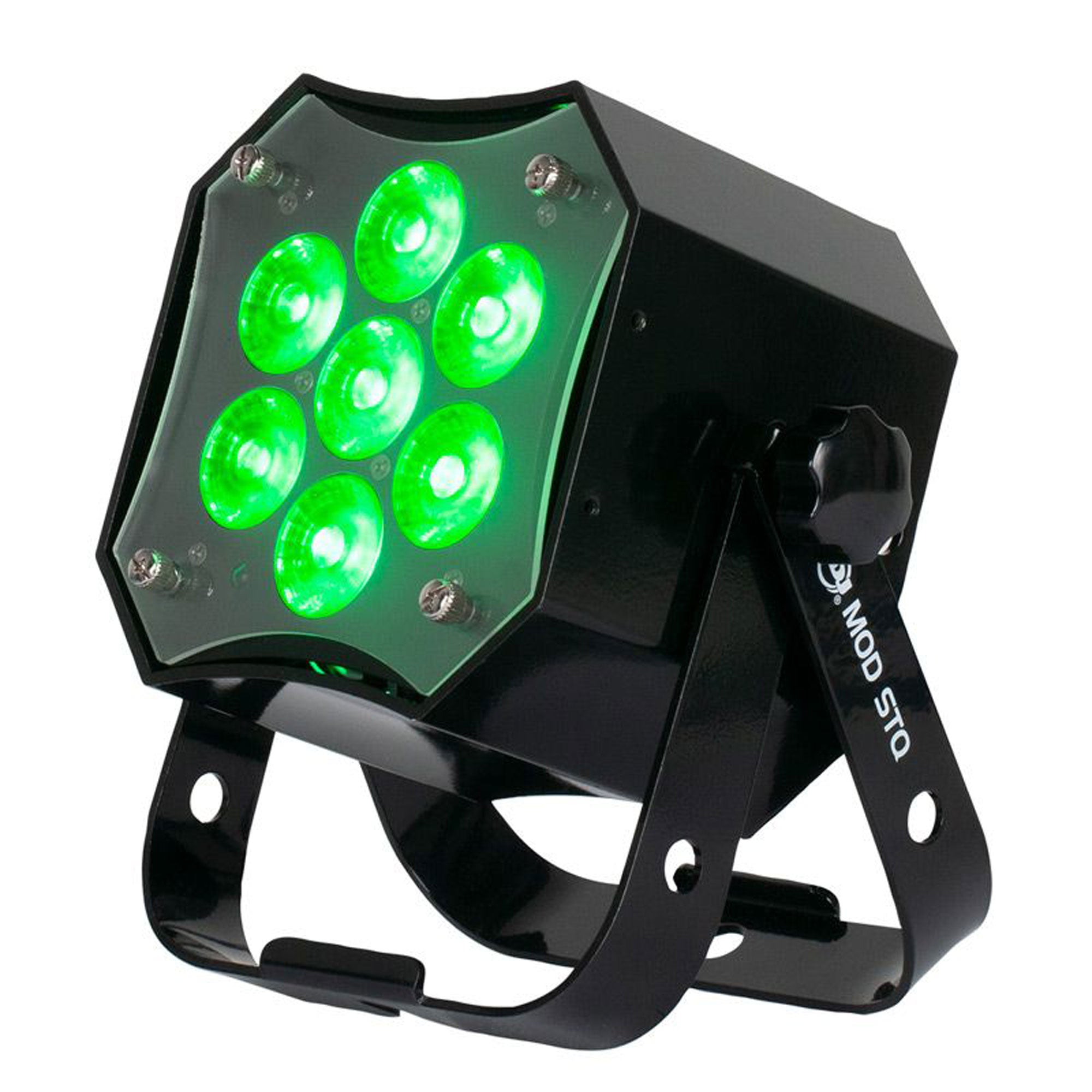

The ADJ Lighting MOD STQ is a compact, high out, low power draw LED Par used as a wash fixture or up light for stages, churches, clubs, lounges and fun centers. It comes equipped with seven 8-Watt RGBW (4-IN-1) LED diodes (for a total output of 56W), a scissor yoke and three interchange frost filters that are easily replaceable by thumb screws. The 17-degree standard beam may be changed on the fly to 20, 40 or 60-degrees. The MOD STQ is a versatile LED Par that may be used as stage lighting, up lighting or truss warming.

From the 4-button display menu controls users have full access to 64 color macros, 8 DMX channel modes, 5 operational modes, 6 dimming curve modes, as well as, LED refresh rate and gamma control settings.

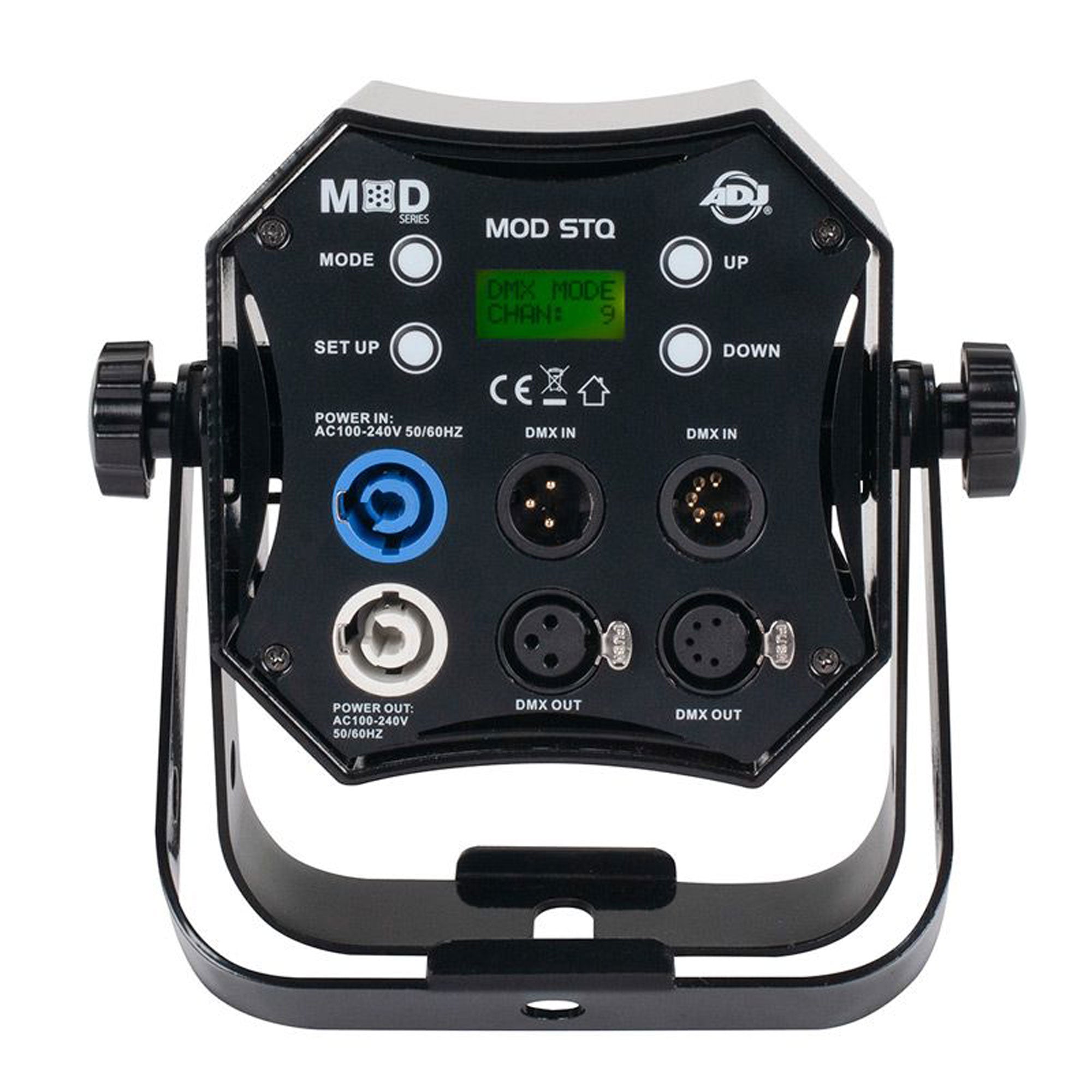

Connections on the MOD STQ are very flexible with twist lock In/Out sockets to daisy chain the power from one fixture to another. Plus, there are both 3-pin and 5-pin DMX sockets for data linking.

Specifications:

• Light Source:

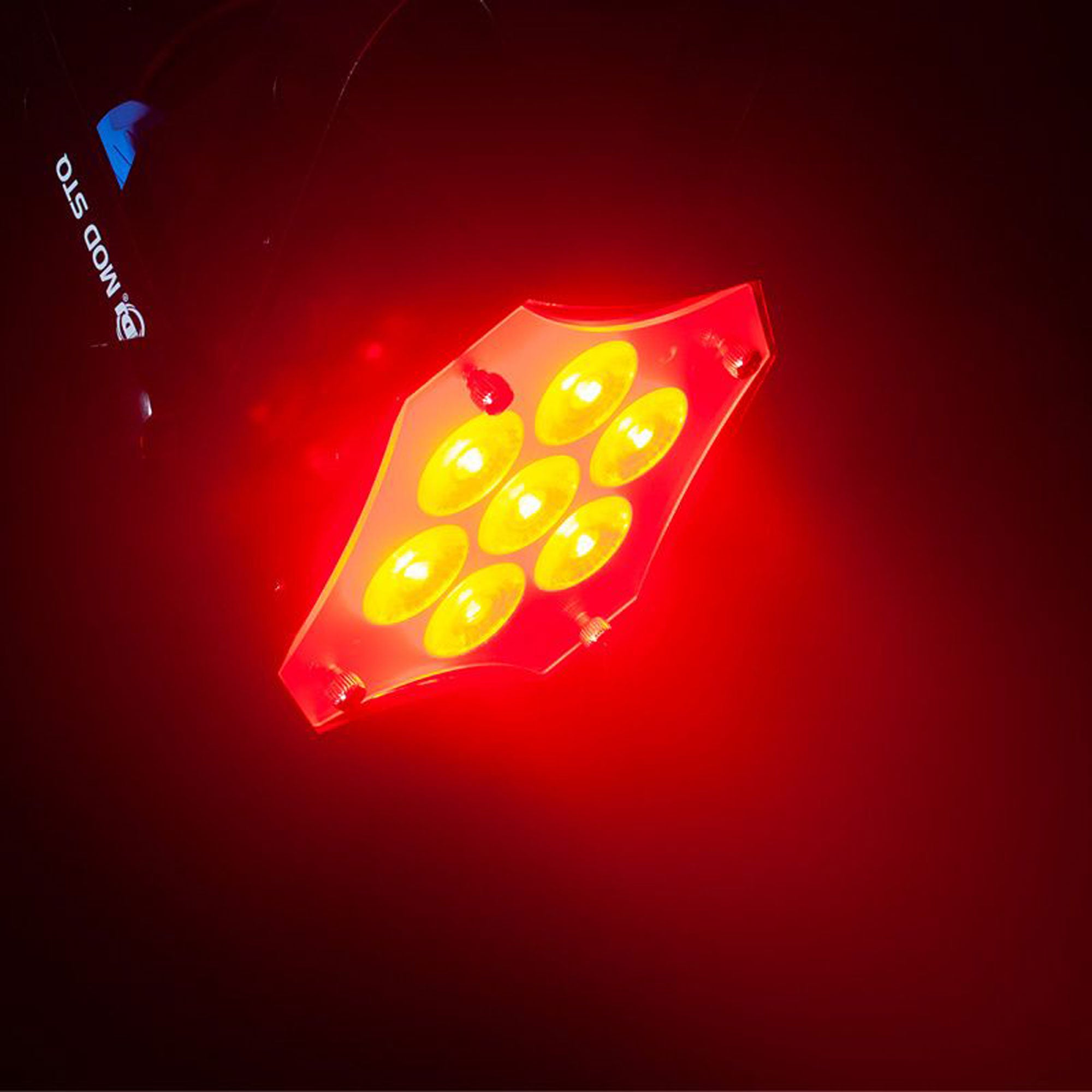

  7x 8-Watt RGBW (4-IN-1 - Red, Green, Blue & White) LEDs
  50,000 Hour Average LED Life
• Features:
  Compact, black gloss metal housing

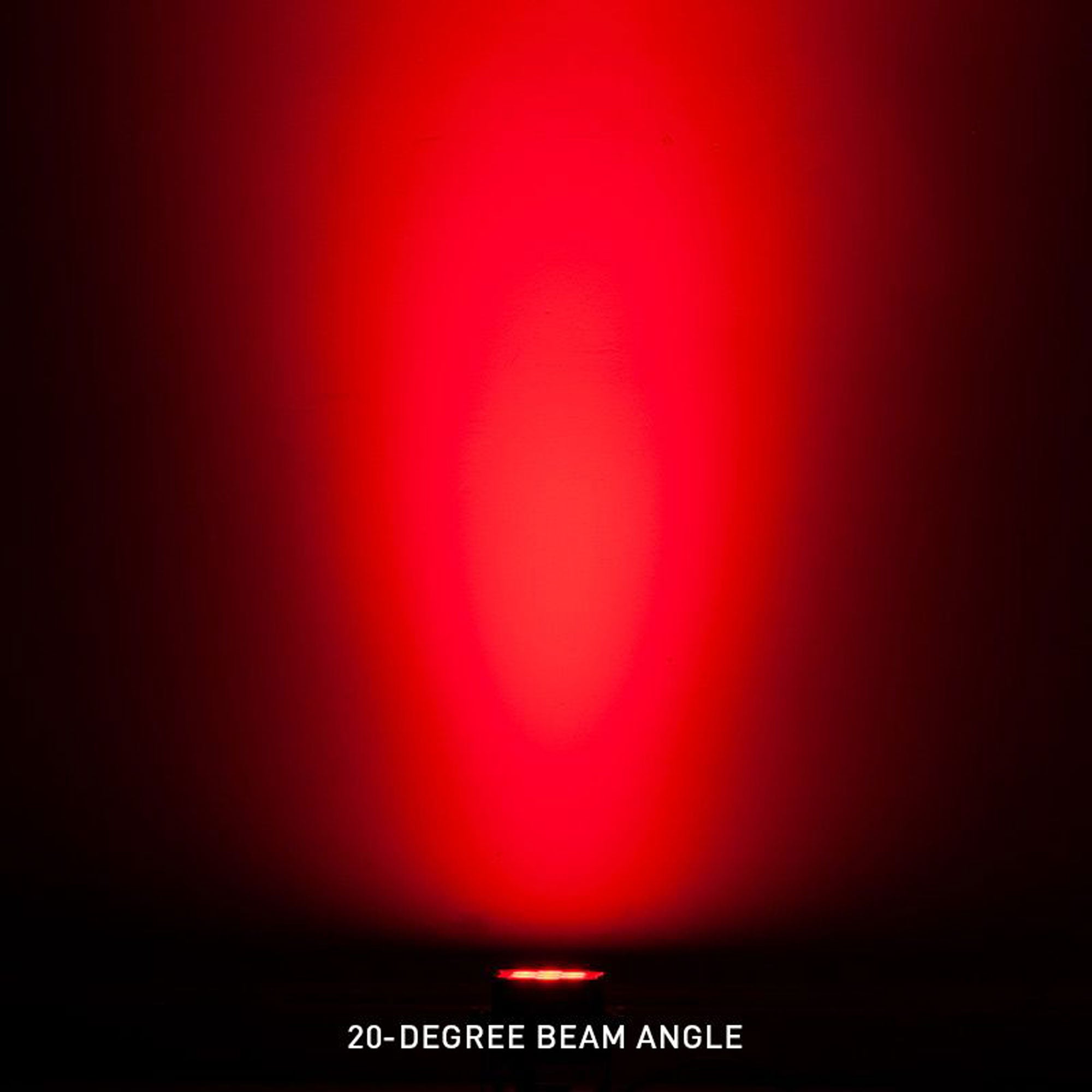

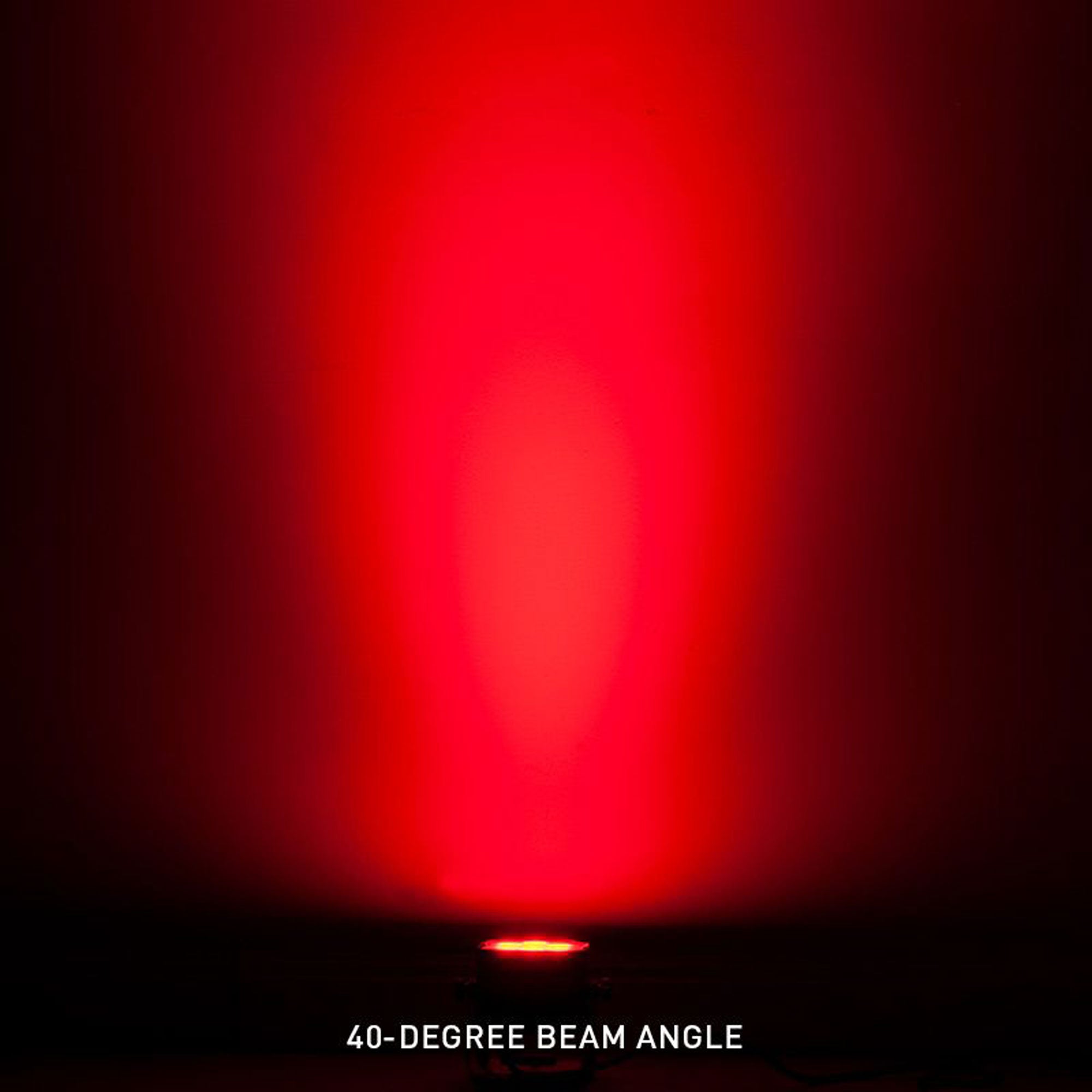

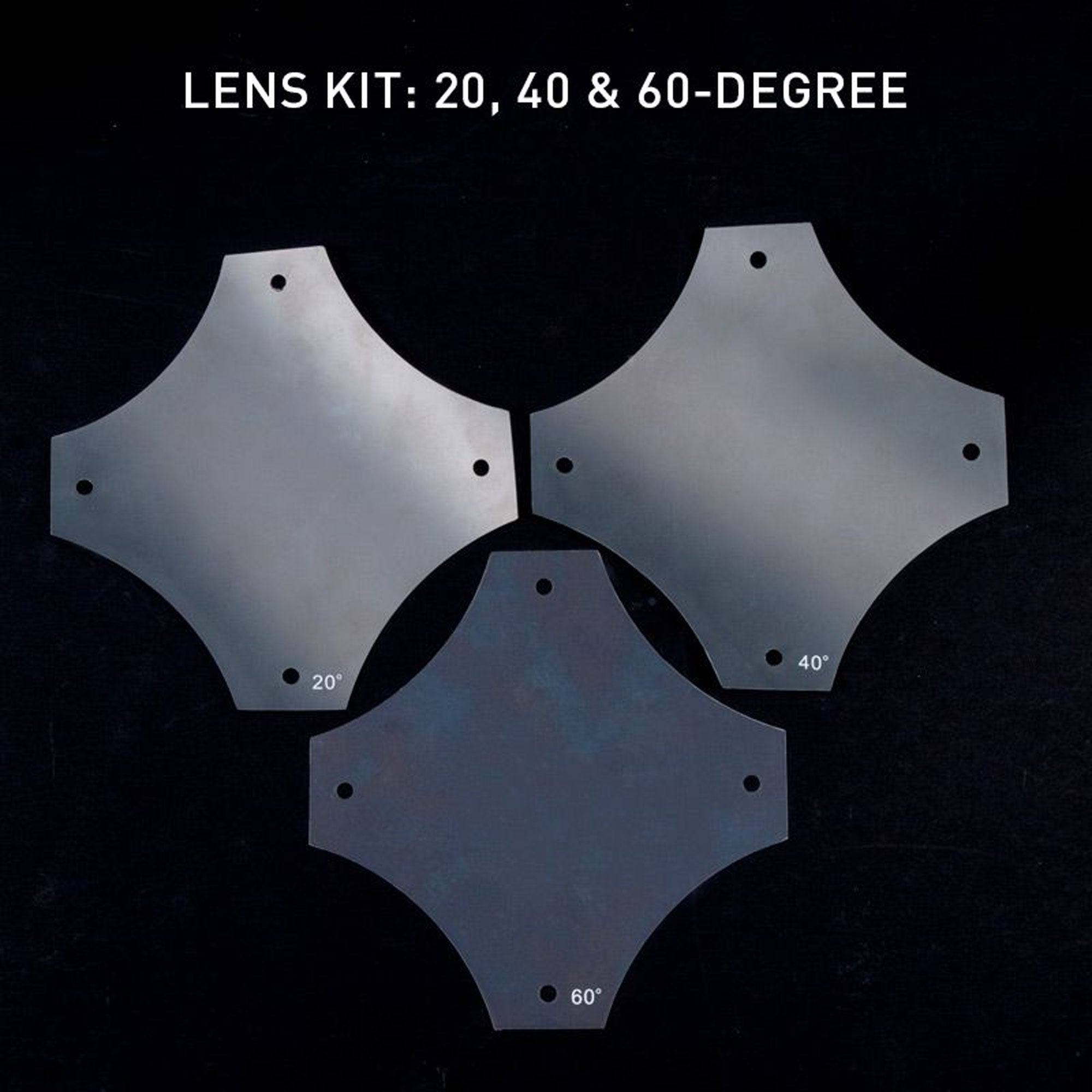

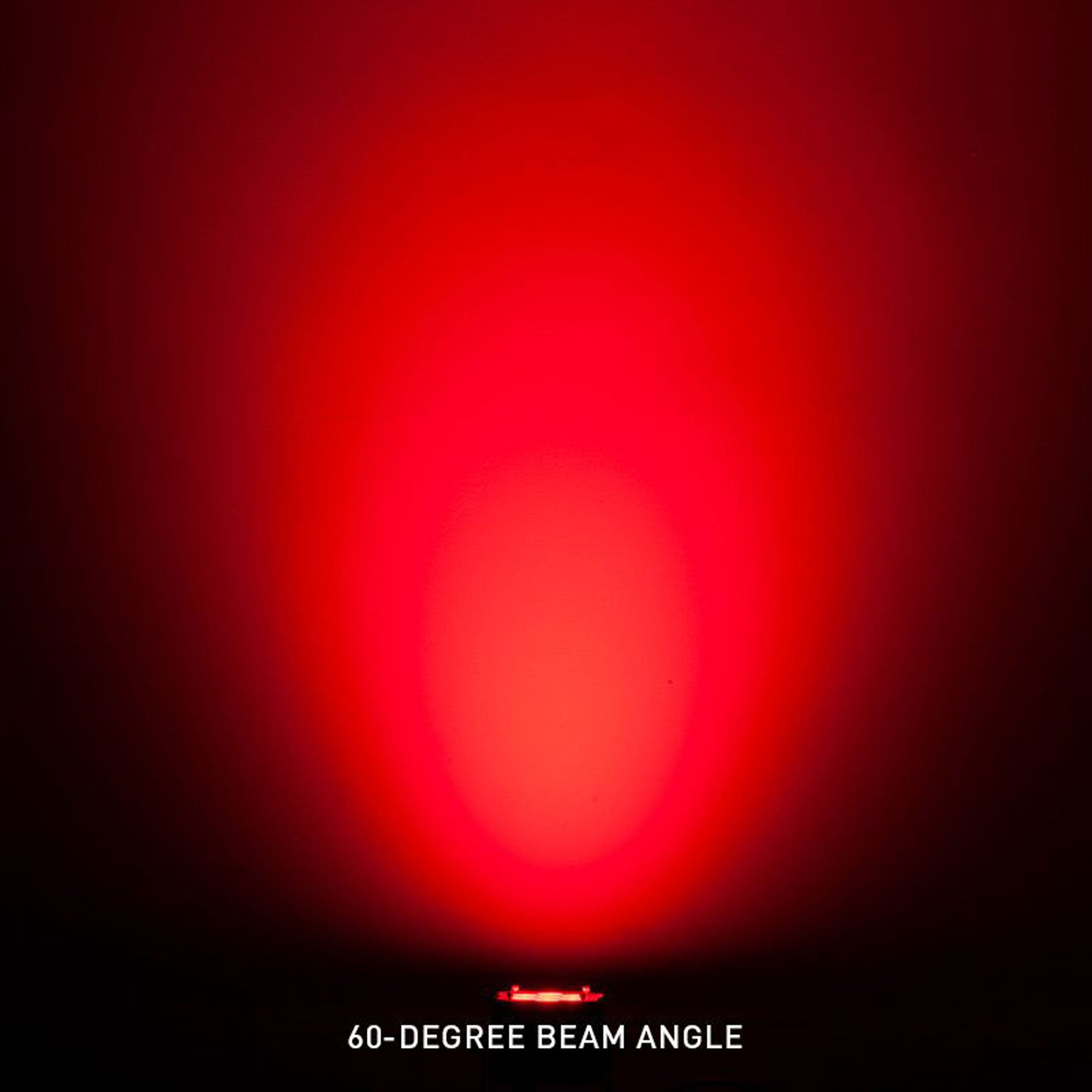

  Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
  Scissor yoke included
• Output:
  Total Lumens: >2500
  LUX: 2952 @ 3M (9.8 ft.)

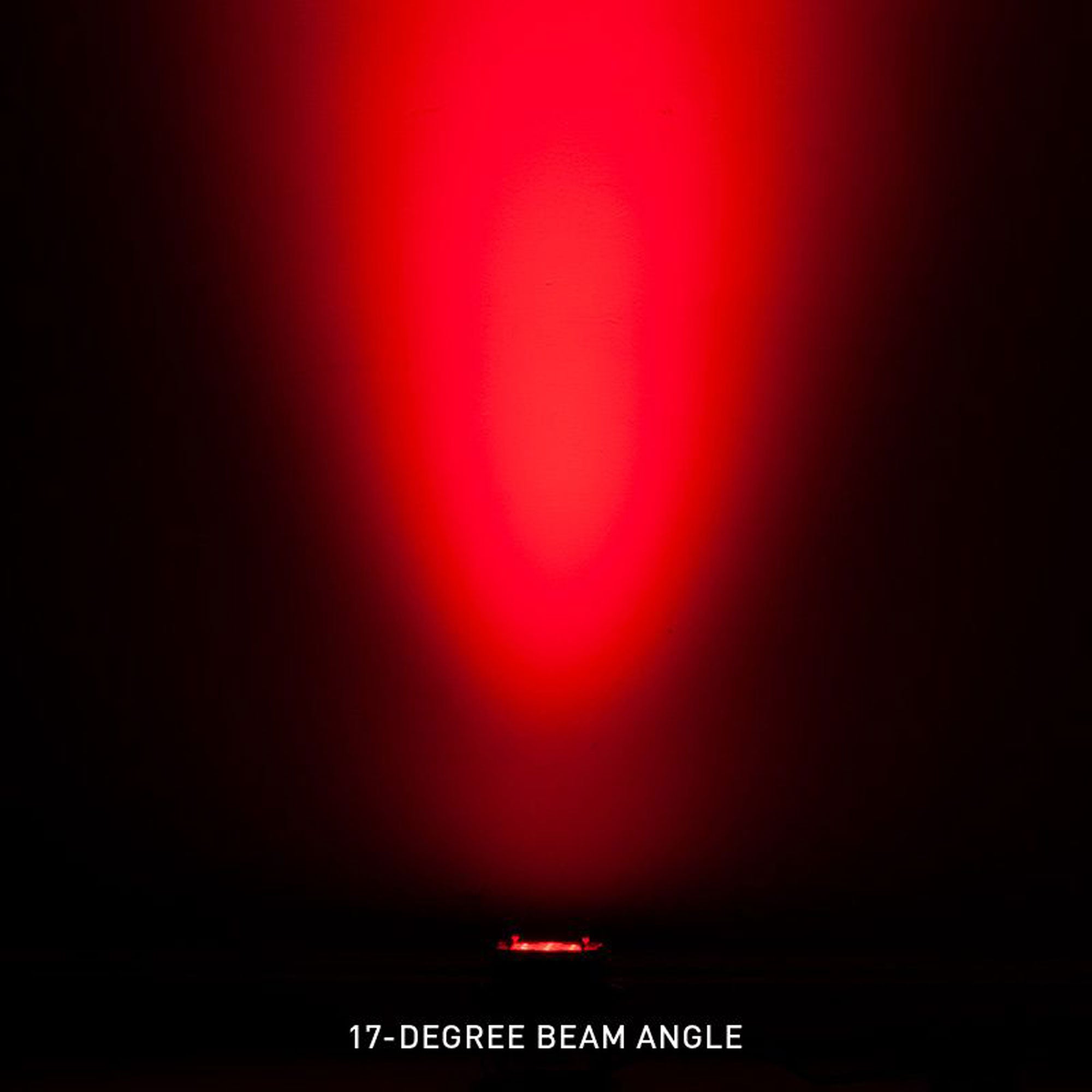

  Beam angle: 17-degrees
• Connections:
  Power: Twist locking power input and output
  DMX: 3-pin & 5-pin In/Out
  With Wired Digital Communication Network
• Control:
  UC IR wireless remote included
  8 DMX Channel Modes: 4, 5, 7, 8, 9, 12 ,13 or 15
  64 built-in Color Macros
  5 operational modes
  4-button control menu with display
  Electronic Dimming: 0-100%
  Variable strobe control
  6 dimming curve modes
  Adjustable LED Refresh Rate and Gamma Control
• Electrical:
  Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
  Max Power Draw: 57W
  Locking power in/out to daisy chain up to: 7 Fixtures Max@ 120V, 12 Fixtures Max@ 240V
• Dimensions/Weight:
  Dimensions (LxWxH): 7.75" x 7.4" x 8" / 197 x 187.8 x 203mm
  Weight: 4.3 lbs. / 1.95 kg.
• What's in the Box (Included):
  UC IR wireless remote
  Airstream IR adapter for use with Airstream IR APP
  Power Cable
  Twist locking power output adapter (so you can make your own power linking cables)
• Accessories (sold separately):
  Black metal Barn Doors

Includes:

• American DJ MOD STQ Compact High-Output Low-Power Draw LED Par Wash Fixture
• UC IR Wireless Remote
• Airstream IR Adapter for Use with Airstream IR APP
• Power Cable
• Twist-Locking Power Output Adapter
• Limited 2-Year Warranty
