Key Features
- 3-Pin Male to 5-Pin Female XLR
- Turnaround Cable
- Heavy-Duty 22AWG Construction
- Durable PVC Jacket
- 110 Ohm Nominal Impedance
Description

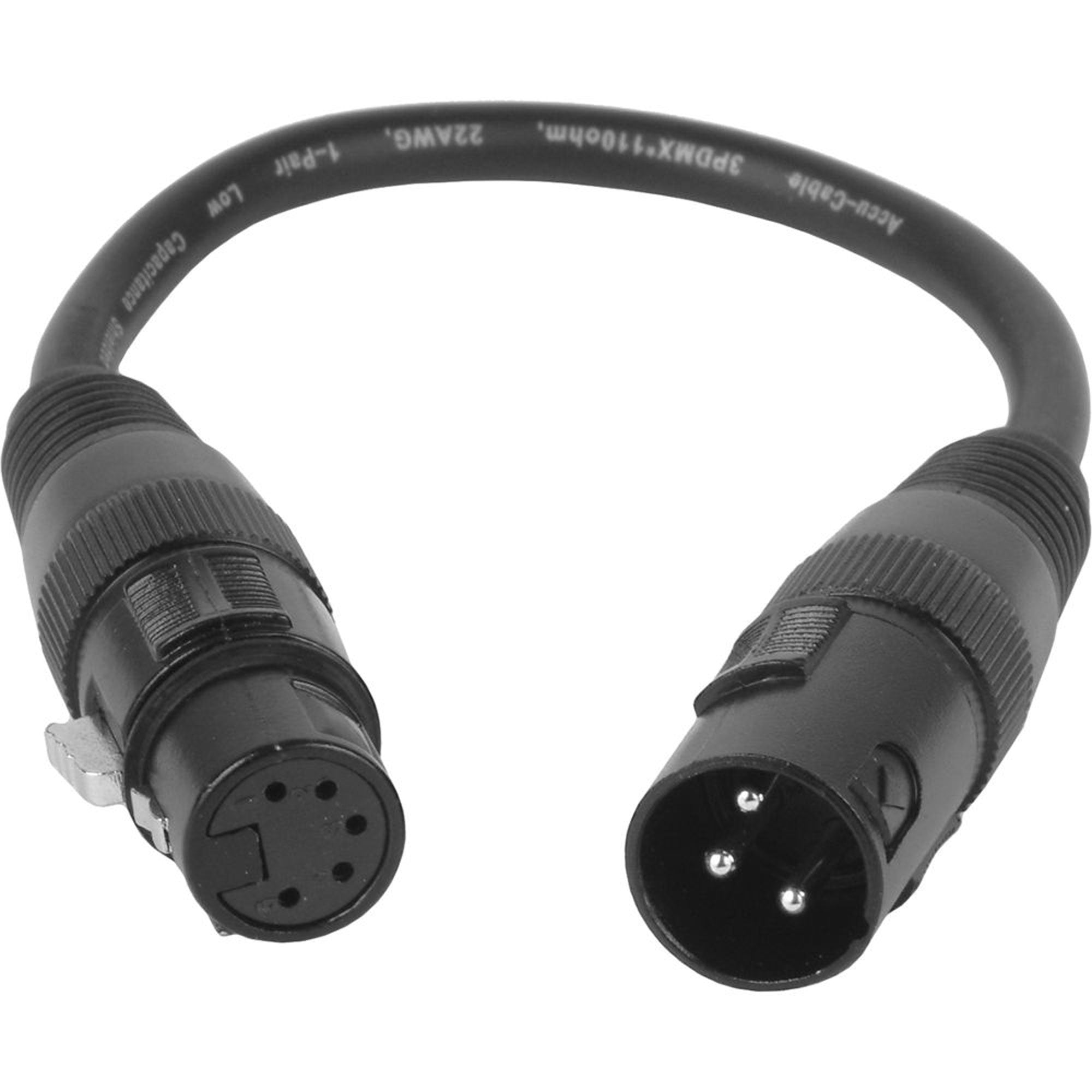

3 Pin Male XLR to 5 Pin Female XLR Turnaround Cable
22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.
Features:
- AC3PDMX5 (5 Foot 3 Pin DMX Cable)
- AC3PDMX10 (10 Foot 3 Pin DMX Cable)
- AC3PDMX25 (25 Foot 3 Pin DMX Cable)
- AC3PDMX50 (50 Foot 3 Pin DMX Cable)
- AC3PDMX100 (100 Foot 3 Pin DMX Cable)
- 3 Pin Male to 5 Pin Female XLR Cable:
- AC3PM5PFM (3 Pin Male XLR to 5 Pin Female XLR Turnaround)
Specifications:
- Physical Characteristics:
- Conductor:
- Number of Pairs: 1
- Total Number of Conductors: 2
- AWG: 22
- Stranding: 0.15 x 19
- Conductor Diameter: .0354"
- Conduct or Material: TC-Tinned Copper
- Insulation:
- Insulation Material PE Polyethylene
- Lay Length:
- Lay Length: 2.5"
- Direction: Left Hand Lay
- Twists: 4.8 per foot
- Inner Jacket:
- Inner Jacket Material: PE- Polyethylene
- Inner Jacket Diameter: .055"
- Pair Color Code: Black/White
- Outer Shield:
- Outer Shield Trade Name: Duofoil
- Outer Shield Type: Tape/Braid
- Outer Shield Material:
- Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
- Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85
- Outer Jacket:
- Outer Jacket Material: PVC-Polyvinyl Chloride
- Overall Nominal Diameter:
- Overall Nominal Diameter: .229"
- Mechanical Characteristics:
- Operating Temperature Range: (-30 degrees C To + 75 degrees C)
- Bulk Cable Weight: 31 lbs/1000
- Minimum Bend Radius (Install): 3.2"
- Maximum Recommended Pull Tension: 72 lbs.
- Electrical Characteristics:
- Nominal Characteristic Impedence: 110 Ohms
- Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
- Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
- Nominal Velocity of Propagation: 66%
- Nominal Delay: 1.6 Nanoseconds per foot
- Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
- Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
- Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
- Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
Details
- Manufacturer: American DJ
- MPN: AC3PM5PFM
- Model Number: AC3PM5PFM
- UPC: 819730011176
