Key Features
- 128 in, 128 Out
- Switchable 48/96kHz Sample Rate
- Waves SoundGrid Audio Networking
- Multitrack Recording and Playback
- Integrated 3-Port Ethernet Switch
- Connection of Multiple Devices
- Input Sharing With Waves V2 and V3 Cards
Description
Waves V3 dLive/Avantis Audio Networking Card

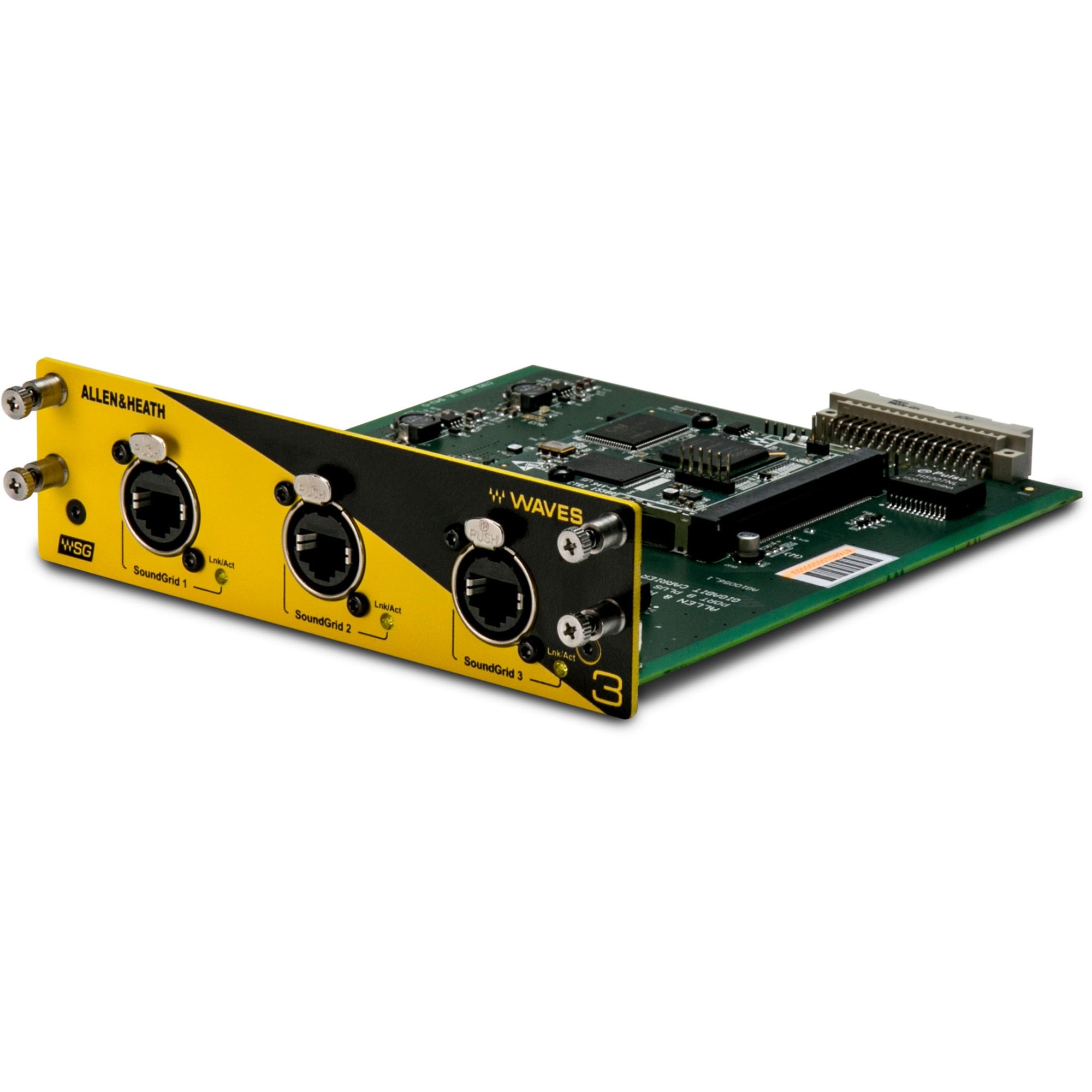

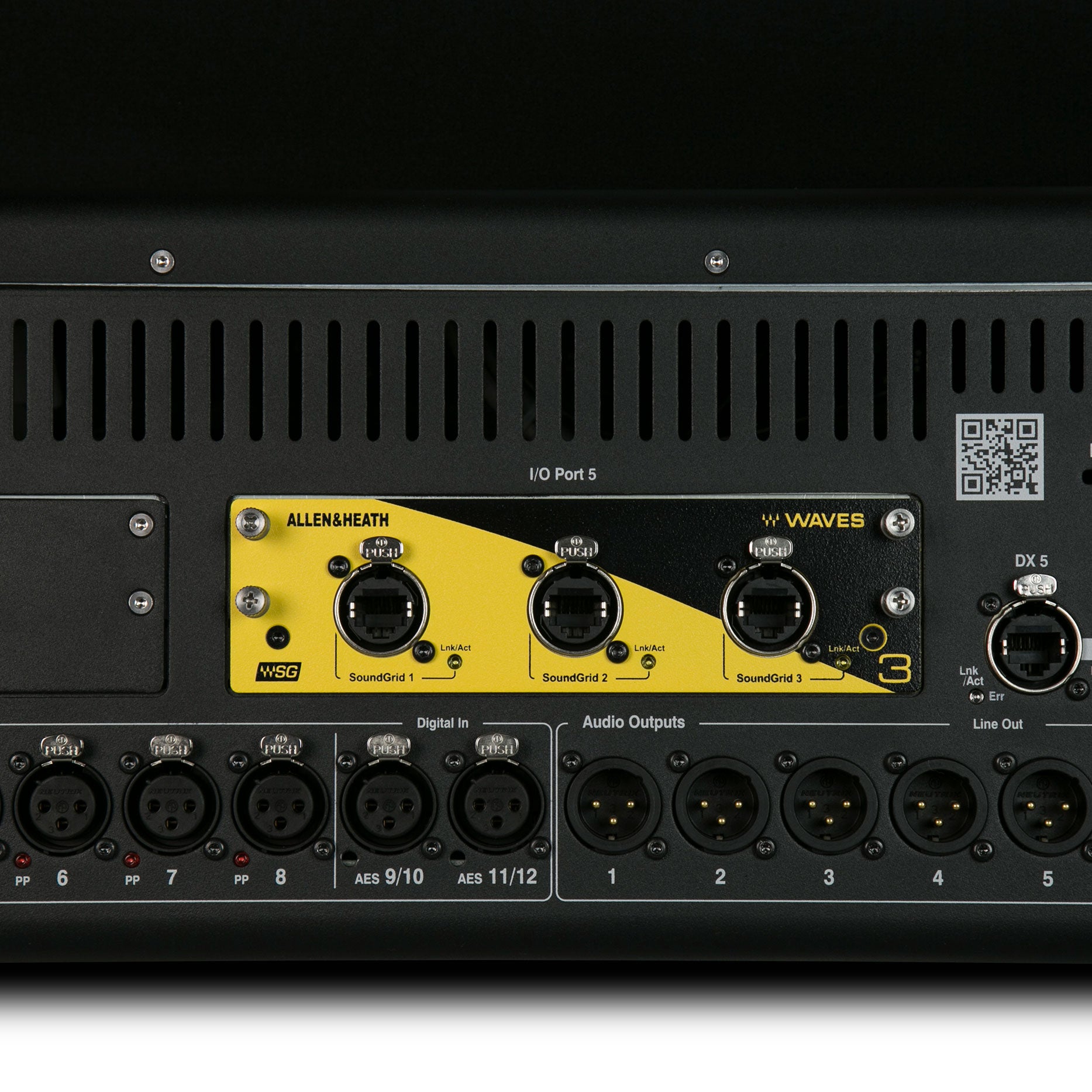

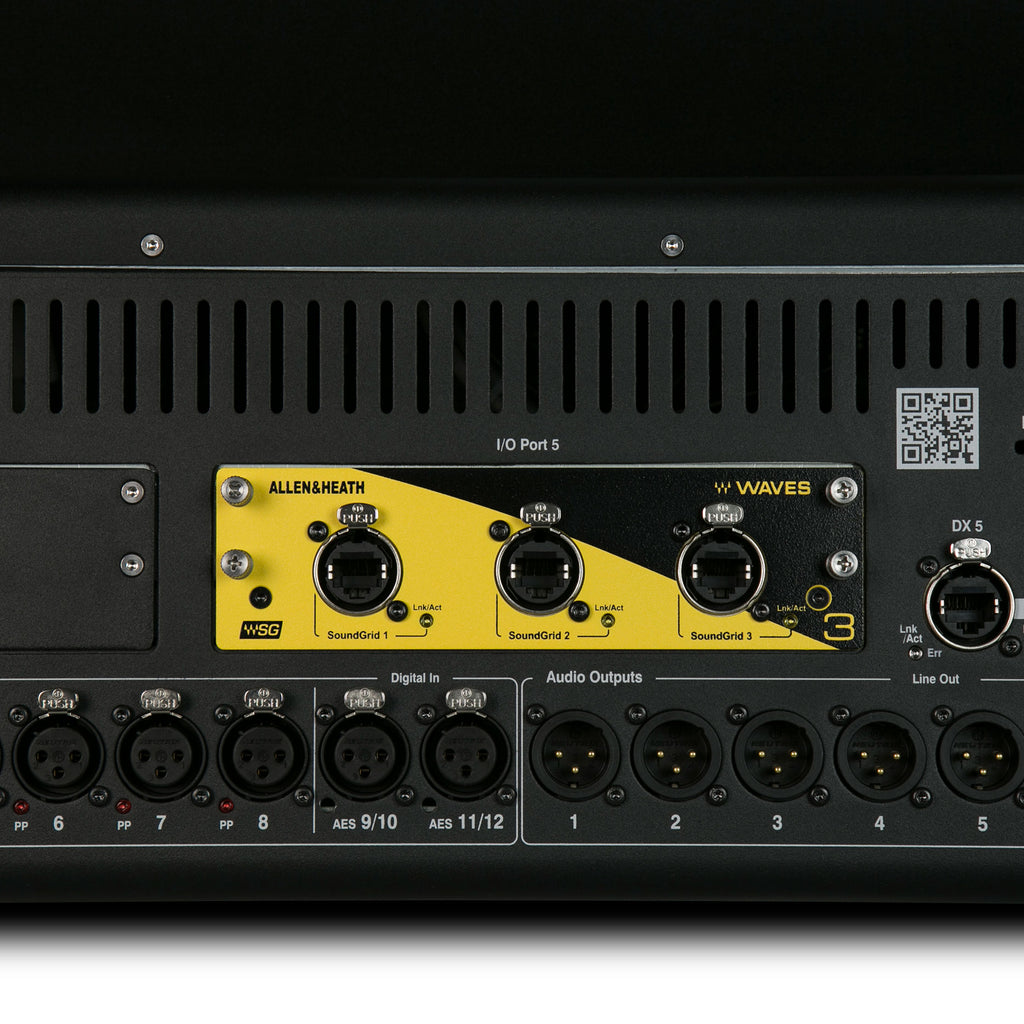

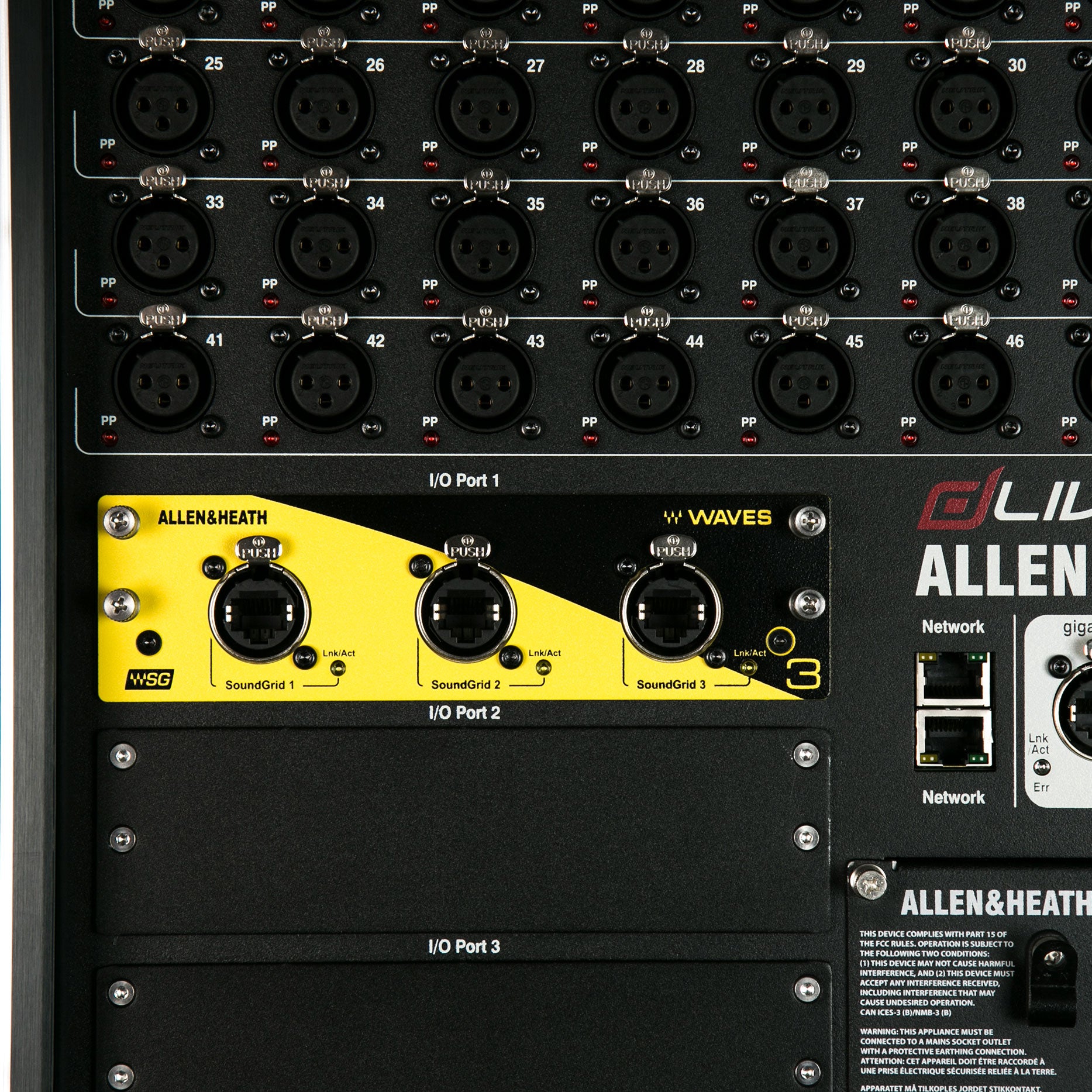

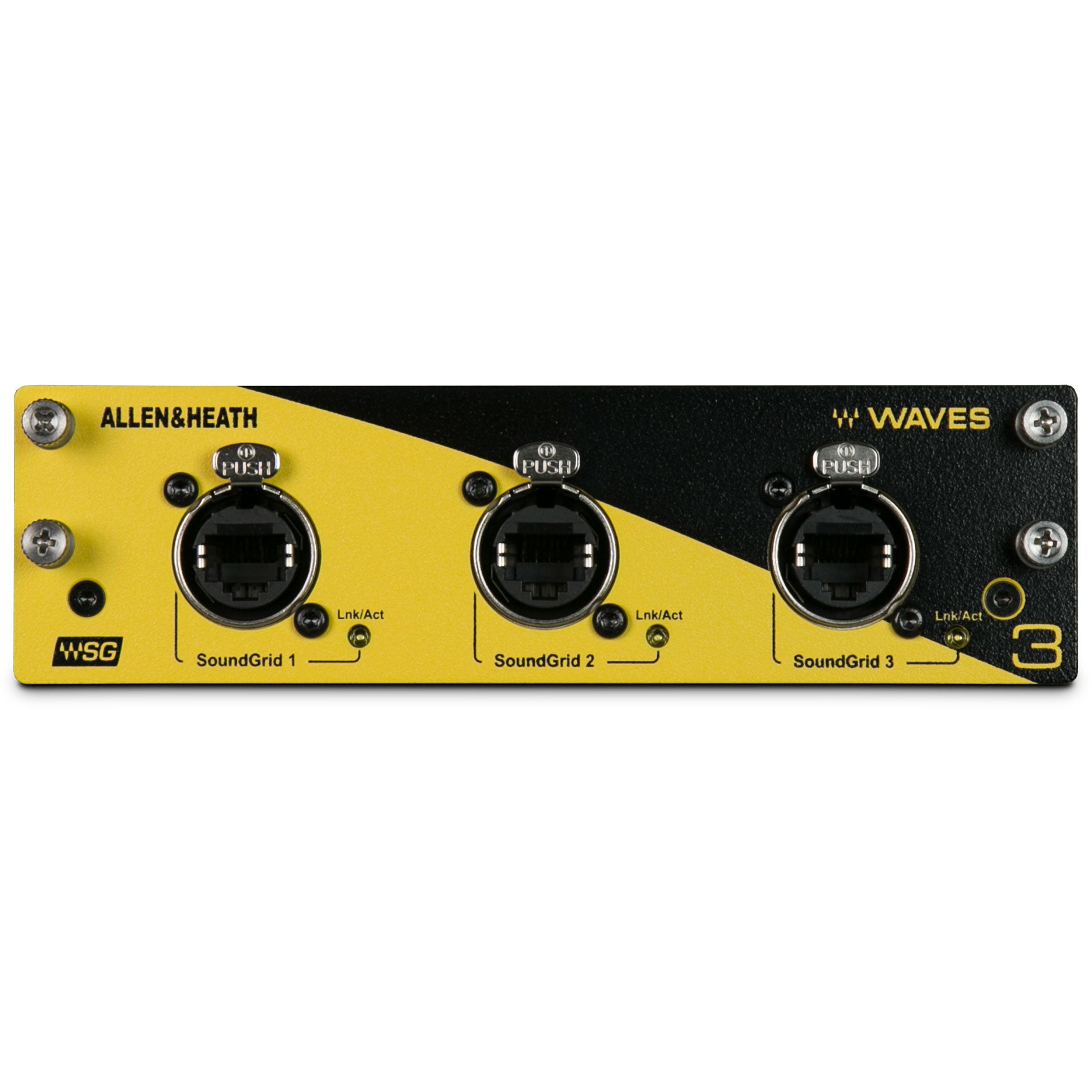

The Waves V3 Audio Networking Card (M-DL-WAVES3) is one of several audio networking options that can be fitted to an Allen & Heath dLive or Avantis I/O Port. It provides a 128x128ch 48/96kHz interface to the Waves SoundGrid networking platform, for several applications including Waves plugin processing, audio distribution, and digital mic splitting. It also offers a super convenient way of recording 128 tracks of 96kHz audio, into a Windows or Mac computer, over a single CAT cable.
SoundGrid is an Audio-over-Ethernet protocol developed by Waves for real-time professional audio applications. It provides a very low latency environment using standard Gigabit Ethernet networks. Plugin processing can be performed natively on a computer or on dedicated Waves servers.
- Manufacturer: Allen & Heath
- MPN: AH-M-SQ-WAVES3-A
- Model Number: M-SQ-Waves3-A
- UPC: 6938122248618
