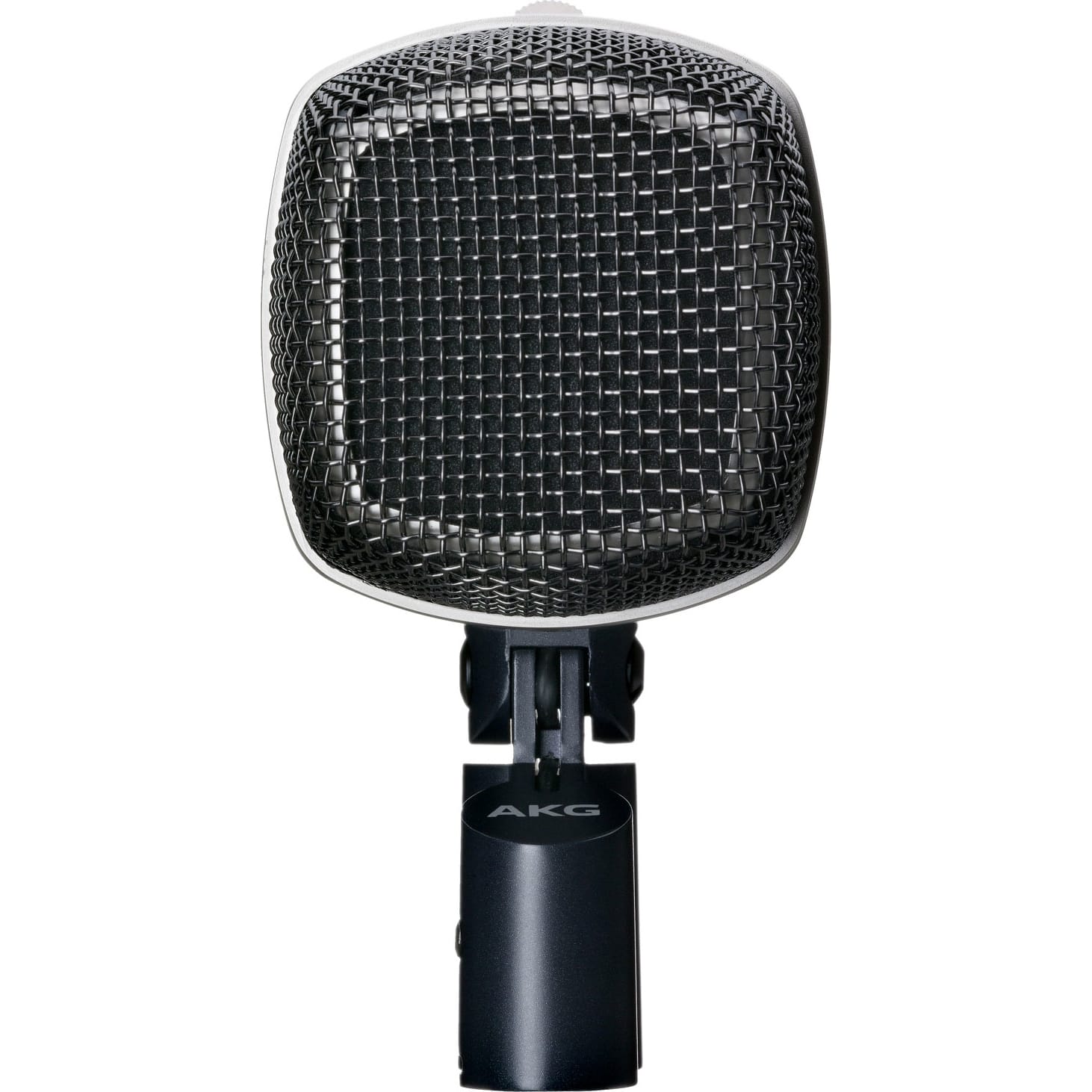

AKG D12VR Large-Diaphragm Dynamic Microphone

Large-Diaphragm Dynamic Cardioid Kick Drum Microphone

KICK THE HAMMER for bass drum live and recording applications
The D12VR is a reference large-diaphragm dynamic microphone with cardioid polar pattern. Designed specifically for kick-drum recording applications, the microphone has a thin diaphragm to enhance the low frequency performance. Its warm sound is realized by the original C414 transformer, especially impressive at high signal levels.

The D12VR features three active filter presets to match its sound shape with the kick drum's character. When activated, the output level is automatically reduced by 10 dB. The filter settings can be controlled using a switch on the microphone body. Without phantom power, the microphone operates in passive mode and delivers the instruments pure sound.

Features:

• Ultra thin diaphragm for accurate reproduction of the instruments sound
• Optimized bass chamber for enhanced low frequency performance
• Patented switchable active-filter presets three sound shapes to match the drums character
• Original C414 transformer delivers a warm sound especially at high signal levels
• Cardioid polar pattern rejects overspill from nearby instruments

Specifications:

• General
• Polar Pattern: cardioid
• Audio Frequency bandwidth: 17 to 17000 Hz
• Sensitivity: 1.2 mV/Pa
• Electrical Impedance: 200 Ohms
• Recommended Load Impedance: 1000 Ohms
• Audio Output
• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin
• Design
• Body: metal
• Finish: galvanized nickel matte/black
• Dimensions / Weight
• Length: 101 mm
• Width: 66 mm
• Height: 125 mm
• Diameter: 66 mm
• Net Weight: 500 g
