Yamaha DXS15mkII 15" Powered Subwoofer (Black)

15" 800W Active Subwoofer with 40Hz-150Hz Frequency Range and 135dB Peak SPL

The black DXS15mkII Powered Subwoofer from Yamaha features a high-efficiency Class-D amplifier and a woofer housed in a sturdy plywood band-pass type enclosure. It can deliver up to 1020W of distortion-free power with natural clarity. It can be used for reliable bottom-end management for bass performance in sound reinforcement applications.

The powered subwoofer features Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with a vast lineup of full-range speakers. Built with two 3-pin XLR inputs and two thru 3-pin XLR connectors, this DXS15mkII Powered Subwoofer delivers a tight, impressive bass with outstanding depth and high-power output.

Features:

• The DXS high-performance Class-D amplifier produces up to 1020W of power.
• The DXS15mkII features a 2.5" voice coil magnet.
• All DXS series enclosures incorporate a band-pass design that reduces unwanted vibration and noise that could otherwise sabotage your sound.
• Enclosure exteriors are covered with a durable polyurea coating for high-damage resistance. They protect the cabinet from scratches, bumps, or severe weather conditions, maintaining a professional appearance for years to come.
• Just as impressive as the high-output power is the compact portability and lightweight construction that houses the DXS series subwoofer.

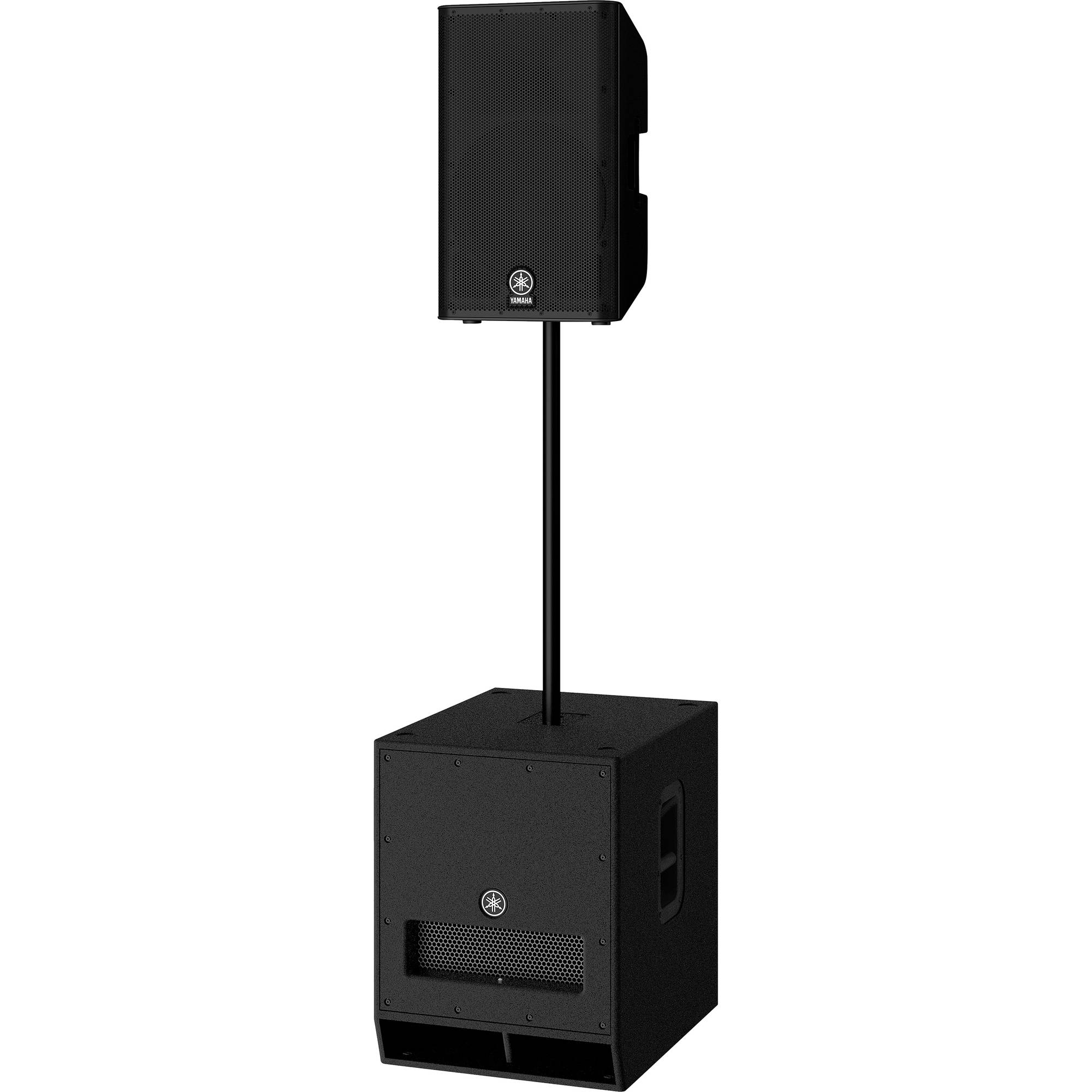

• For additional flexibility configuring your speakers, the DXS series comes equipped with a dual pole socket that accommodates both 35mm diameter speaker poles and M20 screws.

Specifications:

• PA Speaker
• Configuration: Active Subwoofer
• Total Power Capacity: 1020 W Peak
• 800 W RMS
• Drivers
• LF Driver: 1 x 15" / 38 cm Woofer
• LF Voice Coil: 2.5" / 6.35 cm
• Performance
• Frequency Range: 40 Hz to 150 Hz
• Maximum SPL: 135 dB
• Connectivity

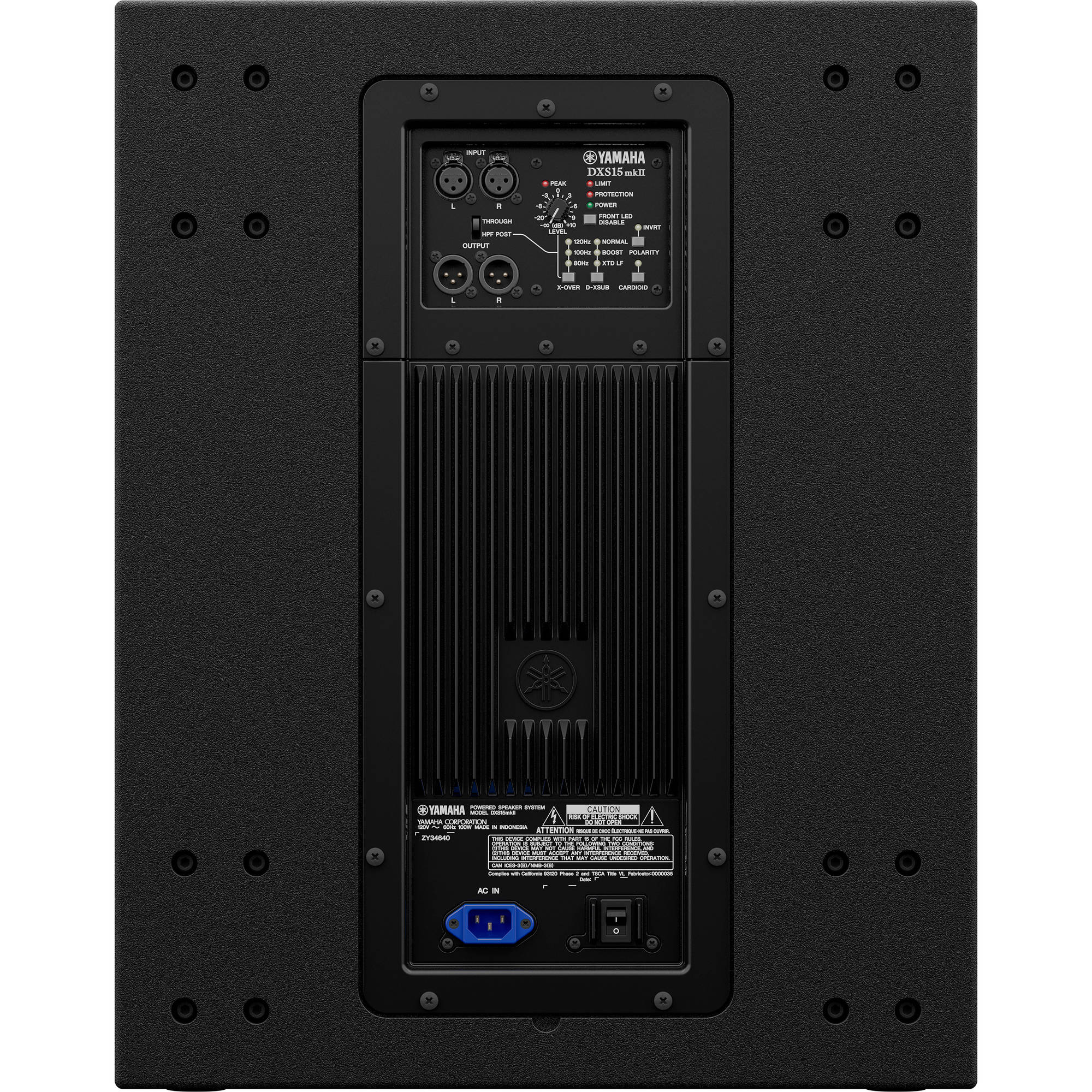

• Audio I/O: 2 x XLR 3-Pin Female Input
• 2 x XLR 3-Pin Male Thru
• Power
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Power Consumption: 100 W
• Physical
• Mounting: 1 x 1.4" / 35 mm Pole Socket
• 1 x M20
• Cooling: Convection
• Construction Material: Plywood
• Dimensions: 18.9 x 24.1 x 24.2" / 480 x 611 x 614 mm
• Weight: 79.4 lb / 36 kg
