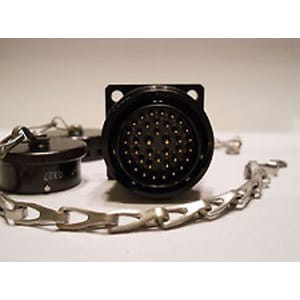

Whirlwind W2CM Multipin Connector 61 Pin W2 Chassis Mount Male

Multipin Connector - 61 Pin W2 Chassis Mount Male

This smaller series is used on multipair cables from 6 to 20 pairs, and is based on the proven military 1/4 turn quick-disconnect MIL-26482 series.

This style comes in two sizes: W1 (which has 39 solder type contacts and is used for cables with 12 pairs or fewer), and W2 (which has 61 solder type contacts and is used on 16 and 20 pair cables). Each size has a male connector and a female connector. The male pins are fixed in a shell that has a locking ring attached. The female socket contacts are mounted in a receptacle shell that mates with and accepts the locking ring of the male connector.

39 Pin Connectors:
W1CF: 39 pin chassis mount female
W1IF: 39 pin inline female
W1CM: 39 pin chassis mount male
W1IM: 39 pin inline male

61 Pin Connectors:
W2CF: 61 pin chassis mount female
W2IF: 61 pin inline female
W2CM: 61 pin chassis mount male
W2IM: 61 pin inline male
