Whirlwind MIP1S 2 Gang Media Input Plate with XLR, 3.5mm TRS, Dual RCA, 1/4" Speaker (Stainless)

Media Input Plate with XLR, 3.5mm TRS, Dual RCA, 1/4" Speaker - 2 Gang, Stainless

MIP wall plates from Whirlwind offer custom solutions in either black or brushed stainless steel.

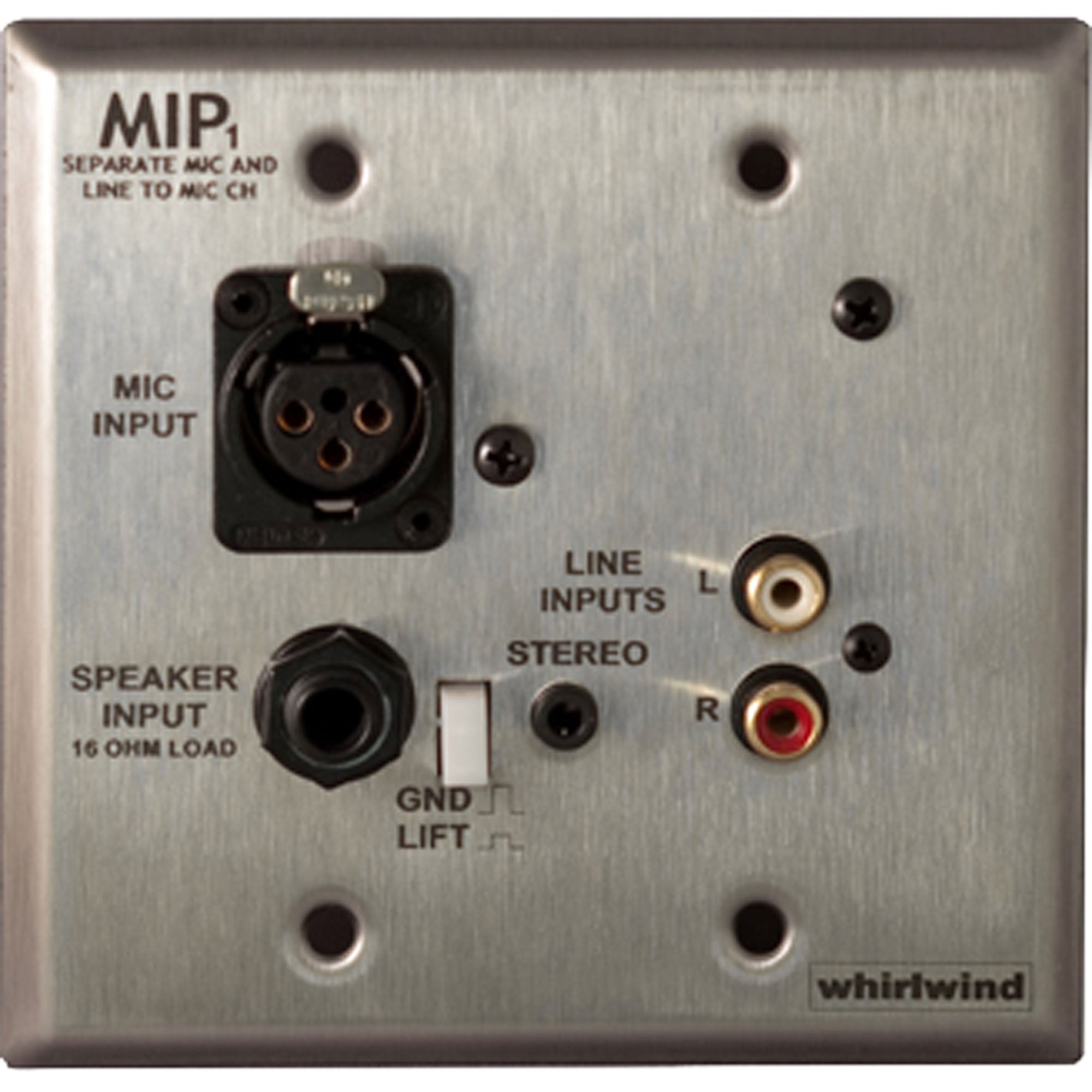

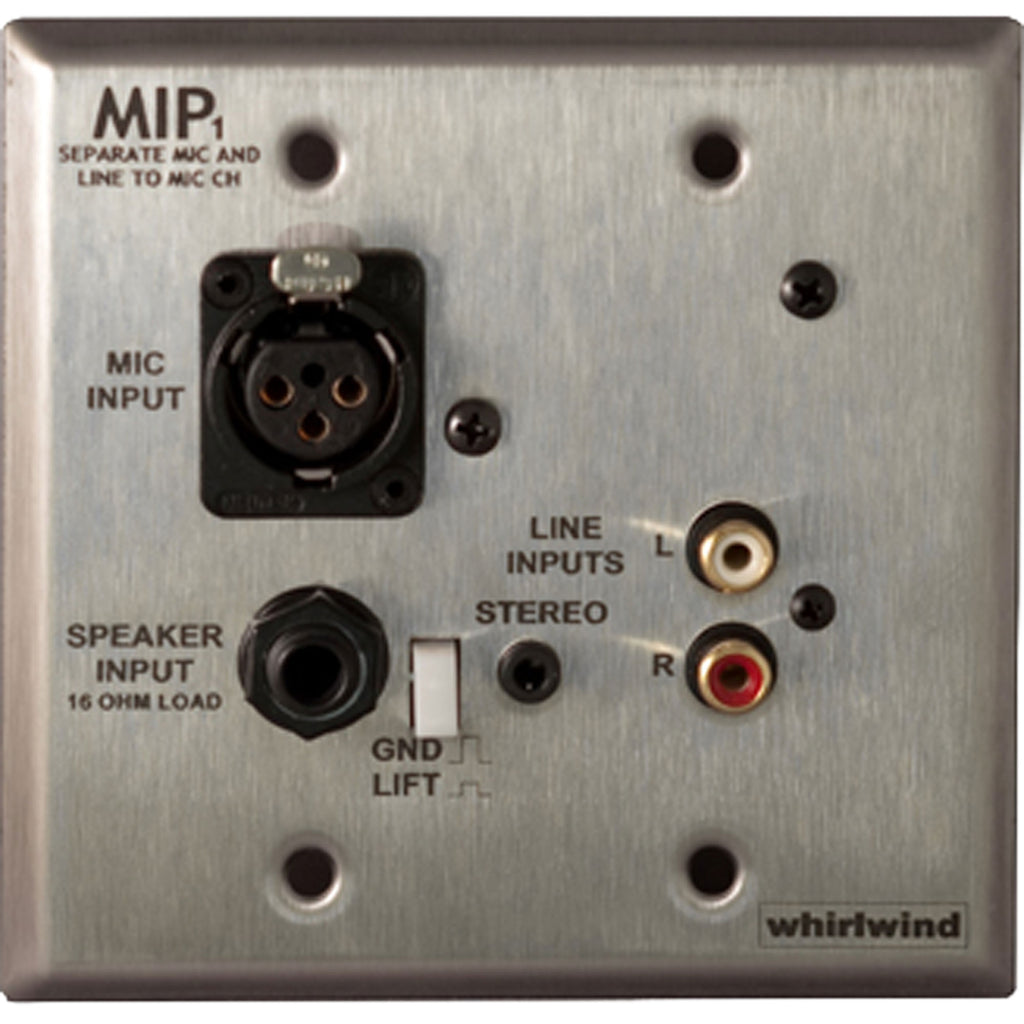

MIP1

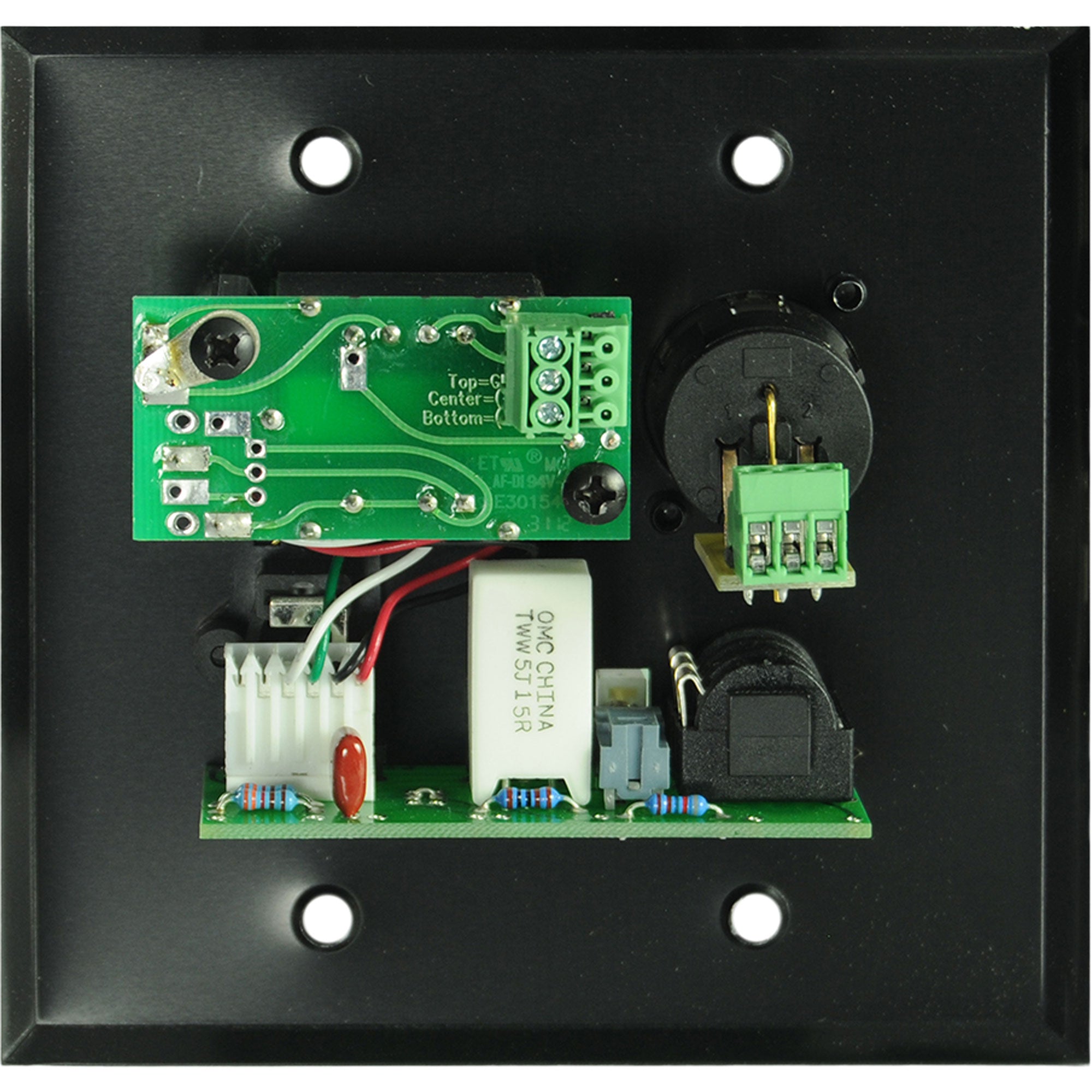

This product accepts stereo RCA, 3.5mm TRS inputs (summed to mono) or a low Wattage power amplifier output i.e. projector's speaker out. A 16 Ohm 5 Watt load resistor is provided. The signal is converted with a Whirlwind DImax transformer to Low-Z mic level and is output via rear mounted screw terminals. A ground lift is provided to break the ground connection from the line in to the output. Additionally a female XLR is provided with rear screw terminals.

MIP2
This product accepts stereo RCA and 3.5mm TRS inputs (summed to mono), The signal is converted with a Whirlwind DImax transformer to
Low-Z mic level and is output via screw terminals. A 20 dB pad is provided to attenuate hot inputs and a ground lift is provided to break the ground connection from the input to the output.

MIP3
This product accepts stereo RCA or 3.5mm TRS inputs with a mic input and mixes both at mic level on screw type terminal strips. The RCA and 3.5mm TRS inputs have an attenuation pot for blending line input levels with microphone. Phantom power will pass from the output terminals to the mic input. This is essentially the podMIX with screw terminal outputs on a wallplate.

MIP4
This product (A wall plate version of our popular pcDI) is perfect for interfacing the outputs of CD players, computer sound cards, iPODs / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment.

This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, color coded RCA phono jacks or 1/4" TS input jacks. The RCA and 3.5 mm jacks are wired in parallel if a through connection is required.Outputs are on the rear via 3.5 mm screw type removable plugs (Phoenix 1984329 or equivalent).

Features:

• Color coded RCA input jacks
• 3.5 mm input jack
• 1/4" TS input jacks
• Ground Lift switch to help eliminate hum and buzz
• Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
• 20dB pad switch for connection to "hot" input signals
• Uses Whirlwind's TRHL-M transformers with metal shield
