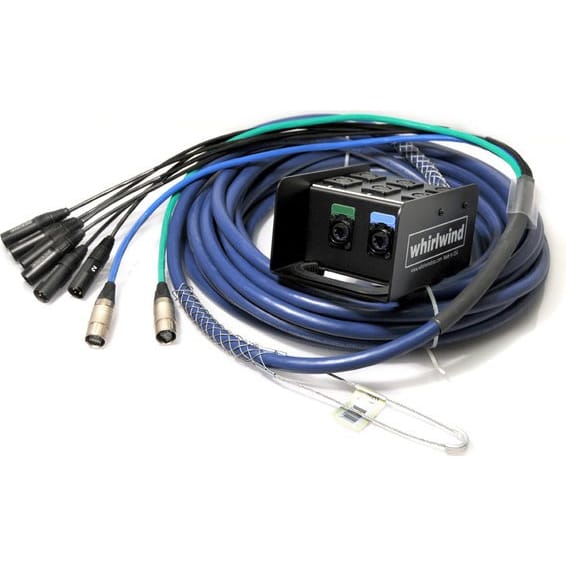

Whirlwind MD-6-2-C6-200 Medusa Data Snake 6-Ch Audio and 2 CAT6 Lines (200')

Medusa Data Snake - 6 Channels of Audio and 2 Cat6 Lines, 200 ft.

The Data Snake offers the same features as our Medusa Standard series with the addition of 2 lines of Cat 6 bundled within 6, 12, 20, and 32 pair cable with SnakeSkin on the fanouts for ultimate fanout protection, Metal chassis mount XLR connectors, and a Pig Bag to protect the fanouts during storage or when not in use.

The Medusa Data Snake is available with either Neutrik Cat5e or Cat6 connectors on the box and fan out. These connectors are not interchangeable so please make sure you specify the correct one for your particular needs.

Features:

• Heavy duty powder coated steel stagebox with Metal Whirlwind connectors and integrated handle.
• 2 lines of Cat 6 bundled within our legendary multipair cable (available in 6, 12, 20, and 32 pair) .
• Whirlwind by Belden NEC CM rated multipair cable, heavy duty, flexible, multipair cable. Each pair contains two twisted 24GA 7x32 polyethylene insulated conductors with 100% foil shield and 24GA drain wire.
• Fanouts with multiple layers of rugged heat shrink at the most critical points.
• Fanouts feature Whirlwind connectors with engraved numbers and letters.
• Genuine Kellems wire mesh hanger to support the fanout at the board.
• Genuine Kellems strain relief and grip with internal cable clamp.
• SnakeSkin on the fanouts for ultimate fanout protection
• Pig Bag to protect the fanouts when not in use.
• All Medusas are available with integrated cable reel. Call for ordering information.
• Standard configurations:
• MD-6-2-C5E [6 XLR inputs, 2 Cat5e Ethercon]
• MD-6-2-C6 [6 XLR inputs, 2 Cat6 Ethercon]
• MD-12-2-C5E [12 XLR inputs, 2 Cat5e Ethercon]
• MD-12-2-C6 [12 XLR inputs, 2 Cat6 Ethercon]
• MD-16-4-C5E [16 XLR inputs, 2 Cat5e Ethercon]
• MD-16-4-C6 [16 XLR inputs, 2 Cat6 Ethercon]
• MD-24-8-C5E [24 XLR inputs, 2 Cat5e Ethercon]
• MD-24-8-C6 [24 XLR inputs, 2 Cat6 Ethercon]
• Standard lengths:
• 25, 50, 100, 150, 200 and 250 feet
