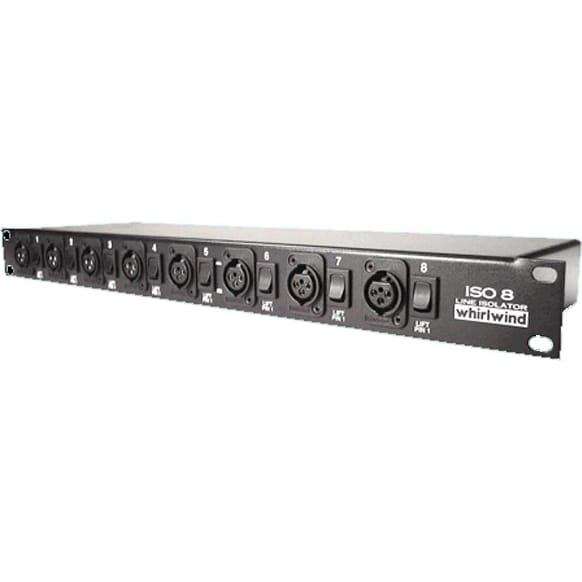

Whirlwind ISO-8 8-Channel Line Level Isolator and Balancer (XLR Connections)

8-Channel Line Level Isolator and Balancer (XLR Connections)

Sometimes a ground lift isn't enough to do the job. The ISO-8 is a valuable part of systems where different pieces of gear are connected across long lines.

Many of our customers use it to isolate drive lines to on-stage power amps. The perfect hum fighter in field broadcast or live sound applications, the ISO-8 provides eight channels of high-quality line level isolation to eliminate hum and buzz from interacting gear.

Unbalanced outputs are an invitation to system noise. The ISO-8 provides both balancing and isolation to stop noise at the source.

Each channel features a ground-lift switch, and our own TRSP600L transformers ensure flat frequency response and low distortion. It's handy to keep an ISO-8 "in the rack" for emergencies.

Model Numbers:
ISO-8 (XLR Connections)
ISO-8Q (1/4" TRS Connections)

Specifications:

• Frequency Response: 20Hz-20kHz +/-0.5dB at +10dBm input
• Maximum Input Level: +28dBm
• Input Impedance: 600 Ohms
• Output Impedance: 600 Ohms
