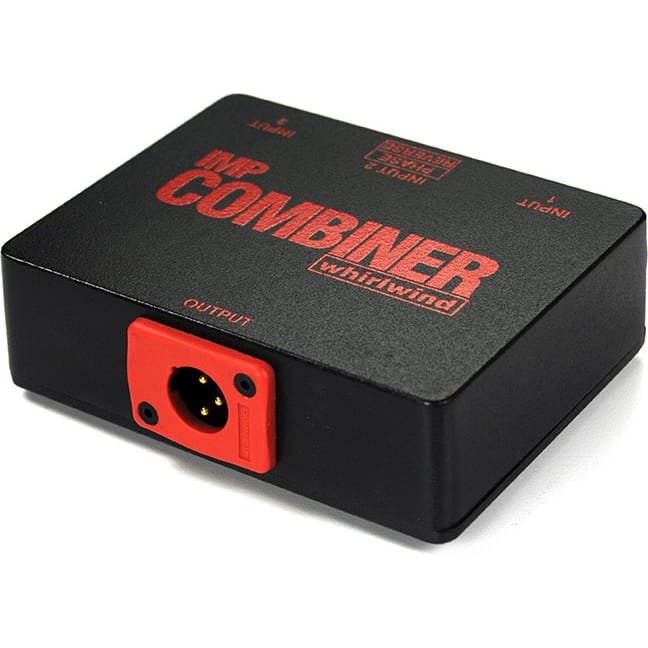

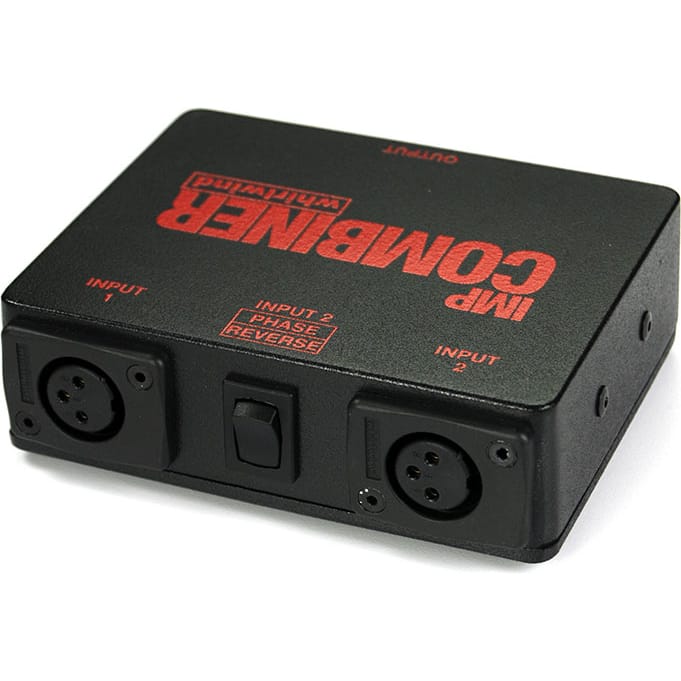

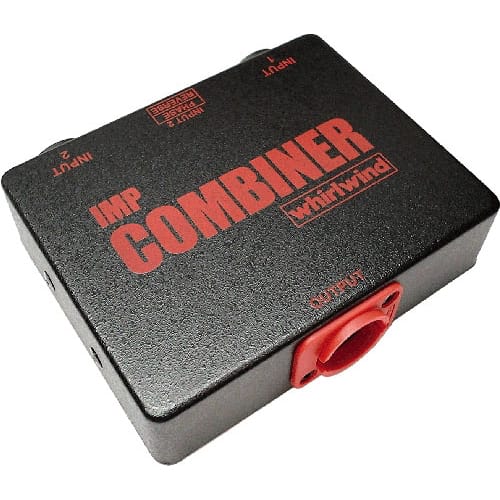

Whirlwind IMP Microphone Combiner

Mic Level Combiner - 2 In, 1 Out

This versatile box is built with our premium TRSP-2 transformer for optimum durability. Features a phase reverse switch which flips the polarity of Input #2.

Features:

• Use fewer input channels by combining two mic lines into one.
• Use the polarity reverse switch to combine two mics - one with polarity reversed - to remove background noise and feedback or combine and correct polarity when using a pair of mics above and below a drum or in front and rear of an open backed guitar amp.
• Connections are female XLRs in, male XLR out.

Specifications:

• Input Impedance: 150 Ohms x 2
• Output Impedance: 150 Ohms
• Operating Level: -50dBu to -10dBu
• Frequency Response: 20Hz-20kHz +/-1dB
