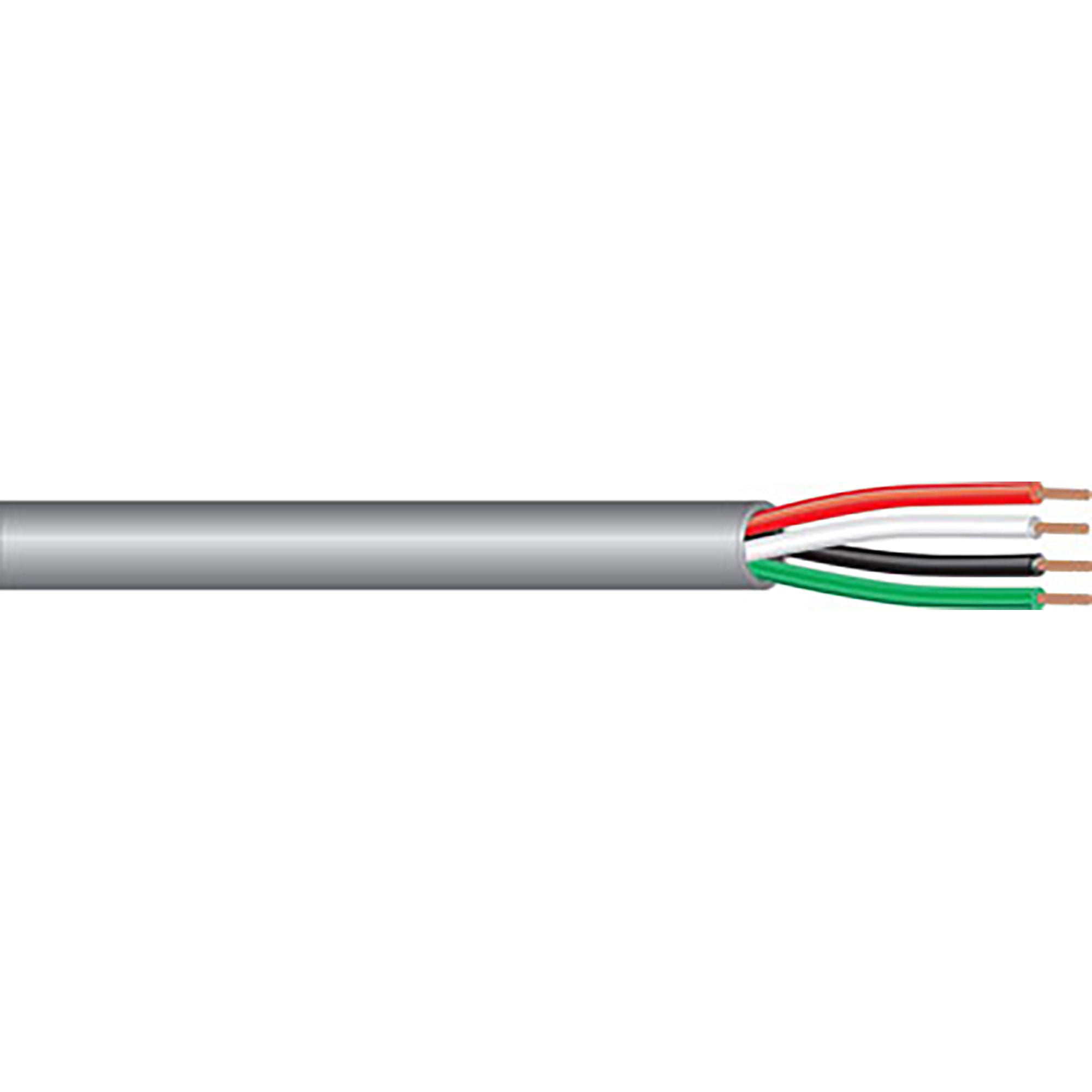

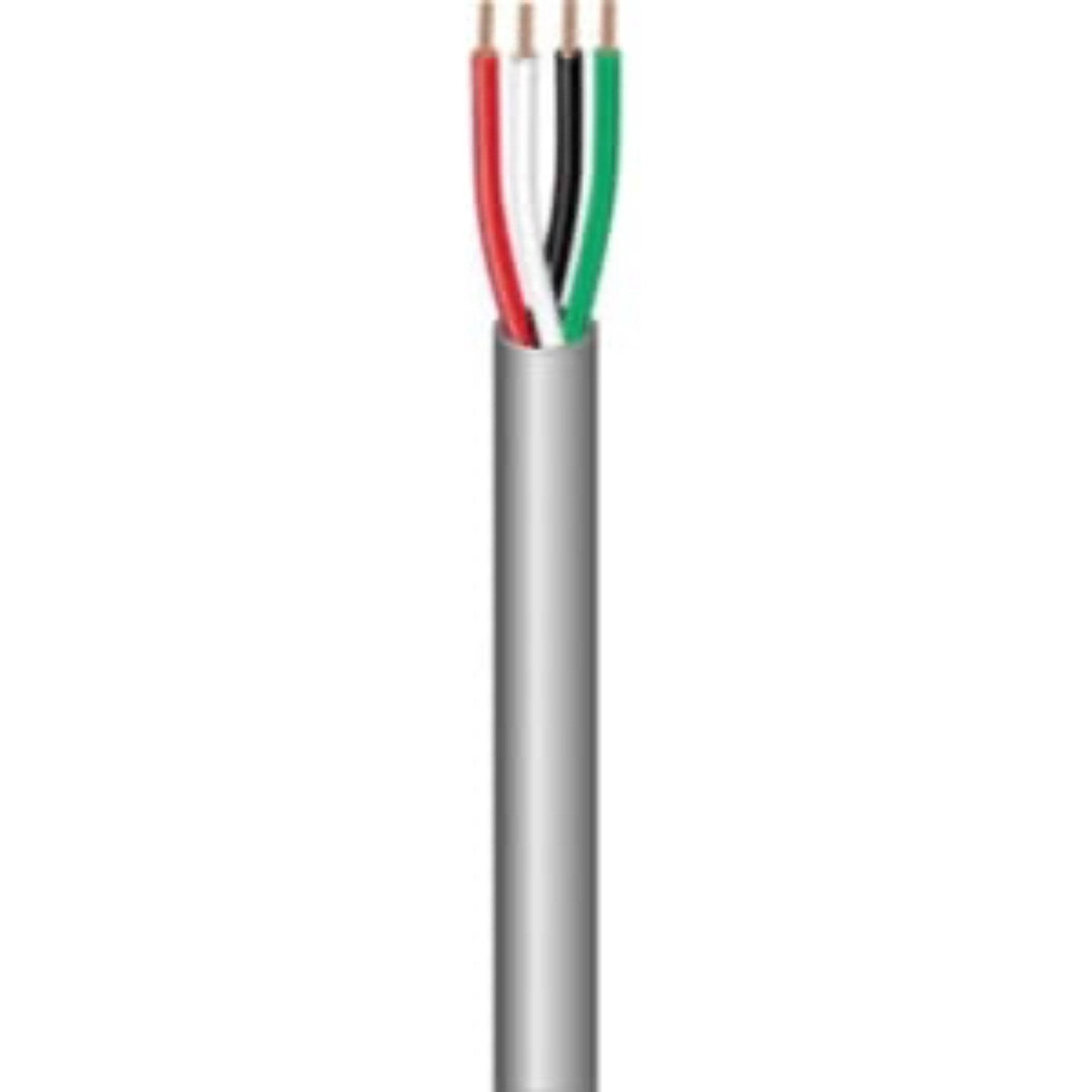

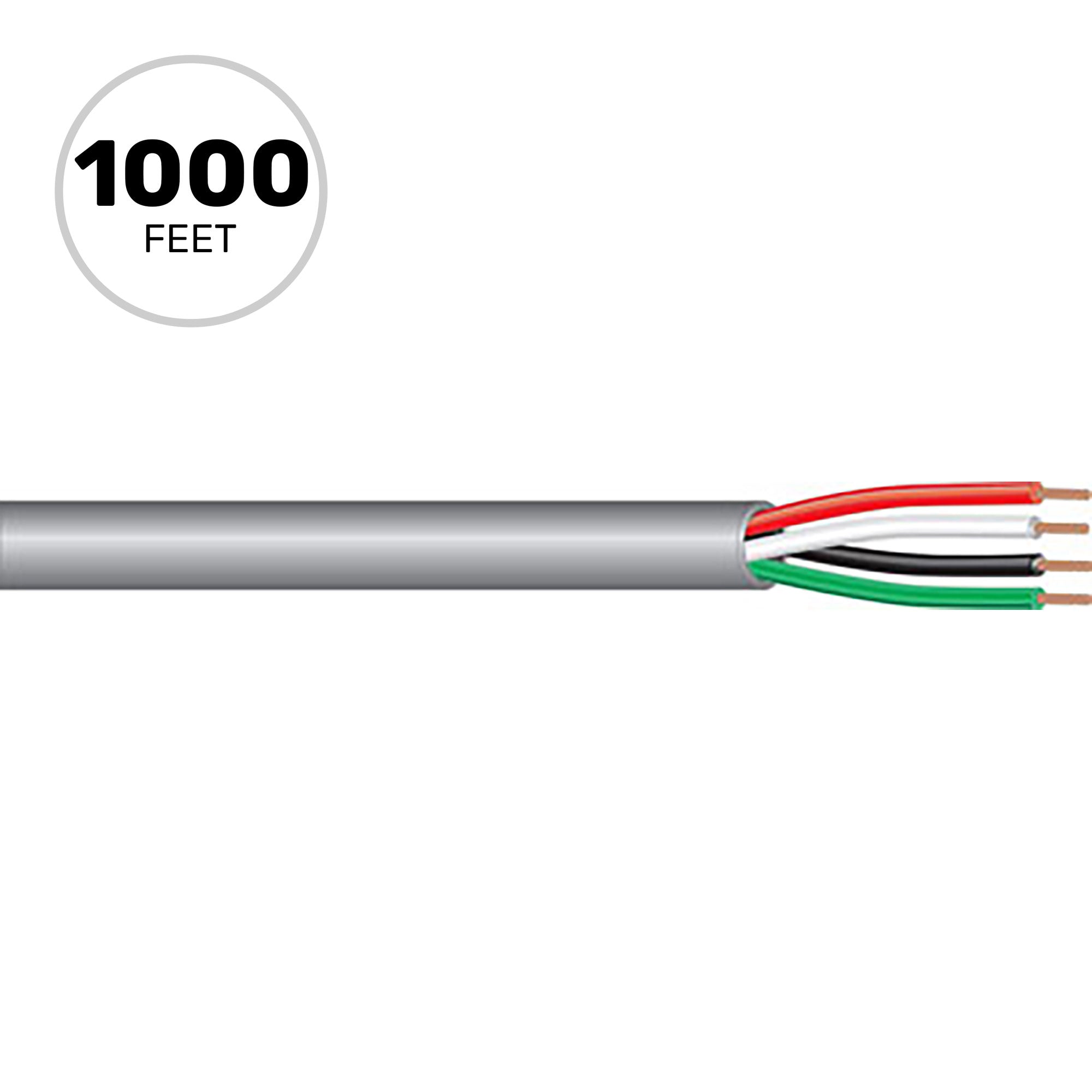

West Penn 244 4 Conductor 18G Stranded Unshielded PVC Jacket Wire (Grey, 1000' Roll)

4 Conductor 18awg Non-Plenum Speaker Wire with Stranded Conductors - Grey - Full 1000' Spool

18/4 Stranded bare copper conductors, unshielded with an overall jacket.

Applications:
Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits

Part # 244 Specifications

• Construction Parameters:
• Conductor 18 AWG Bare Copper
• Stranding 7/26
• Insulation Material PVC
• Insulation Thickness 0.010" Nom.
• Number of Conductors 4
• Shield None
• Drain None
• Jacket Material PVC
• Jacket Thickness 0.015" Nom.
• Overall Cable Diameter 0.191" Nom.
• Approximate Cable Weight 29.9 Lbs/1M' Nom.
• Flame Rating UL 1666 Riser Flame Test
• Electrical & Environmental Properties:
• Temperature Rating -20C To +60C
• Operating Voltage 300 V RMS
• Max.Capacitance Between Conductors @ 1 KHz 30 pf/ft Nom.
• DC Resistance per Conductor @ 20deg C 6.2 Ohms/1M' Nom.
• Insulation Colors Black, Red, White, Green
• Jacket Color Gray
• RoHS Compliant Yes
• Mechanical Properties:
• Max. Recommended Pull Tension 89.6 lbs.
• Min. Bend Radius (Install) 1.9"
