WBT 0110-Ag NextGen Silver Signature Male RCA Connector (Single, Red)

75 Ohm RCA Plug with Nextgen Technology and Contacts Made of Fine Silver - Red Ring

The WBT-0110 RCA connector is particularly recommended for digital connection (DACs, CD players, etc.) as it provides a continuously-adjusted connection thanks to its 75 ohms and up to 1GHz impedance. Pure silver contacts.

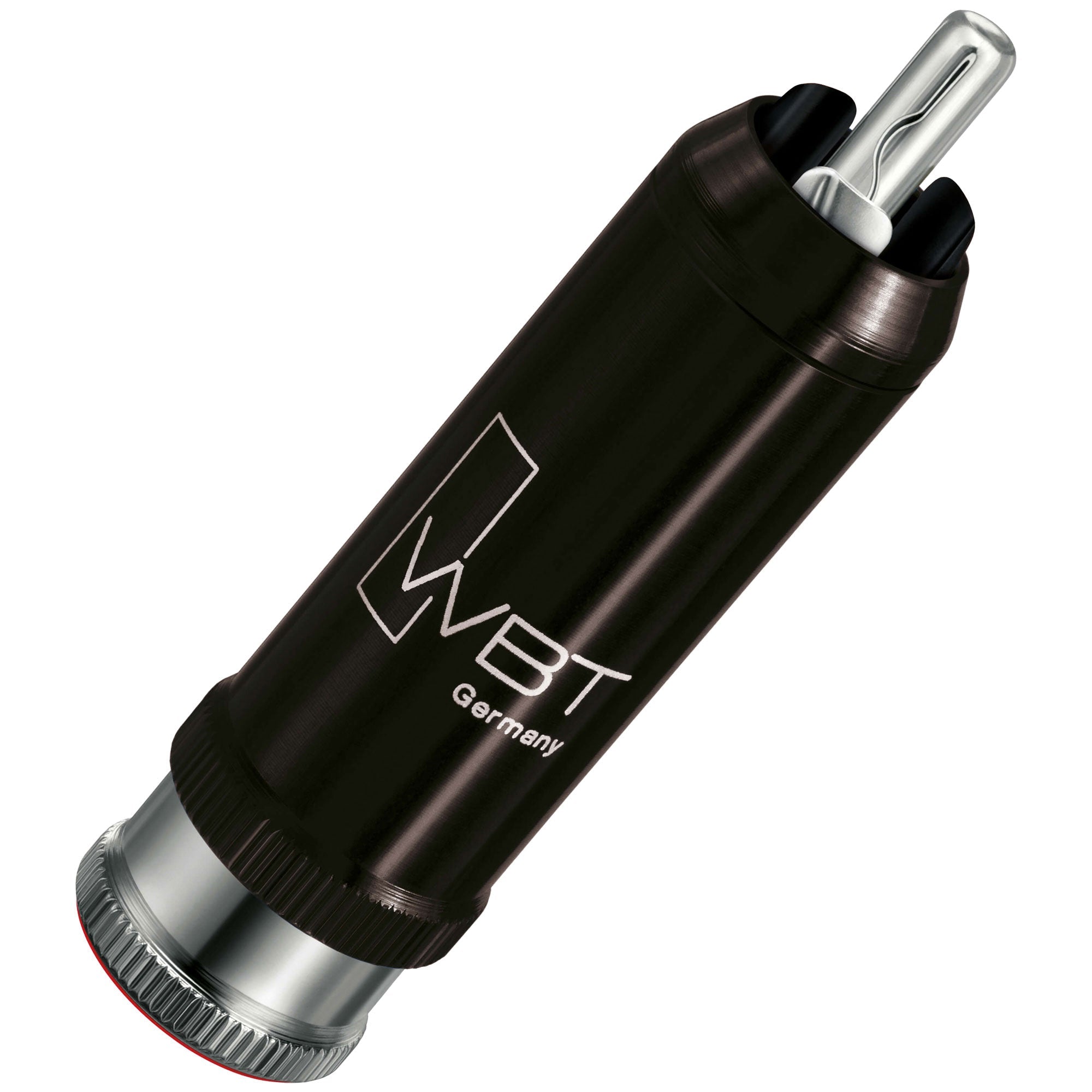

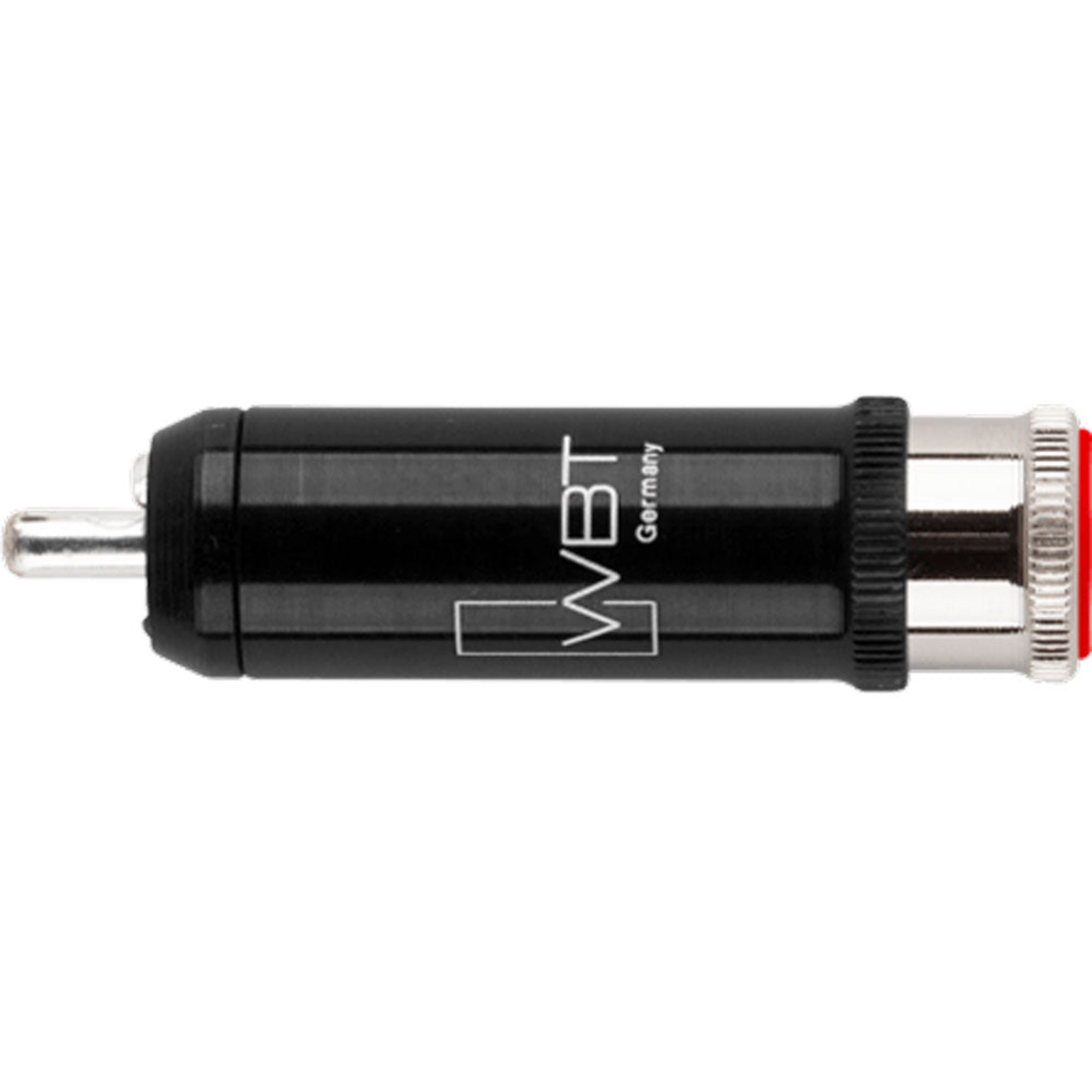

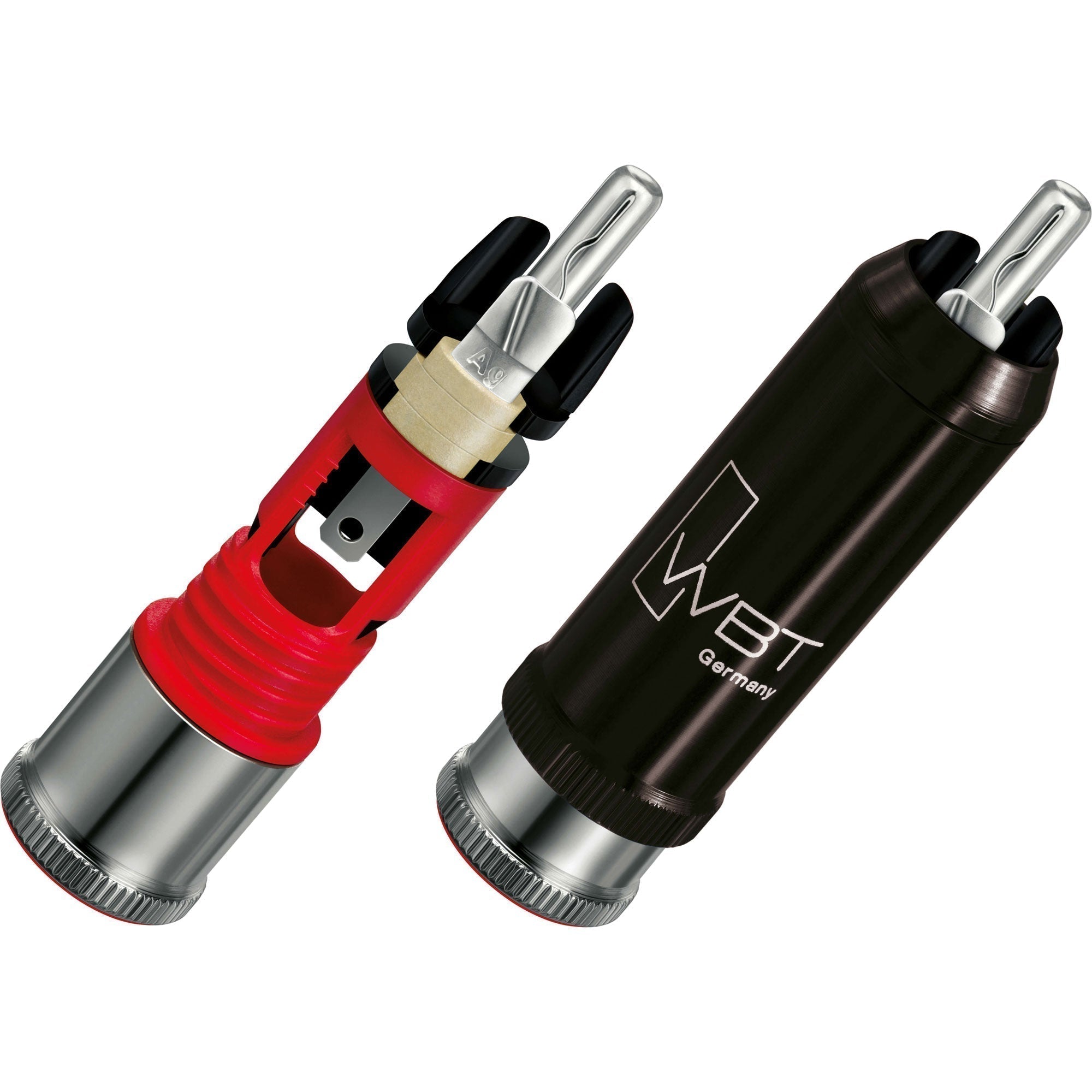

Passivated pure fine silver contacts. The body is constructed of Ultramid, while the negative contact uses Dyneon. The Barrel is comprised of Al/Mg alloy for improved rejection of EMI. With a characteristic impedance of 75 ohms, the WBT-0110 makes the perfect match for digital audio and video. The maximum size conductor that can be used is 1.5mm² / 16-17 AWG. Maximum diameter of cable with dielectric is 9mm² / 0.354 inches². Connector body available in nine different colors for multichannel identification. The barrel is offered in cobalt blue only.

nextgen - a new generation of plug connections from WBT

75-ohm characteristic impedance means that these plugs not only transmit superb analogue signals but also outstanding digital audio and video signals. The transmission bandwidth is 1 GHz.

Eddy currents occur in metal components close to where alternating currents flow. These currents can result in major signal distortions. The WBT-0110 Ag is designed in such a way that eddy currents do not occur at all.

The contact elements of the plug are made of high-purity silver, the best electrical conductor of all, in order to ensure optimum signal transmission. The metal is naturally passivated so that the surface does not corrode or migrate and impair contact quality.

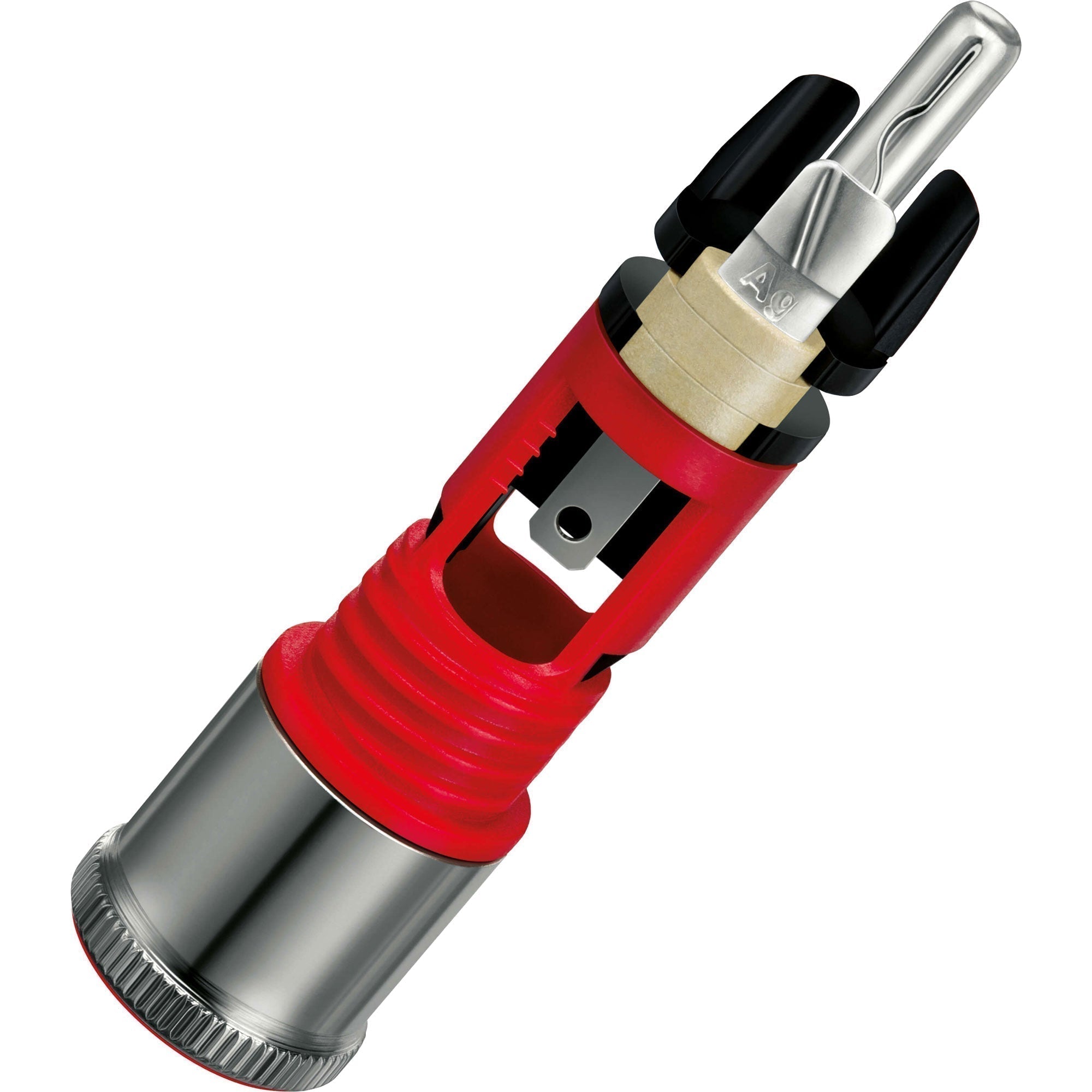

The clamping mechanism, which works in the same way as the chuck device in a drill, firmly clamps the outer contact against the RCA socket. The high clamping pressure not only guarantees a secure connection but also minimises transition resistance. The pressure wedge between the contact and the sleeve is made of plastic, which means that the sleeve is completely insulated and cannot influence the signal. In addition, any size variation in the outer contact of a socket is compensated for, thereby ensuring a perfect fit.

The clamping sleeve is designed with two sections so that the front section moves freely as the rear section is turned. This eliminates the risk of torsional strain on the contact elements.

The central pin is slotted and ideally formed thereby giving a firm yet elastic contact which ensures lasting and reliable electrical connection with absolutely minimal transition resistance.

The central contact element can be removed to facilitate cable soldering. WBT provides a special nextgen tool for this purpose to OEM users. WBT recommends the surface friendly silver solder WBT-0800 (see also solder connection).

A Torx screw provides reliable cable strain relief.

Features:

• 75 ohms (typ.) characteristic impedance
• Totally distortion-free (no eddy currents)
• Ultimate conductivity (single-piece signal conductor made of fine silver)
• Absolutely reliable signal transmission thanks to patented WBT clamping mechanism
• 2-section clamping sleeve in cobalt blue

Specifications:

• Cable diameter: up to 9 mm
• Characteristic impedance (typ.): 75 ohms
• Connection technology: soldering
• Identification: available in 9 colours
• Strain relief: Torx screw (T.6)
• Recommended tool:
• Torx T.6 wrench WBT-0488 (supplied with each end consumer package)
• Torque screwdriver WBT-0481 for professional OEM mounting
