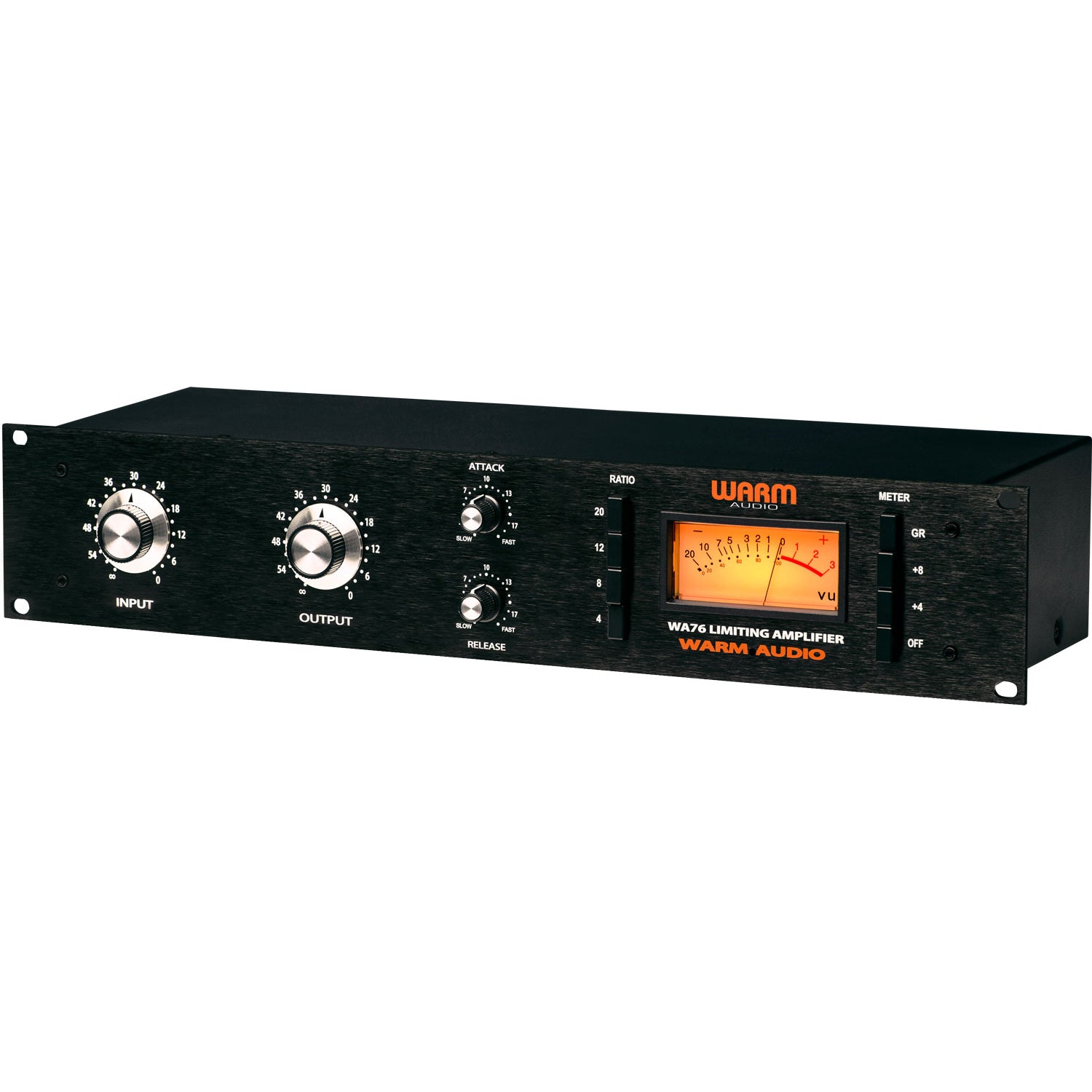

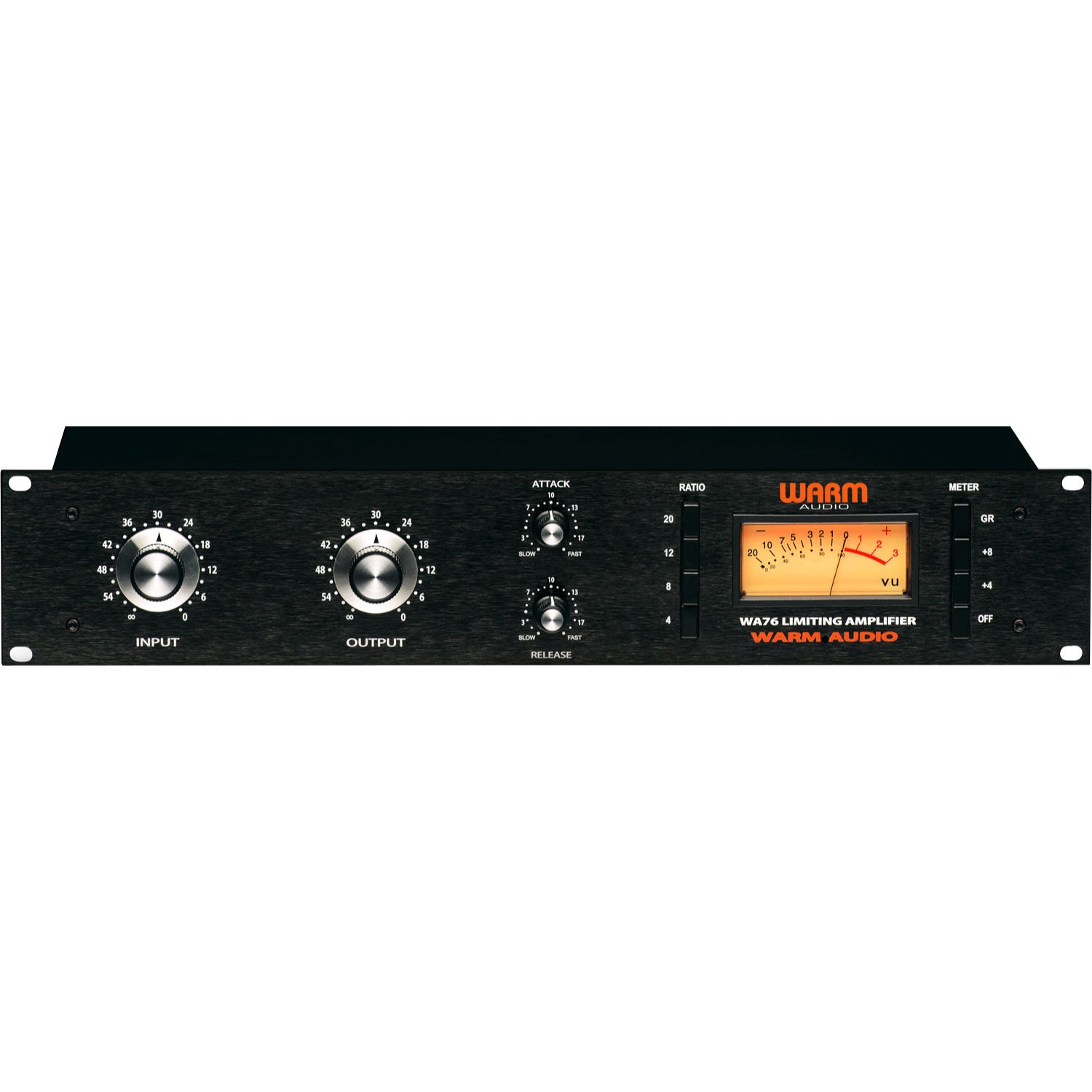

Warm Audio WA-76 Discrete Compressor

Class A FET Line-level Limiting Amplifier with All Solid-state Circuitry and Cinemag Transformers

The WA76 Discrete Compressor is a modern reproduction of the Classic '76 Revision D. The WA76 has a fully discrete signal path and uses the original Reichenbach Engineering's (now CineMag) transformer design. The classic '76 was a major breakthrough in limiter technology, and used on hundreds of hit records since its inception. Engineers have craved the ultra-fast attack time and trademark sound of the '76 for decades, and now it is finally affordable!

Features:

• True to the Classic '76 compressor in design and performance

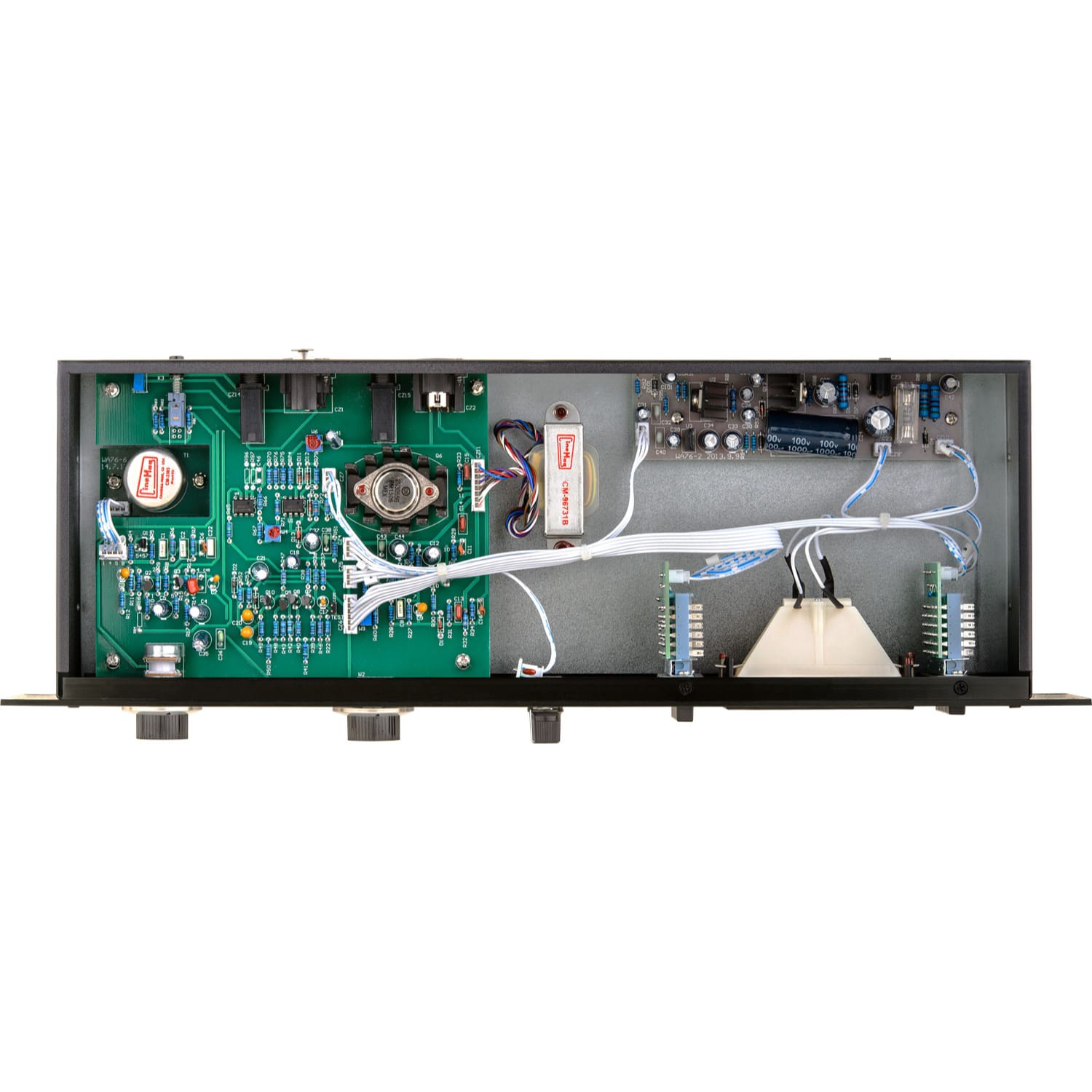

• Completely discrete signal path
• Modeled after the D revision
• Utilizes USA made CINEMAG input and output transformers
• Supports the famous "all buttons in" ratio setting
• Ultra fast attack time
• Class A line level output amplifier
• Input impedance - 600 ohms, bridges-T control (floating)
• Frequency Response ± 1 dB 20 Hz to 20kHz

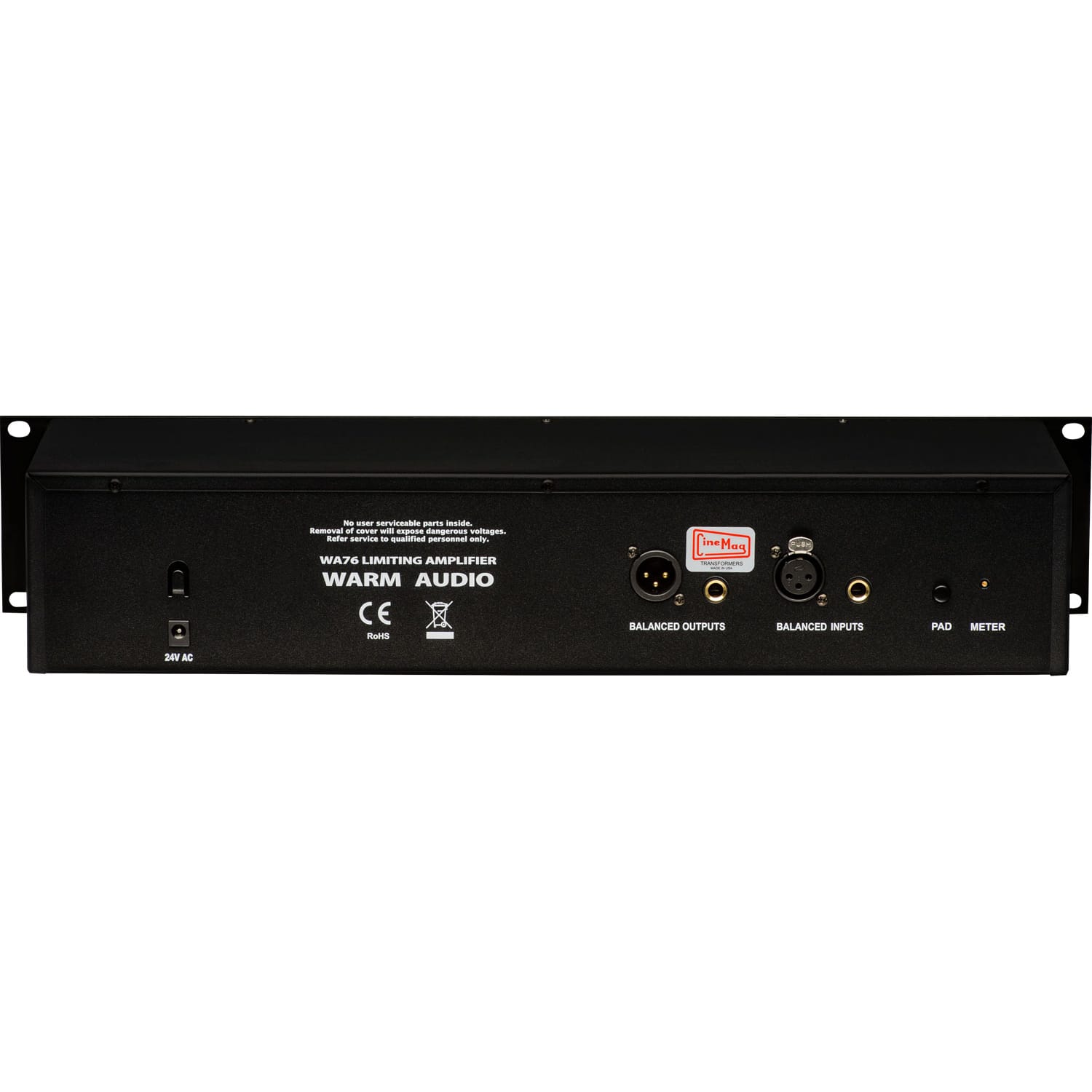

• XLR and TRS inputs. XLR and TRS outputs
• 50db of gain
• Less than 0.4% total harmonic distortion from 50 Hz to 20 kHz with limiting
• Signal to noise ratio is greater than 74 dB at +25 dBm
• EIN -104.1 dbm
• Attack time, 20 microseconds to 800 microseconds
• Release time, 50 milliseconds to 1 second
• Meter provides dB gain reduction and dB output
• Internal power supply, external 24v AC power transformer
• 19" Rackmount chassis, 2U
• 1-year warranty
