Tascam TM-10LB Lavalier Microphone for DR-10L Digital Recorder (Black)

Capture Audio Where It Happens

The ideal accessory for the industry leading DR-10L Bodypack Digital Recorder, the TM-10L is a replacement lavalier microphone that not only privides a backup for critical recoding jobs but also allows the recordist to select between a white and black microphone element. The TM-10L also features a Sennheiser style screw lock connector maing them an attractive acccessory to many Sennheiser based audio rigs

The TM-10L is a high-quality lavalier microphone which is ideal for capturing your voice with ultimate clarity. The 1/8" screw-down lock connector allows a secure connection, while it small body and color variations provide a wide variety of use such as film/video shooting, live event or lectures.

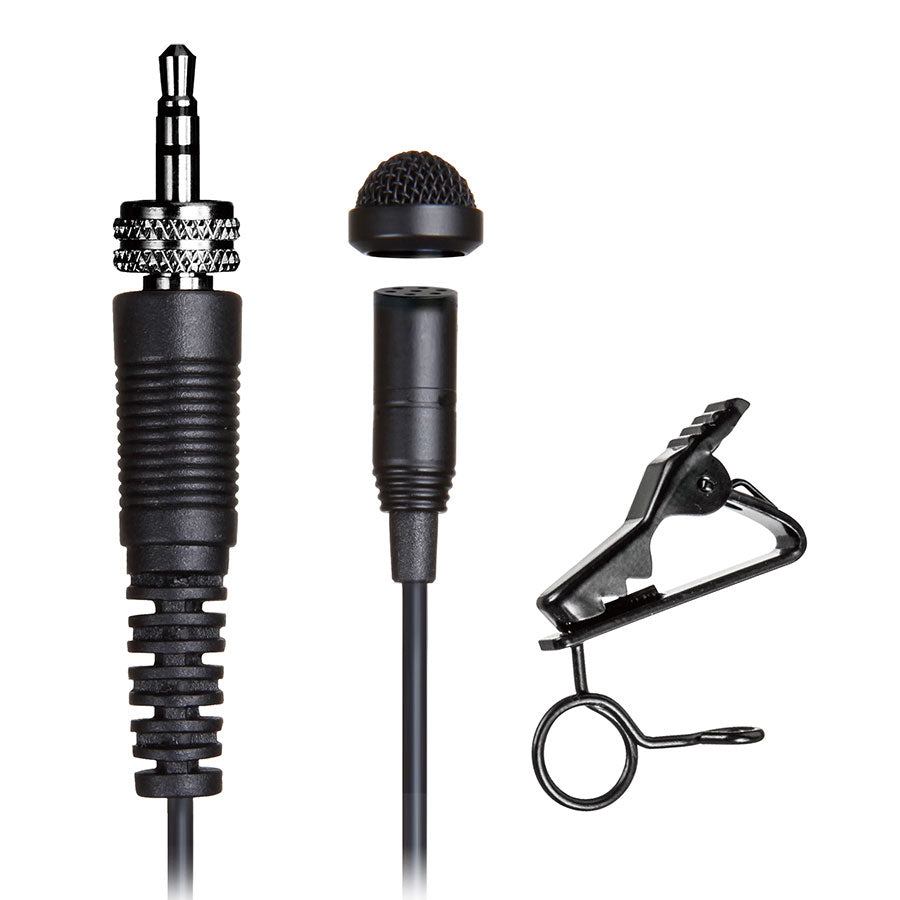

Matching Lapel Clip and Windscreen Included

Ensuring a clean, crisp look as well as excellent audio performance in a variety of locations, both the TM-10LB and the TM-10LW come complete with a color matched lapel clip and windscreen.

Secure connection with screw-down connector

Supports 1/8"(3.5mm) jack with screw-down plug for secure connection with wireless transmitters or TASCAM DR-10 series. Connection with conventional 1/8" jack is also supported. This Sennheiser style screw lock connector making them an attractive accessory to many Sennheiser based audio rigs.

Features:

• Secure connection with screw-down connector
• Sennheiser style connector features 1/8" (3.5mm) male jack with screw-down plug for firm connection with wireless transmitters or TASCAM DR-10 series. (Connection with normal 3.5mm jack is also available)
• Windscreen and clip included
• Available in black (TM-10LB) or white (TM-10LW)
• Microphone sensitivity: -42dBV/PA, maximum SPL: 115dB SPL
• Omnidirectional lavalier microphone
• Cable length: 5.2 ft. / 160 cm

Specifications:

• Element: Back Electret Condenser
• Polar pattern: Omnidirectional

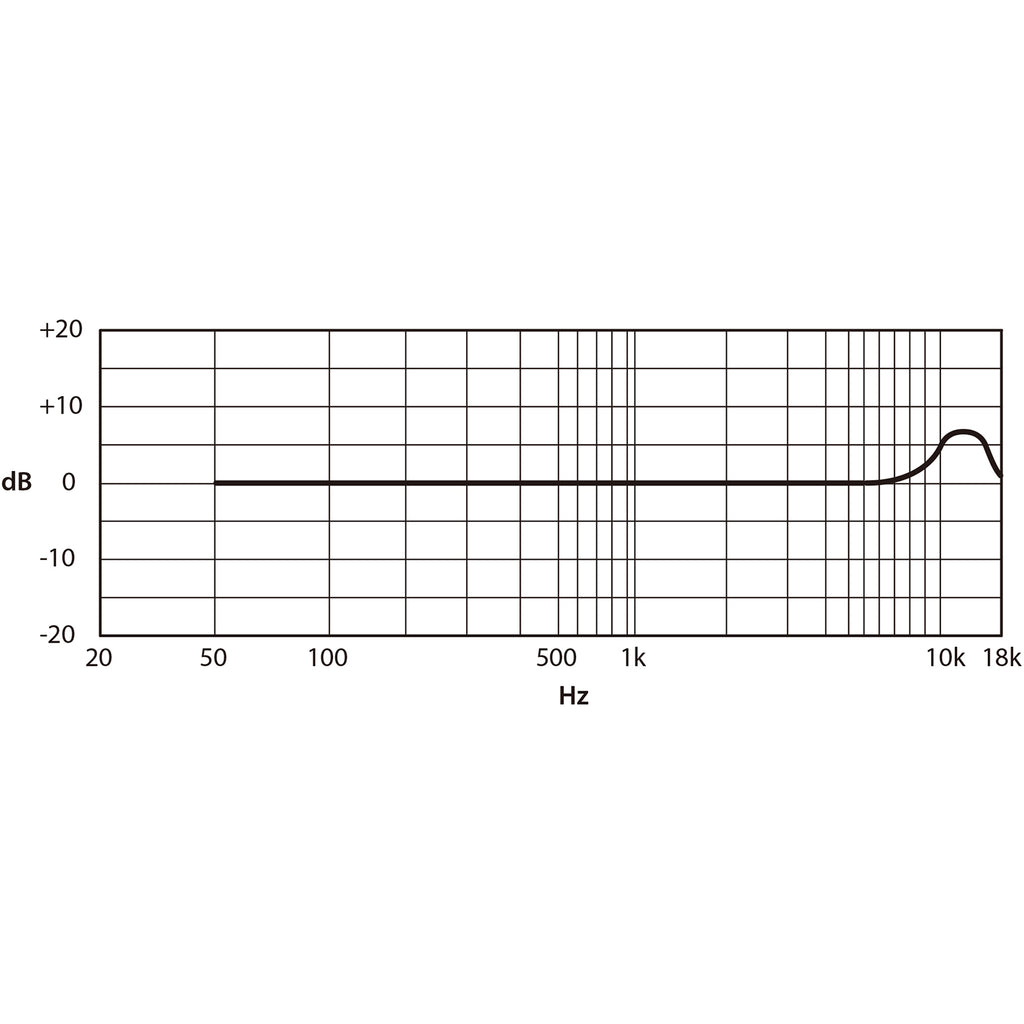

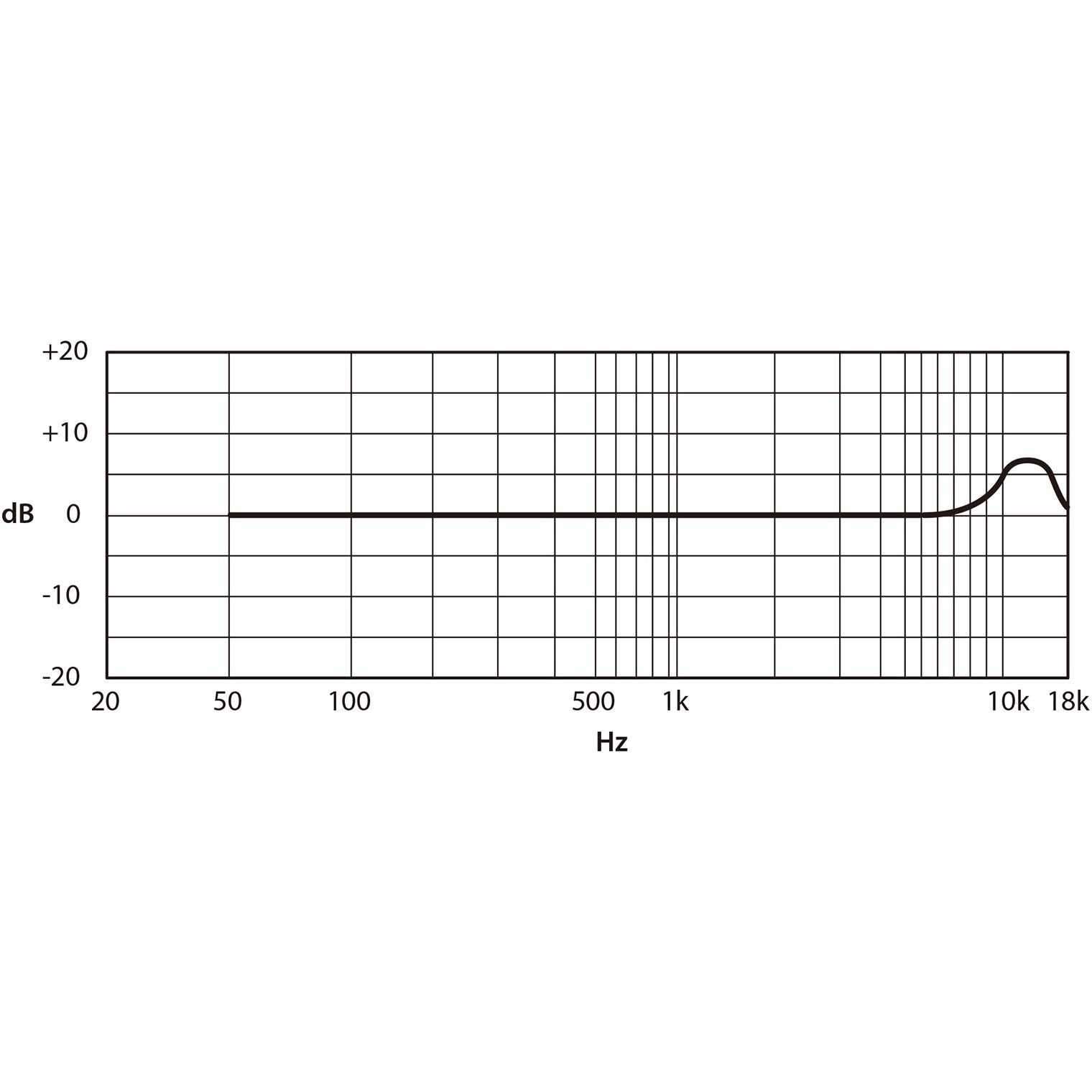

• Frequency response: 50Hz to 18,000Hz
• Output impedance: 1.8kΩ ±30% (at 1kHz)
• Sensitivity: --2dB (0dB=1V/Pa at 1kHz)
• Maximum SPL: 115dB SPL (at 1kHz)
• Equivalent noise level: 36dB
• Plug: 1/8" (3.5mm) Stereo Mini plug (with screw lock) × 1
• Cable length: 5.2 ft. / 160 cm
• Power: Plug-in power
• Drive voltage: DC 1.5 - 10V
• Dimensions (φ×L): φ0.26" × 0.87" / φ6.5 × 22 mm (a main part)
• Weight: 0.85 oz. / 24 g
• Included items: Soft case, Microphone clip, Windscreen, Owner's manual (including warranty)

• Tested Hardware List

• TASCAM: DR-10L, DR-10CS, DR-05, DR-07MKII, DR-22WL, DR-100MKIII, DR-60D, DR-60DMKII, DR-70D, DR-701D
• Sennheiser: AVX, SK D1
• RODE: RODELink Filmmaker Kit
