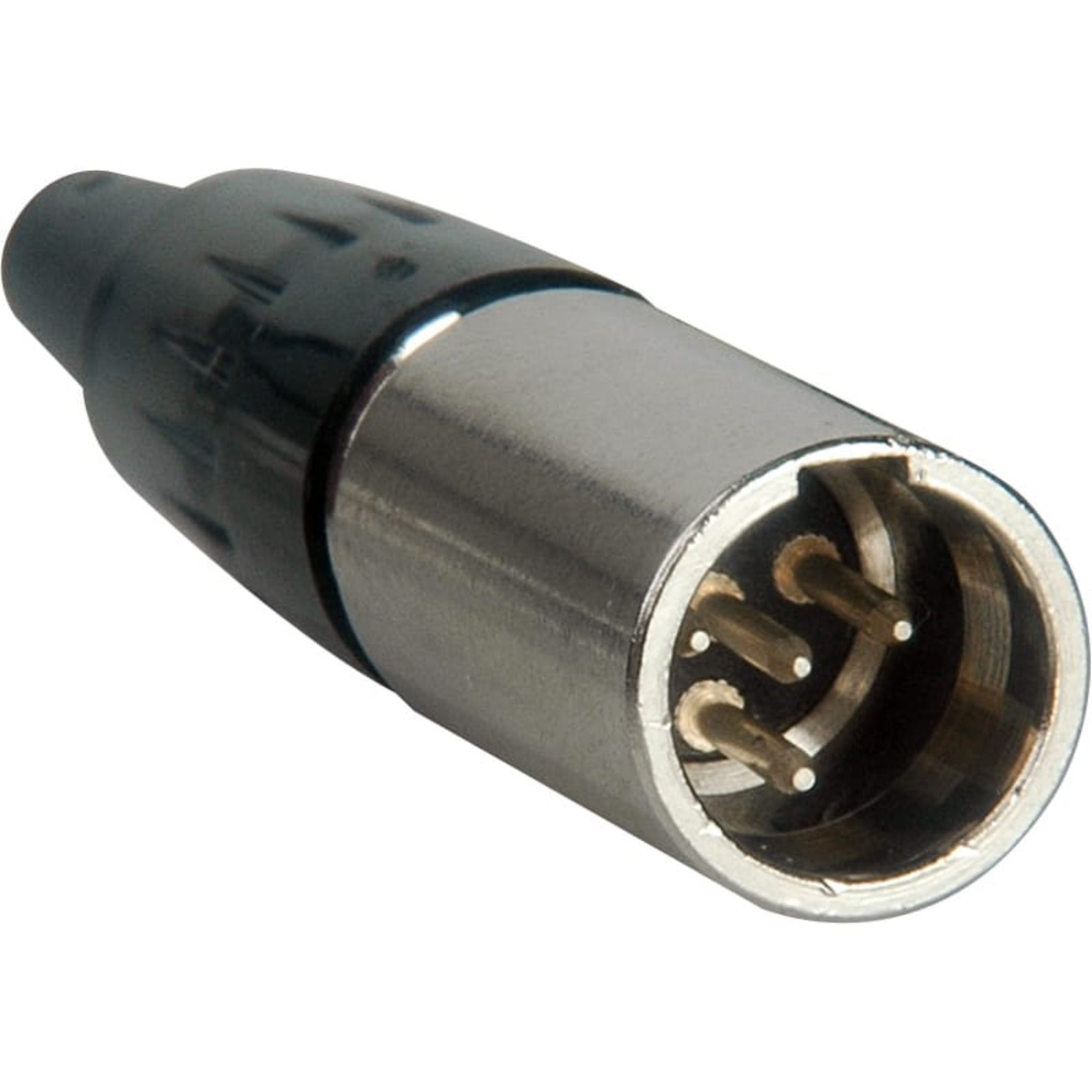

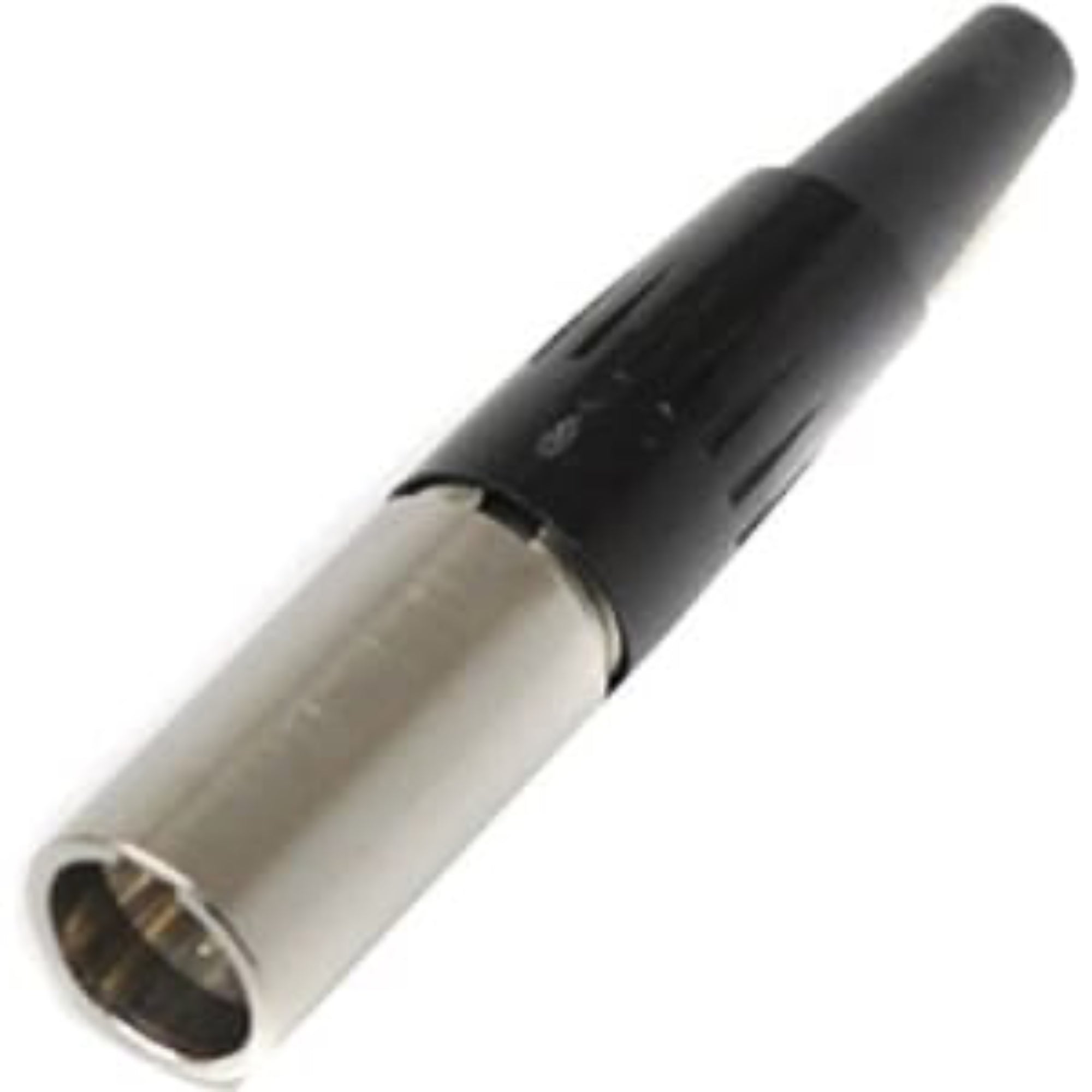

Switchcraft TA4MX Male 4-Pin Tini-QG Mini-XLR Cable Connector (Nickel)

Male 4-Pin Tini-QG TA4M Mini-XLR Cable Mount Connector - Nickel

Tini-QG "Mini XLR" 4 Pin Male Cable Mount, Silver Pins, Nickel

Ideal for live performances, recording sessions, and audio pickups. Available in black chrome finish for use on camera or where reflected light is a problem. Disconnecting plugs from lavaliere or clip-on mikes is quick and easy...press the release button and pull the plug free. Either shielded or unshielded cables can be used up to 0.115 inches (2.92 mm) in diameter (standard). Cable shield may either be connected to a pin/contact through circuit or may be connected to the cable clamp strain relief. This alternate connection permits using the metal housings of plugs to completely shield internal connections and pins/contacts.

Tini Q-G plugs and receptacles have the quality and versatility of functions and features for the most demanding compact connections in industrial, R and D and production instrumentation of all kinds. The 4, 5, and 6-pin/contact versions are especially suited to multi-circuit connections.

DESIGN FEATURES

STYLE - Streamlined, miniaturized with nickel-plated metal and contrasting black plastic parts. Designed for light weight and unobtrusiveness. Also available in conductive black chrome finish.

CONSTRUCTION - Metal parts are rugged die-cast or precision machined with nickel-plating; plastic parts are molded of high dimensional-stability thermoplastic. Advanced design assures minimum weight consistent with strength and durability of cord plug housings of .413 inch (10.5 mm) diameter Weight: Series TA(*)F plug = .25 ounce (7 g); Series TA(*)M = .3 ounce (8.5 g).

INSERTS - Precision molded of thermoplastic for high mechanical and dielectric strength. Contacts and terminals are precision formed and plated for intimate contact and low resistance connections. Terminal numbers are molded on rear of male insert and on face of female insert for easy identification (except 6-pin male insert). Inserts can be supplied for OEM installation in microphones and instrumentation for optimum connecting reliability. For cord plugs, inserts can also be supplied for replacements.

LATCHLOCK - Positive latch system assures high integrity, vibration-resistant mating and transfer of shielding connection between housing, combined with simple, easy fingertip release.

STRAIN RELIEF - Rugged internal clamp holds cable tightly, while making a secure, low resistance connection between cable shield and housing.

FLEX RELIEF - Protects by minimizing cable bending stress at point of cable entry. Maximum recommended cable diameter is .115 inch (2.92 mm) when flex relief is used. By omitting flex relief (Series T(*)FL and T(*)ML only), cable up to .170 inch (4.32 mm) diameter can be used.

ASSEMBLY - Connector parts are mechanically keyed for simple assembly.

POLARIZATION - Mating male and female connectors are also mechanically keyed (latch and groove) so that it is impossible to mate them incorrectly.

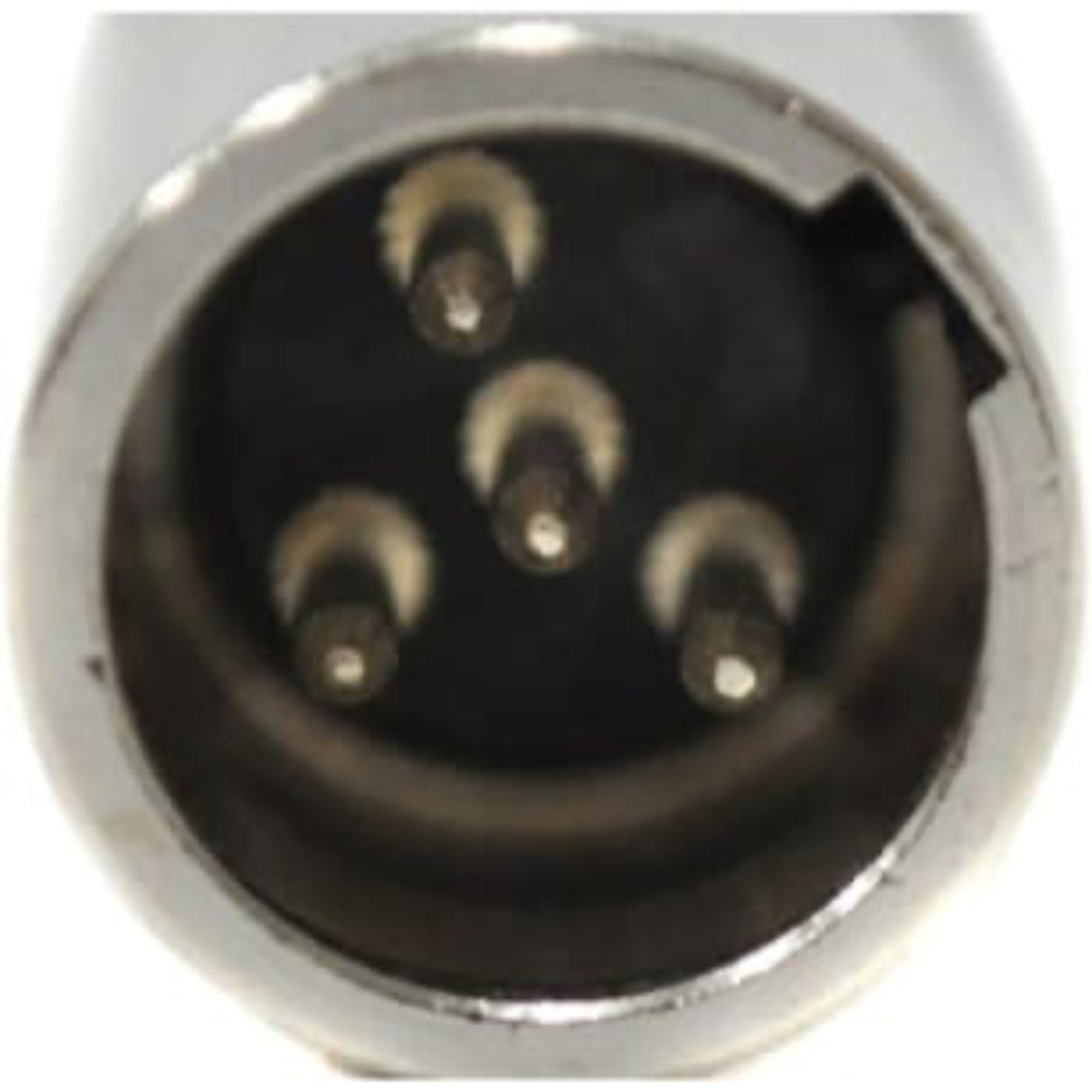

"SCOOP-PROOF" FEATURE - Fully recessed pins on male plugs and receptacles cannot be "scooped", bent or damaged by accidental mismating with mating connector.

COLOR ESCUTCHEONS - Attractive color escutcheons, Series TYEF, are recommended for use with Series TY(*)F and TY(*)FPC receptacles (when rear mounted) for attractive panel trim, as well as color coding one or more connectors. Colors are: red, black, gray, green, blue, white and yellow.

• Configuration
• Number of Conductors: 4
• Product Line: Tini-QG
• Mounting Type: Cord
• Gender: Male
• Contact Size: 24 AWG
• Termination Style: Solder Cup
• Contact Plating: Silver
• Color: Nickel/Black
• Locking: Locking
• Sealed: Sealed
• Handle Material: Thermoplastic
• Packaging Type: Bulk
• Standard Connector Type: Mini-XLR
• Electrical
• Contact Resistance: 0.01 Ohms
• Dielectric Withstanding Voltage: 1000 Volts
• Insulation Resistance: 510000 MOhms
• Voltage Rating: 4000 Volts
• Current Rating: 5 Amps
• Mechanical
• Life Cycle: 5000 Cycles
• Operating Force: 13 lbs
• Coupling Locking Style: Button Latch
• Wire Size: 28 AWG
• Environmental
• Humidity Rating: MIL-STD-202 Method 106D
• Salt Spray: MIL-STD-202 Method 101
• Mechanical Shock: MIL-STD-202 Method 213B
• Vibration: MIL-STD-202 Method 201A
• Maxiumum Temperature: 85 C
• Compliance
• RoHS Compliant: Compliant
• REACH Compliant: Compliant
• Brand: Switchcraft
• Dimensional
• Cable Opening: 0.13 in
• Material
• Body Material: Zinc
• Body Plating: Nickel
• Contact Material: Copper Alloy
• Contact Plating Type: Silver
• Insert Material Type: Thermoplastic
• Terminal Material: Steel
